15 lb. Drain-Free Built-In Icemaker (Panel Not Included) - BIM26IFLHD

SummitSummit brand logo

15 lb. Drain-Free Built-In Icemaker (Panel Not Included)

Model: BIM26IFLHD

15 lb. Drain-Free Built-In Icemaker (Panel Not Included) BIM26IFLHD15 lb. Drain-Free Built-In Icemaker (Panel Not Included) BIM26IFLHD15 lb. Drain-Free Built-In Icemaker (Panel Not Included) BIM26IFLHD15 lb. Drain-Free Built-In Icemaker (Panel Not Included) BIM26IFLHD15 lb. Drain-Free Built-In Icemaker (Panel Not Included) BIM26IFLHD
15 lb. Drain-Free Built-In Icemaker (Panel Not Included) BIM26IFLHD
15 lb. Drain-Free Built-In Icemaker (Panel Not Included) BIM26IFLHD
15 lb. Drain-Free Built-In Icemaker (Panel Not Included) BIM26IFLHD
15 lb. Drain-Free Built-In Icemaker (Panel Not Included) BIM26IFLHD
15 lb. Drain-Free Built-In Icemaker (Panel Not Included) BIM26IFLHD

Color : Panel-Ready

product image
Panel-Ready

Key Features

  • No-Drain 15" Wide Icemaker

  • Built-In capable

  • Large capacity

  • Drain-free design

  • Manual defrost

  • Panel-ready door

  • Sealed back

  • Standard water hookup

Read More

Description

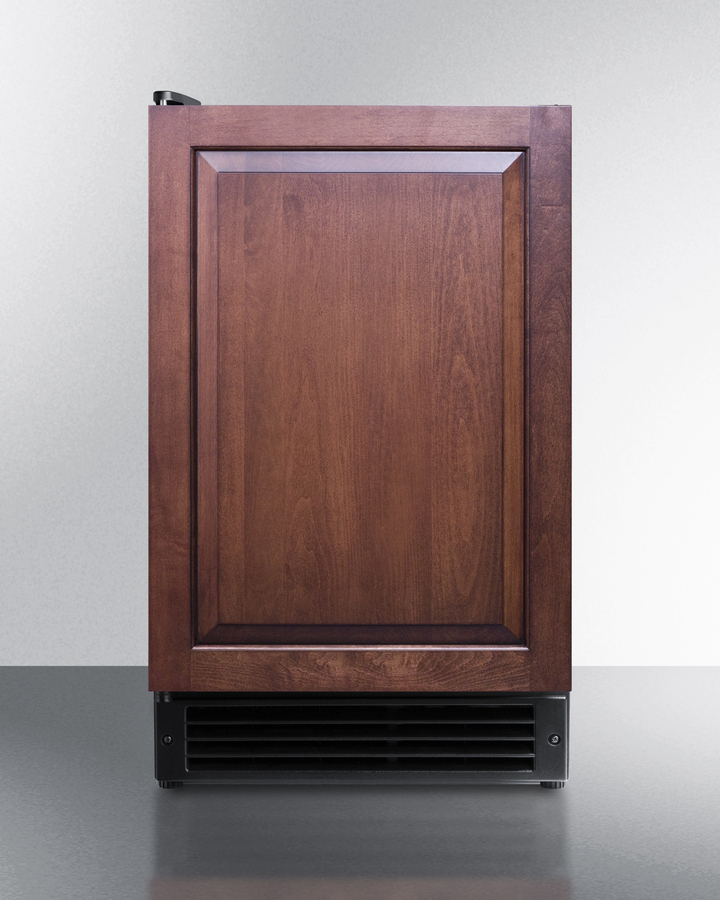

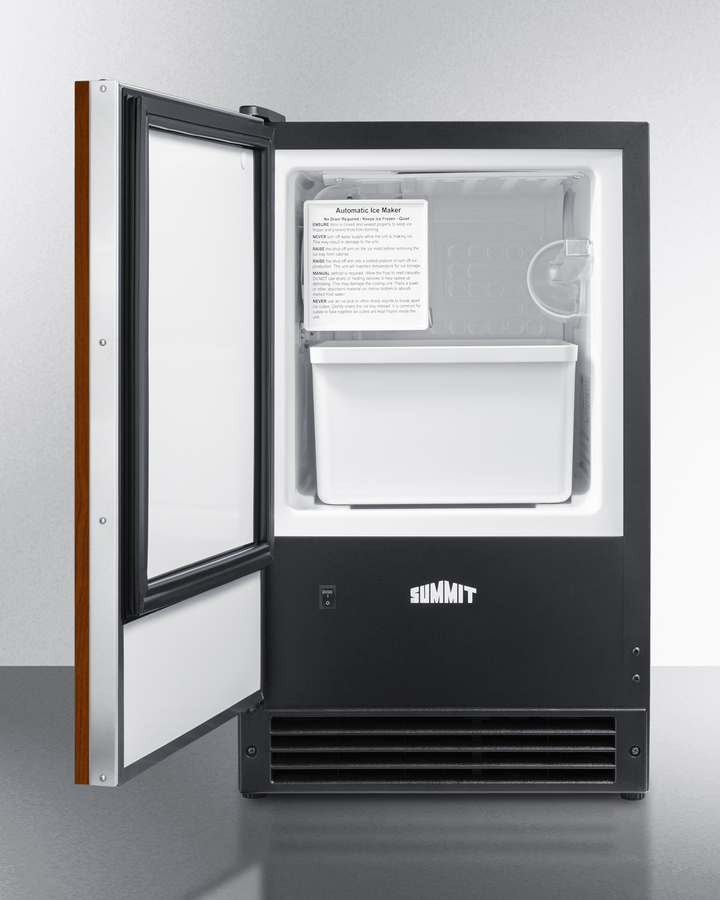

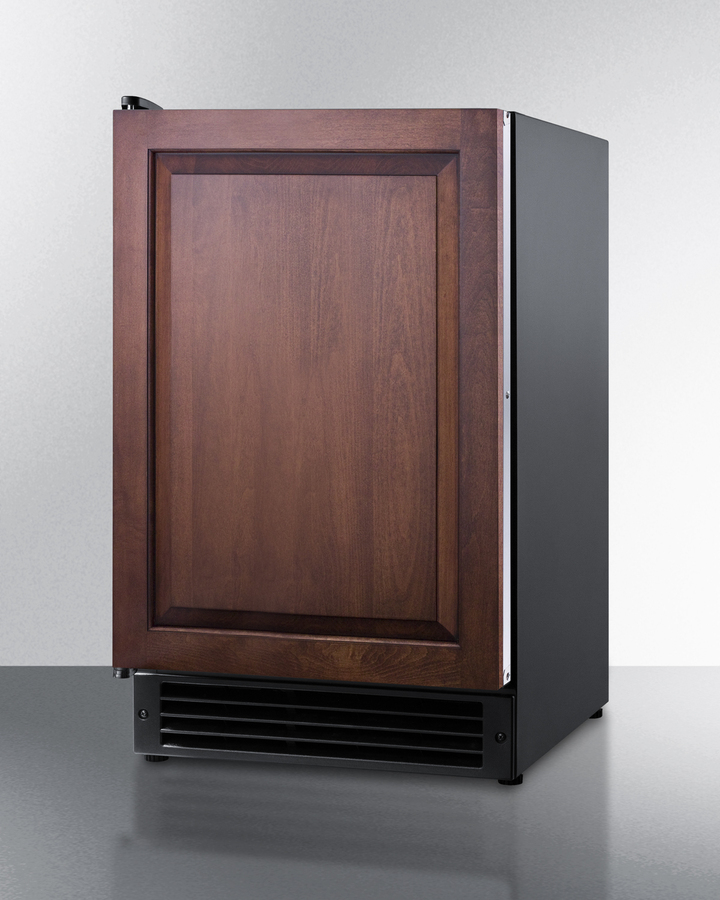

Summit combines convenience and luxury to craft the BIM26IF, a drain-free icemaker with a customizable door front to best complete your space. Sized at just under 15" wide, the BIM26IFLHD features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. Its petite 25" height makes this the optimal unit for use in kitchen islands, home bars, break rooms, RVs, and even boat kitchens. For a custom look, BIM26IFLHD is designed to accept overlay panels (recommended panel size: 20 1/2" H x 14 15/16" W at 3/4" thickness). The door comes with a left hand door swing and integrated stainless steel frame for easy installation that will blend into your space. Customers supply their own handle to match their design. A look inside the BIM26IFLHD shows it can produce 15 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop. With its large capacity, the BIM26 produces 15 lbs of crescent-shaped ice and stores up to 12 lbs. With its stainless steel door, black cabinet, and low maintenance design, the BIM26IFLHD is a great way to finish any undercounter kitchen or home bar space and allows you to maintain an entire supply of ice with less waste. Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.
Read More

Available from Slyman Bros, serving customers throughout Missouri.

Features
Specifications

Features

No-Drain 15" Wide Icemaker

Built-in or undercounter capable icemaker designed for kitchen islands, home bars, break rooms, health offices, RVs, and even boat kitchens.

Built-In capable

Make the best use of space by installing your icemaker under the counter

Large capacity

Produces 15 lbs of crescent-shaped ice and stores up to 12 lbs

Drain-free design

Convenient design allows more flexibility in positioning the unit

Manual defrost

Static cooling system helps to keep ice frozen for longer periods of time compared to other systems

Panel-ready door

Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 20 1/2" H x 14 15/16" H and at least 3/4" thick; maximum weight: 10 lbs.)

Sealed back

Space-saving design with easier cleanability

Standard water hookup

Operates with a standard 1/4” OD water supply line

Ice scoop included

Large ice scoop and holder included for your convenience

Lasting ice cube production

Crescent-shaped ice provides a harder and longer-lasting ice

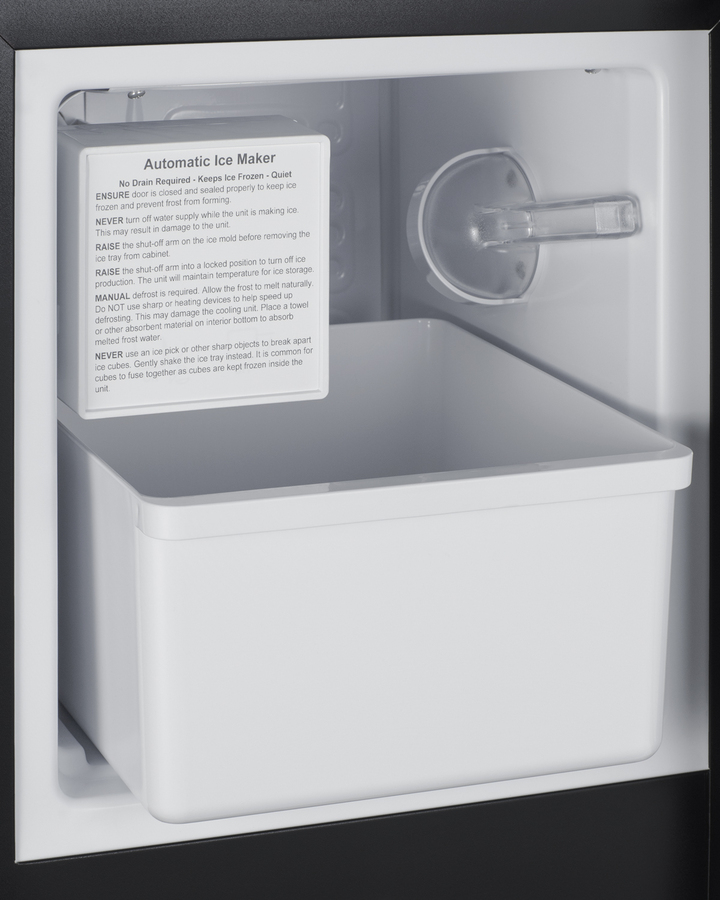

Removable bin

Users can remove the ice bucket for fast and easy cleaning

Insulated storage bin

Ice stays solid longer in this cold-protected bin

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Lead-free certified

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Specifications

Overview Icemaker

Height of Cabinet24.5" (62 cm)
Height to Hinge Cap25.0" (64 cm)
Width14.88" (38 cm)
Width with Door Open15.13" (38 cm)
Depth16.75" (43 cm)
Depth with door at 90°32.25" (82 cm)
Defrost TypeManual
DoorPanel-Ready
CabinetBlack
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Amps1.2
Voltage/Frequency115 V AC/60 Hz
Weight50.0 lbs. (23 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101144818
Door SwingLHD
Height AdjustableNo
Daily Ice Production15.0 lbs. (7 kg)
Ice Storage Capacity12.0 lbs. (5 kg)
Ice ShapeCrescent
Size of Cube7/8" x 7/8" x 2-3/8"
Number of Ice Cube Sizes1
Refrigerant TypeR600a
Refrigerant Amount1.69 oz.
High Side PSI120.0
Low Side PSI55.0
Interior Height12.25" (31 cm)
Interior Width11.0" (28 cm)
Interior Depth12.25" (31 cm)
Level Legs4
