LOSONE SELECT™ Ventilation Fan; 481 CFM Horizontal, 4.4 Sones; 473 CFM Vertical - L500K
LOSONE SELECT™ Ventilation Fan; 481 CFM Horizontal, 4.4 Sones; 473 CFM Vertical
Model: L500K
LOSONE SELECT™ Ventilation Fan; 481 CFM Horizontal, 4.4 Sones; 473 CFM Vertical
Model: L500K
Color : White
Key Features
4.4 Audible Sones for privacy while using your bathroom
Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
Duct horizontally, vertically or in-line with separate adapter
Quiet automatic backdraft dampers
Not for use over tub or shower
Suitable for kitchens
Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)
UL listed and cUL listed for your safety and protection
Available from Slyman Bros, serving customers throughout Missouri.
Features
4.4 Audible Sones for privacy while using your bathroom
Includes 8-way adjustable mounting brackets for easy ceiling-mount installation
Duct horizontally, vertically or in-line with separate adapter
Quiet automatic backdraft dampers
Not for use over tub or shower
Suitable for kitchens
Model 80L Variable Speed Control adjusts blower speed and sound level (available separately)
UL listed and cUL listed for your safety and protection
AMCA licensed for air and sound performance
Powerful enough for rooms up to () sq. ft.
Heavy-gauge galvanized steel housing resists corrosion
481 CFM, Whole home or Commercial Ventilation
Two impact-resistant centrifugal blower wheels
Specifications
Product Details
| CFM | 481 |
| ENERGY STAR® certified | No |
| Grille Length | 14 |
| Grille Width | 23.25 |

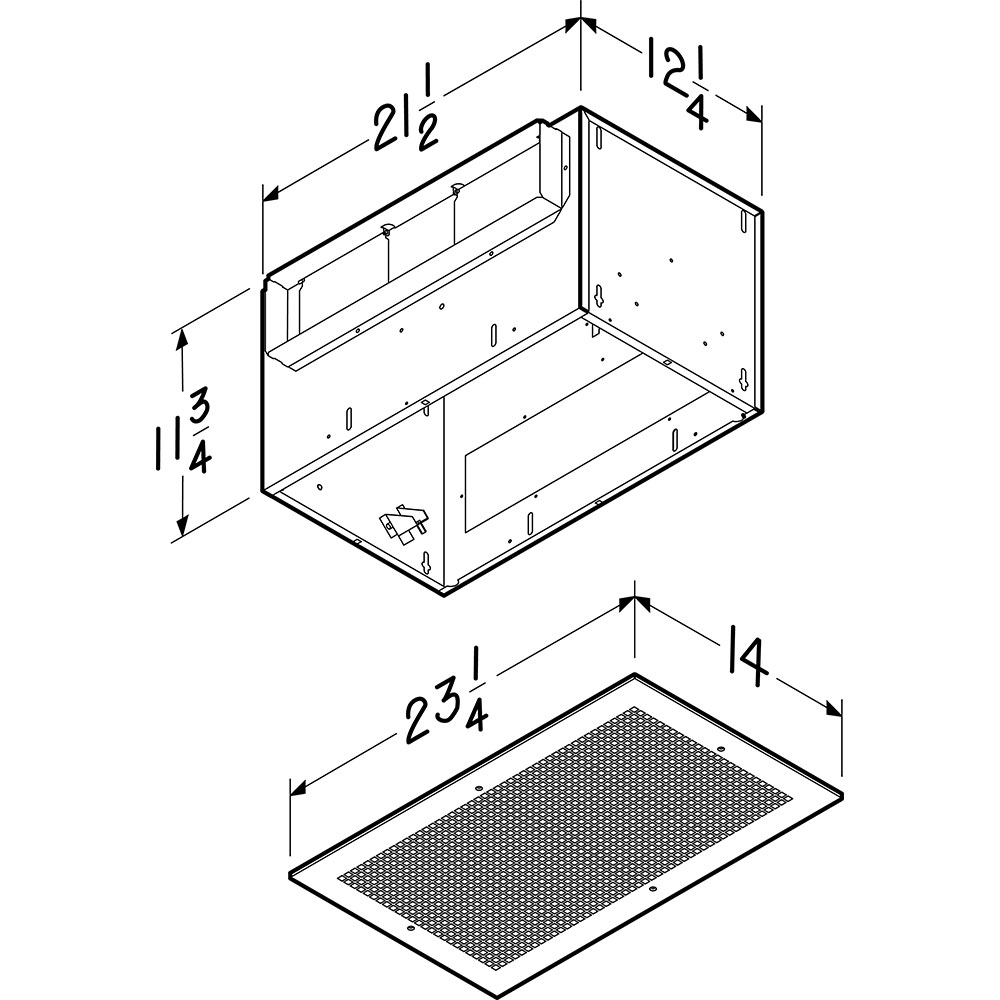

| Housing Dimensions | 12-1/4" x 21-1/2" x 11-3/4" |
| Sound Level (Sones) | 4.4 |
| UL Listed | Yes |
| Grille Finish | White |
| Humidity Sensing | No |
| Motion Sensing | No |
| Motor Engineered For Continuous Operation | Yes |
| Night Light | No |
| Radiation Damper Available | No |
| Room Side Installation | No |
| UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
| Heater Wattage | 0 |
| Rated Amps | 2.2 |
| Voltage | 120 |
| Can Be Used To Comply With Title 24 | No |
| Manufacturer Warranty | 1 Year |
| High Efficiency Luminaire | No |
Dimensions & Weight
| Width | 23.25 in. |
| Height | 12.25 in. |
| Length | 11.75 in. |
| Weight | - |
| Housing Dimensions | 12-1/4" x 21-1/2" x 11-3/4" |
| Housing Dimensions | 12-1/4" x 21-1/2" x 11-3/4" |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.25 in. |
| Shipping Height | 17.25 in. |
| Shipping Length | 16.75 in. |
| Shipping Weight | - |
| Total of Shipping Weight | - |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 1.94 ft³ |
| Dimensional Weight | 24.08 lbs. |
| Total of Cubes | 1.94 ft³ |
| Total of Dimensional Weight | 24.08 lbs. |
