Name: 12" Wide 230V 2-Burner Coil Cooktop
Brand: Summit
SKU: CCE225WH
Price: 375.00 USD
Availability: BackOrder

12" Wide 230V 2-Burner Coil Cooktop

Model : #CCE225WH

$375.00

12" Wide 230V 2-Burner Coil Cooktop

Model: CCE225WH

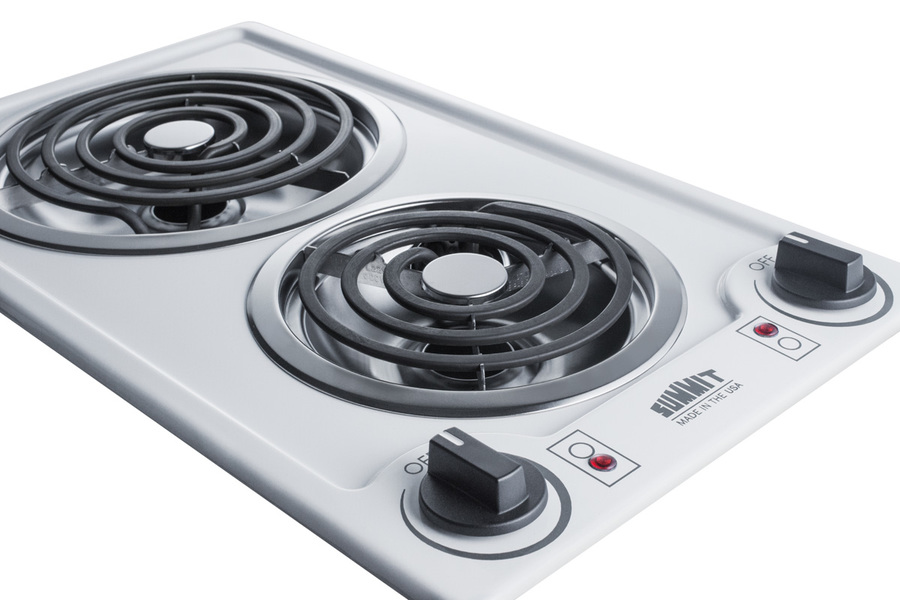

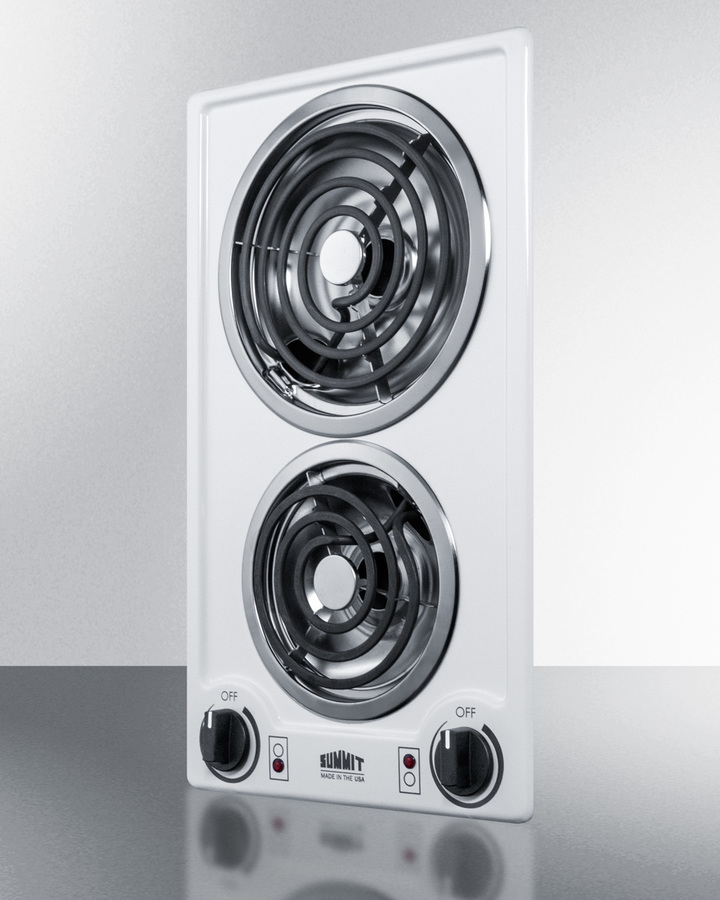

12" Wide 230V 2-Burner Coil Cooktop

Model: CCE225WH

$375.00

Color : White

Key Features

Porcelain surface
Made in the USA
White exterior
8" rear element
6" front element
Recessed top
Push-to-turn controls
Indicator lights

Description

Summit offers an extensive selection of slim-fitting cooktops designed and manufactured in the USA. The CCE225WH is a 240V cooktop with a porcelain surface in a classic white finish. Two coil elements (6" 675W in front and 8" 950W in rear) offer durable heating that holds up to everyday use. Designed to meet the most recent UL safety standards, the elements operate at low wattage, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. Upfront push-to-turn knobs are simple and intuitive, with indicator lights that show which burner is in use for added safety. The recessed design helps to contain spills for a cleaner cooking experience. This cooktop is designed to fit common 11 1/8" W x 19 1/8" D counter cutouts. This unit does not ship with a power cord and must be hard-wired by a professional. Additional choices are available in 115V, as well as black and stainless steel. Browse our website for our complete selection of slim-fitting cooking appliances.

Documents

USE & CARE

View | Download

PDF, 217.04 KB

Available from Slyman Bros, serving customers throughout Missouri.

Features

Specifications

Features

Porcelain surface

Scratch-resistant design for lasting durability

Made in the USA

Designed and constructed domestically

White exterior

Classic design in a clean white finish to match any kitchen

8" rear element

Larger element is ideal for heating wider pots and pans

6" front element

Standard burner accommodates most heating needs

Recessed top

Curved design helps to contain spills on the surface

Push-to-turn controls

Knobs require a small amount of force for added safety

Indicator lights

Upfront lights illuminate to show which burners are in use

ADA compliant design

Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines

220-240V operation

Requires a 15 amp circuit

Professional installation required

Designed for hard-wired installation (cord not included)

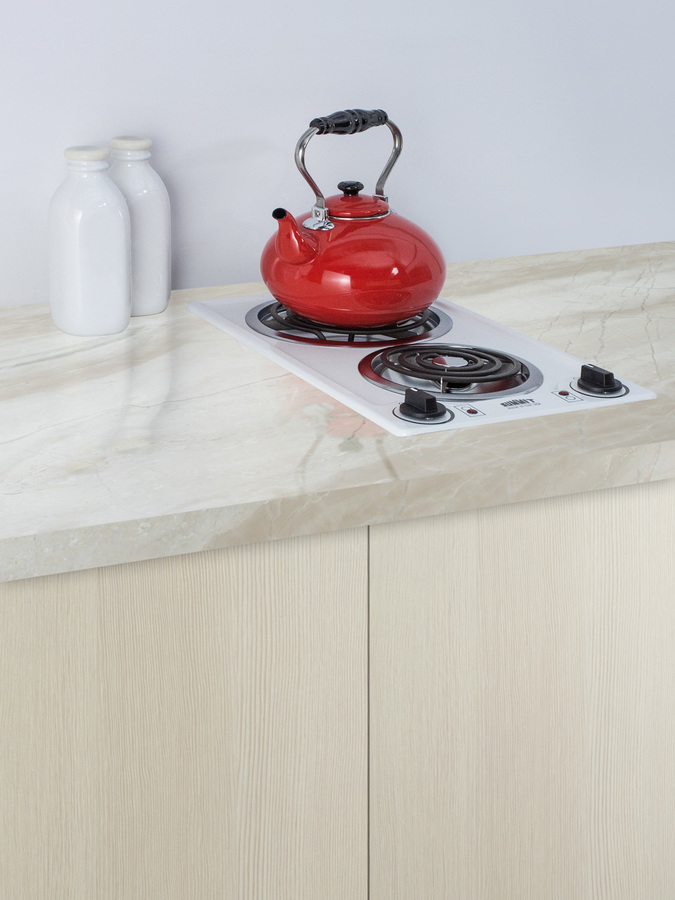

Fits popular cutout size

Designed for 11 1/8" W x 19 1/8" D cutouts for an easy fit in smaller kitchens

Coil elements

Traditional design offers reliable heating and strong durability for everyday cooking

Safety elements with low wattage outputs

Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off

Chrome drip bowls

Removable drip pans for easier cleanup

Specifications

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & Weight

Width	12 in.
Height	3.25 in.
Length	19.75 in.
Weight	14 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement	0.45 ft³
Dimensional Weight	4.64 lbs.
Total of Cubes	0.45 ft³
Total of Dimensional Weight	4.64 lbs.

Overview Electric Cooktop

Nominal Height	3.25" (8 cm)
Height of Cabinet	3.25" (8 cm)
Nominal Width	12.0" (30 cm)
Width	12.0" (30 cm)
Nominal Depth	20.0" (51 cm)
Depth	19.75" (50 cm)
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	7.0
Voltage/Frequency	230 V AC/60 Hz
Weight	14.0 lbs. (6 kg)
Parts & Labor Warranty	1 Year
UPC	761101060804
Surface	Porcelain
Element Type	Coils
Number of Elements	2
Controls	Dial
Countertop Cutout Height	5.0" (13 cm)
Countertop Cutout Width	11.13" (28 cm)
Countertop Cutout Depth	19.13" (49 cm)
Power Source	230V
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	675.0
Element #2 Size	8.0" (20 cm)
Element #2 Wattage	950.0
Power Cord Included	No
