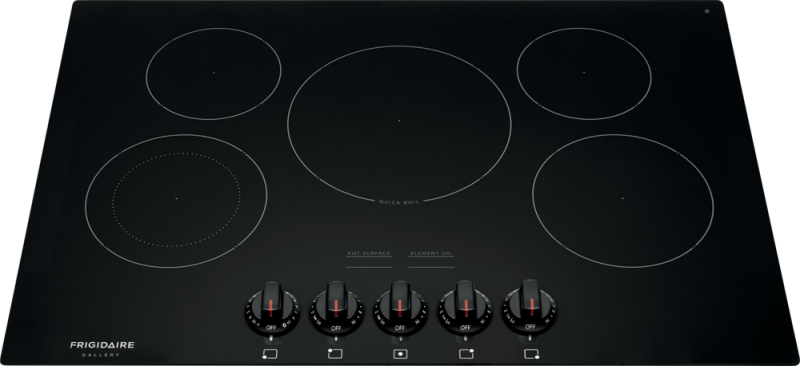

30" Electric Cooktop - FGEC3068UB
30" Electric Cooktop
Model: FGEC3068UB
30" Electric Cooktop
Model: FGEC3068UB
Color : Black
Key Features
Fits-More™ Cooktop
Get Cooking Faster with Quick Boil
SpaceWise® Expandable Elements
Frigidaire® Fit Promise
Easy to Use Front Controls
Express-Select® Controls
Ceramic Glass Cooktop
Hot Surface Indicators
Available from Slyman Bros, serving customers throughout Missouri.
Features
Fits-More™ Cooktop
The Fits-More™ cooktop features five elements - allowing you to cook more at once.
Get Cooking Faster with Quick Boil
Our powerful 3,200 watt element allows you to boil water in less than three minutes.
SpaceWise® Expandable Elements
Flexible elements expand to your cooking needs.
Frigidaire® Fit Promise
We promise that your new 30" or 36" Frigidaire Gallery® brand cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
Easy to Use Front Controls
Controls located on the front of the cooktop allows you to adjust the temperature without reaching over hot items.
Express-Select® Controls
Easily go from warm to boil.
Ceramic Glass Cooktop
For a more beautiful cooktop that’s easy to clean.
Hot Surface Indicators
Light on your cooktop informs you when the surface is hot.
Approved Over Frigidaire® Electric Wall Ovens
Cooktops are approved for installation above any of our Single Electric Wall Ovens.
Certifications
ADA Compliant
UL Listed
Specifications
Other
| Frigidaire Fit Promise | Yes |
| Prop 65 Label | No |
| Warranty - Labor | 1 Year |
Controls
| Sabbath Mode | No |
Certifications and Approvals
| ADA Compliant | Yes |
| UL Listed | Yes |
Cooktop
| Cooking Surface Type | Smooth |
| Hot-Surface Indicator Light | Yes |
Cooktop Performance
| Right Front Element Burner Size | 7" |
| Right Rear Element Burner Size | 6" |
| Left Front Element Burner Size (Small) | 5" |
| Left Front Element Burner Size (Large) | 7" |
| Left Rear Element Burner Size | 6" |
| Center Rear Element Burner Size | 9" |
| Right Front Element Burner | 1800 Watts |
| Right Rear Element Burner | 1200 Watts |
| Left Front Element Burner (Small) | 750 Watts |
| Left Front Element Burner (Large) | 1800 Watts |
| Left Rear Element Burner | 1200 Watts |
| Center Rear Element Burner | 3200 Watts |
Electrical Specifications
| Amps @ 240 Volts | 38.3 Amps |
| Connected Load @ 240V | 9.2 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
Installation
| Installed Over a Wall Oven | Yes |
| Power Supply Connection Location | Right Center |
Display
| Display Type | Mechanical |
Dimensions & Weight
| Width | 30 in. |
| Height | 2 in. |
| Length | 21 in. |
| Weight | 61.75 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 7 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 101.75 lbs. |
| Total of Shipping Weight | 101.75 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.73 ft³ |
| Dimensional Weight | 7.59 lbs. |
| Total of Cubes | 0.73 ft³ |
| Total of Dimensional Weight | 7.59 lbs. |
