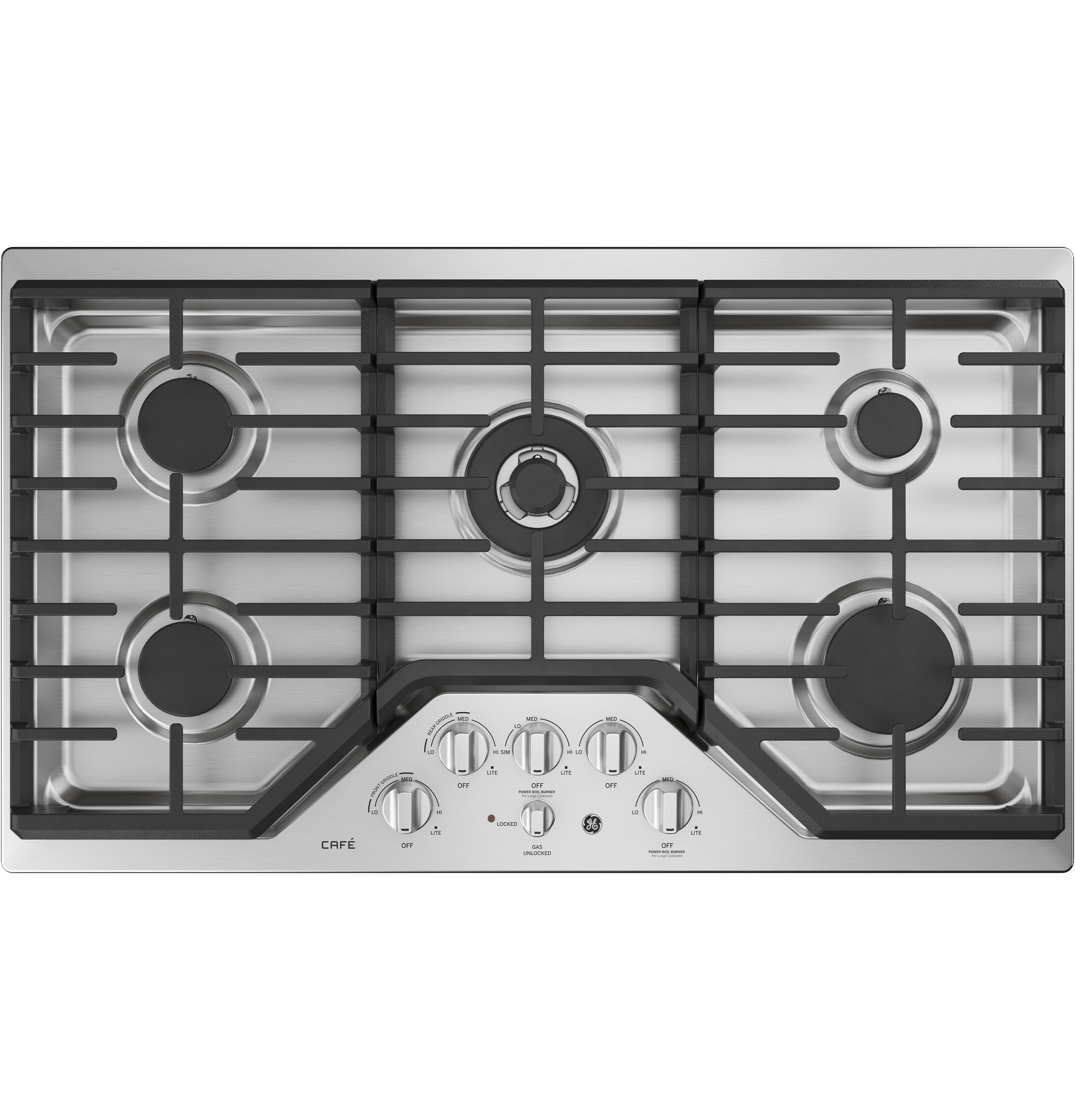

GE Series 36" Built-In Gas Cooktop - CGP9536SLSS
GE Series 36" Built-In Gas Cooktop
Model: CGP9536SLSS
Product Video
GE Series 36" Built-In Gas Cooktop
Model: CGP9536SLSS
Color : Stainless Steel
Replaced By
Key Features
20,000 BTU tri-ring burner
Precise Simmer burner
Maximize Your Cooking Space
Sealed cooktop burners
Control Lock Capability
Dishwasher-Safe Grates
Fit Guarantee
White LED backlit heavy-duty knobs
Available from Slyman Bros, serving customers throughout Missouri.
Features

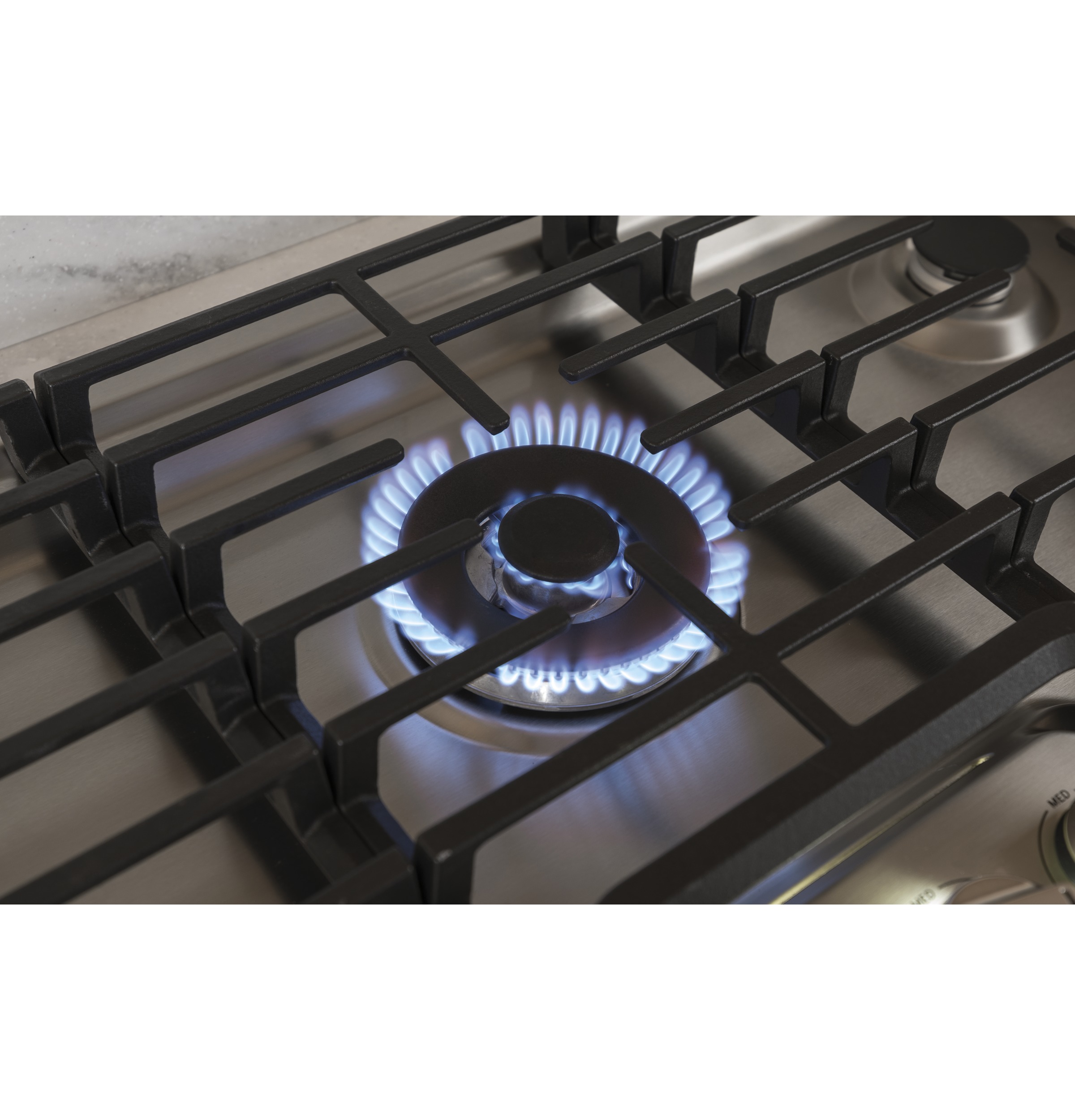

20,000 BTU tri-ring burner
Versatile burner creates intense heat perfect for searing, frying and sautéing

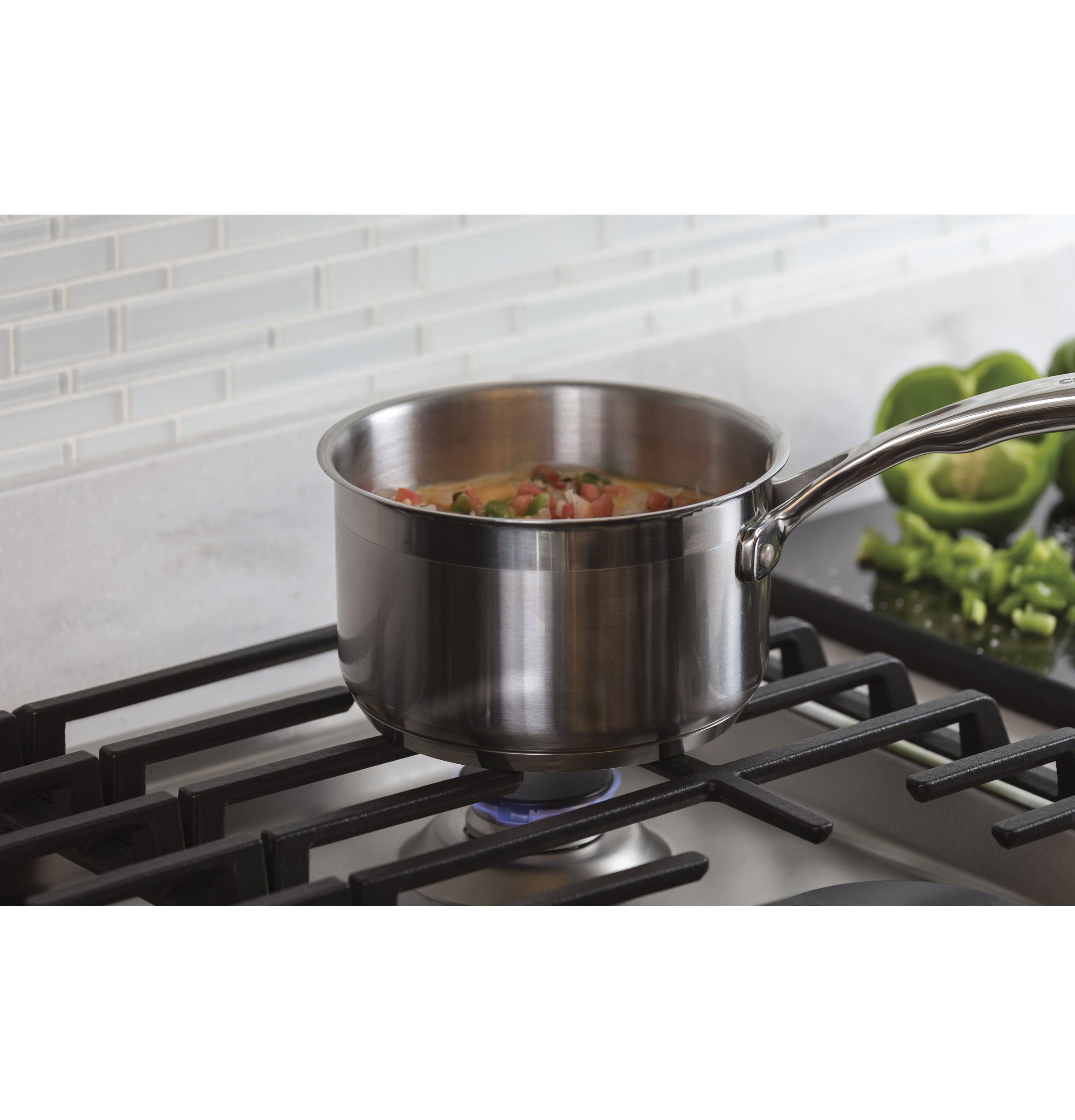

Precise Simmer burner
Delicate foods don’t burn with low, even heat

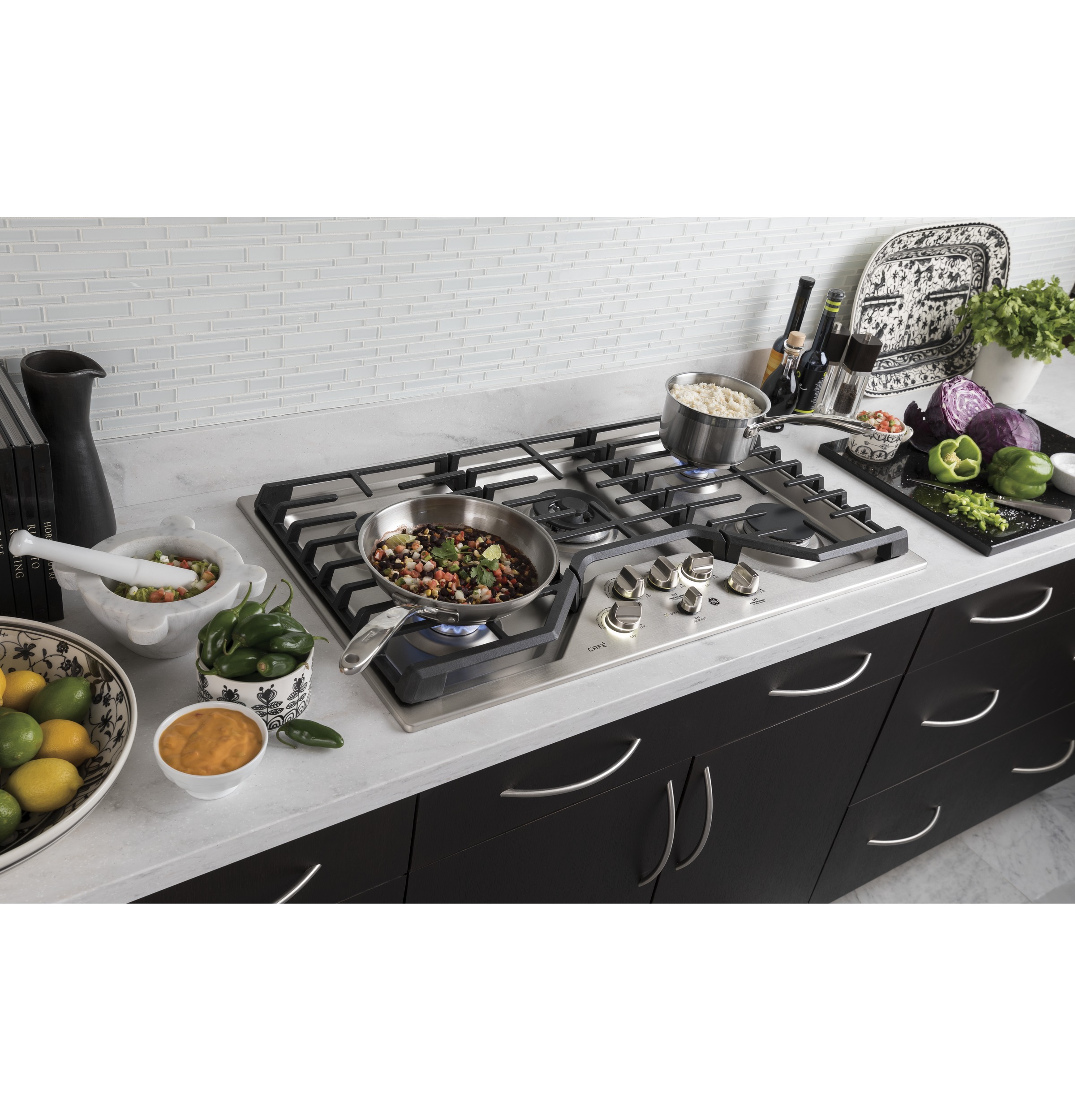

Maximize Your Cooking Space
Continuous cast iron grates provide more room for large cookware

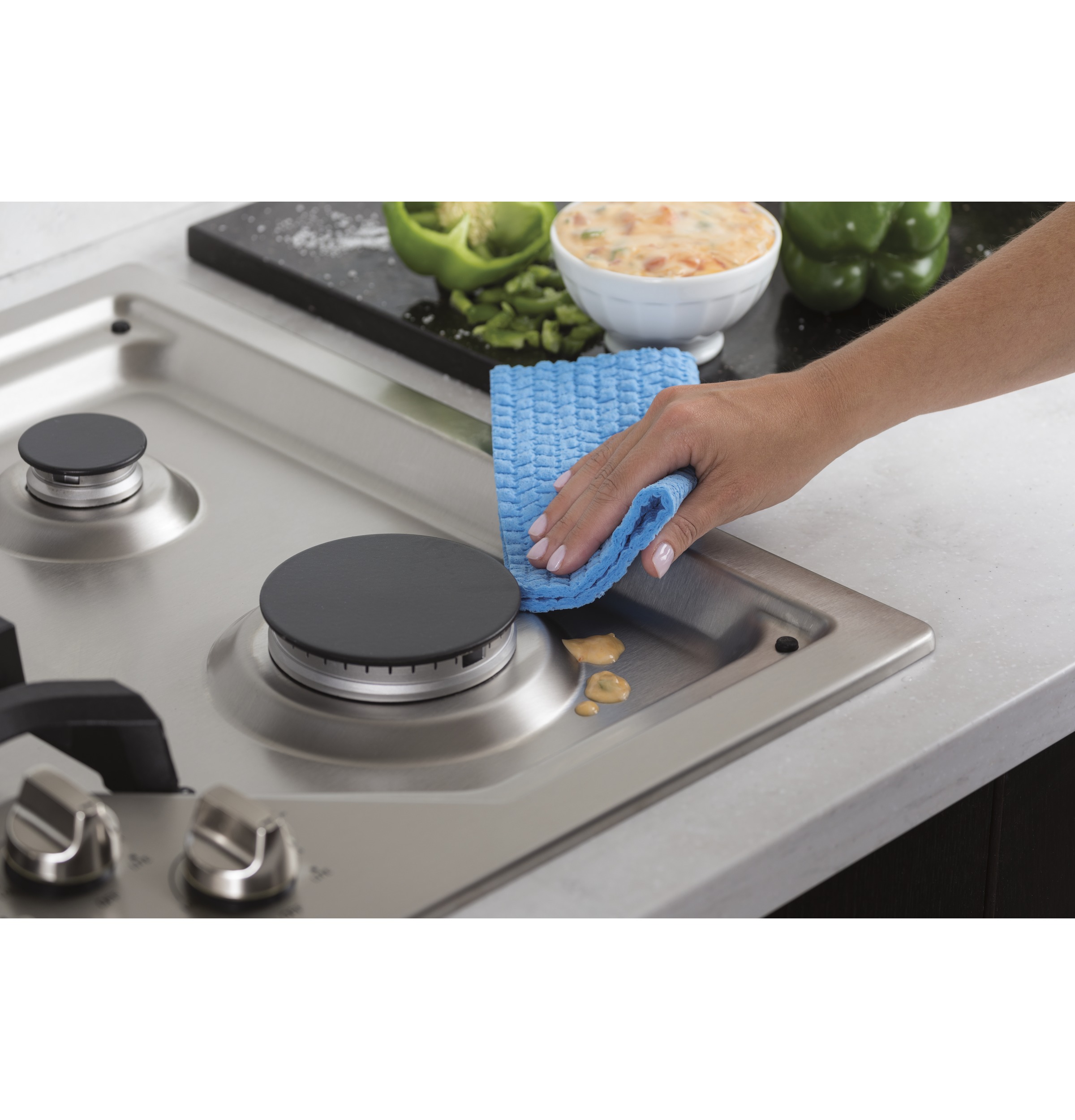

Sealed cooktop burners
Contains spills and make cleaning quick and easy
Control Lock Capability
Protects against unintended activation
Dishwasher-Safe Grates
Heavy-duty grates are easy to clean in the dishwasher

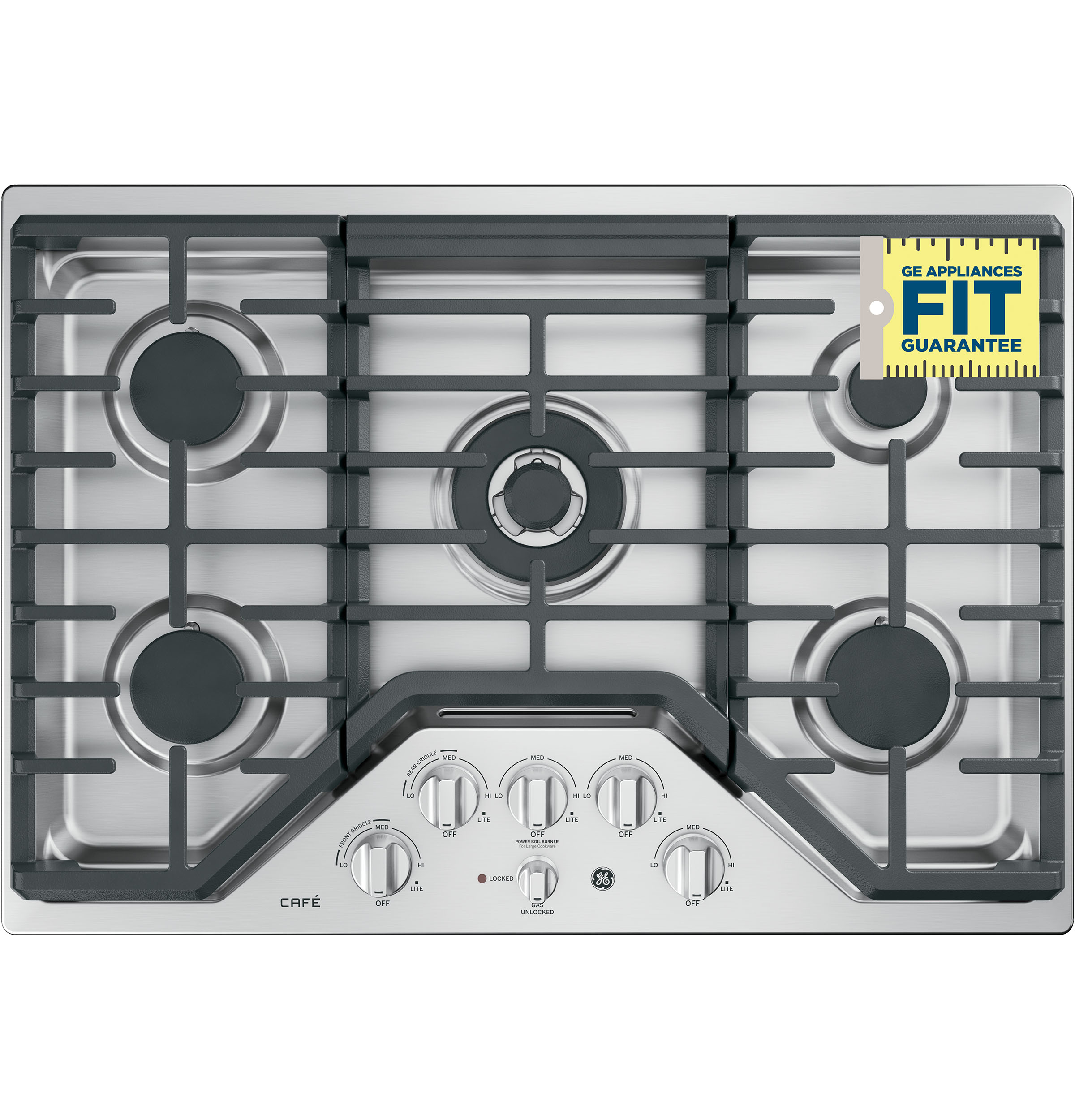

Fit Guarantee
Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details

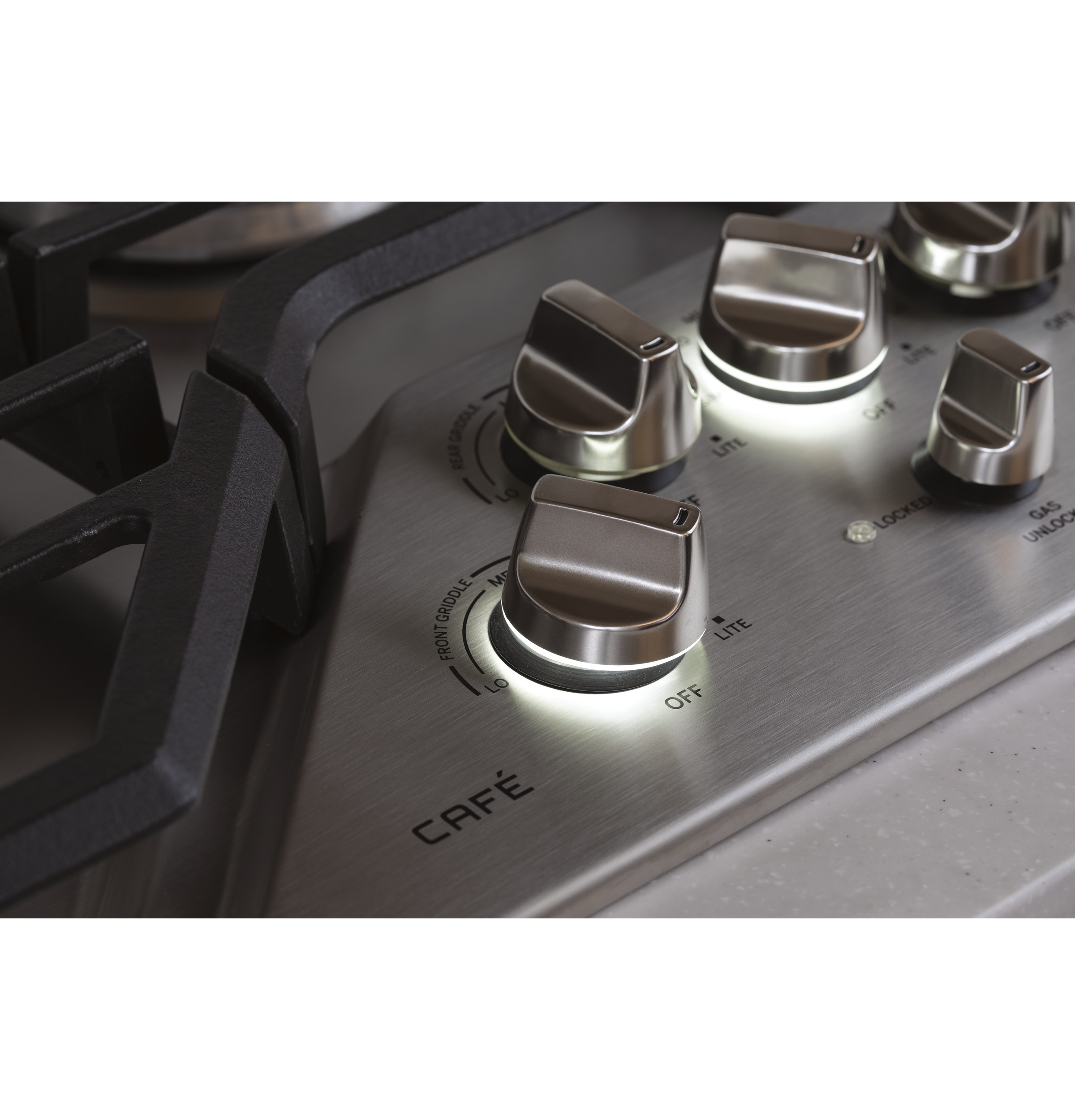

White LED backlit heavy-duty knobs
Durable knobs are back-lit with white LED lighting that lend a sleek appearance and let you know if burners are on

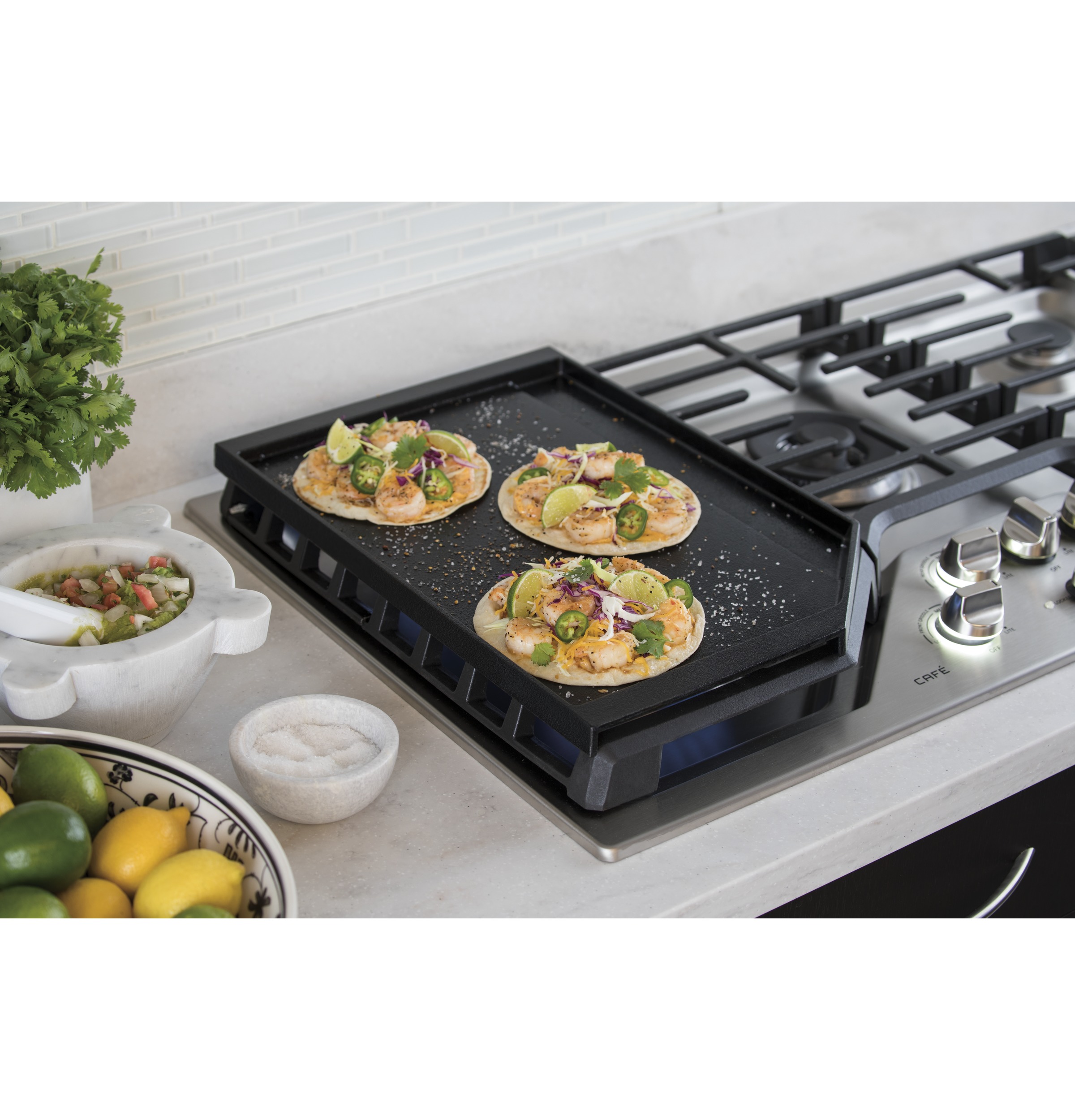

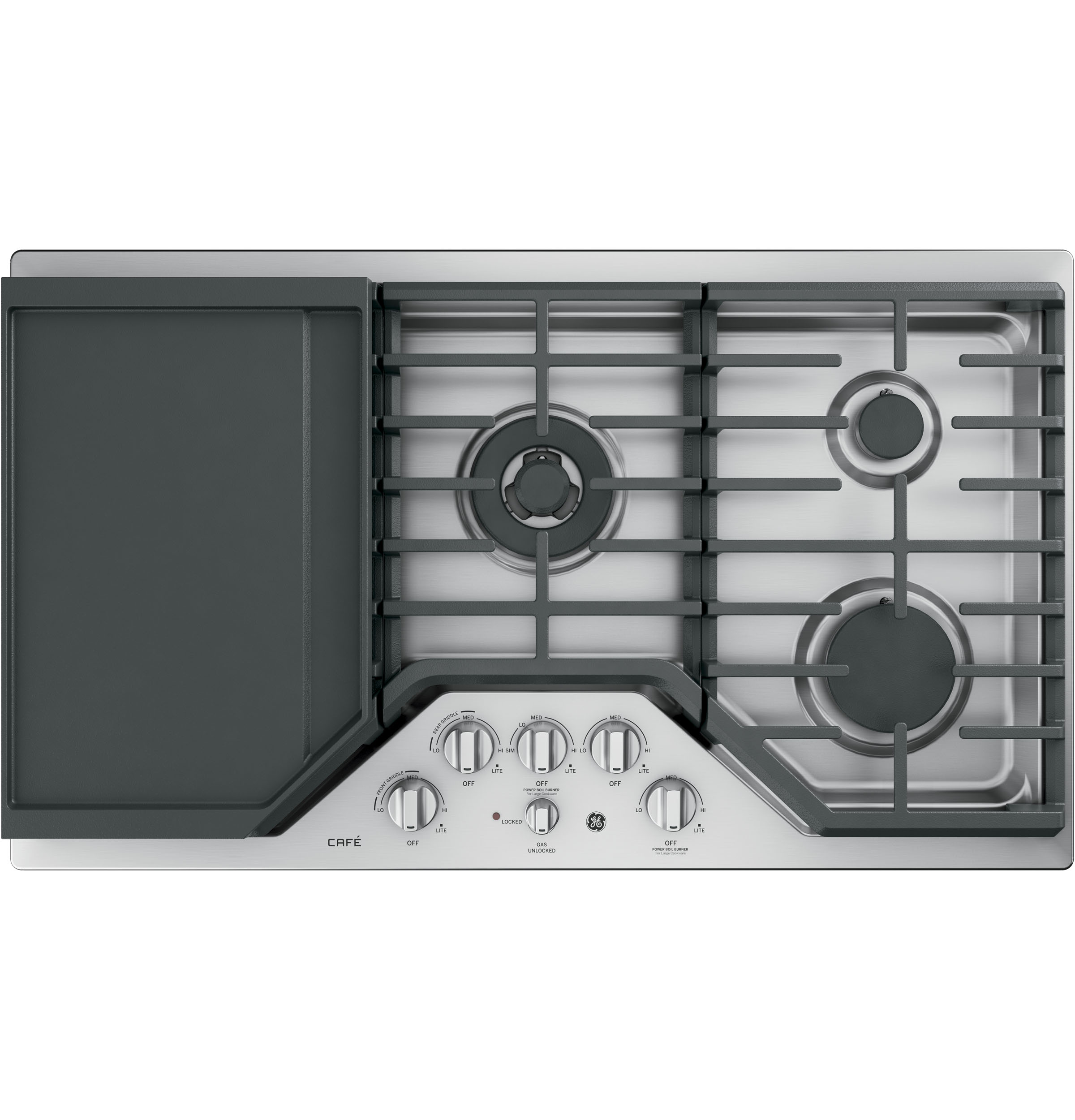

Extra-large, integrated cooktop griddle
Eliminate the need for extra cookware and enjoy a built-in cooking surface for pancakes, grilled cheeses and other favorites
Certifications
ADA Compliant
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Depth | 21 in |
| Cabinet Width | 36 in |
| Approximate Shipping Weight | 57 lb |
| Overall Width | 36 in |
| Net Weight | 51 lb |
| Cutout Width (in) | 33.875 |
| Cutout Depth (in) | 19.125 |
| Overall Height | 5 1/2 in |
FEATURES
| Cooktop Burner Type | 5 Sealed |
| Valves (Degree of Turn) | 270 |
| Burner - Right Rear | 5,000 BTU |
| Burner - Right Front | 15,000 BTU Power Boil |
| Fuel Type | Natural Gas |
| Control Location | Front Center |
| Ignition System | Electronic |
| Burner - Center | 20,000 BTU Tri-ring Power Boil |
| Cooktop Surface | Deep Stainless Steel |
| Cooktop Control Features | Child Lock |
| Burner - Left Rear | 9,500 BTU |
| Control Type | Knob |
| Cooktop Burner Grate Material | Heavy Cast |
| Cooktop Burner Grate Features | Edge-to-Edge Grates |
| Griddle | JXGRIDL236 (Included) |
| Burner - Left Front | 9,500 BTU |
| Cooktop Burner Grate Features | Dishwasher Safe |
| Griddle | Included |
| Cooktop Burner Grate Features | Continuous Grates |
| Griddle | Cast Iron |
POWER / RATINGS
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 18.0; (1) 15.0; (2) 9.5; (1) 5.0 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 20.0; (1) 15.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 1-year entire appliance |
ACCESSORIES
| LP Conversion Kit | Included |
| Stainless Steel Cleaner | Included |
| Griddle Accessory | JXGRIDL236 |
APPEARANCE
| Color Appearance | Stainless Steel |
| Cooktop Burner Grate Color | Matte Black |
| Control Knobs | White LED Backlit |
| Control Knobs | Stainless Steel Appearance |
| Control Knobs | Dishwasher Safe |
Dimensions & Weight
| Width | 36 in. |
| Height | 5.5 in. |
| Length | 21 in. |
| Weight | 51 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 41 in. |
| Shipping Height | 10.5 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 57 lbs. |
| Total of Shipping Weight | 57 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 2.41 ft³ |
| Dimensional Weight | 29.91 lbs. |
| Total of Cubes | 2.41 ft³ |
| Total of Dimensional Weight | 29.91 lbs. |
