24" Single Wall Oven with True Convection - KOSC504ESS
24" Single Wall Oven with True Convection
Model: KOSC504ESS






24" Single Wall Oven with True Convection
Model: KOSC504ESS
Replaced By
24" Smart Single Wall Oven With True Convection
Model: KOSC504PPS

$2,647.00
Was$2,949.00Save $302.00 (10%)
Key Features
True Convection Oven
EasyConvect Conversion System
Even-Heat Preheat
Broil Element
Baking Stone
Electronic Controls with Control Lock Function
3.1 Cu. Ft. Capacity
Self Cleaning Cycle
Description
Available from Slyman Bros, serving customers throughout Missouri.
Features
True Convection Oven
Features a heating element hidden behind a baffle that helps provide more even temperature management. The fan draws air in, past the heating element, and back into the oven.
EasyConvect Conversion System
Takes the guesswork out of convection cooking by ensuring exceptional results when experimenting with new recipes or familiar favorites.
Even-Heat Preheat
Helps remove cold spots to help ensure even baking because the entire oven, including the walls and racks, are heated to the correct temperature.
Broil Element
Combines the high power and even coverage needed to achieve results similar to outdoor grilling results.

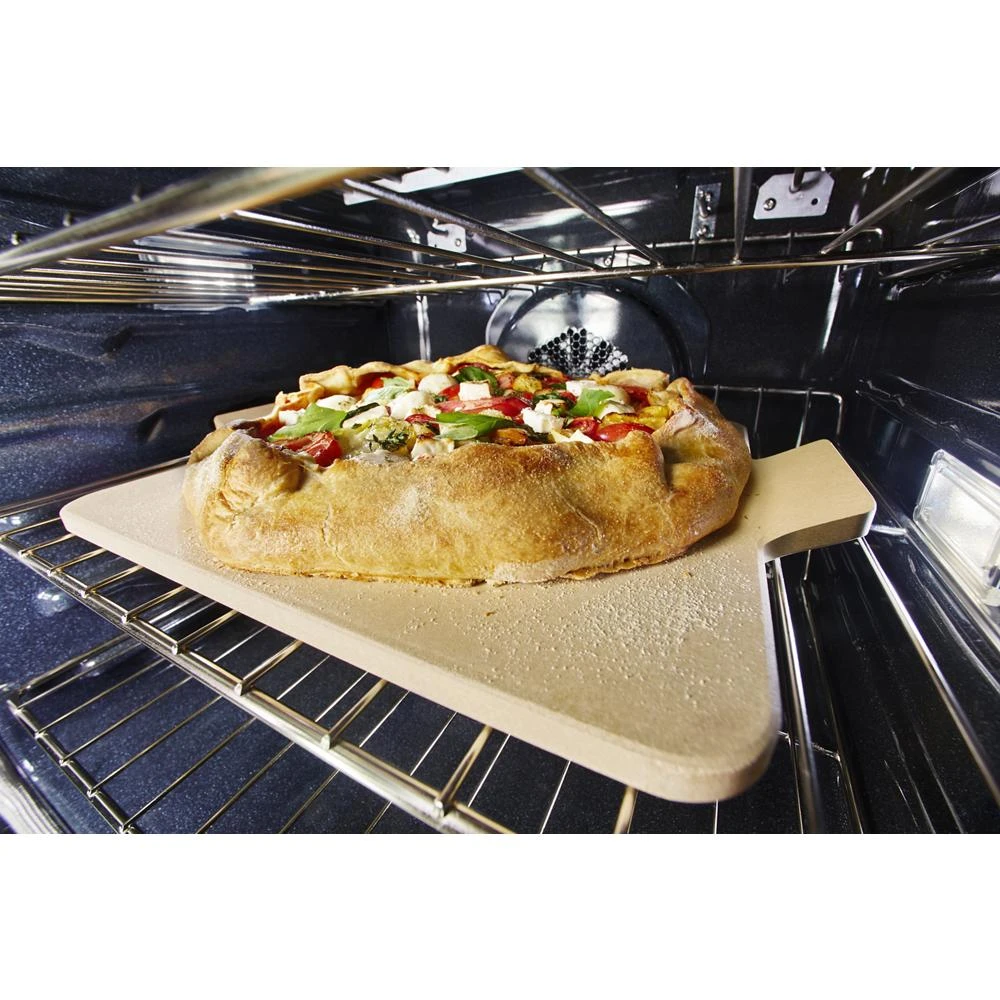

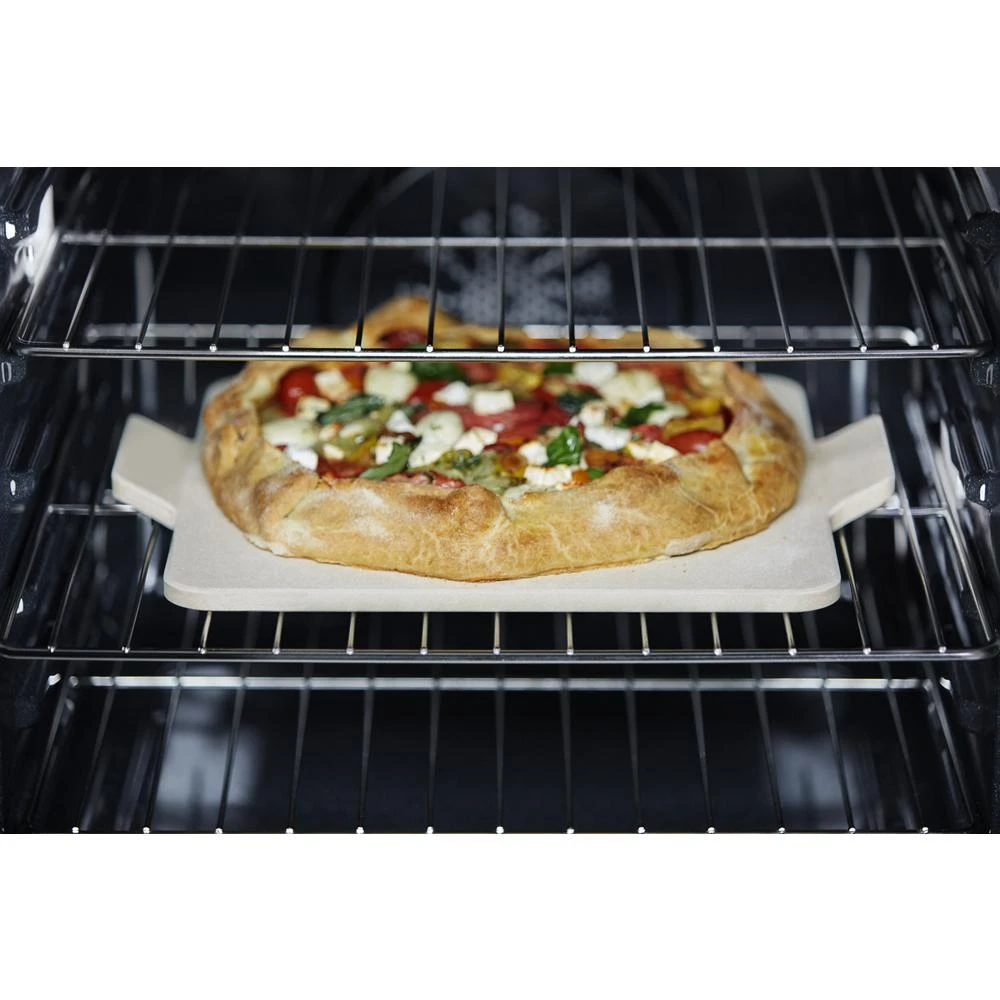

Baking Stone
offers a 13" square surface ideal for cooking pizza with a crispy pizzeria-style crust as well as breads, cookies, pastries and other baked goods. Heat is distributed evenly across its surface to maintain a consistent temperature and its flat surface releases food quickly and easily.
Electronic Controls with Control Lock Function
Makes the oven easy to use. The intuitive left-to-right display makes it easy to control all oven functions and includes a control lock function that makes it easy to clean and prevents unwanted operation.
3.1 Cu. Ft. Capacity
The spacious capacity simultaneously accommodates multiple dishes.
Self Cleaning Cycle
Uses high temperature to power through soils in the oven cavity, requiring only a quick wipe down at the end of the cycle.
Specifications
Description
| Fuel Type | Electric |
| Oven Type | Single |
| Size (in.) | 24 |
| Cooktop Combinations | KCES550, KCES556, KCES950, KCES956, KCGS350, KCGS356, KCGS550, KCGS556, KCGS950, KCGS956, KECC604, KECC607, KECC664, KECC667, KGCC506, KGCC566, KICU509, KICU569 |
Exterior
| Door Removable | Yes |
| Door Type | Metal & Glass |
| Flush Installation Approved | No |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Oven Window Size | Large |
Features
| Oven Selections | Clock, Control Lock, Delay Start, Proofing, Sabbath Mode, Sensor Bake, Star K, Temperature-Sensor Baking, Time Bake, Timer |
| Language Conversion | English/French |
| LP Convertible | No |
| Temperature Conversion | Yes |
Controls
| Control Type | Electronic Touch |
| Display Color | White |
| Electronic Display Type | Digital |
Details
| Oven Automatic Shut-Off | Yes |
| Oven Capacity (cu.ft) | 3.1 |
| Bake Element Power | 2, 000 W |
| Hidden Bake Element | Yes |
| Broiler Element Power | 3, 600 W |
| Broiler Location | Top of Oven |
| Door Broil Position | Closed |
| Convection Element Power (watts) | 1, 600 |
| Convection Element Type | True |
| Convection Functions | Bake, Broil, Roast |
| Interior Coating | Porcelain |
| Interior Color | Grey |
| Light Type | Halogen |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 3 |
| Number of Rack Guides | 5 |
| Oven Rack 1 Type | Standard |
| Oven Rack 2 Type | Standard |
| Oven Rack 3 Type | Standard |
| Oven Interior Depth(IN,inches) | 17.625 |
| Oven Interior Height(IN,inches) | 16.000 |
| Oven Interior Width(IN,inches) | 19.000 |
| Oven Cleaning Type | Self-Cleaning |
| Self-Cleaning Oven Racks | No |
| Oven Cooking System | Convection |
| Style | Wall Ovens |
Certifications
| CUL | Yes |
| Prop 65 | Standard |
| UL | Yes |
| ADA Compliant | No |
| Energy Rating (kWh/year) | 342 |
Electrical
| Amps | 30 |
| Volts | 240 |
Specifications
| Accessory Relationships | Yes |
| EasyConvect™ Conversion | EasyConvect™ Conversion |
| Even-Heat™ Preheat | Even-Heat™ Preheat |
| Even-Heat™ True Convection | Even-Heat™ True Convection |
| FIT System | FIT System |
| Self Clean | Self Clean |
Configuration
| Oven Configuration | Single Oven |
Other
| Capacity (Cu Ft) | 3.10 |
Dimensions & Weight
| Width | 23.75 in. |
| Height | 29 in. |
| Length | 25.75 in. |
| Weight | 141 lbs. |
| Carton Depth | 30 |
| Carton Height | 32 |
| Carton Width | 28 |
| Cutout Depth (in) | 23 1/4 |
| Cutout Height (in) | 27 3/4 |
| Cutout Width (in) | 22 5/8 |
| Gross Weight | 141 |
| Net Weight | 0.0 |
| Cutout Depth(IN,inches) | 23.2500 |
| Cutout Height(IN,inches) | 27.7500 |
| Cutout Width(IN,inches) | 22.6250 |
| Carton Depth(IN,inches) | 30.0000 |
| Carton Height(IN,inches) | 32.0000 |
| Carton Width(IN,inches) | 28.0000 |
| Cutout Height Min(IN,inches) | 27.7500 |
| Gross Weight(LB,pounds) | 141 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.75 in. |
| Shipping Height | 34 in. |
| Shipping Length | 30.75 in. |
| Shipping Weight | 181 lbs. |
| Total of Shipping Weight | 181 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10.26 ft³ |
| Dimensional Weight | 127.59 lbs. |
| Total of Cubes | 10.26 ft³ |
| Total of Dimensional Weight | 127.59 lbs. |
