Adora series by 30" Free-Standing Gas Convection Range - JGB720SEJSS

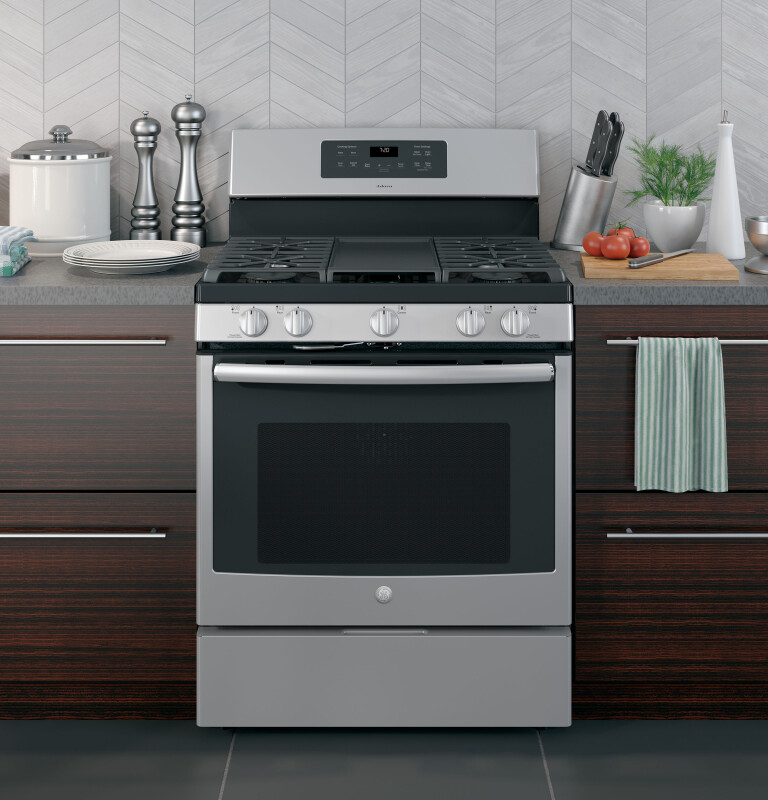

Adora series by 30" Free-Standing Gas Convection Range
Model: JGB720SEJSS

















Adora series by 30" Free-Standing Gas Convection Range
Model: JGB720SEJSS
Key Features
Two extra-large Power Boil burners
Edge-to-edge cooktop
Extra-large integrated non-stick griddle
Gas convection oven
Self-clean with Steam Clean option
Center oval burner
Heavy duty, dishwasher safe grates
In-oven broil
Description
Available from Slyman Bros, serving customers throughout Missouri.
Features

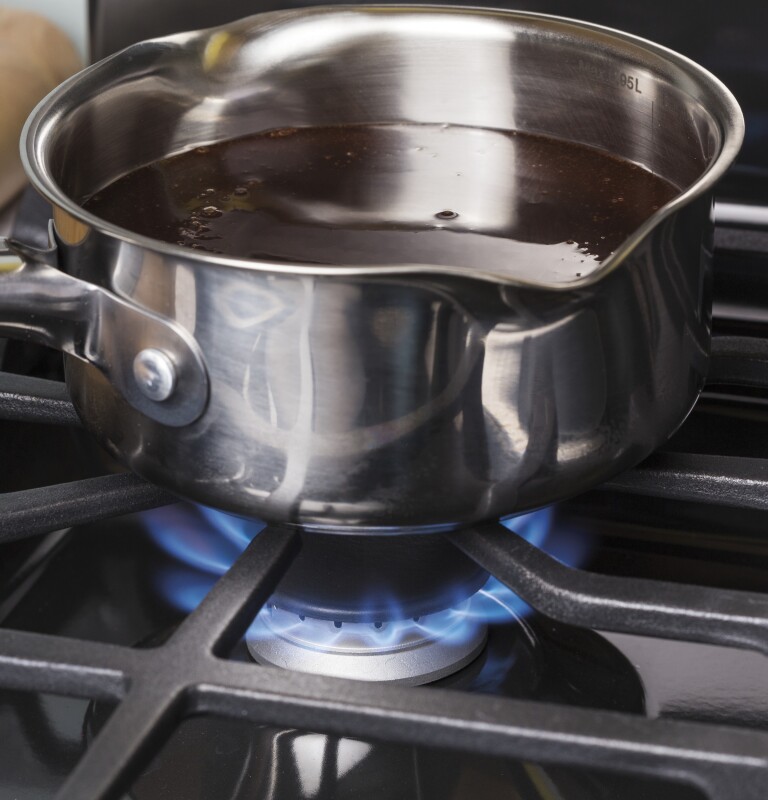

Two extra-large Power Boil burners
Get twice the high-heat cooking power with two up-front extra-large burners

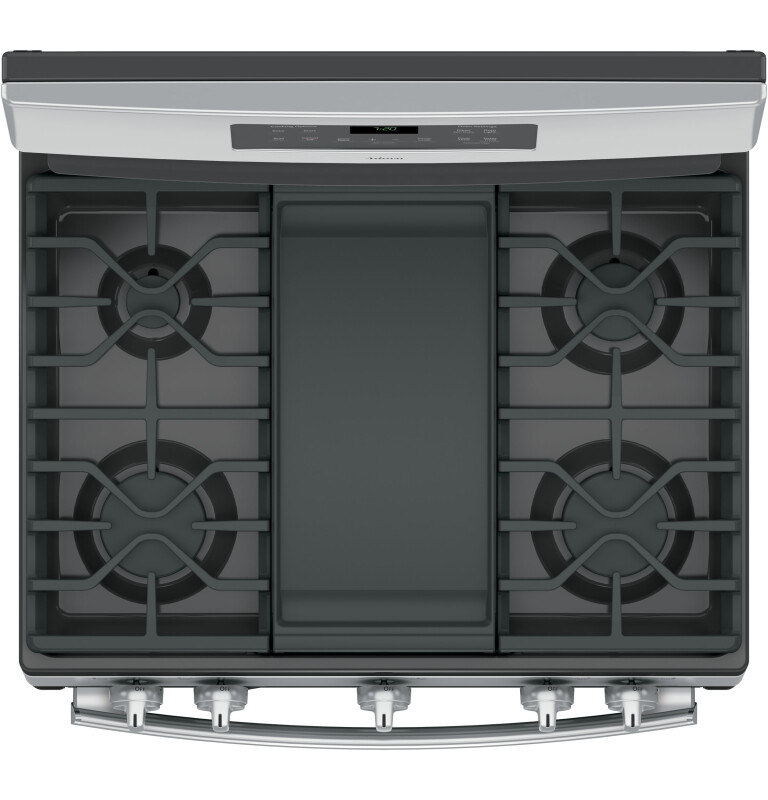

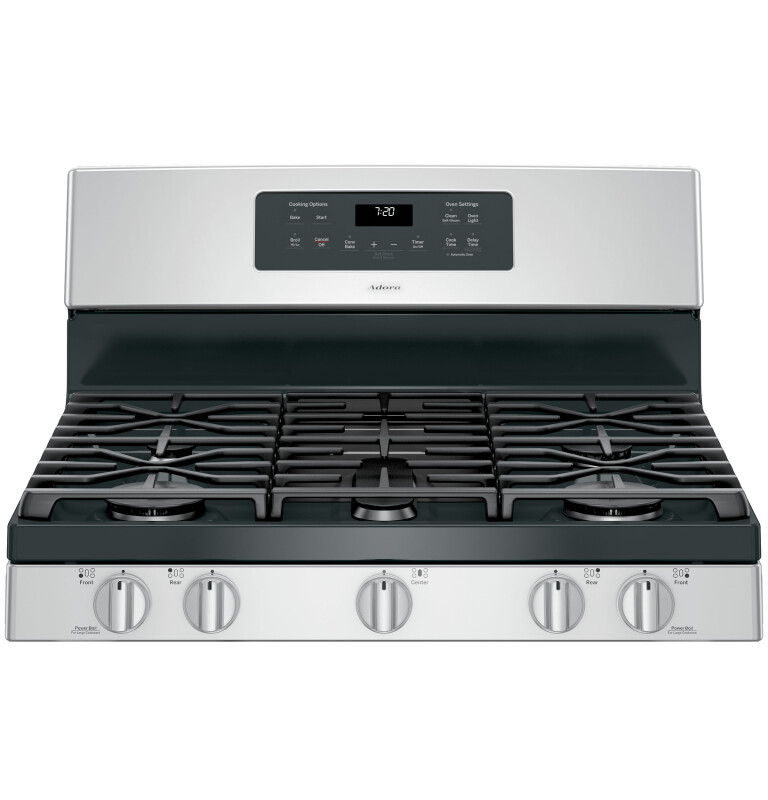

Edge-to-edge cooktop
A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

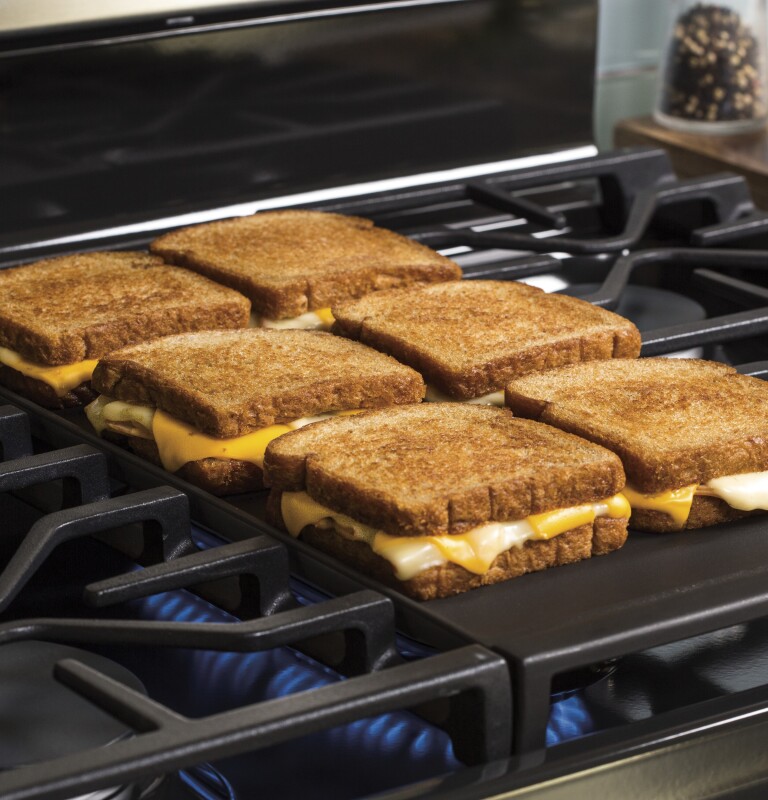

Extra-large integrated non-stick griddle
Cook up to six grilled cheeses at once on the industry's largest integrated griddle

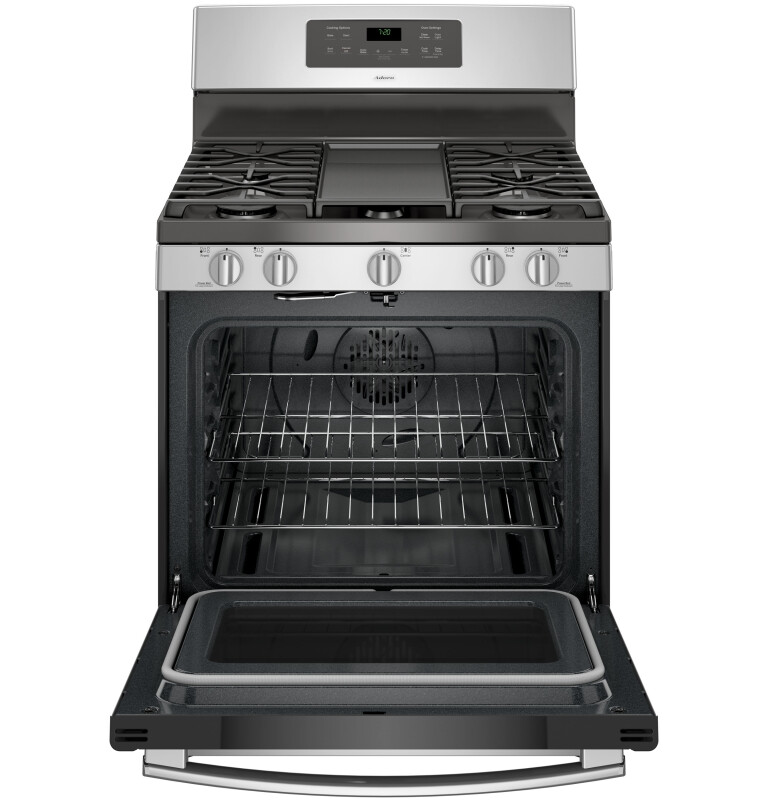

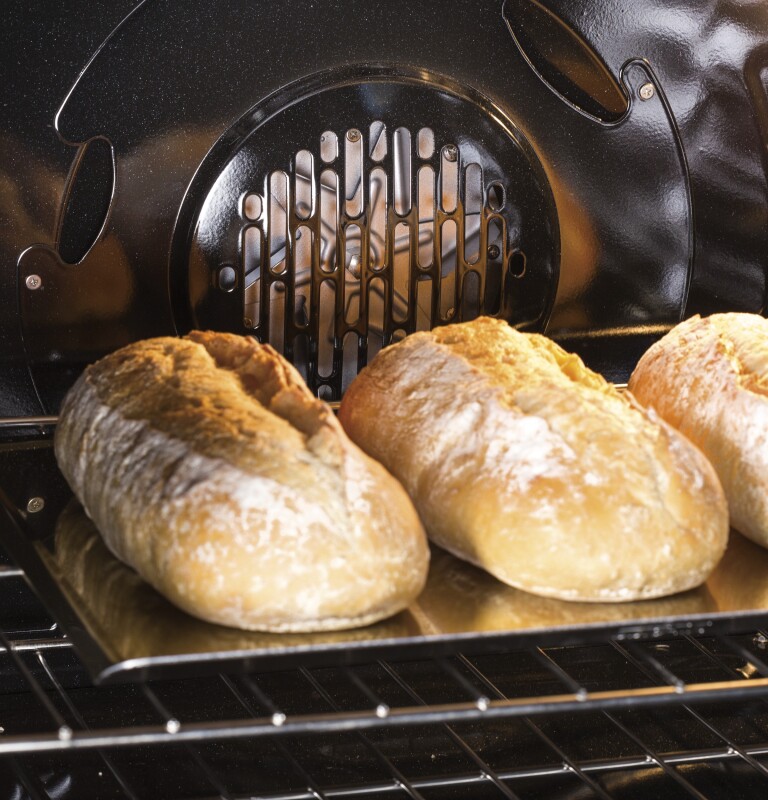

Gas convection oven
Circulates heat for high-quality results

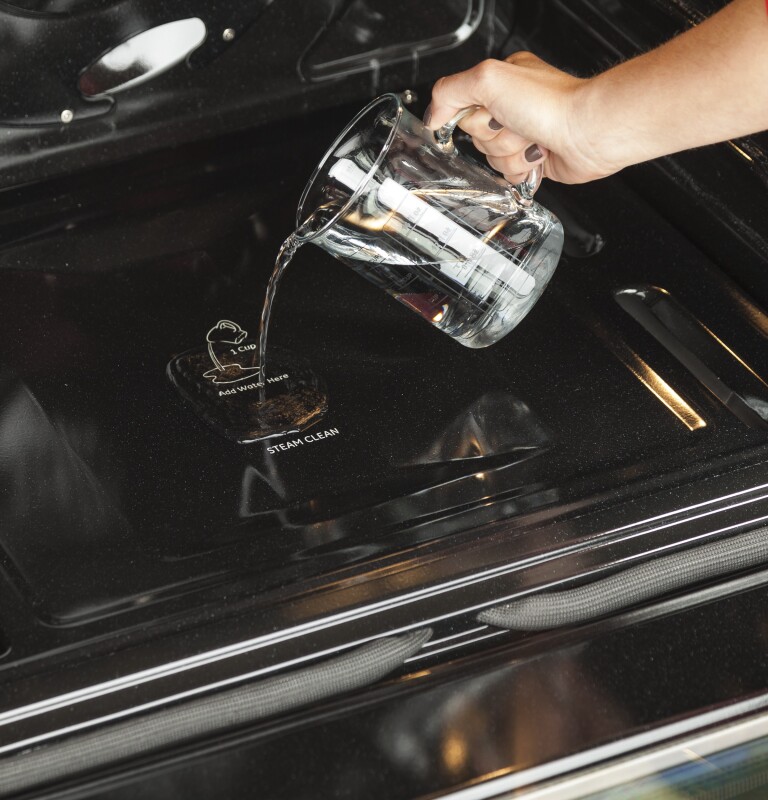

Self-clean with Steam Clean option
Clean your oven the way you want

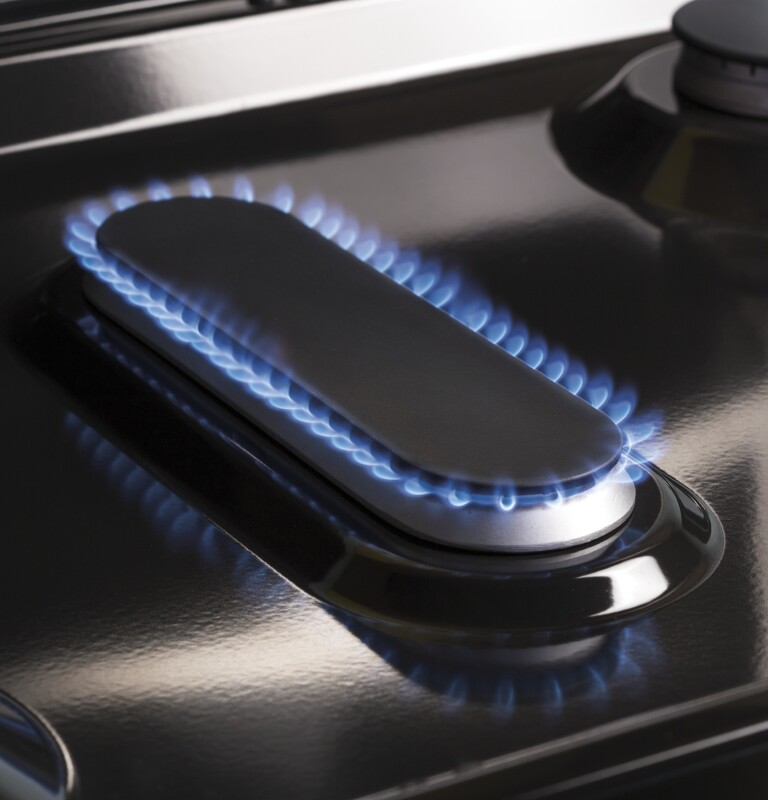

Center oval burner
Large oval fifth burner is ideal for griddle cooking

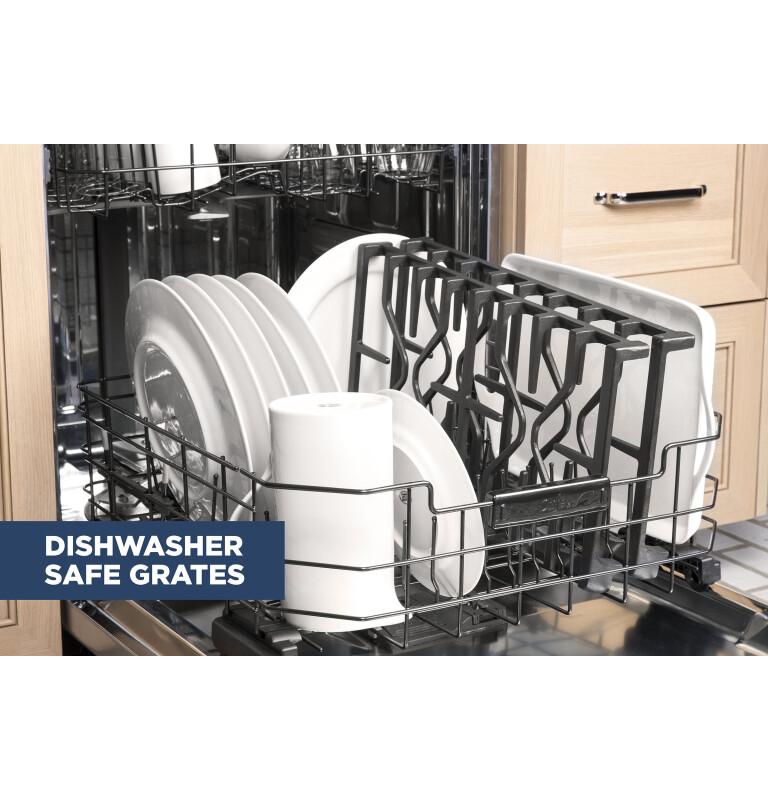

Heavy duty, dishwasher safe grates
Easily and safely clean grates in the dishwasher or place in the bottom of the self-clean oven
In-oven broil
Healthy meals are hassle-free with in-oven broiling

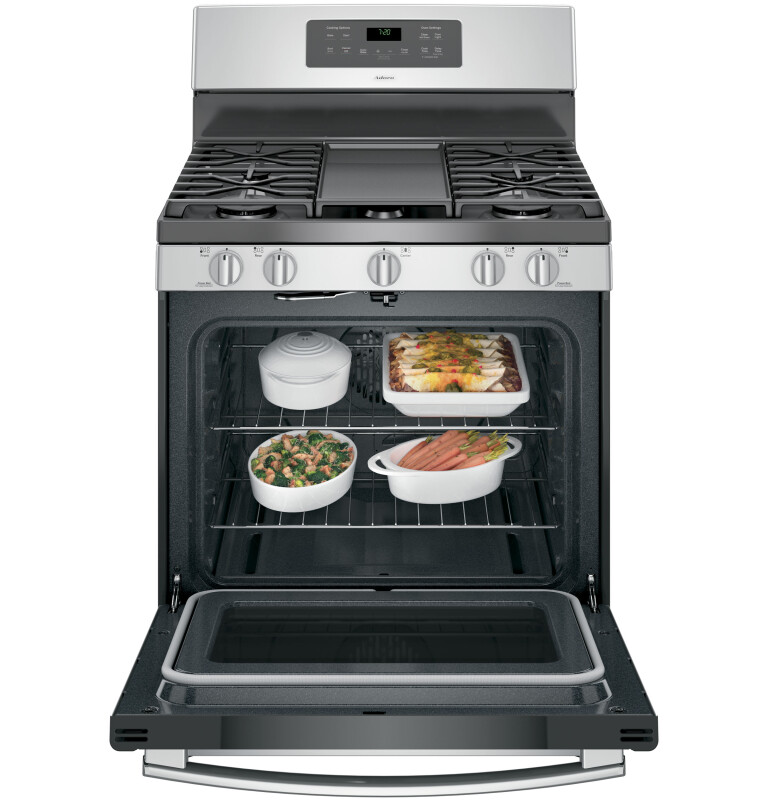

5.0 cu. ft. oven capacity
Cook more dishes at once
Certifications
California Prop 65
Specifications
APPEARANCE
| Oven Door Features | Big View Oven Window |
| Cooktop Burner Grate Color | Matte Black |
| Handle Design | Designer Style |
| Control Knobs | Stainless Steel Appearance |
| Color Appearance | Stainless Steel/Gray |
| Handle Color | Stainless Steel |
ACCESSORIES
| LP Conversion Kit | Included |
| Center Grate | Optional - JXGRATE1 |
POWER / RATINGS
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 18.0; (1) 15.0; (1) 8.0; (1) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 16.0 Bake / 13.5 Broiler |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake / 12.0 Broiler |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 18.0; (1) 15.0; (1) 8.0; (1) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
FEATURES
| Oven Cooking Modes | Convection Bake |
| Burner - Left Rear | 5,000 BTU Precise Simmer |
| Oven Rack Features | 2 Reinforced Heavy-Duty Oven Racks |
| Burner - Left Front | 18,000 BTU Power Boil |
| Burner - Center | 8,000 BTU Oval |
| Cooktop Surface | Edge-to-Edge |
| Cooktop Surface | Gray |
| Cooktop Surface | One-Piece Upswept |
| Cooktop Surface | Porcelain-Enamel |
| Cooktop Burner Grate Material | Heavy Cast Iron |
| Control Type | Electronic Touch |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Oven Control Features | Auto Self Clean |
| Ignition System | Electronic |
| Burner - Right Rear | 9,500 BTU |
| Interior Oven Light | 1 Auto Incandescent |
| Configuration | Range with Storage Drawer |
| Cooking Technology | Convection |
| Griddle | Integrated Non-Stick |
| Cooktop Type | Continuous Grates with Griddle |
| Cooktop Burner Type | Sealed |
| Burner - Right Front | 15,000 BTU Power Boil |
| Fuel Type | Natural Gas |
| Oven Control Features | Hi / Low Broil |
WEIGHTS & DIMENSIONS
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 19-1/2 x 20-5/8 |
| Approximate Shipping Weight | 225 lb |
| Cabinet Width | 30 in |
| Net Weight | 205 lb |
| Overall Depth | 29 1/2 in |
| Overall Height | 47 1/4 in |
| Overall Width | 30 in |
| Depth Without Handle | 27.75 in |
| Depth with Door Open 90° | 46.875 in |
| Height to Cooking Surface (in.) | 36.25 |
Dimensions & Weight
| Width | 30 in. |
| Height | 47.25 in. |
| Length | 29.5 in. |
| Weight | 205 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 52.25 in. |
| Shipping Length | 34.5 in. |
| Shipping Weight | 245 lbs. |
| Total of Shipping Weight | 245 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 24.2 ft³ |
| Dimensional Weight | 300.84 lbs. |
| Total of Cubes | 24.2 ft³ |
| Total of Dimensional Weight | 300.84 lbs. |
CAPACITY
| Total Capacity (cubic feet) | 5.00 cu ft |
