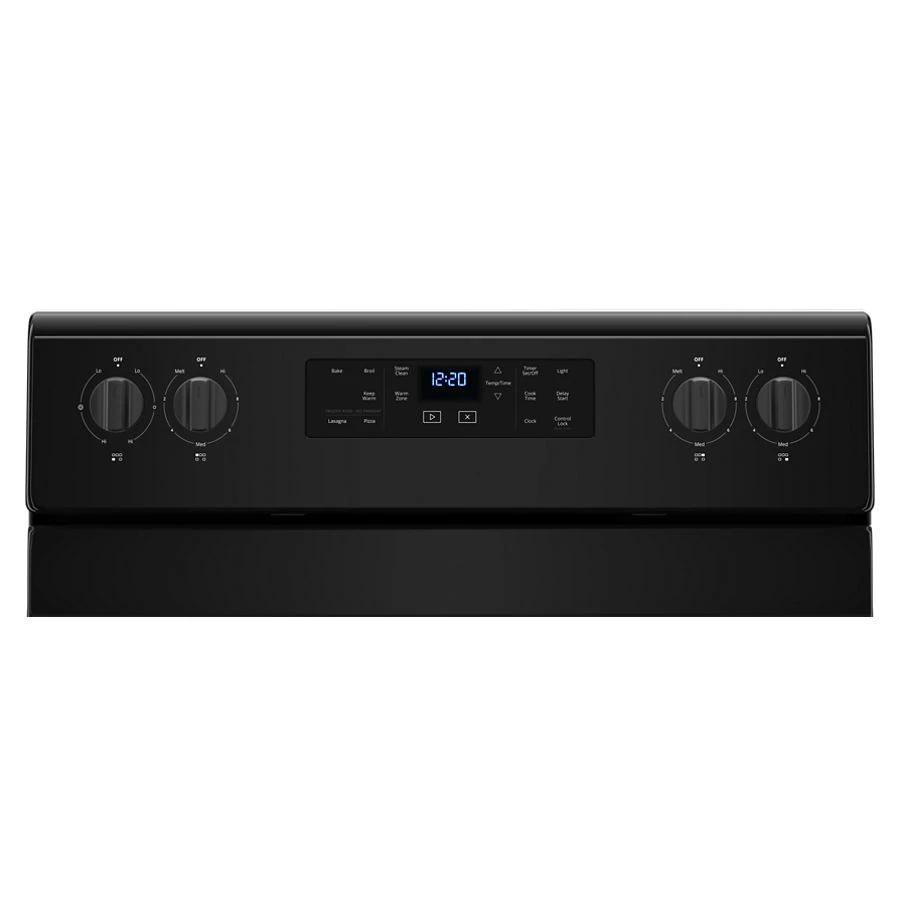

5.3 cu. ft. Freestanding Electric Range with 5 Elements - WFE505W0HB
This product has been discontinued by the manufacture and is no longer available.

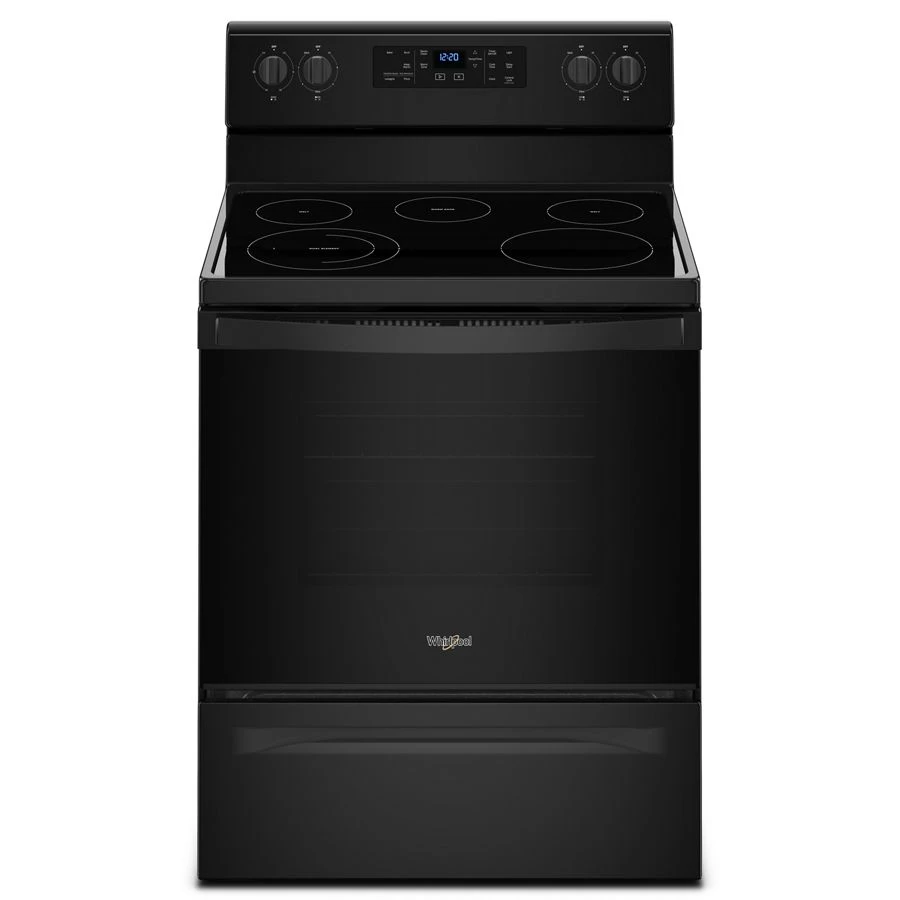

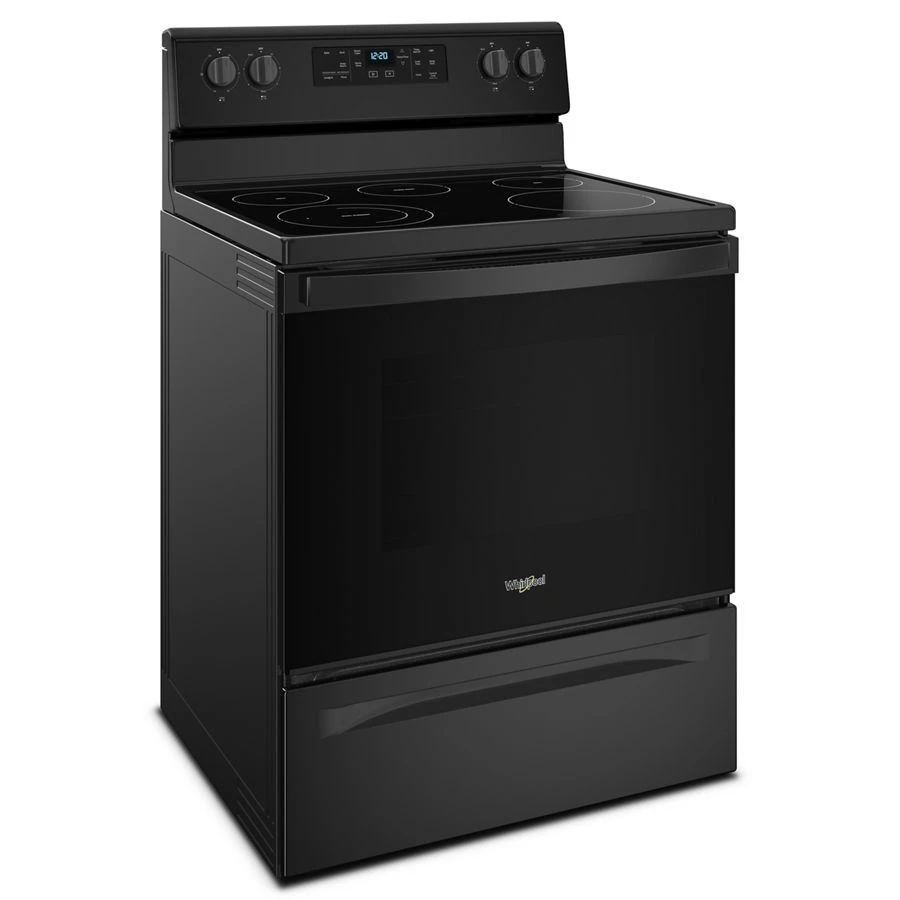

5.3 cu. ft. Freestanding Electric Range with 5 Elements
Model: WFE505W0HB
+4more
This product has been discontinued by the manufacture and is no longer available.
5.3 cu. ft. Freestanding Electric Range with 5 Elements
Model: WFE505W0HB
Color : Black
Available from Slyman Bros, serving customers throughout Missouri.
Specifications
Specifications
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.97 ft³ |
| Total of Cubes | 22.97 ft³ |
| Dimensional Weight | 285.62 lbs. |
| Total of Dimensional Weight | 285.62 lbs. |
Cooktop Details
| Cooktop Control Knob Color | Black |
| Cooktop Control Knob Type | Plastic |
| Cooktop Control Location | Backguard |
| Cooktop Control Type | Knobs |
| Cooktop Surface Color | Black |
| Cooktop Surface Material | Ceramic Glass |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
Exterior Details
| Door Type | Glass Window |
| Handle Color | Black |
| Handle Material | Metal |
| Handle Type | Reach Through Handle |
| Oven Control Location | Backguard |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Large |

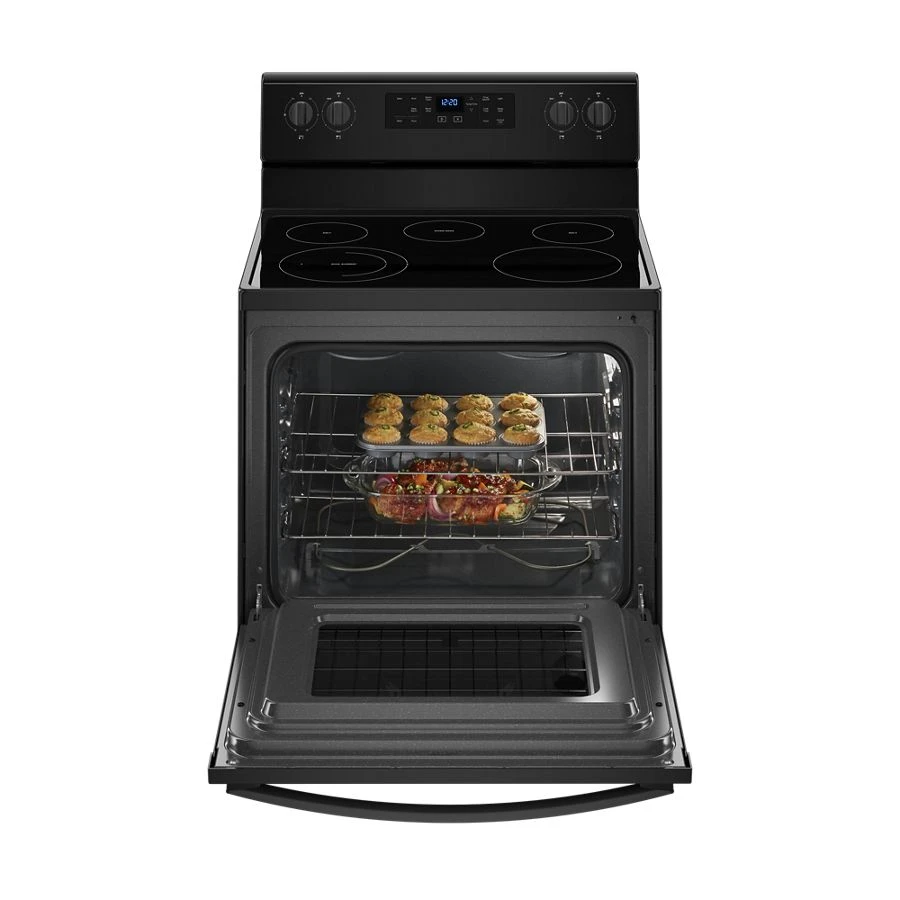

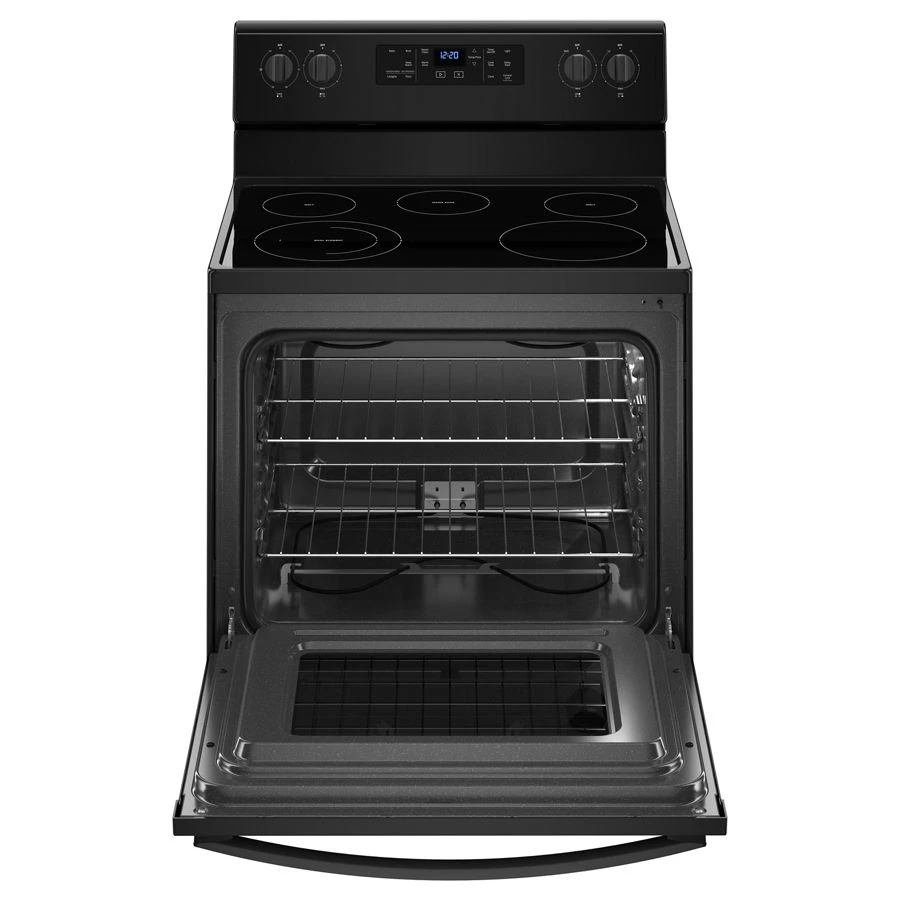

Oven Cavity Details
| Automatic Convection Conversion Temperature Adjust | No |
| Broiler Location | Top of Oven |
| Convection Element Type | None |
| Convection Functions | No |
| Door Removable | Yes |
| Hidden Bake Element | No |
| Interior Color | Dark Grey |
| Natural Gas Convertible | No |
| Number of Oven Lights | 1 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Oven Cleaning Type | Steam Clean |
| Oven Cooking System | Thermal |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Incandescent |
| Oven Rack Type | Standard |
| Bake Element Power | 2,400 W |
| Broiler Element Power | 3,400 W |
Details
| Fuel Type | Electric |
| LP Convertible | No |
| Natural Gas Convertible | No |
| Oven Automatic Shut-Off | Yes |
| Oven Configuration | Single Oven |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Freestanding |
| Range Type | Freestanding |
| Oven Selections | Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Cook Time Indicator, Cook and Hold, Delay Start, Frozen Bake, Keep Warm Setting, Language Conversion, Sabbath Mode, Start Time, S |

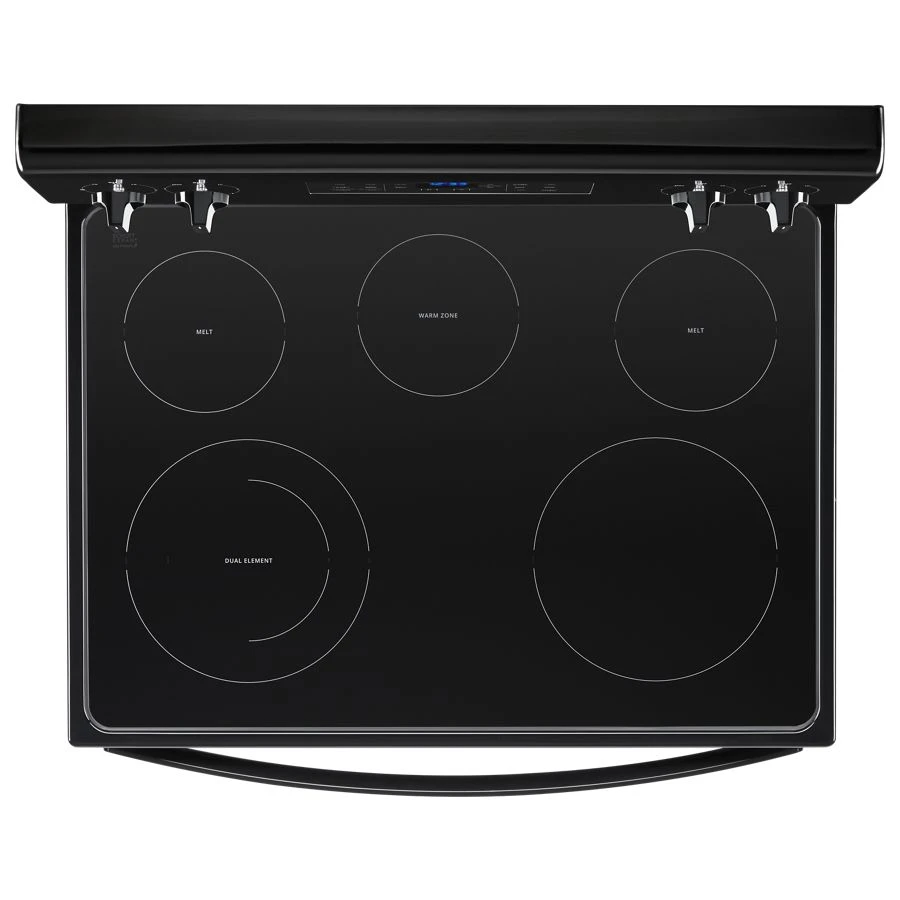

Element/Burner Details
| Center Rear Element-Burner Power | 100W |
| Center Rear Element-Burner Size | 6in. |
| Center Rear Element-Burner Type | Warming |
| Cooktop Element Style | Radiant |
| Left Front Element-Burner Size | 9in./6in. |
| Left Front Element-Burner Type | Dual |
| Left Rear Element-Burner Size | 6in. |
| Left Rear Element-Burner Type | Radiant |
| Number of Cooking Element-Burners | 5 |
| Right Front Element-Burner Size | 9in. |
| Right Front Element-Burner Type | Radiant |
| Right Rear Element-Burner Size | 6in. |
| Right Rear Element-Burner Type | Radiant |
| Left Front Element-Burner Power | 3,000W |
| Left Rear Element-Burner Power | 1,200W |
| Right Front Element-Burner Power | 2,500W |
| Right Rear Element-Burner Power | 1,200W |
Controls
| Display Color | Blue |
| Electronic Display Type | LED |
Electrical
| Amps | 40 |
| Power Cord Included | No |
| Volts | 120 |
| Watts | 11 |
Certifications
| ADA Compliant | No |
| CUL | No |
| Prop 65 | Standard |
| UL | Yes |

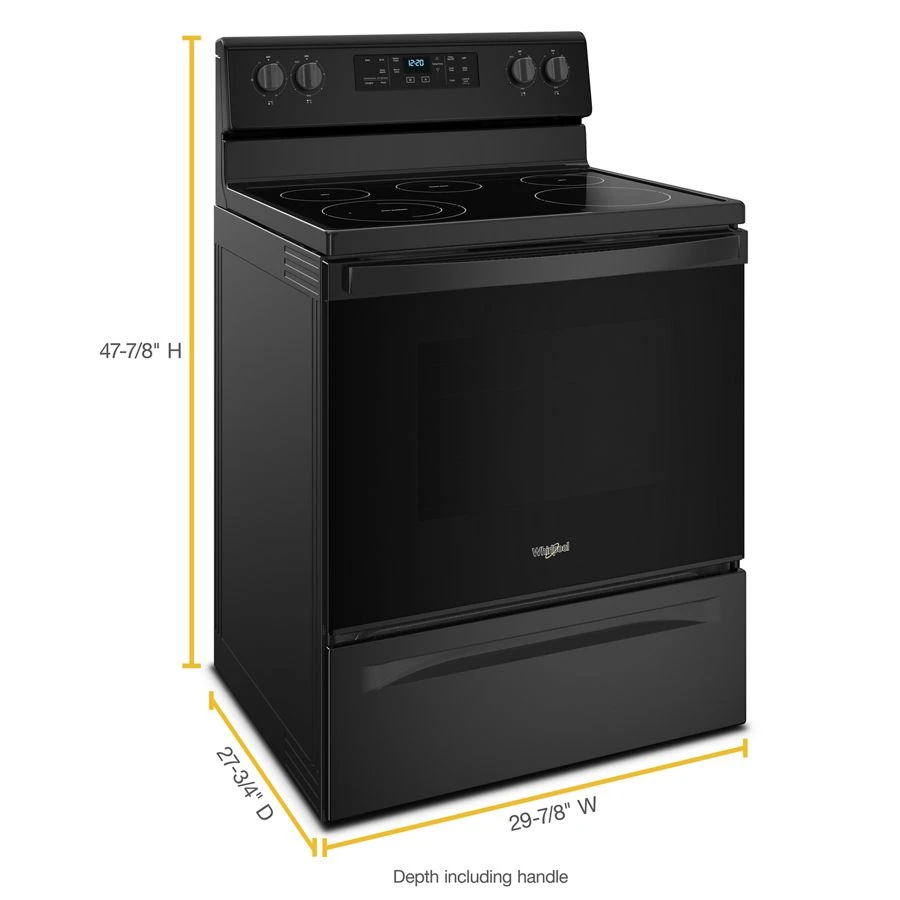

Dimensions & Weight
| Width | 29.88 in. |
| Height | 47.88 in. |
| Length | 27.75 in. |
| Weight | 153 lbs. |
| Cutout Depth | 24 in |
| Cutout Height | 36 in |
| Cutout Width | 30 in |
| Depth Closed Excluding Handles | 25-313/1000 in |
| Depth Closed Including Handles | 27-3/4 in |
| Depth With Door Open 90 Degree | 46-86/125 in |
| Gross Weight | 153 lbs |
| Maximum Height | 47-7/8 in |
| Minimum Height | 46-7/8 in |
| Net Weight | 138 lbs |
| Oven Interior Depth | 18-1/2 in |
| Oven Interior Height | 18-1/8 in |
| Oven Interior Width | 24-1/2 in |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 52.88 in. |
| Shipping Length | 32.75 in. |
| Shipping Weight | 193 lbs. |
| Total of Shipping Weight | 193 lbs. |
| Source | Calculation |
Other
| Capacity | 5.3 cu. ft. |
| Common Size | 30 in |
