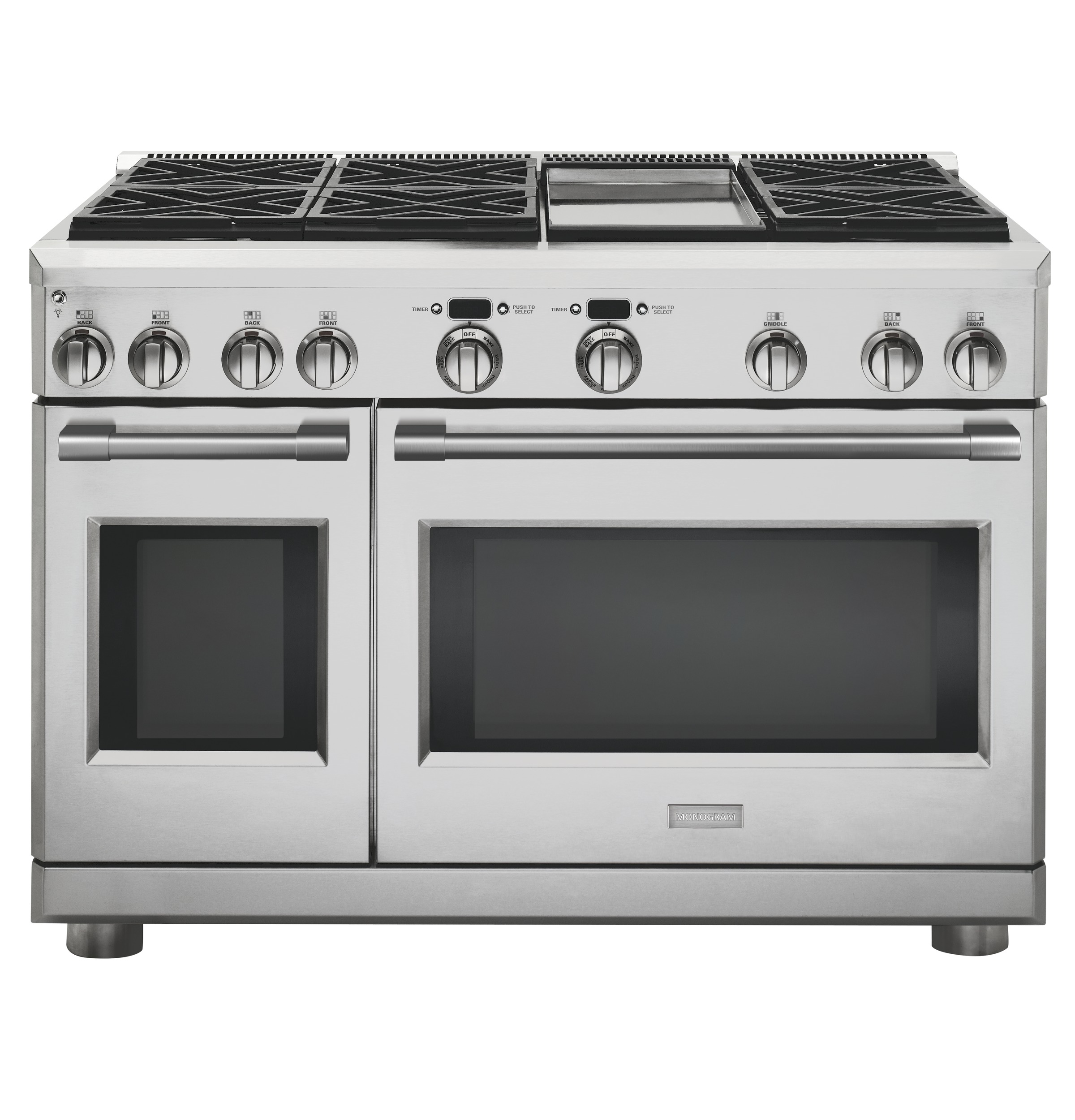

48" Dual-Fuel Professional Range with 6 Burners and Griddle (Natural Gas) - ZDP486NDNSS
48" Dual-Fuel Professional Range with 6 Burners and Griddle (Natural Gas)
Model: ZDP486NDNSS
Product Video
48" Dual-Fuel Professional Range with 6 Burners and Griddle (Natural Gas)
Model: ZDP486NDNSS
Color : Stainless Steel
Replaced By
48" Dual-Fuel Professional Range with 6 Burners and Griddle
Model: ZDP486NDTSS
$14,600.00
Was$16,060.00Save $1,460.00 (9%)
Key Features
Sealed, dual-flame stacked burners
Monogram professional oven system
Heavy-duty, full-extension racks
LED task lights
Stainless steel and aluminum-clad griddle
Star-K certification
A bamboo cutting board
Large temperature and time displays
Available from Slyman Bros, serving customers throughout Missouri.
Features
Sealed, dual-flame stacked burners
Deliver a full spectrum of heat settings, from an ultra-low 140° F simmer to an intense 18,000 BTU
Monogram professional oven system
Combines European, reverse-air convection technology and six heating elements in each oven to provide superb baking results
Heavy-duty, full-extension racks
Glide smoothly in and out on stainless steel ball bearings for easy access, and are designed to remain in the oven during the self-clean cycle
LED task lights
Below the bullnose, provide a functional and theatrical touch
Stainless steel and aluminum-clad griddle
Offers 18,000 BTUs* of cooking power, allowing fast and consistent heating across the entire cooking surface
Star-K certification
Allows Monogram ranges to operate in Sabbath mode
A bamboo cutting board
Included with the range
Large temperature and time displays
Make it easy to monitor cooking progress
Optional full-width stainless steel toekick
Is included with the range
Stainless steel grill/griddle covers
Are included with the range
Halogen light columns
Provide a clear view, regardless of rack position
Everyday oven
Is just the right size for 9" x 13" casserole dishes
A caterer’s oven
Is uniquely sized to accommodate three full-size sheet trays
Reversible burner grates
Flat on one side and uniquely contoured on the other to accommodate round-bottom woks
The Monogram Statement Collection
Edge-to-edge handles, polished stainless steel, smoothly finished edges and large electronic control knobs offer an authentic professional appearance
Certifications
ADA Compliant
California Prop 65
Specifications
Warranty
| Parts | 2 Year |
| Labor | 2 Year |
WEIGHTS & DIMENSIONS
| Net Weight | 576 lb |
| Overall Width | 47.875 in |
| Overall Depth | 30.875 in |
| Overall Height | 35.25 in |
| Height w/Legs Extended - Maximum Height | 36.75 in |
| Cabinet Width | 48 in |
| Approximate Shipping Weight | 672 lb |
| Height to Cooking Surface (in.) | 35.25 - 36.75 |
| Height w/ Legs Retracted - Minimum Height | 35.25 in |
FEATURES
| Configuration | 6 Burners; Griddle |
| 140 Deg. Simmer Burner | All Burners - Adjustable |
| Cooking System | True European Convection |
| Cleaning Time | 5 Hours (Both Ovens) |
| Ignition System | Electronic w/Auto Reignition |
| Broiler Pan and Grid | 2 |
| Interior Oven Light | 6 Halogen Lamps (Caterer Oven) |
| Short Description | 48" Pro Range - Dual Fuel with Griddle |
| Fuel Type | Dual Fuel (with natural gas) |
| Oven Control Features | Proof Mode (Both Ovens) |
| Cooktop Burner Type | 6 Sealed, Dual Flame Stacked |
| Convection Roasting Rack | Yes |
| Oven Cleaning Type | Self-Clean (Both Ovens) |
| Product Type | Professional Range |
| Indicator Lights | Burner "On" |
| Removable Grease Trough | (1) Front of Griddle |
| Cooktop Type | Continuous Grates |
| Cooktop Burner Grate Features | Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Lighting | LED Bullnose Task Lighting |
| Cooktop Surface | Porcelain-Enamel |
| Extra Low Simmer | All Burners - Adjustable |
| Stainless Steel Grill / Griddle Covers | 1 |
| Oven Rack Positions (Single or Upper/Lower) | 5 / 4 |
| Control Type | with Timer Display (Both Ovens) |
| Self-Clean Oven Door Lock | Automatic |
| Cooking Technology | Convection |
| Oven Control Features | Delay Clean Option (Both Ovens) |
| Oven Rack Features | 4 Rack Positions (Everyday Oven) |
| Griddle | Stainless Steel and Aluminum Clad |
| Oven Cooking Modes | Convection Broil (Both Ovens) |
ACCESSORIES
| LP Conversion Kit | Included |
| Bamboo Cuttingboard | Included (1) |
| Optional Grill Accessory (Cast Iron) | UXGRILL |
| Optional Backguard | 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB48PSS) |
POWER / RATINGS
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (6) 18.0, 140 Degree simmer |
| Grill BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Electrical Requirements | 240VAC; 50A |
| Top Burner BTU Rating - LP (000's BTU's) | (6) 15.0, 140 Degree simmer |
| Grill BTU Rating (000's/BTU) - LP Gas | 15.0 |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
WARRANTY
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 5-year gas surface burners |
APPEARANCE
| Toe kick | Included |
| Installation | Flush Installation Capable |
| Control Knobs | Diecast Metallic (Included) |
| Design Style | Statement Collection |
| Color Appearance | Stainless Steel |
CAPACITY
| Total Capacity (cubic feet) | 8.25 cu ft |
| Capacity (Cu. Ft.) | 5.75 Caterer Oven / 2.5 Everyday Oven |
Dimensions & Weight
| Width | 47.88 in. |
| Height | 35.25 in. |
| Length | 30.88 in. |
| Weight | 576 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 52.88 in. |
| Shipping Height | 40.25 in. |
| Shipping Length | 35.88 in. |
| Shipping Weight | 616 lbs. |
| Total of Shipping Weight | 616 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 30.15 ft³ |
| Dimensional Weight | 374.85 lbs. |
| Total of Cubes | 30.15 ft³ |
| Total of Dimensional Weight | 374.85 lbs. |
