$1,328.00
Was$1,479.00Save $151.00 (10%)
36" Retractable Downdraft System with Interior Blower Motor - UXD8636DYS
$1,328.00
Was$1,479.00Save $151.00 (10%)
Color : Stainless Steel
$1,328.00
Key Features
Powerful 600 CFM Interior Blower Motor Included
Touch-Activated Telescoping Operation
Aluminum Grease Filters
Dual Centrifugal Blower
6.5 Vertical Sones (3-1/4" x 10")
Auto Off When Retracted
Damper
Brushed Aluminum Intake Cover Standard
Available from Slyman Bros, serving customers throughout Missouri.
Features
Powerful 600 CFM Interior Blower Motor Included
Touch-Activated Telescoping Operation
Keep the fresh air flowing during the peak cooking periods in your kitchen! Whirlpool® ventilation hoods feature variable-speed fan control for maximum relief. Hoods are designed to fit perfectly with today's kitchen layouts and designs and are available in a variety of colors, depending on the model.
Aluminum Grease Filters
Dual Centrifugal Blower
A barrel-shaped fan that moves air through a vent hood. A centrifugal fan moves more air, and operates more quietly, than an axial-type (bladed) fan.
6.5 Vertical Sones (3-1/4" x 10")
Auto Off When Retracted
Damper
Brushed Aluminum Intake Cover Standard
Vertical Exterior Ventilation (3 1/4" x 10" Rectangular Duct)
A fan system located at the surface of a range or cooktop. It serves to draw steam and grease downward and out of the kitchen via ductwork placed under the floor.
Slide Controls
Specifications
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 7.2 ft³ |
| Dimensional Weight | 89.5 lbs. |
| Total of Cubes | 7.2 ft³ |
| Total of Dimensional Weight | 89.5 lbs. |
Ventilation Details
| CFM Motor Class | 585 |
| Duct Direction | Vertical |
| Duct Type | Round |
| Venting | Exterior |
| Duct Outlet Size | 3.25 W x 10 H in |
Controls
| Control Location | Hidden |
| Control Type | Manual |
| Number of Vent Speeds | 3 |
Details
| Hood Type | Retractable Downdraft |
| Material | Stainless Steel |
| Blower Type | Centrifugal |

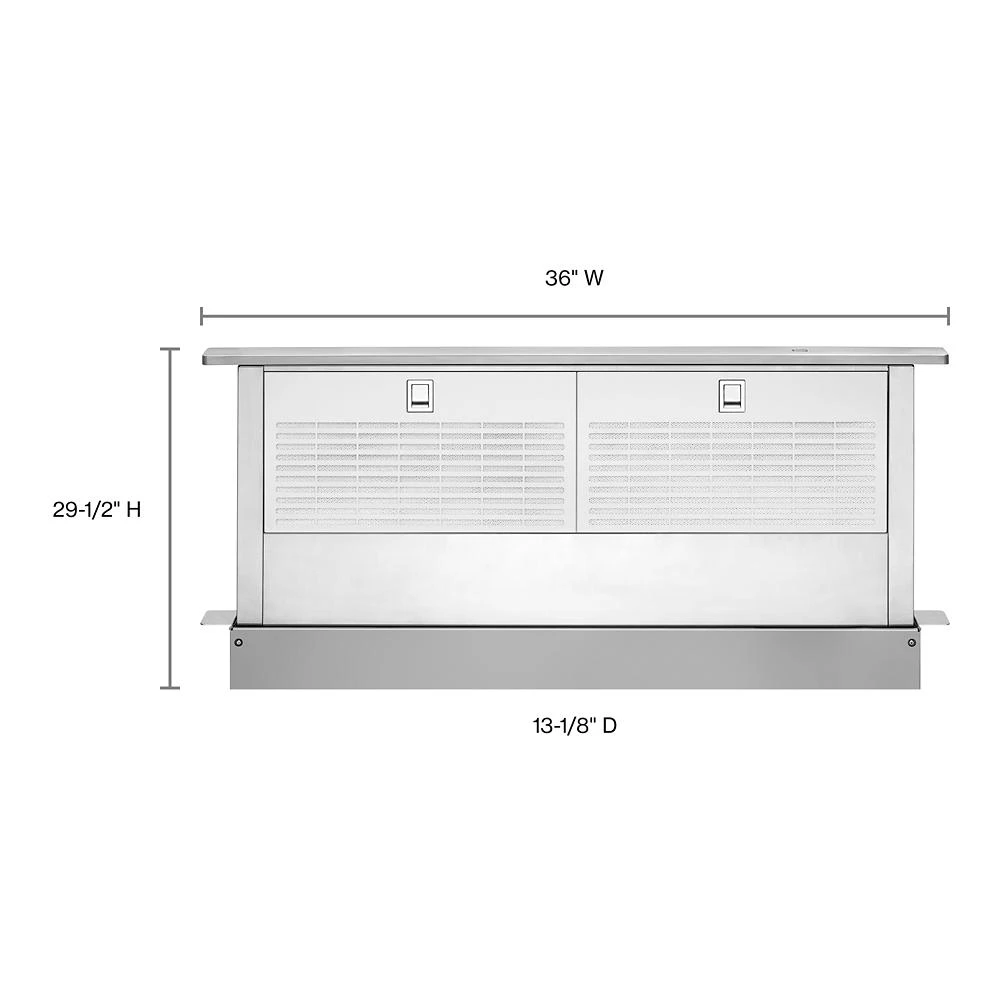

Dimensions & Weight
| Width | 36 in. |
| Height | 28.5 in. |
| Length | 12.13 in. |
| Weight | 100 lbs. |
| Gross Weight | 100 lbs |
| Net Weight | 72.75 lbs |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 40 in. |
| Shipping Height | 16 in. |
| Shipping Length | 17.13 in. |
| Shipping Weight | 140 lbs. |
| Total of Shipping Weight | 140 lbs. |
| Source | Calculation |
Other
| Common Size | 36 in |
Electrical
| Amps | 15 |
| Hz | 60 |
| Volts | 120 |
Capacity
| Volume | 12.963 Cu.Ft. |
