$699.00
Was$959.00Save $260.00 (27%)

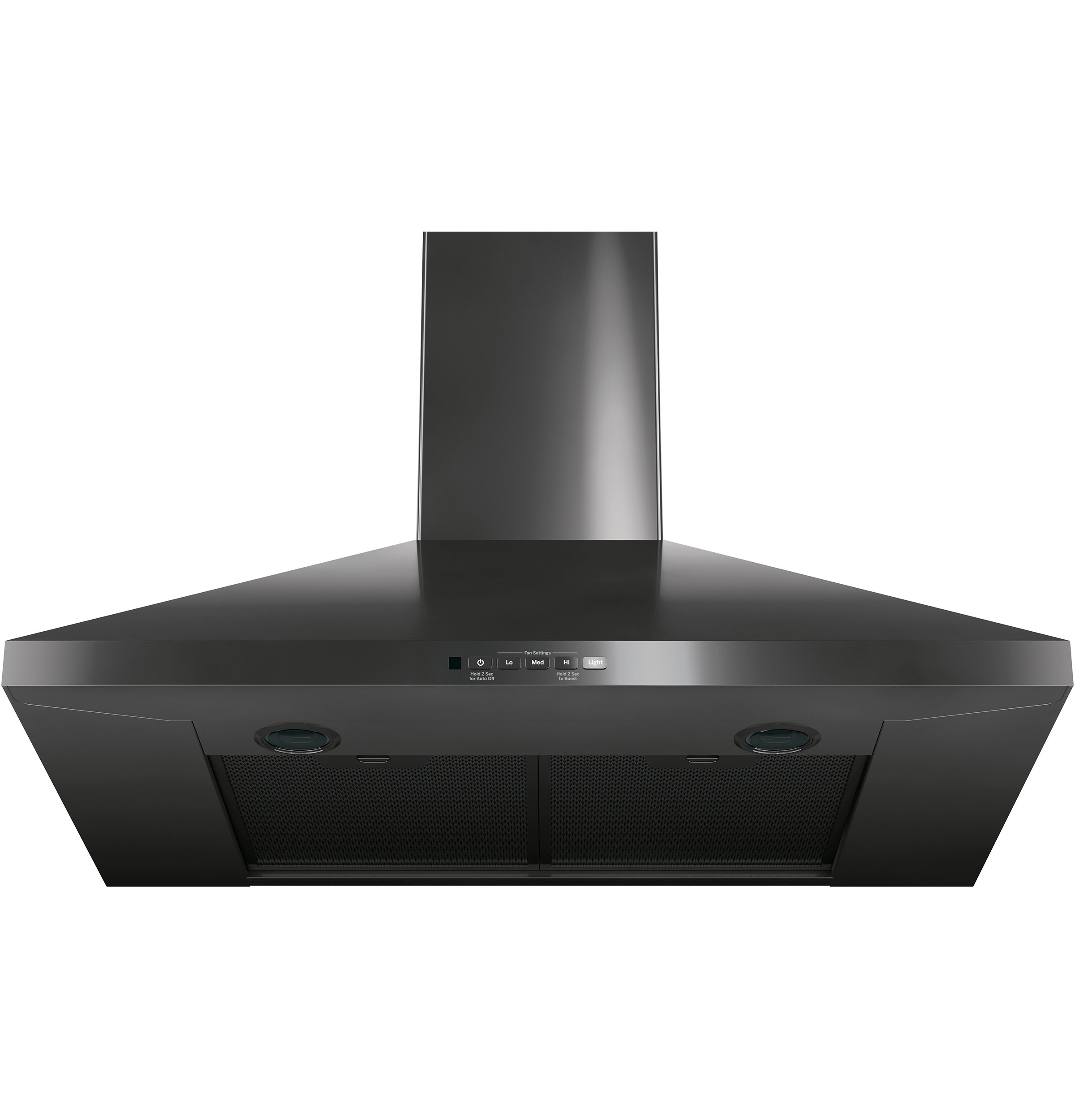

30" Wall-Mount Pyramid Chimney Hood - JVW5301BJTS
$699.00
Was$959.00Save $260.00 (27%)
Color : Black Stainless
$649.00
$699.00
$579.00
$549.00
Key Features
350-CFM venting system with boost
Electronic backlit controls
Dual halogen cooktop lighting
Night light
Convertible venting options
Optional remote control (JXRC70)
Auto-off
Easy do-it-yourself Installation
Available from Slyman Bros, serving customers throughout Missouri.
Features
350-CFM venting system with boost
Effectively remove smoke, grease, odor and moisture
Electronic backlit controls
Add a sophisticated look with this up-front, easy-to-use display
Dual halogen cooktop lighting
Enjoy better visibility with a brightly lit cooktop and surrounding surface
Night light
Provides a soft, dim light to enhance visibility and safety in the kitchen at any hour
Convertible venting options
Choose recirculating or external venting to adapt airflow for your kitchen’s specific ventilation setup

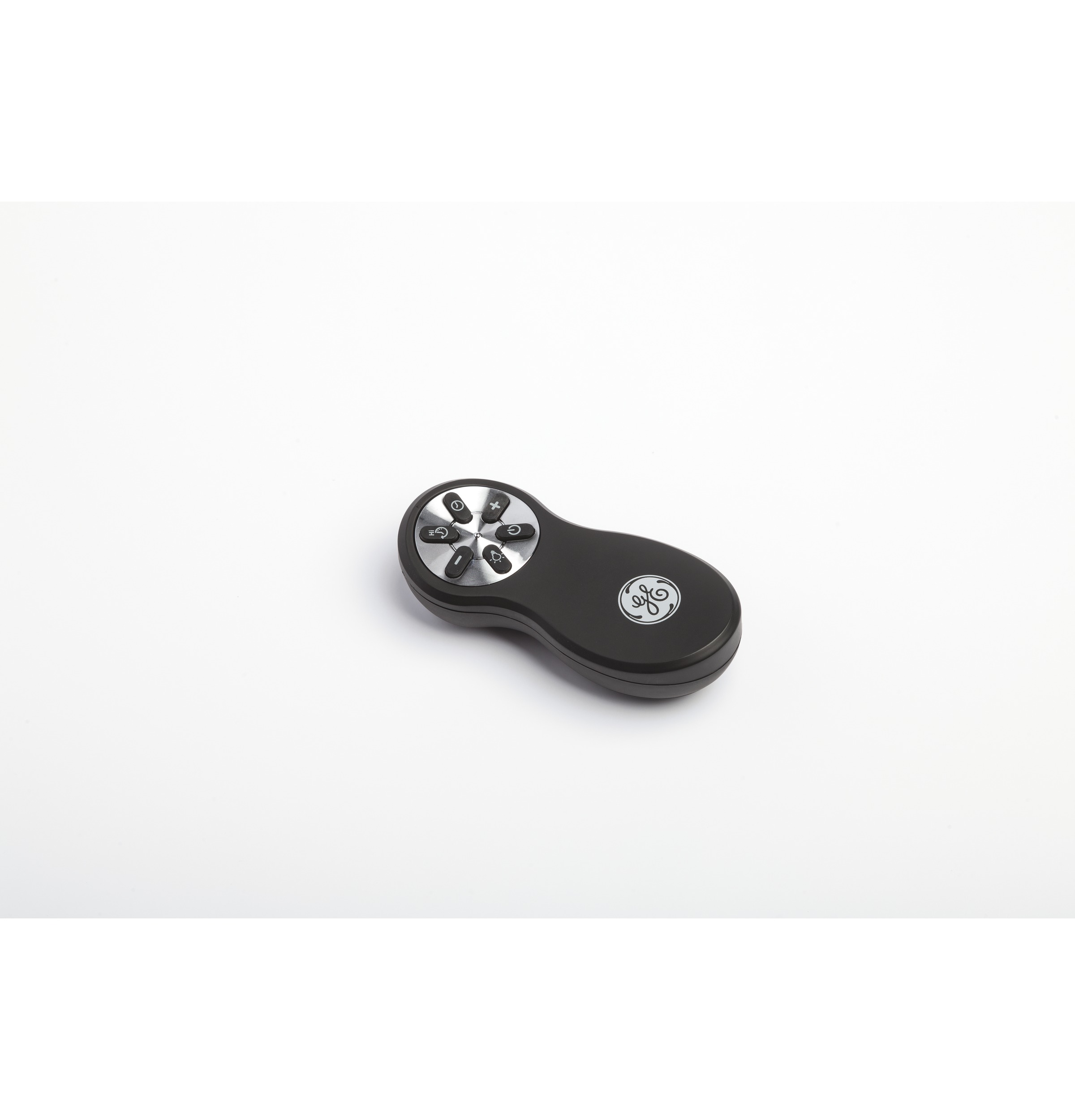

Optional remote control (JXRC70)
Control your ventilation lighting and fan speed from anywhere in the kitchen
Auto-off
Set the vent hood to automatically shut off after 15 minutes
Easy do-it-yourself Installation
Can be installed either as a recirculating or external-venting hood
Optional remote control (UXRC70)
Control your ventilation lighting and fan speed from anywhere in the kitchen
Dishwasher-safe filter
Durable, easy-to-remove filter captures grease and cleans up effortlessly in the dishwasher
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

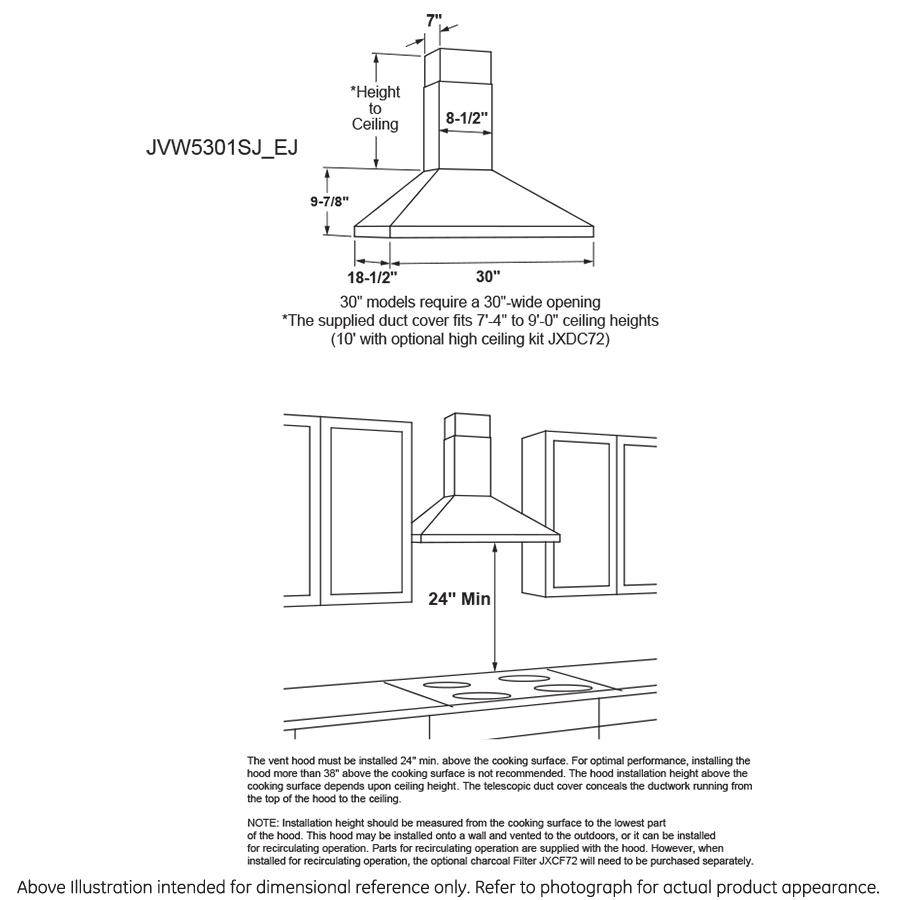

WEIGHTS & DIMENSIONS
| Overall Depth | 18.5 in |
| Overall Height | 9.875 in |
| Overall Width | 30 in |
| Cabinet Width | 30 in |
| Net Weight | 43 lb |
| Approximate Shipping Weight | 61 lb |
FEATURES
| Cooktop Lighting | Halogen |
| Fan Speed Control | 4-Speed |
| Max CFM | 350 |
| Ducting | Vertical Only |
| Light Controls | On/Off/Night |
| Filter Cleaning | Dishwasher Safe |
| CFM/ Sones Rating | 350/6.6 (Boost Speed) |
| Exhaust Options | Vented to Outside |
| Product Type | Designer Hood |
| 6" Round Duct | Yes |
| Control Type | Electronic Touch |
| Control Location | Front |
| Removable Grease Filter(s) | Yes |
| Remote Control | Optional (UXRC70) |
| Blower Type | Internal |
| CFM/ Sones Rating | 340/5.1 (High Speed) |
| CFM/ Sones Rating | 150/1.0 (Working Speed) |
| Exhaust Options | Recirculating |
| Cooktop Lighting | 1 |
| Control Type | Backlit |
APPEARANCE
| Blower / Light Switch Color | Backlit |
| Material | Metal |
| Color Appearance | Fingerprint Resistant Black Stainless |
POWER / RATINGS
| Electrical Requirements | 120V ; 60Hz ; 2.5A |
| Amp Rating at 120V | 2.5 |
| Watts | 226 |
| Hertz | 60 |
ACCESSORIES
| Optional Accessories | UXRC70 - Remote Control |

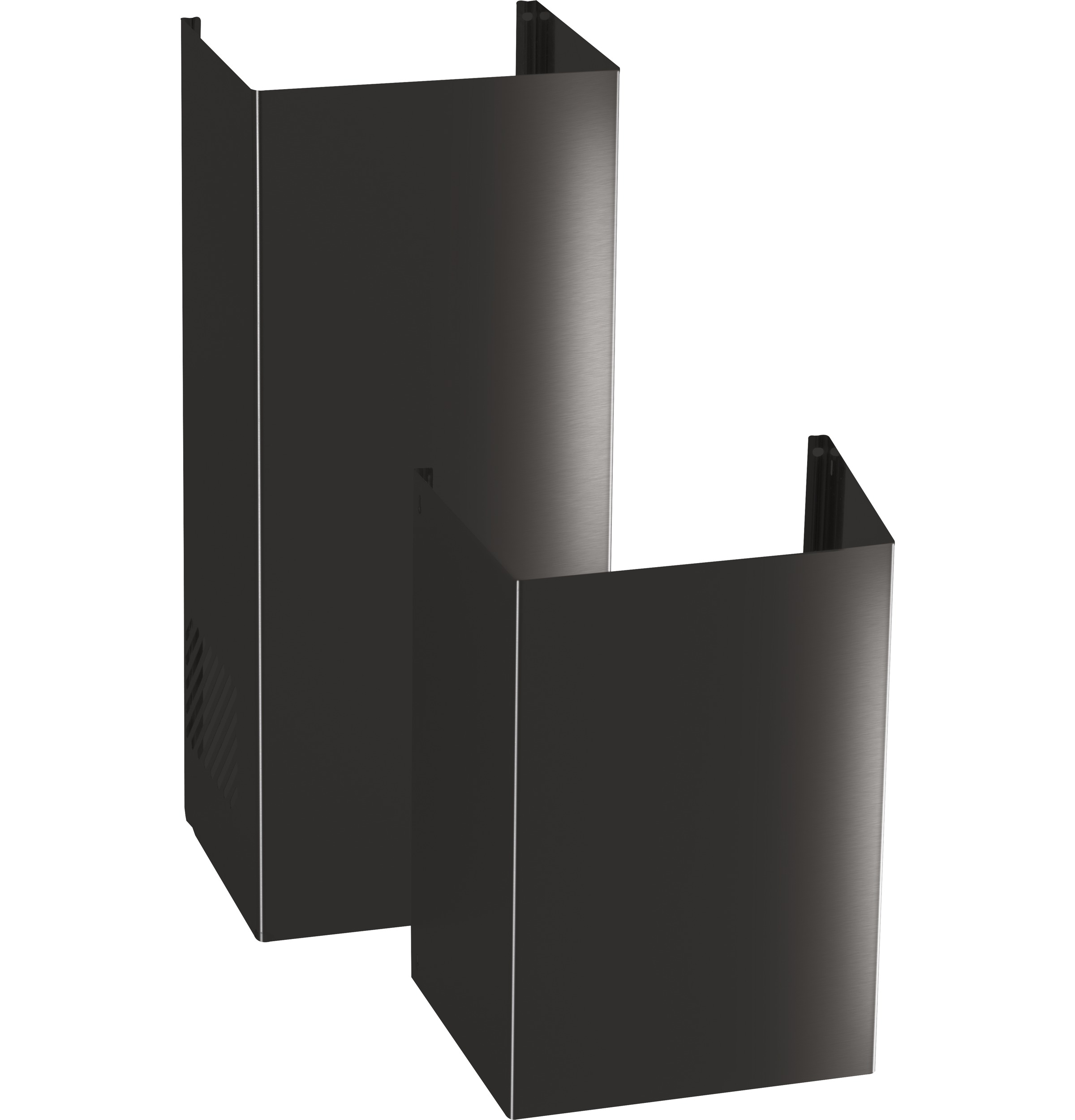

| Optional Accessories | UXDC53BJTS - 10 (ft.) Ceiling Duct Cover Kit |

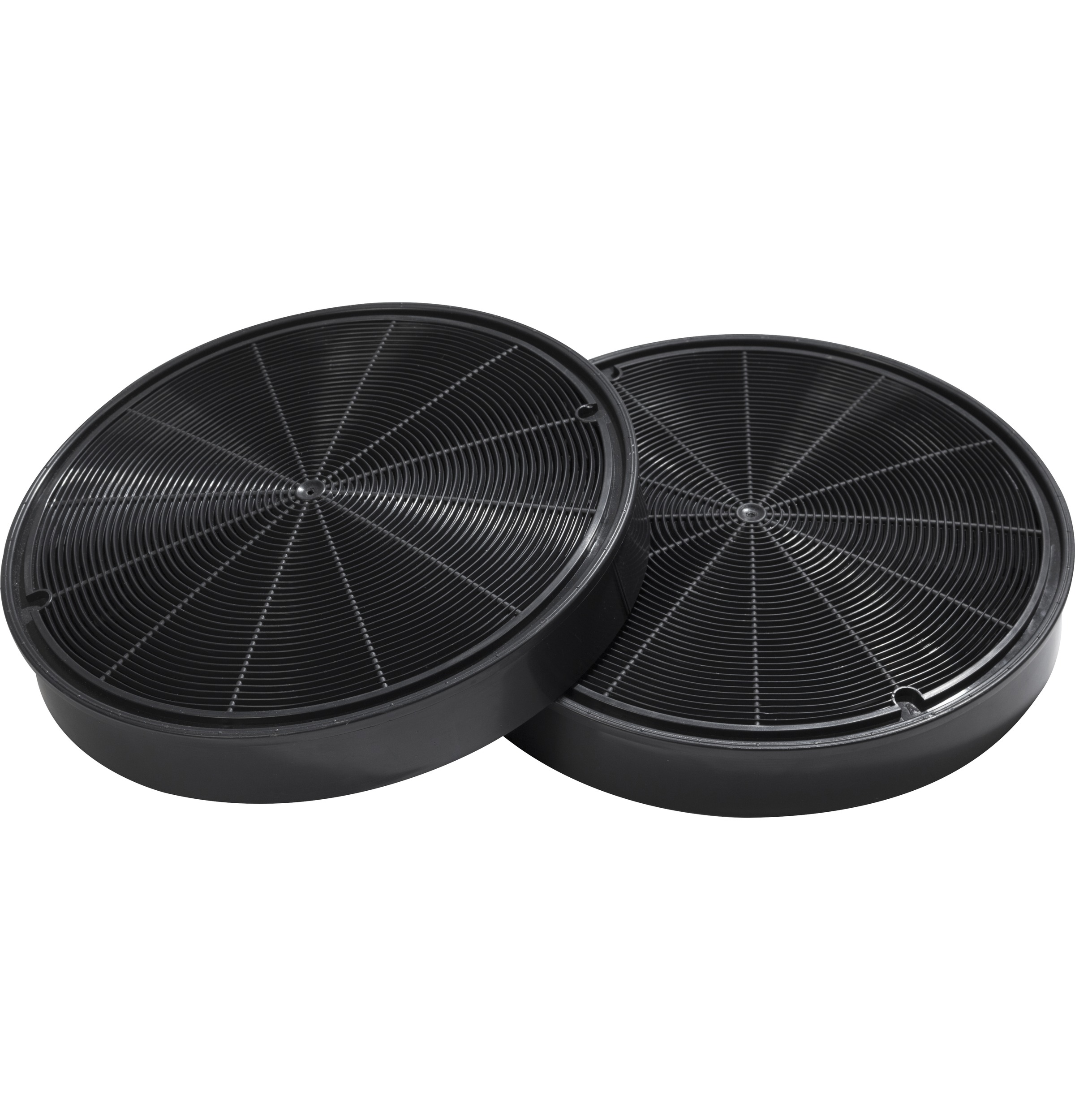

| Optional Accessories | JXCF72 - Charcoal Filter |
| Optional Accessories | UXDC72BJTS - 9 (ft.) Ceiling Duct Cover Kit |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
ECONOMICAL / QUIET
| Venting Type | Convertible |
Dimensions & Weight
| Width | 30 in. |
| Height | 9.88 in. |
| Length | 18.5 in. |
| Weight | 43 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 14.88 in. |
| Shipping Length | 23.5 in. |
| Shipping Weight | 83 lbs. |
| Total of Shipping Weight | 83 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 3.17 ft³ |
| Dimensional Weight | 39.43 lbs. |
| Total of Cubes | 3.17 ft³ |
| Total of Dimensional Weight | 39.43 lbs. |
