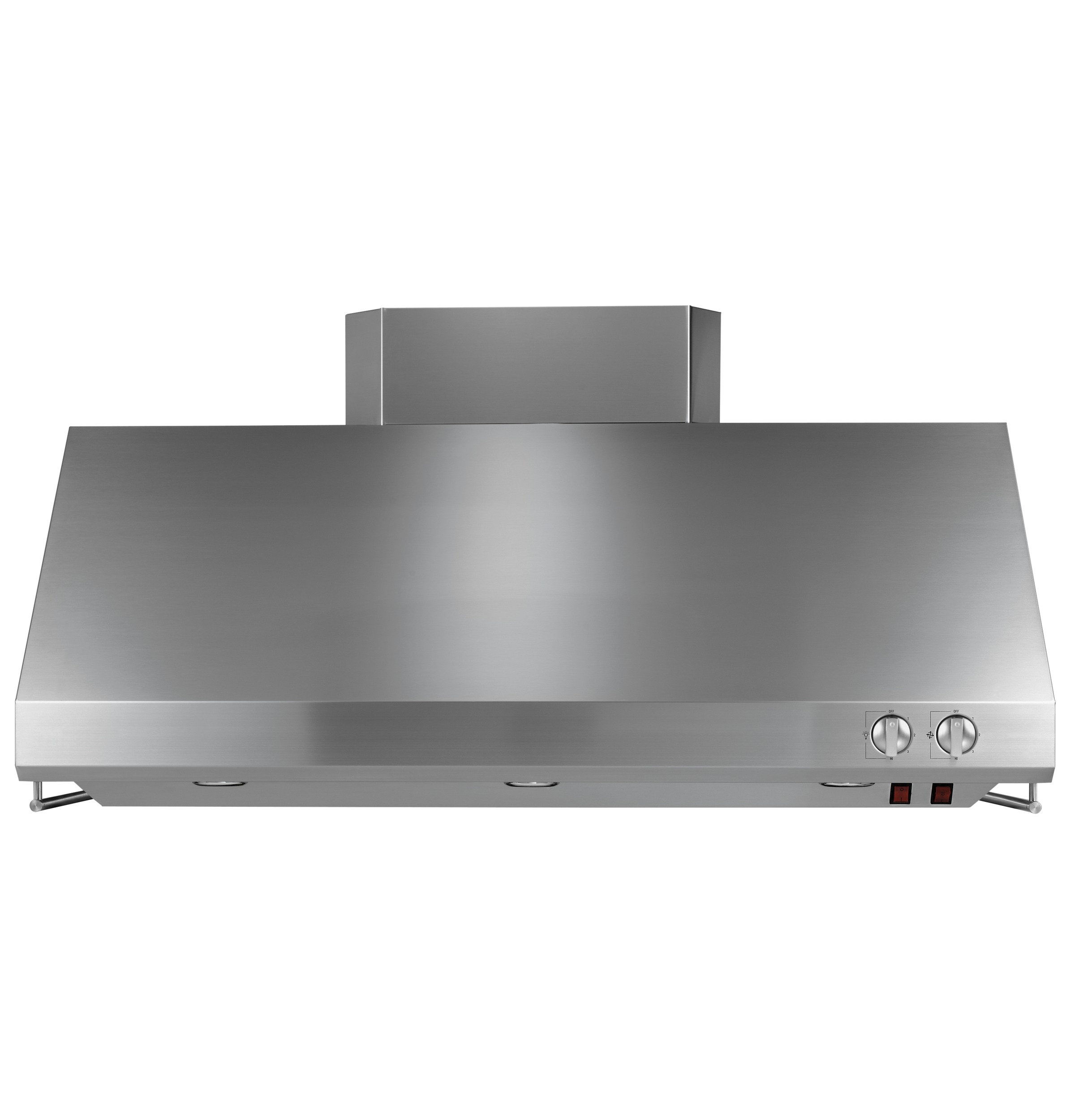

Monogram 48" Stainless Steel Professional Hood - ZV48SSJSS
Monogram 48" Stainless Steel Professional Hood
Model: ZV48SSJSS

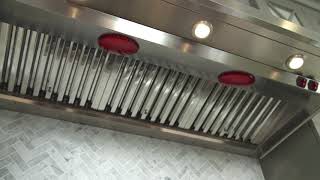

Product Video
Monogram 48" Stainless Steel Professional Hood
Model: ZV48SSJSS
Color : Stainless Steel
Key Features
940-CFM vertical exhaust with dual blowers
3 halogen lamps with 4 lighting levels
Infrared warming lamp(s)
Removable grease trays
Dishwasher-safe removable baffle stainless steel filters
Variable speed fan control
Utensil racks
Available from Slyman Bros, serving customers throughout Missouri.
Features
940-CFM vertical exhaust with dual blowers
Supremely quiet and stunningly effective, this powerful ventilation hood keeps your kitchen fresh and free of cooking fumes and odors
3 halogen lamps with 4 lighting levels
Infrared warming lamp(s)
Removable grease trays
Dishwasher-safe removable baffle stainless steel filters
Variable speed fan control
Utensil racks
Certifications
CEC Regulated
California Prop 65
Specifications

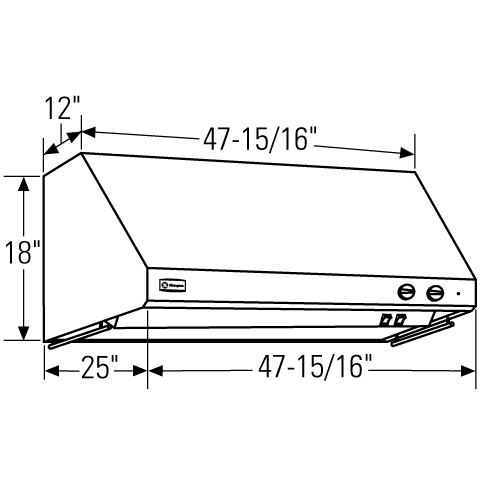

WEIGHTS & DIMENSIONS
| Net Weight | 100 lb |
| Overall Depth | 25 in |
| Overall Height | 18 in |
| Overall Width | 48 in |
| Cabinet Width | 48 in |
| Approximate Shipping Weight | 124 lb |
FEATURES
| Cooktop Lighting | Halogen |
| Max CFM | 940 |
| Required Duct Size | 10-in. Round |
| Utensil Rod | Brushed Stainless Steel |
| Working Speed CFM/Sones | 410/4.0 |
| Damper in Transition | Yes |
| Short Description | 48" Stainless Steel Professional Hood |
| CFM/ Sones Rating | 940/10.5 |
| Exhaust Options | 10" Round Duct |
| Double Wall Construction | Yes |
| Product Type | Designer Hood |
| Vertical Exhaust Blower Rating (CFM) | 940 |
| Infrared Warming Lamps | 2 |
| Welded / Finished Seams | Yes |
| Variable Speed Fan | Yes |
| Baffle Stainless Steel Filters | 3 |
| Dual Blowers | Yes |
| Grease Tray | 3 |
| Lighting Levels | 4 |
| Removable Filter | Yes |
| Recirculating Capable | No |
APPEARANCE
| Exterior Design | Straight Sides |
| Design Style | Professional |
| Color Appearance | Stainless Steel |
WARRANTY
| Labor Warranty | Limited 2-year entire appliance |
| Parts Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
POWER / RATINGS
| Amps at 110V | 12.5 |
| Hertz | 60 |
ACCESSORIES
| Optional 6" Duct Cover | ZX48DC6J |
| Optional 12" Duct Cover | ZX48DC12J |
Dimensions & Weight
| Width | 48 in. |
| Height | 18 in. |
| Length | 25 in. |
| Weight | 100 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 53 in. |
| Shipping Height | 23 in. |
| Shipping Length | 30 in. |
| Shipping Weight | 140 lbs. |
| Total of Shipping Weight | 140 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 12.5 ft³ |
| Dimensional Weight | 155.4 lbs. |
| Total of Cubes | 12.5 ft³ |
| Total of Dimensional Weight | 155.4 lbs. |
ECONOMICAL / QUIET
| Venting Type | Externally Vented |
