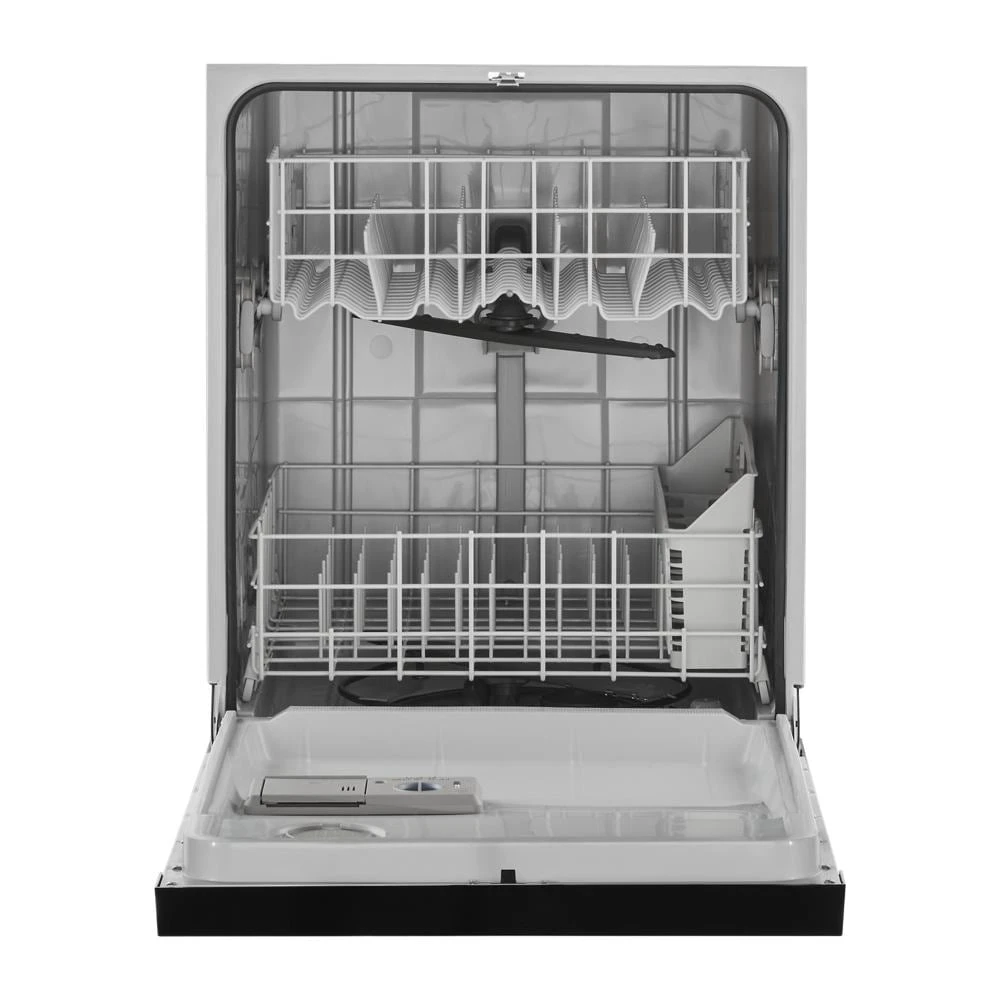

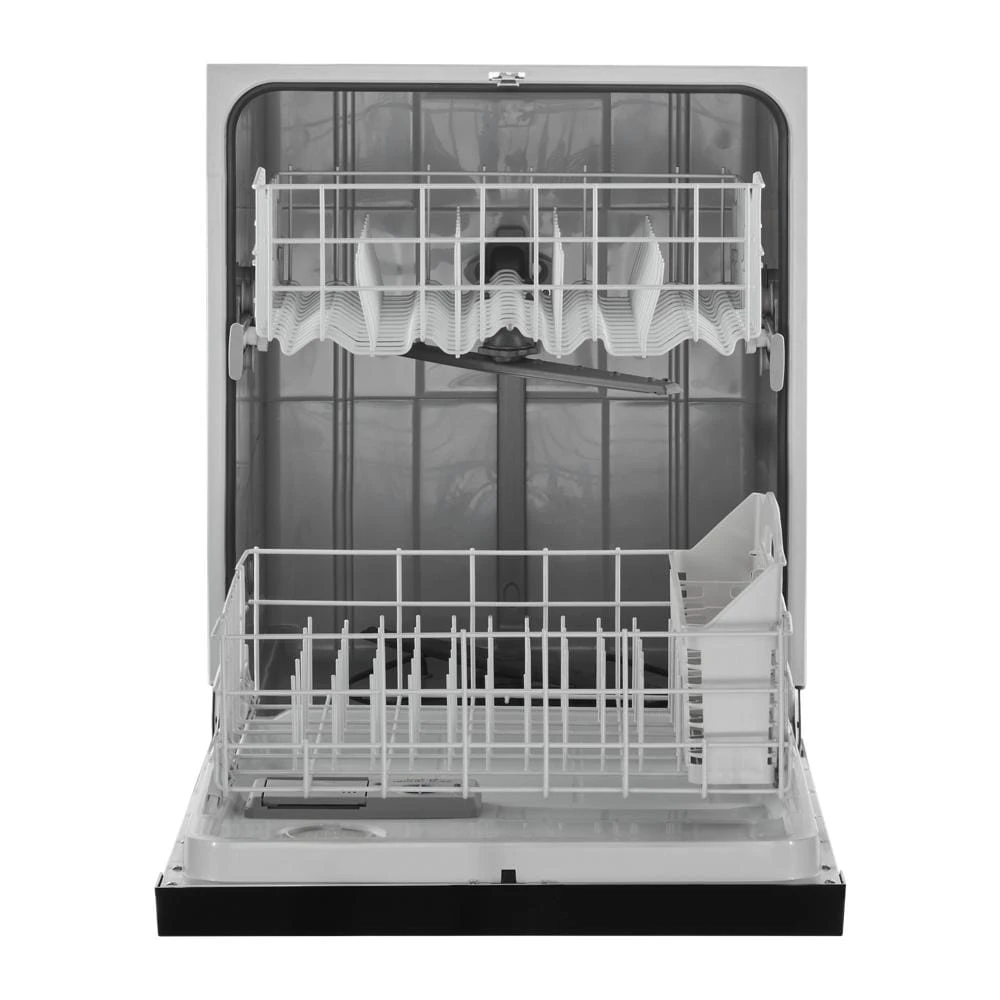

Dishwasher with Triple Filter Wash System - ADB1400AMS
Dishwasher with Triple Filter Wash System
Model: ADB1400AMS








Dishwasher with Triple Filter Wash System
Model: ADB1400AMS
Key Features
Passive Dry
An American Company for Over 100 Years
Eco Series
59 dBA
Quick Wash Cycle
Slim Console
12-Place Setting Capacity
Heated Dry Option
Description
Available from Slyman Bros, serving customers throughout Missouri.
Features
Passive Dry
Passive Dry uses an open vent to release humid air to aid in the drying process while the heating element helps evaporate water off of the dishes
An American Company for Over 100 Years
Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
Eco Series
Designed with efficiency in mind. Saving you water, energy and money with quality wash and dry performance.*Compared to dishwashers meeting the minimum 2023 Department of Energy efficiency standards
59 dBA
Keep your kitchen quiet during cleanup with a dishwasher sound level of just 59 dBA.
Quick Wash Cycle
Clean dishes fast with a cycle that thoroughly takes care of plates, pans and glasses when you need them done in a hurry.

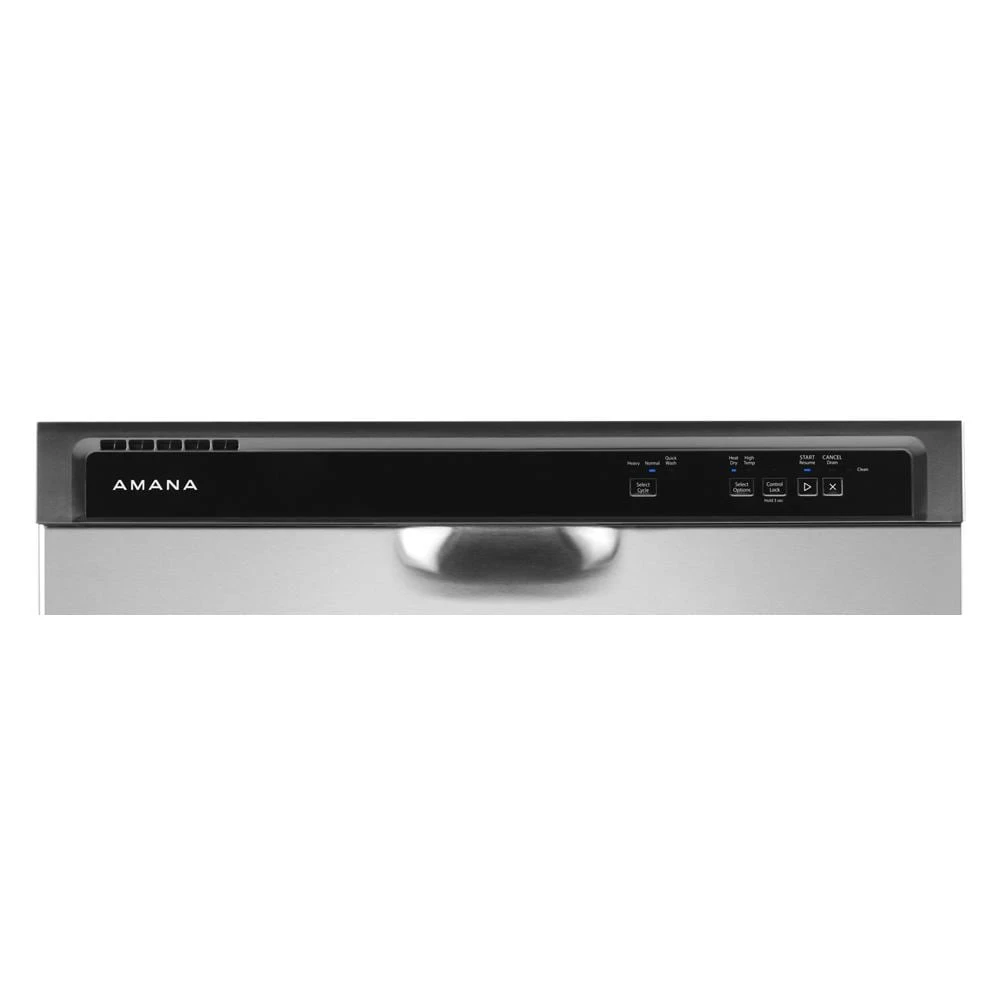

Slim Console
Bring clean lines to the kitchen with a slim, sleek, easy to clean console that offers easy access to settings without adding extra bulk.
12-Place Setting Capacity
When it's your turn to do the dishes, a 12-Place Setting Capacity gives the space you need for every load.
Heated Dry Option
A Heated Dry Option allows you to use a clean, dry dish straight from the dishwasher thanks to added heat for drying.
Versatile Basket
Fit what you need with thinking about it
Overfill Detect
A float sensor inside the dishwasher will detect if too much water is in the tub and cut the power to the inlet fill valve to help prevent overfilling.
An American company for over 100 years
Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
High Temperature Wash Option
High Temperature Wash Option raises the water temperature to help remove stubborn grease and food grime.
Triple Filtration Wash System
Keep dishes clear of rinsed food particles with a Triple Filtration Wash System that uses a coarse filter to catch large soils, a fine filter to catch medium soils and a micro-fine filter to catch small soils between wash stages.
Specifications
Controls
| Automatic Temperature Controls | Yes |
| Control Location | Front |
| Control Type | Electronic Touch |
| Last Cycle Recall | Yes |
Cycles
| Number of Wash Cycles | 3 |
Details
| Built-In Water Softener | No |
| Drying System Type | Heating Element |
| Number of Racks | 2 |
| Tub Material | Plastic |
| Tub Style | Built-in Tall Tub 24in. |
| Wash System Type | Removable Filter |
| Water Filtration | Yes |
| Dishwasher Cycle Selection | Heavy; Normal; Quick Rinse |
| Dishwasher Option Selections | Heated Dry; Hi Temp Wash |
| Dispensers | Detergent and Rinse Aid |
| Number of Place Settings | 12 |
| Number of Wash Levels | 4 |
| Rinse Aid Dispenser Level Indicator | Optical Level Indicator |
| Sensor | No |
| Sound Package | No; Quiet Pack™ |
| True Hold Door | No |
Certifications
| ADA Compliant | No |
| CEE Tier Rating | Not Rated |
| NSF Certified | No |
| prop65 | Standard |
Electrical
| Power Cord Included | No |
Other
| Number of Place Settings | 12 |
Dimensions & Weight
| Width | 23.88 in. |
| Height | 34.5 in. |
| Length | 25.25 in. |
| Weight | 64 lbs. |
| Carton Depth | 26 3/4 |
| Carton Height | 35 11/16 |
| Carton Width | 24 9/16 |
| Depth Closed Excluding Handles | 24 1/2 |
| Depth Closed Including Handles | 24 1/2 |
| Depth With Door Open 90 Degree | 49 1/2 |
| Gross Weight | 75 |
| Maximum Height | 34 1/2 |
| Minimum Height | 33 1/2 |
| Net Weight | 64.0 |
| Depth Closed Excluding Handles(IN,inches) | 24.5000 |
| Depth Closed Including Handles(IN,inches) | 24.5000 |
| Depth With Door Open 90 Degree(IN,inches) | 49.5000 |
| Maximum Height(IN,inches) | 34.5000 |
| Minimum Height(IN,inches) | 33.5000 |
| Carton Depth(IN,inches) | 26.7500 |
| Carton Height(IN,inches) | 35.6875 |
| Carton Width(IN,inches) | 24.5625 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.88 in. |
| Shipping Height | 39.5 in. |
| Shipping Length | 30.25 in. |
| Shipping Weight | 104 lbs. |
| Total of Shipping Weight | 104 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 12.04 ft³ |
| Dimensional Weight | 149.63 lbs. |
| Total of Cubes | 12.04 ft³ |
| Total of Dimensional Weight | 149.63 lbs. |
Dimensions
| Depth Closed Excluding Handles | 24.5 |
| Depth Closed Including Handles | 24.5 |
| Depth With Door Open 90 Degree | 49.5 |
| carton depth | 26.69 |
| carton height | 35.67 |
| carton width | 24.56 |
| gross weight | 75 |
| net weight | 64 |
Exterior Details
| Door Style | Flat |
| Window | No |
| Handle Type | Short Pocket |
| Toe Panel Color | Black |
Oven Details
| Interior Light | No |
| Lower Rack Glides | Wheels |
Performance Details
| Motor Horsepower | 1/8 HP |
Rack Details
| Lower Rack Cushion-Tip Tines | No |
| Lower Rack Fold-Down Tines | No |
| Lower Rack Style | Straight |
| Second Level Rack Adjustable | No |
| Second Level Rack Cushion-Tip Tines | No |
| Second Level Rack Fold-Down Tines | No |
Silverware Basket Details
| Silverware Basket Covers | No |
| Silverware Basket Location | Lower Rack - Right Side |
| Silverware Basket Type | Full Length Non Splittable |
Product Details
| Decibel Level (dBA) | 59 |
| Dishwasher Rack Material | PVC |
| Energy Star® Qualified | No |
| Kosher Consumer Friendly | Yes |
