Ascenta® Dishwasher 24'' Stainless steel - SHX5AVL5UC
Ascenta® Dishwasher 24'' Stainless steel
Model: SHX5AVL5UC
Product Video
Ascenta® Dishwasher 24'' Stainless steel
Model: SHX5AVL5UC
Color : Stainless steel
Replaced By
Key Features
46 dBA- Quietest Dishwasher Brand.

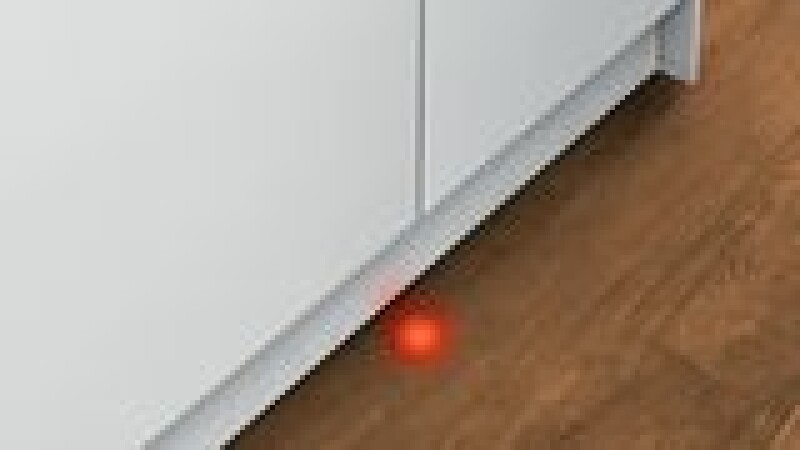

InfoLight Beams on Floor to Indicate Dishwasher is Running
RackMatic on Upper Rack - 3 Height Adjustments
24/7 Overflow Protection System
Stainless Steel Tall Tub with Polypropylene
RackMatic on Upper Rack
InfoLight® Beams on Floor to Indicate Dishwasher is Running
RackMatic® on Upper Rack
Available from Slyman Bros, serving customers throughout Missouri.
Features
46 dBA- Quietest Dishwasher Brand.
InfoLight Beams on Floor to Indicate Dishwasher is Running
RackMatic on Upper Rack - 3 Height Adjustments
24/7 Overflow Protection System
Stainless Steel Tall Tub with Polypropylene
RackMatic on Upper Rack
- 3 Height Adjustments
InfoLight® Beams on Floor to Indicate Dishwasher is Running
RackMatic® on Upper Rack
- 3 Height Adjustments
24/7 Overflow Protection System®
Specifications
General
| Installation Type | Built-under |
| List of Programs | Pots & Pans, Auto, Normal, 1 Hour, Rinse |
| Silence Level | 46 dB(A) re 1pW |
| Number of Place Settings | 14 |
| Design | Built-in |
| Color | Stainless steel |
| Panel Ready | Not Possible |
| Options | Special option: Extra dry, Special option: Half Load, IntensiveZone, Sanitize |
| Handle Design | Bar Handle |
| Toe Kick Color | Black |
| Tub Material | Stainless steel with Polinox base |
Safety
| ChildLock | No |
| AquaStop | no |
Size and Weight
| Required Cutout Size (HxWxD) (in) | 33 7/8'' x 24'' x 24'' |
| Adjustable Feet | Yes - all |
| Length Outlet Hose (in) | 90 1/2'' |
| Overall Appliance Dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 22 9/16'' |
| Net Weight | 72.000 lbs |
Comfort and Convenience
| Status Indicator | End of program audible |
Cleaning Technology
| Drying System | PureDry® |
| Eco silence drive | yes |
| Aquasensor | yes |
| Water management system | no |
| Detergent detection | no |
| Water Softener | no |
Dimensions & Weight
| Width | 23.56 in. |
| Height | 33.88 in. |
| Length | 22.56 in. |
| Weight | 73 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.56 in. |
| Shipping Height | 38.88 in. |
| Shipping Length | 27.56 in. |
| Shipping Weight | 113 lbs. |
| Total of Shipping Weight | 113 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 10.42 ft³ |
| Dimensional Weight | 129.56 lbs. |
| Total of Cubes | 10.42 ft³ |
| Total of Dimensional Weight | 129.56 lbs. |
Energy and Water
| ENERGY STAR® certified | yes |
| Total Annual Energy Consumption | 269 kWh |
| Total Annual Water Consumption | 688 gal |
