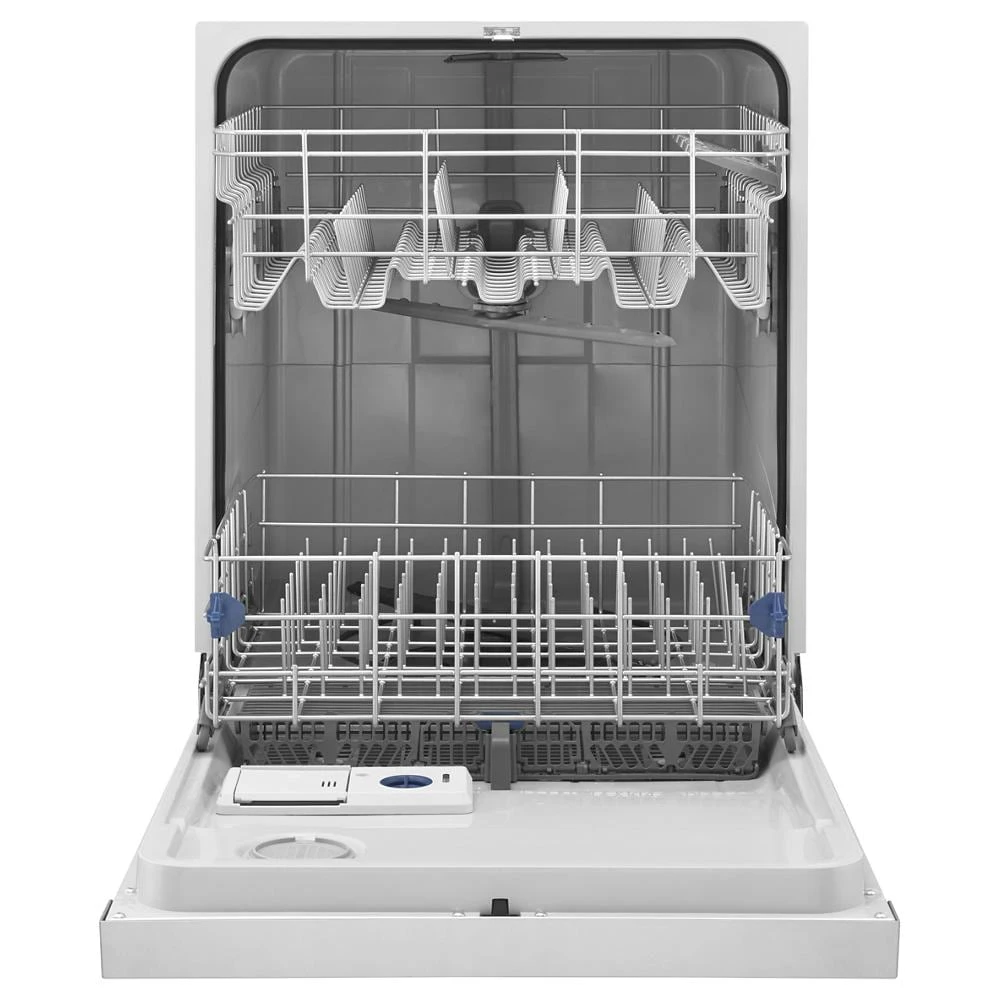

ENERGY STAR® certified dishwasher with Sensor cycle - WDF540PADW
This product has been discontinued by the manufacture and is no longer available.
ENERGY STAR® certified dishwasher with Sensor cycle
Model: WDF540PADW
+11more
This product has been discontinued by the manufacture and is no longer available.
ENERGY STAR® certified dishwasher with Sensor cycle
Model: WDF540PADW
Color : White
Available from Slyman Bros, serving customers throughout Missouri.
Specifications
Specifications
Controls
| Control Type | Electronic |
| Status Light | Blue |
| Control Location | Front |
Cycles
| Number of Wash Cycles | 5 |
Details
| Number of Racks | 2 |
| Number of Washarms | 3 |
| Tub Material | Plastic |
| Tub Style | Built-in Tall Tub 24in. |

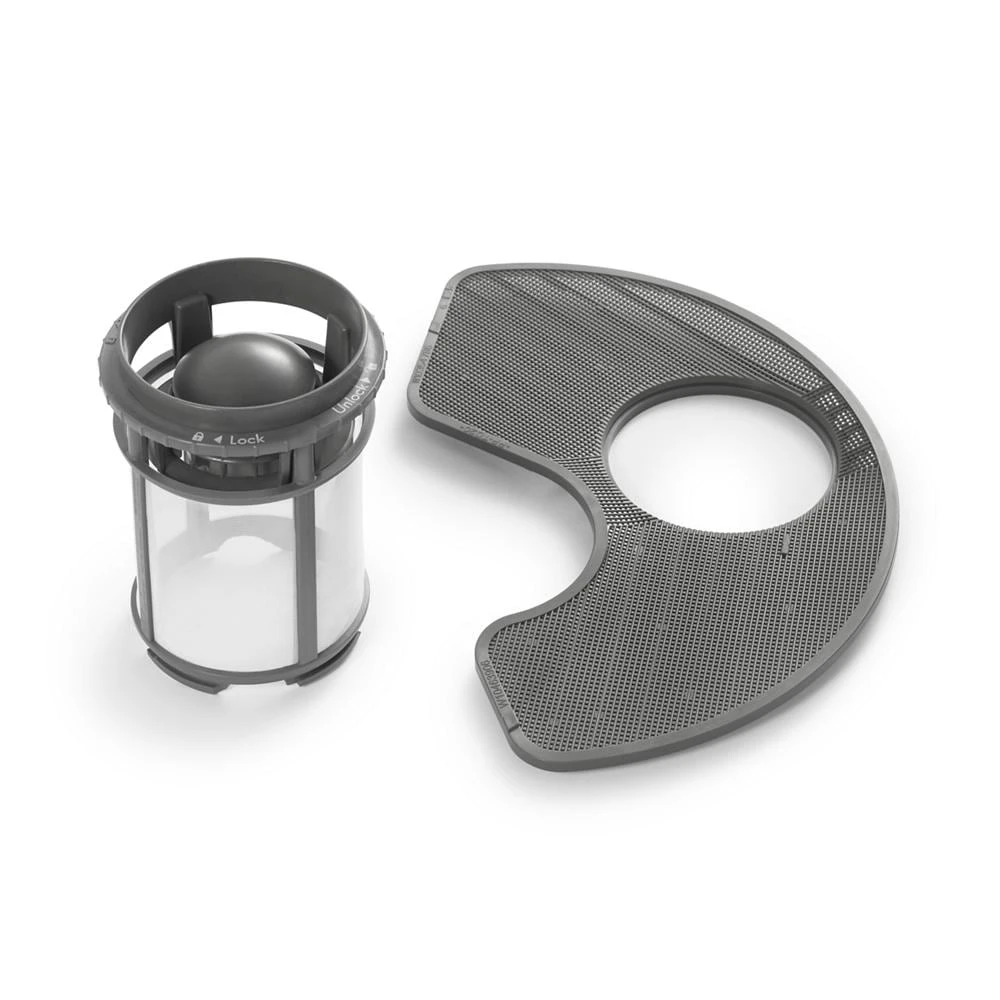

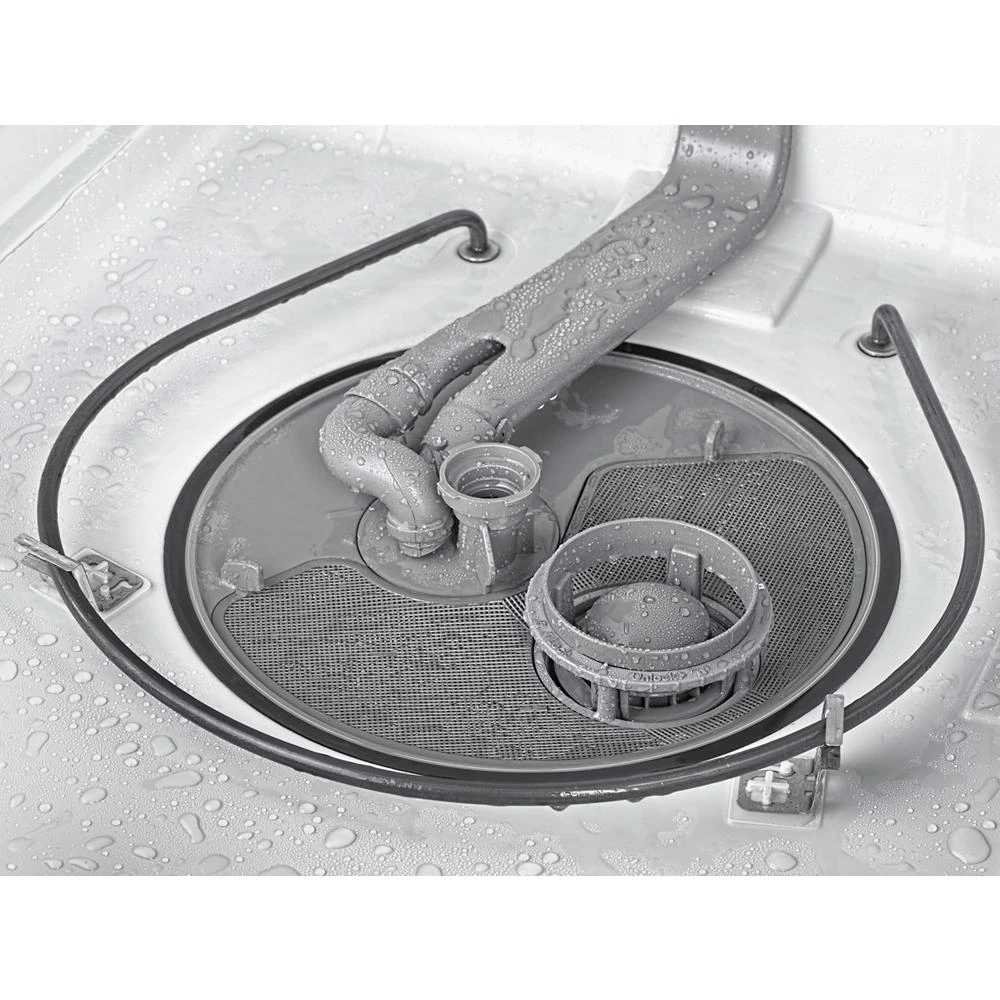

| Wash System Type | Removable Filter |
| Dishwasher Cycle Selection | 1-Hour Wash; Heavy; Normal; Sensor Wash; Soak & Clean |
| Dishwasher Option Selections | 4 Hour Delay; Control Lock; Heated Dry; Hi Temp Wash; Sani Rinse |
| Dishwasher Type | Built-In |
| Dispensers | Detergent and Rinse Aid |
| Number of Place Settings | 15 |
| Number of Wash Levels | 5 |
| Rinse Aid Dispenser Level Indicator | Yes |
| Sensor | Yes |
| Sound Package | Yes |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 11.68 ft³ |
| Dimensional Weight | 145.18 lbs. |
| Total of Cubes | 11.68 ft³ |
| Total of Dimensional Weight | 145.18 lbs. |
Certifications
| CEE Tier Rating | Tier I |
| NSF Certified | Yes |
| prop65 | Standard |
Exterior Details
| Window | No |
Oven Details
| Lower Rack Glides | Rollers |
| Lower Rack Utility Basket | No |
Rack Details
| Lower Rack Cushion-Tip Tines | No |
| Lower Rack Fold-Down Tines | No |
| Lower Rack Style | Straight |
| Second Level Rack Adjustable | No |
| Second Level Rack Cushion-Tip Tines | Yes |
| Second Level Rack Extras | 1-11 in. Cup Shelf; 2-No Flip Clips |
| Second Level Rack Fold-Down Tines | No |
| Second Level Rack Glides | Single Channel Rails |
| Third Level Rack Adjustable | N/A |
| Third Level Rack Glides | N/A |
| Third Level Rack Removable | N/A |
Silverware Basket Details

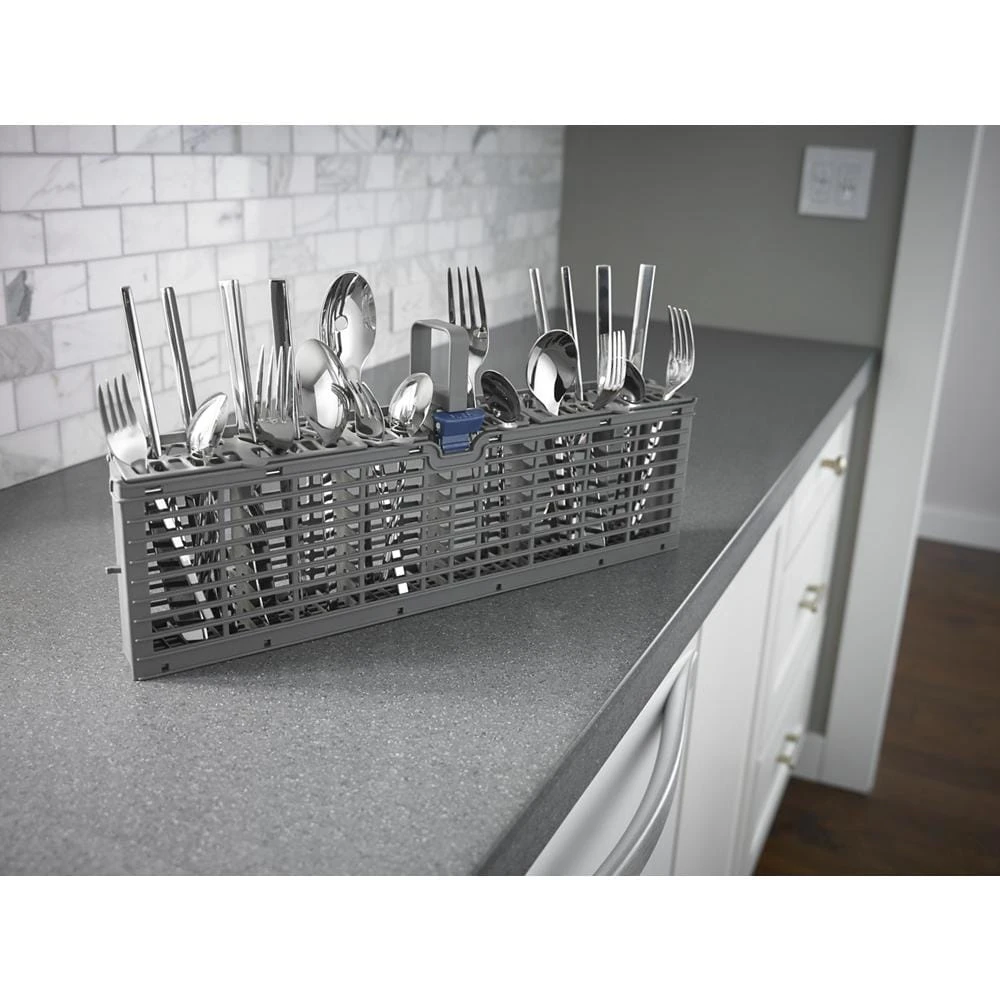

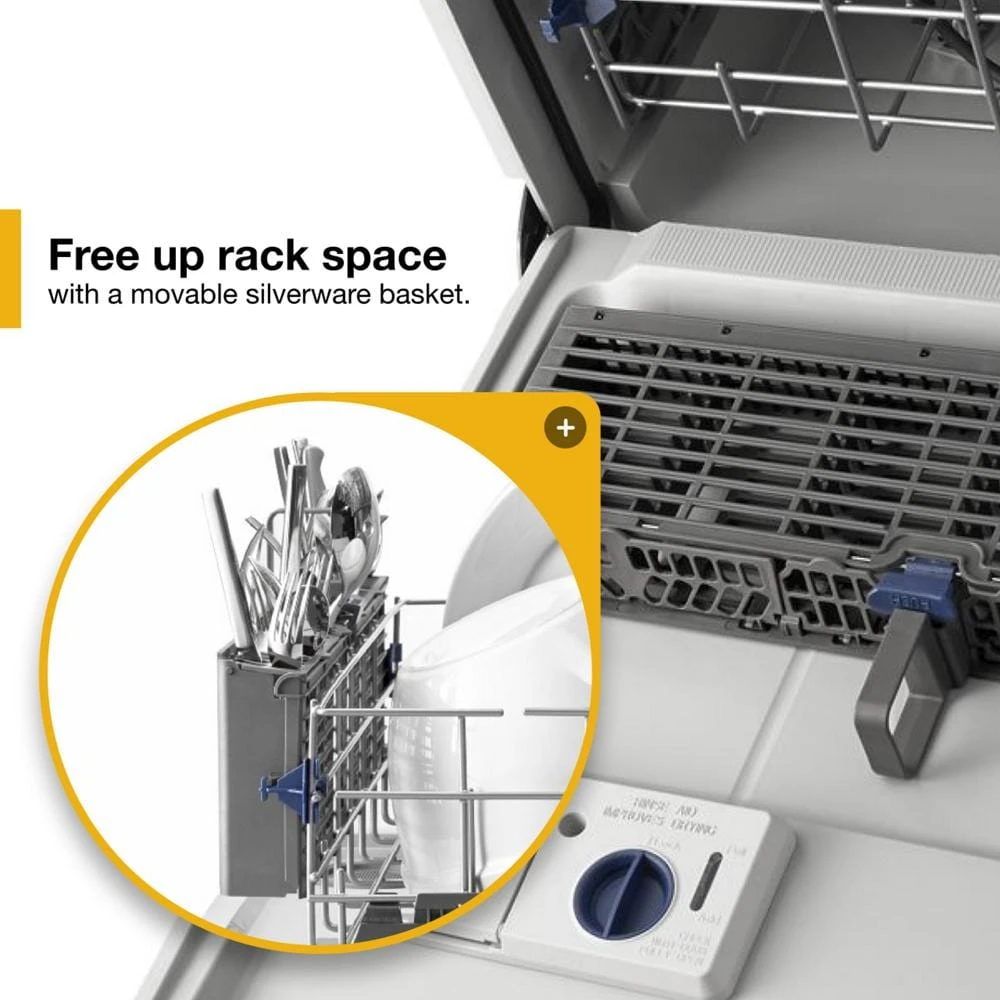

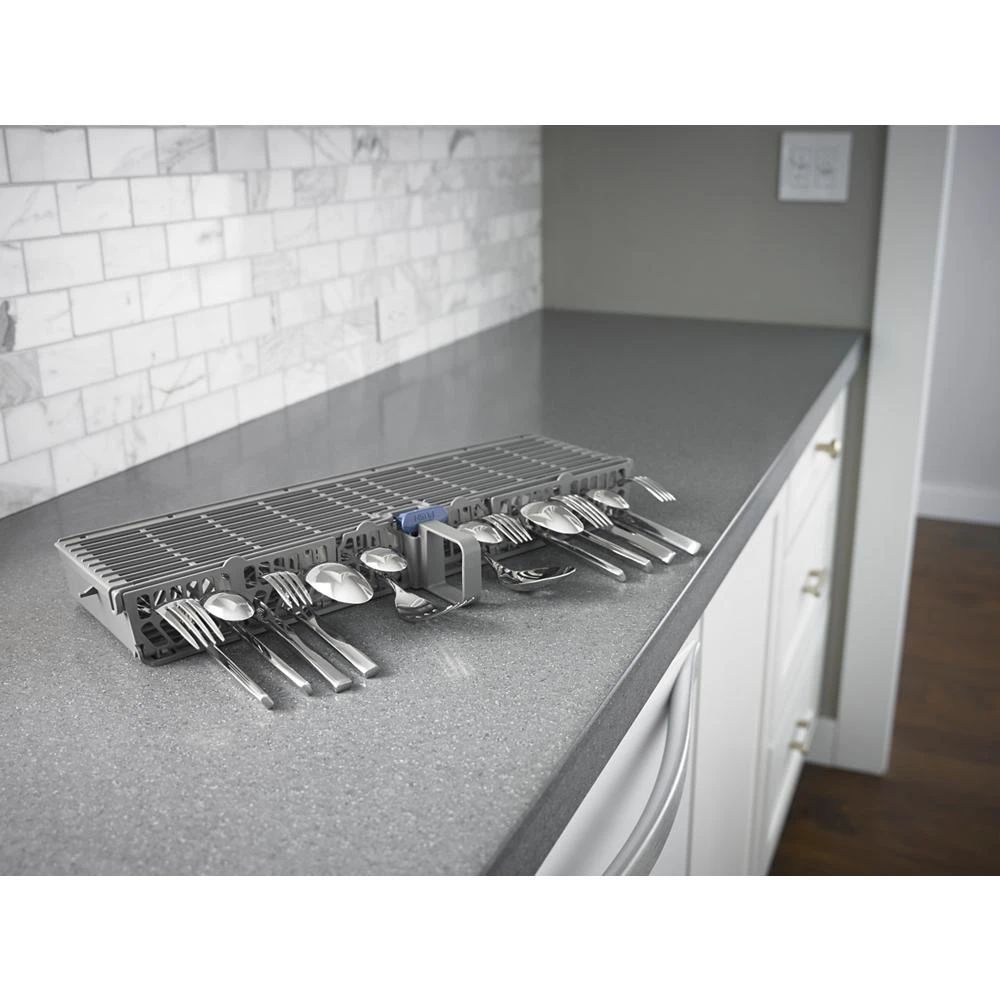

| Silverware Basket Location | Rack or Door |
| Silverware Basket Type | AnyWare™ Basket |
Smart Compatibility
| Connectivity | No |
| Works With | No |
Product Details

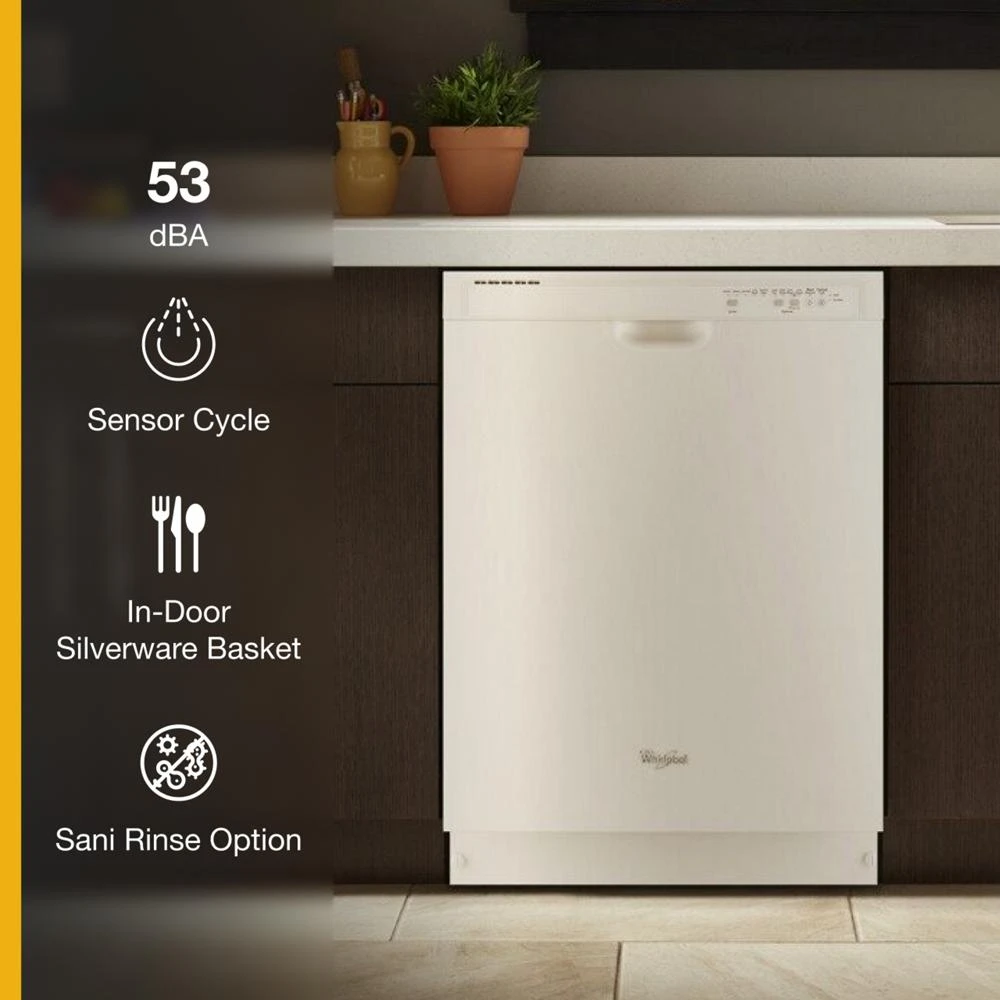

| Decibel Level (dBA) | 53 |
| Dishwasher Rack Material | Nylon |
| Energy Star® Qualified | ENERGY STAR® Qualified |
Dimensions & Weight
| Width | 23.88 in. |
| Height | 34.5 in. |
| Length | 24.5 in. |
| Weight | 67 lbs. |
| Carton Depth | 26 1/2 |
| Carton Height | 35 5/8 |
| Carton Width | 24 1/2 |
| Cutout Depth (in) | 24 |
| Cutout Height (in) | 33 7/8 |
| Cutout Width (in) | 24 |
| Maximum Height | 34 1/2 |
| Gross Weight | 67 |
| Depth With Door Open 90 Degree | 49 1/2 |
| Minimum Height | 33 1/2 |
| Cutout Depth(IN,inches) | 24 |
| Cutout Height(IN,inches) | 33 7/8 |
| Cutout Width(IN,inches) | 24 |
| Depth With Door Open 90 Degree(IN,inches) | 49 1/2 |
| Maximum Height(IN,inches) | 34 1/2 |
| Minimum Height(IN,inches) | 33 1/2 |
| Net Weight(LB,pounds) | 56 |
| Gross Weight(LB,pounds) | 67 |
| Cutout Depth | 24 |
| Cutout Height | 33.875 |
| Cutout Width | 24 |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 24.5 in. |
| Shipping Height | 35.63 in. |
| Shipping Length | 29.5 in. |
| Shipping Weight | 107 lbs. |
| Total of Shipping Weight | 107 lbs. |
| Source | Calculation |
