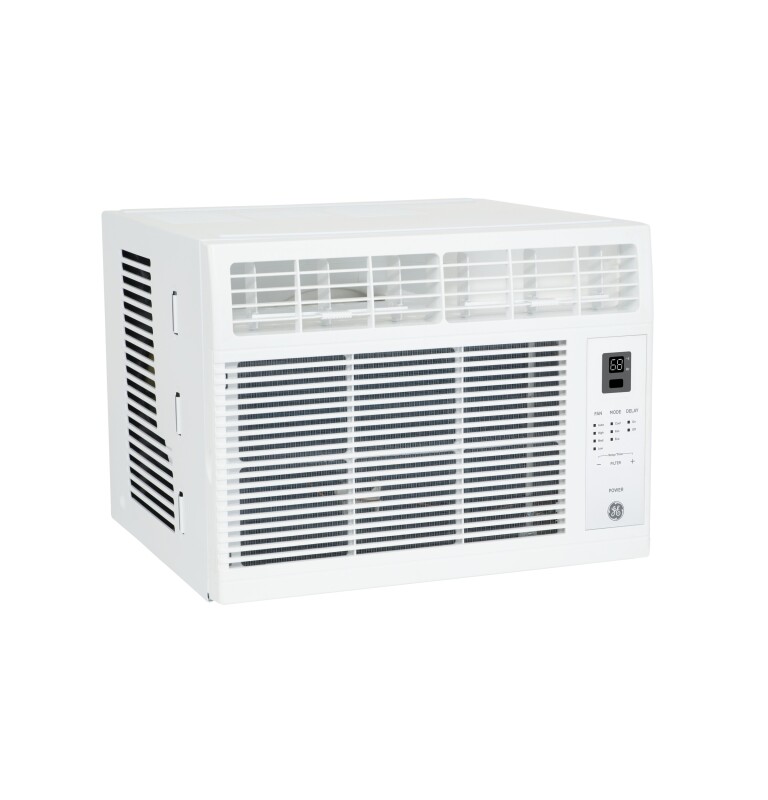

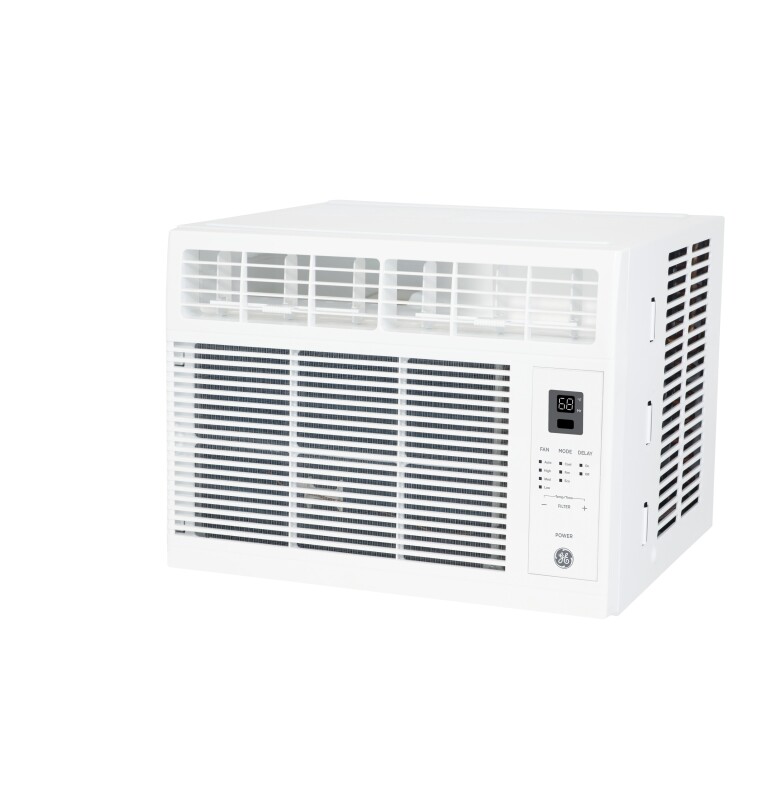

5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D - AHW05LZ

GEGE brand logo
This product is discontinued and has been replaced by the model below.

5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D

Model: AHW05LZ

5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 1 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 2 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 3 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 4 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 5 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 6 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 7 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 8 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 9 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 10 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 11 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 12 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 13 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 14 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 15 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 16 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 17 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 18 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 19 of 205,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, product image 20 of 20
5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, thumbnail image 1 of 20
5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, thumbnail image 2 of 20
5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, thumbnail image 3 of 20
5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, thumbnail image 4 of 20
5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ, thumbnail image 5 of 20
+15more

Color : White

5,000 BTU Electronic Window Air Conditioner for Small Rooms up to 150 sq ft. in White size 12 9/16 H x 16 7/16 W x 15 D AHW05LZ
White
Replaced By

6,000 BTU Electronic Window Air Conditioner for Small Rooms up to 250 sq ft., Black

Model: AHEF06BC

Product - AHEF06BC

$249.00

View Product

Key Features

  • Maximum Comfort Cool

  • Cools Small Rooms

  • Eco Mode

  • Filter Reminder

  • Electronic Controls

  • Remote Control

  • EZ Mount Kit

  • Adjustable Louvers

Read More

Available from Slyman Bros, serving customers throughout Missouri.

Features
Specifications
Certifications

Features

Maximum Comfort Cool

Keep home comfortable and maximize AC efficiency with three cooling settings and fan speeds to choose from

Cools Small Rooms

5,000 BTU cooling capacity offers maximum comfort in rooms up to 150 square feet

Eco Mode

The air conditioner Eco Mode automatically turns off the fan and compressor when the room is cool enough, reducing your utility costs

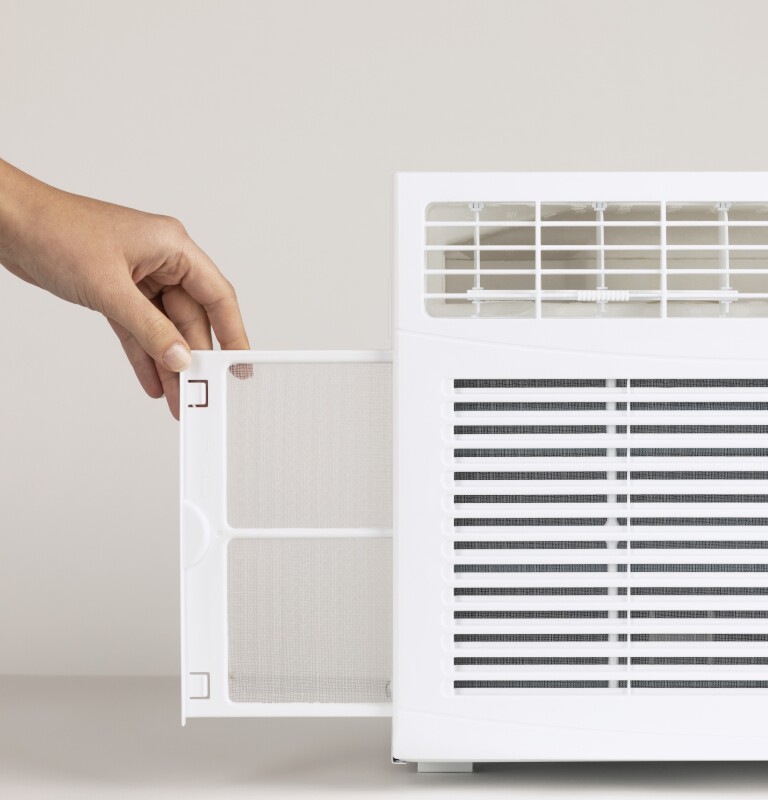

Filter Reminder

Get a filter change reminder when the filter needs cleaning, so you can keep the unit performing at its best

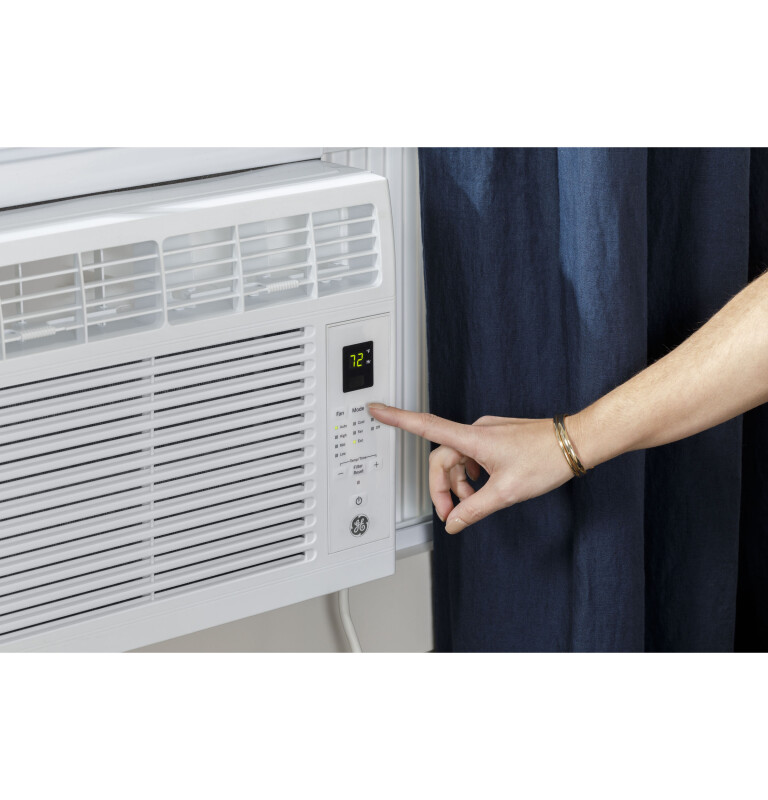

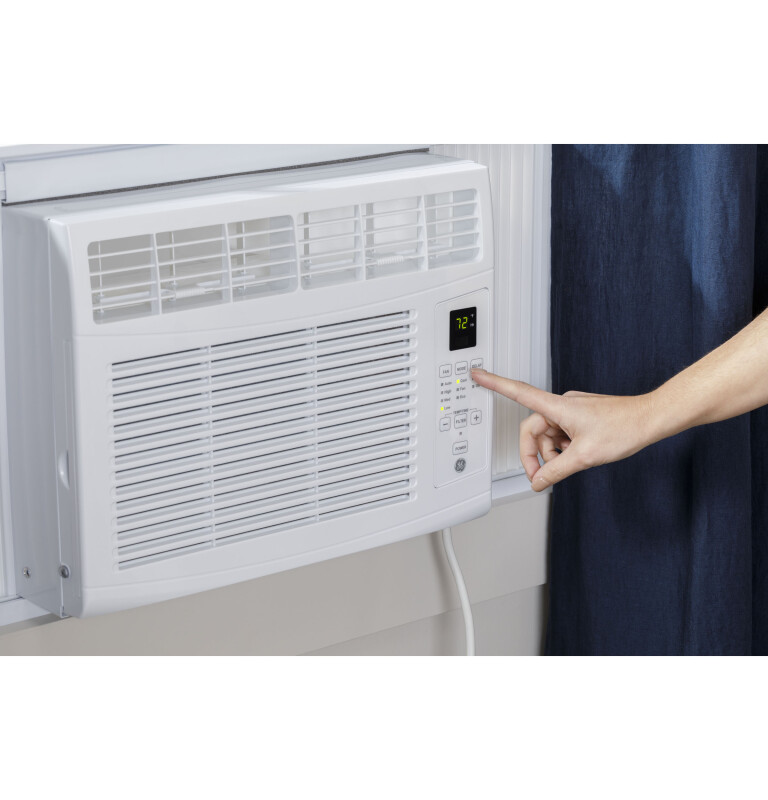

Electronic Controls

Program and adjust air conditioner settings with ease using simple digital controls

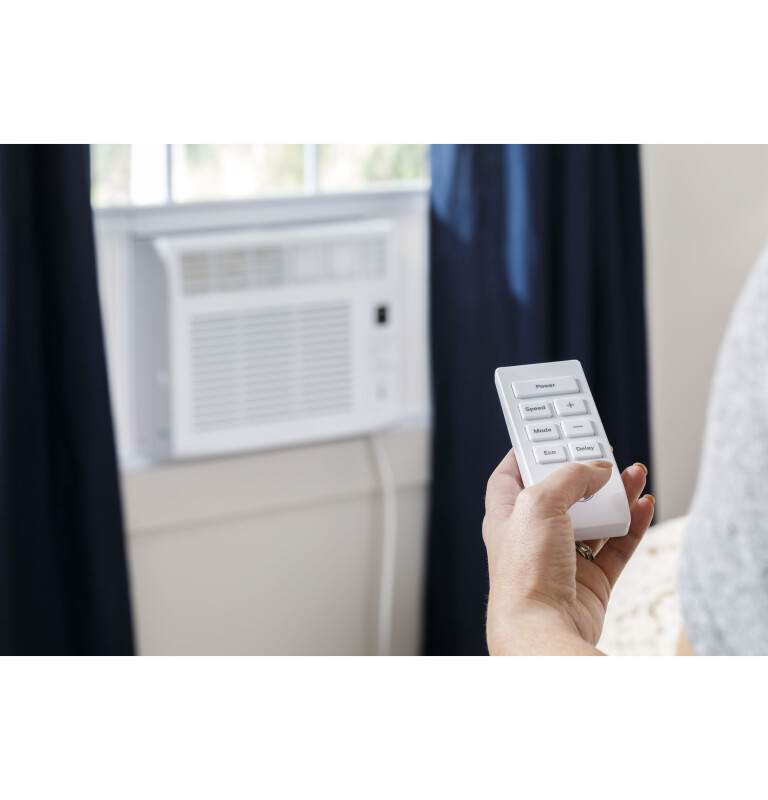

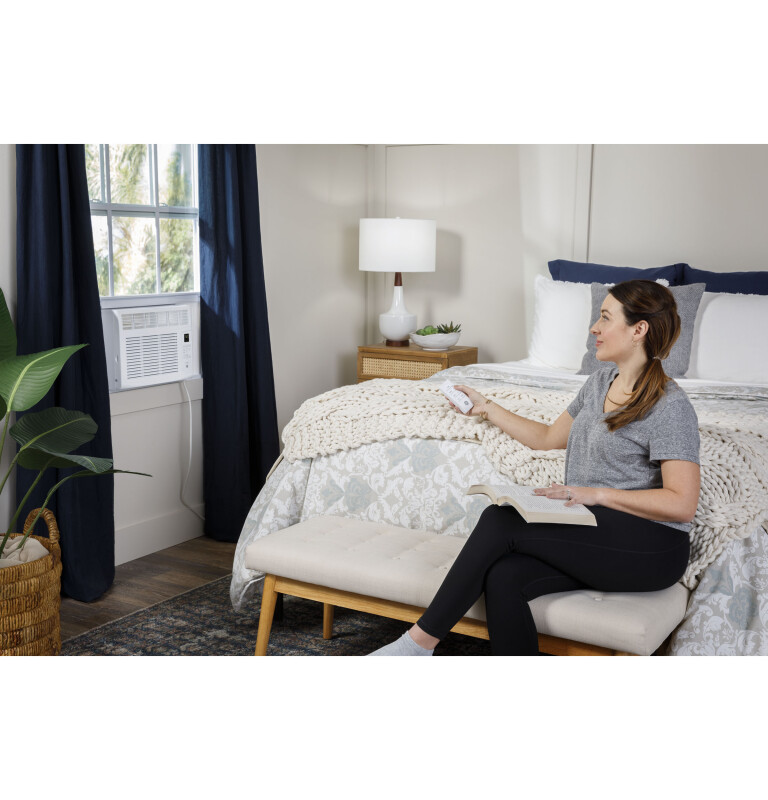

Remote Control

The unit comes with an included air conditioner remote, so you can adjust the unit from anywhere in the room

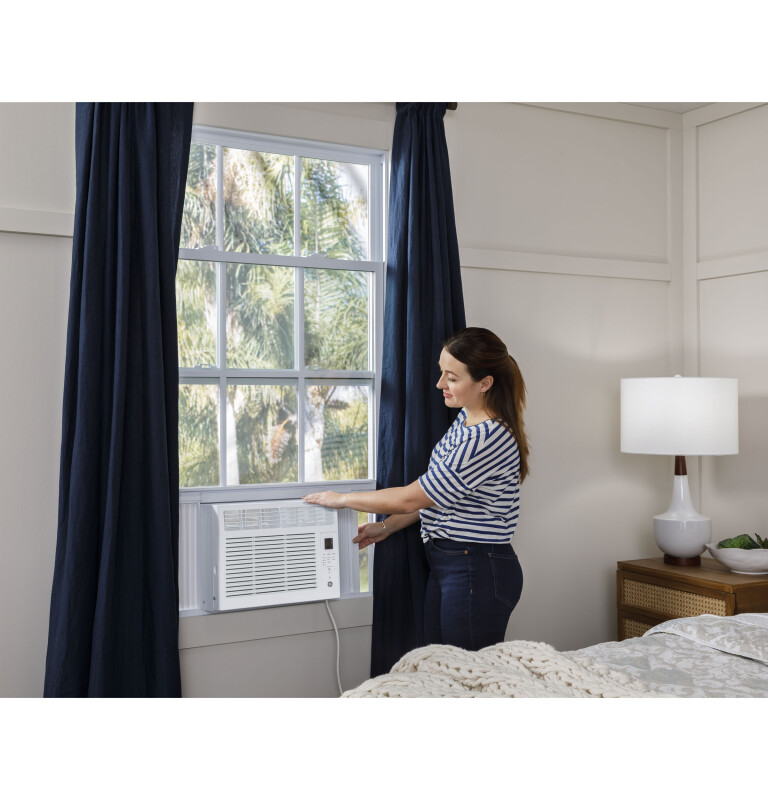

EZ Mount Kit

Make installation in a double hung window quick and easy with an included EZ Mount air conditioner installation kit

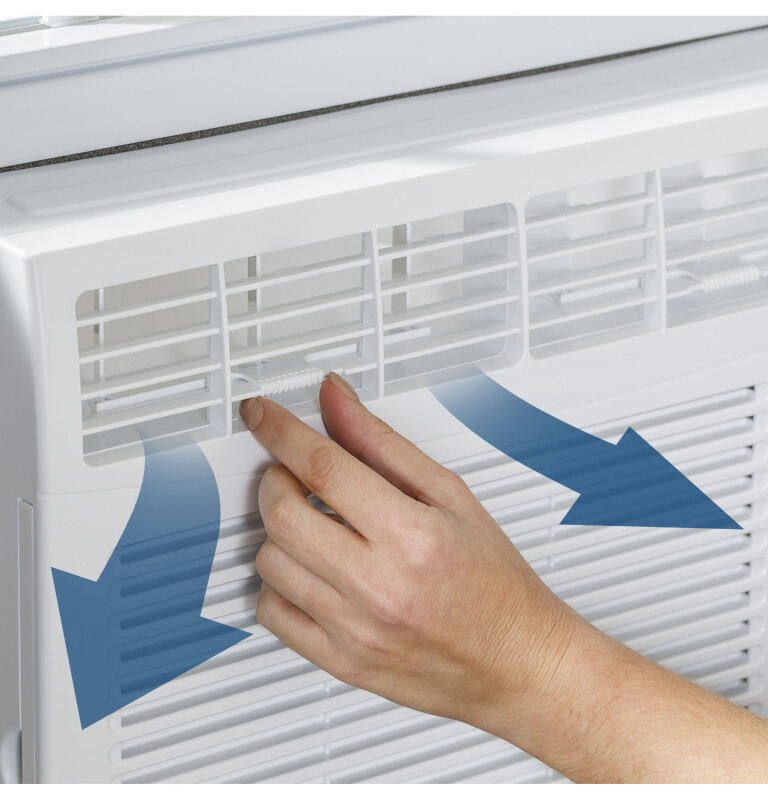

Adjustable Louvers

Two-way adjustable louvers make it easy to control where the air flows

Auto Restart

In the event of a power outage, the air conditioner restarts automatically with the last temperature settings

Voltage Type

This unit requires a 115 Volt outlet type

Certifications

AHAM certification

AHAM

CUL certification

CUL

California Prop 65 certification

California Prop 65

UL certification

UL

Specifications

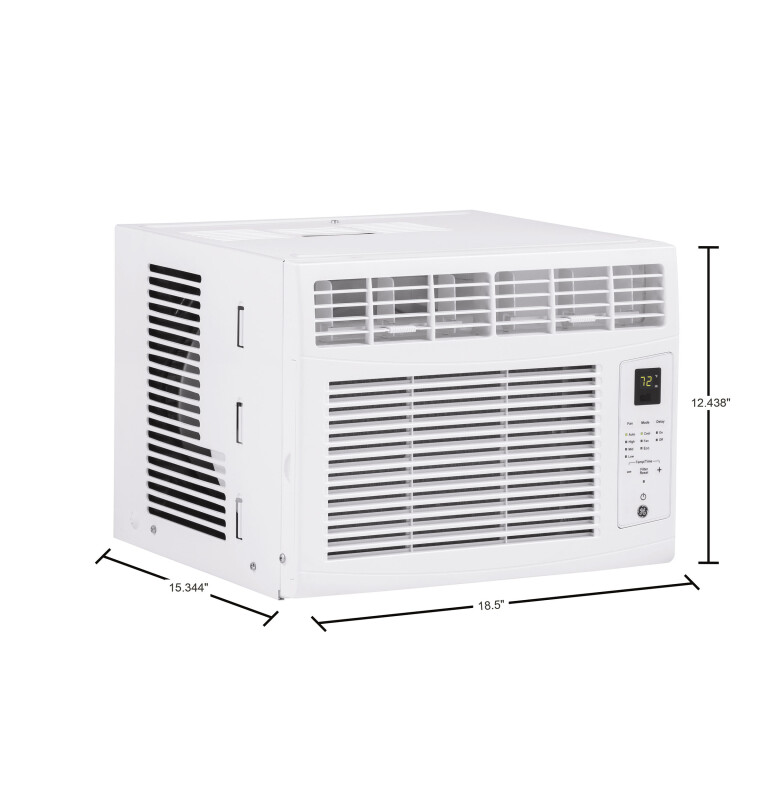

WEIGHTS & DIMENSIONS

Overall Width16.4375 in
Overall Height12.5625 in
Overall Depth15 in
Approximate Shipping Weight41.4 lb

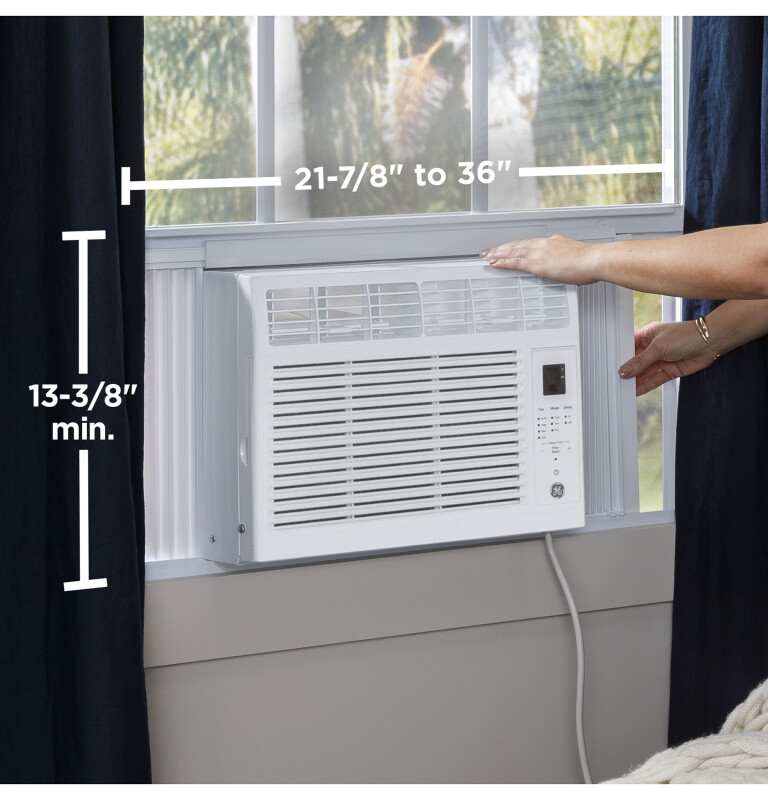

Min./Max. Window Opening Width (in.)21-7/8/36
Depth to Louvers6.25 in
Grille Depth1.1875 in
Net Weight36.6 lb
Minimum Window Opening Height (in.)13.375 in

FEATURES

Louver Style2-Way
Fan Speed Selections3 Fan Only
Power Cord Length72" Minimum
Product TypeWindow
Refrigerant TypeR32
Filter TypeSlide-Out
Chassis TypeFixed
Vent/Air Exchange ExhaustTop Air Discharge
Airflow DirectionTop
Plug TypeParallel/NEMA 5-15
Mounting TypeEZ Mount
Delay Timer24-Hour On/Off Timer
Remote ControlYes
Thermostat TypeElectronic
LCDI / AFCI power cordYes
Area to Cool100-150
Rotary CompressorYes
Digital Time Temp DisplayYes
Unit TypeCool Only
Room Air Conditioner FeaturesRemote Control
Airflow (cfm) Roomside135/115
Room Air Conditioner FeaturesEnergy Saver
Airflow Direction2-Way
Fan Speed Selections3 Cooling
Room Air Conditioner FeaturesElectronic Control
Room Air Conditioner FeaturesOn/Off Timer

POWER / RATINGS

Sound Level (Low/High)56/59 dbA
Cooling - Rated Cooling Amps AHAM4.1
Cooling - Watts455
CEER11.0
Voltage (MAX)115 V
Hertz60

APPEARANCE

InstallationEZ Mount
Color AppearanceWhite

CAPACITY

Dehumidification (pts./hr.)1.0
Cooling BTUH (MAX)5,050 Btu

Dimensions & Weight

Width16.44 in.
Height12.56 in.
Length15 in.
Weight36.6 lbs.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width21.44 in.
Shipping Height17.56 in.
Shipping Length20 in.
Shipping Weight76.6 lbs.
Total of Shipping Weight76.6 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement1.79 ft³
Dimensional Weight22.28 lbs.
Total of Cubes1.79 ft³
Total of Dimensional Weight22.28 lbs.

ECONOMICAL / QUIET

Sound Level (dBA)59 dBA (High)
Sound Level (dBA)56 dBA (Low)

Warranty

Parts (Replacement)1 Year
