$399.00

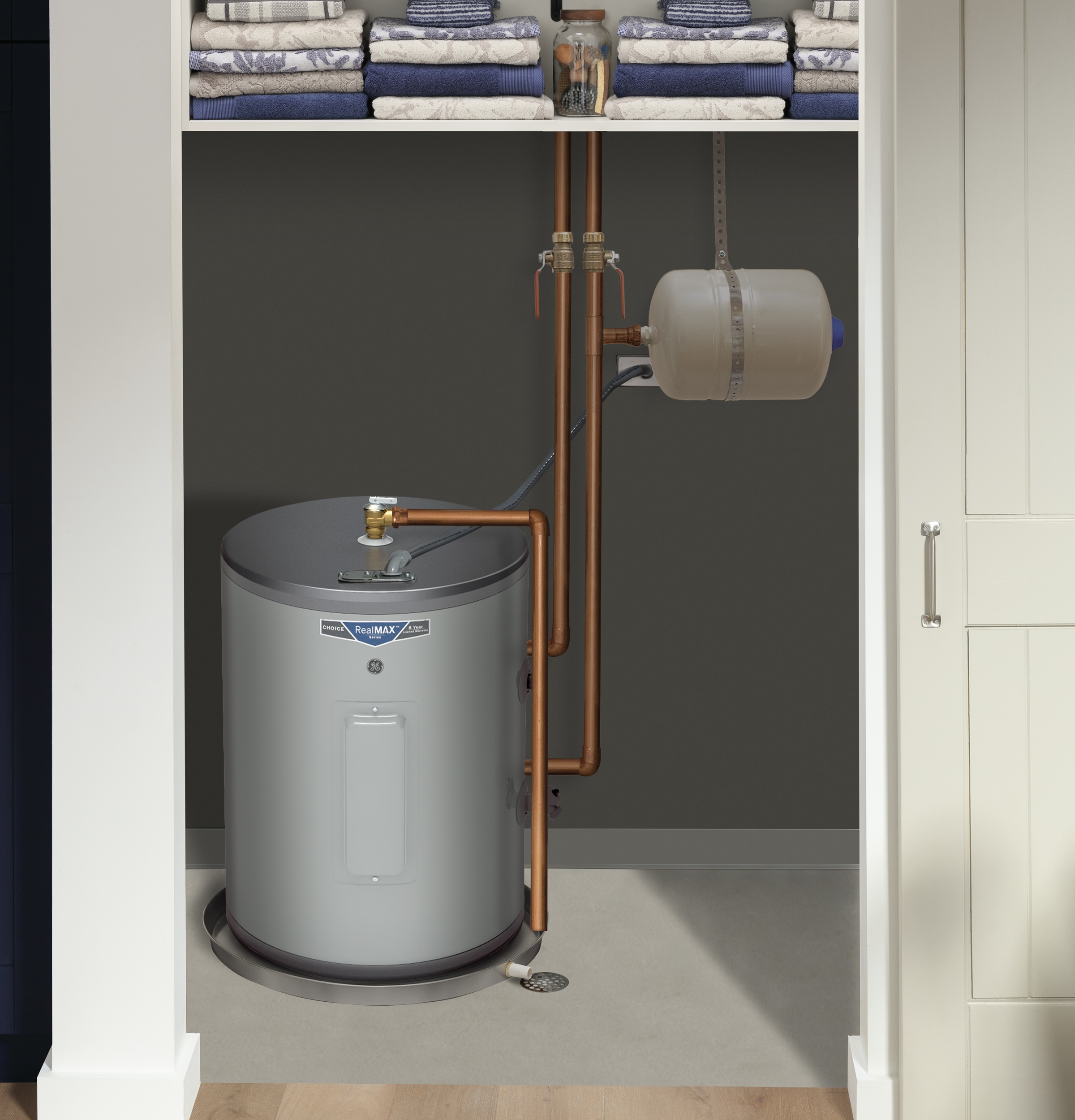

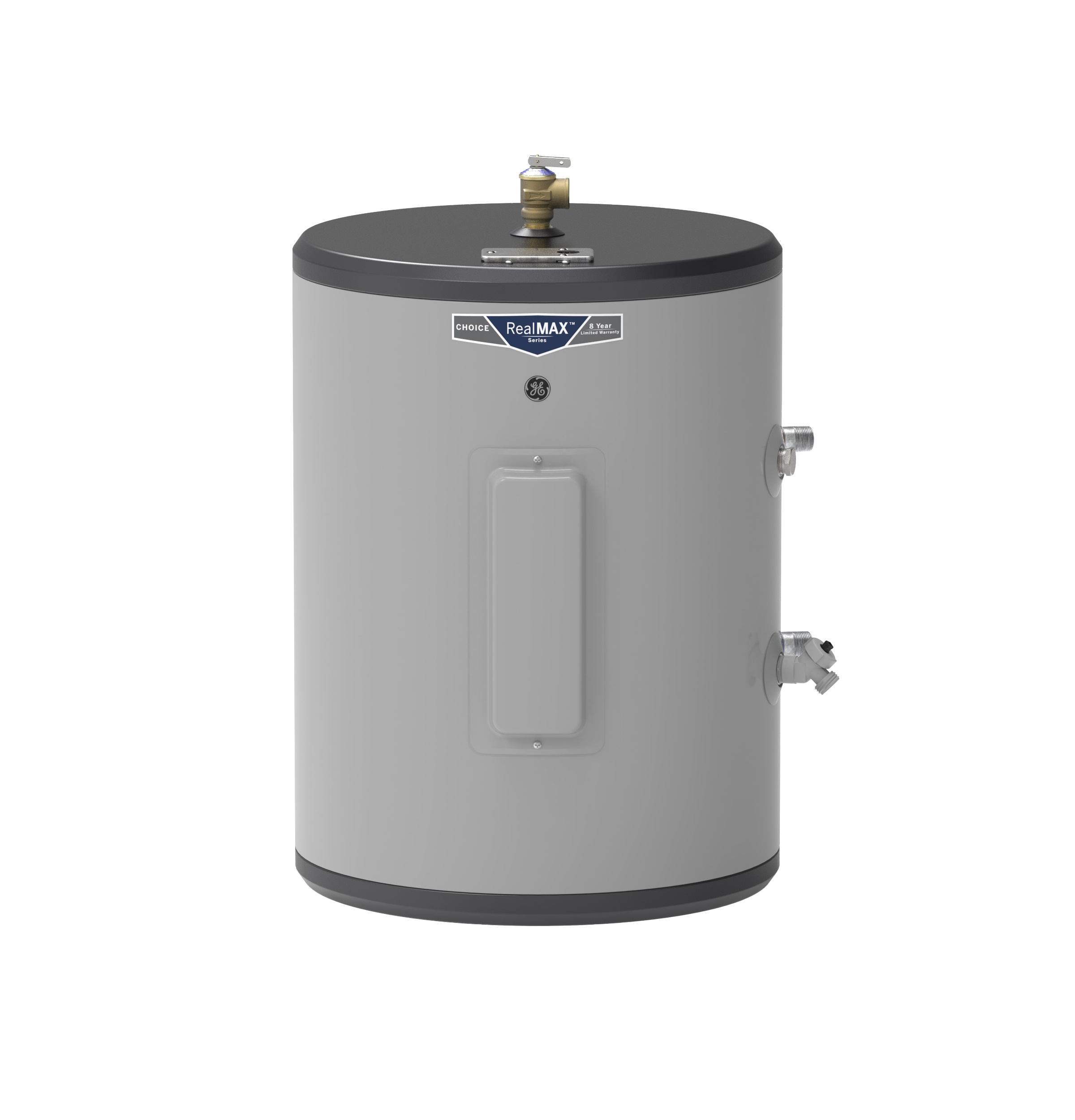

18 Gallon Side Port Lowboy Electric Water Heater - GE20L08BAR
$399.00
Color : Gray
$399.00
Key Features
Lowboy
Quick Recovery
Household Size
Inlet Tube
Easy Set Up
Anode Rod
Drain Valve
Adjustable Thermostat
Available from Slyman Bros, serving customers throughout Missouri.
Features
Lowboy
Make the most of tight spaces with a water heater that fits where height is a concern
Quick Recovery
3800W heating element quickly increase water temperature for hot water when you need it
Household Size
Provide hot water for the whole family of 1 to 2 persons
Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery
Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections
Anode Rod
Durable design offers long-lasting protection against corrosion
Drain Valve
Rust-proof construction can be counted on to provide long-lasting service
Adjustable Thermostat
Change temperature to your desired setting
Certifications
California Prop 65
UL
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 19.25 in |
| Overall Height | 25.75 in |
| Product Height (to top of unit) | 25.75 in |
| Overall Depth | 19.25 in |
| Approximate Shipping Weight | 62 lb |
| Net Weight | 54.2 lb |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
| Product Diameter | 19 1/4 in |
| Product Height (to top of water inlet/outlet connections) | 8.875/17.125 in |
FEATURES
| Control Type | Thermostat |
| Controls | Mechanical Temperature Control |
| Max. operating pressure (psi) | 150 |
| Temp & Pressure Relief Valve | Yes |
| Height Description | Low Boy with Side Port |
| Heating Element | Stainless steel |
| Max: operating pressure (psi) | 150 |
| Fuel Type | Electric |
| Configuration | Lowboy |
| Installation Location | Indoor |
| Operating Modes | Standard Electric |
| Rated Storage Capacity | 18 |
| Drain Valve Type | Plastic |
| GPH Recovery @ 90 Degrees F | 25.1 |
| Mobile Home Compatible | No |
| Temperature Setting Factory Default | 120° F |
| Product Type | Electric Thermostat |
| Family Size | 1-2 People |
| Water Connection Location | Side |
| Foam Insulation | Yes |
| Point of Use | No |
| Anode Rod | Aluminum |
| Temperature Setting | 90-150° F Range |
| Rated Capacity | 18.0 gal |
POWER / RATINGS
| Heating - Electric - Heater Watts | 3800 |
| Electrical Connection | Direct-Wire |
| Operating Water Pressure | 20-125 PSI |
| Volts/Hertz | 240V; 60Hz |
| Voltage (MAX) | 240 V |
| Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 8-year tank and parts |
| Labor Warranty | Limited 1-year entire appliance |
CAPACITY
| Unit Capacity | 18 Gallons |
APPEARANCE
| Color Appearance | Gray |
Warranty
| Parts | 8 Year |
| Labor | 1 Year |
Other
| Product Diameter | 19.25 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
Dimensions & Weight
| Width | 19.25 in. |
| Height | 25.75 in. |
| Length | 19.25 in. |
| Weight | 54.2 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 24.25 in. |
| Shipping Height | 30.75 in. |
| Shipping Length | 24.25 in. |
| Shipping Weight | 94.2 lbs. |
| Total of Shipping Weight | 94.2 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 5.52 ft³ |
| Dimensional Weight | 68.65 lbs. |
| Total of Cubes | 5.52 ft³ |
| Total of Dimensional Weight | 68.65 lbs. |
