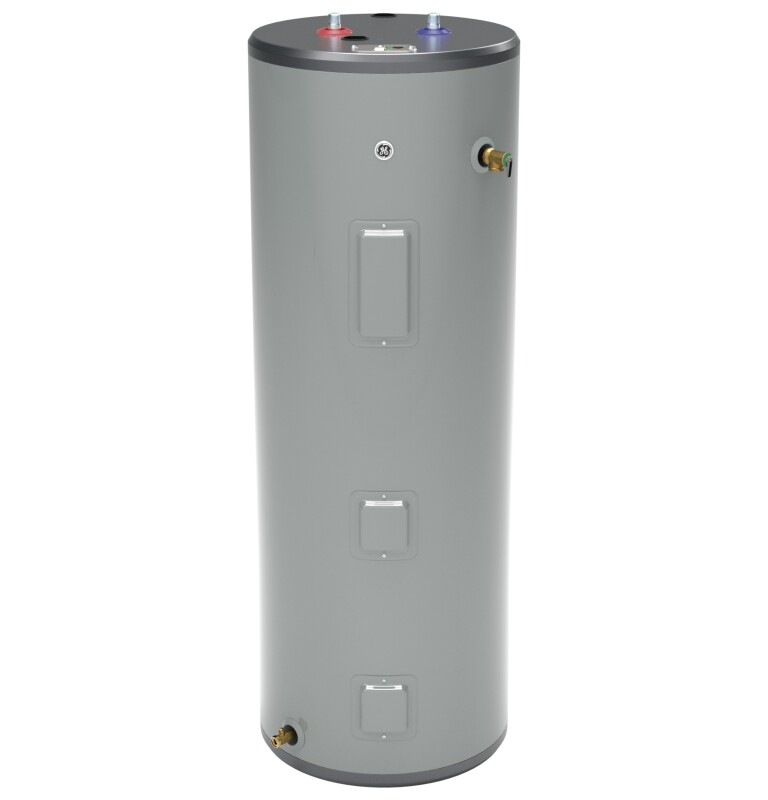

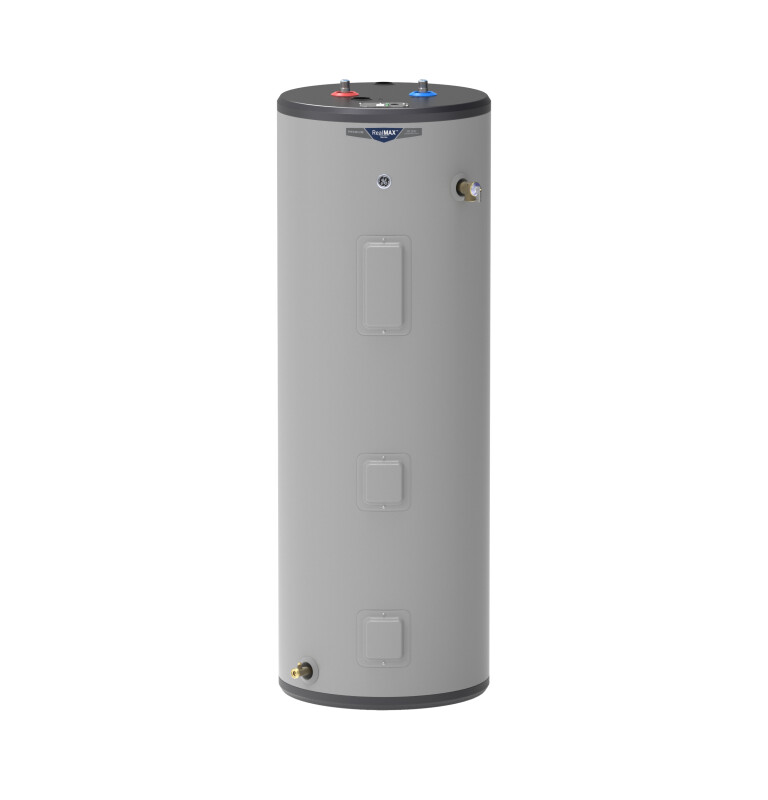

50 Gallon Tall Electric Water Heater - GE50T10BAM
$709.00
Color : Gray
$709.00
Key Features
Real Capacity
Leading Performance
Household Size
Quick Recovery
Stainless Steel Heating Elements
Inlet Tube
Brass Drain Valve
Easy Set Up
Documents
Available from Slyman Bros, serving customers throughout Missouri.
Features

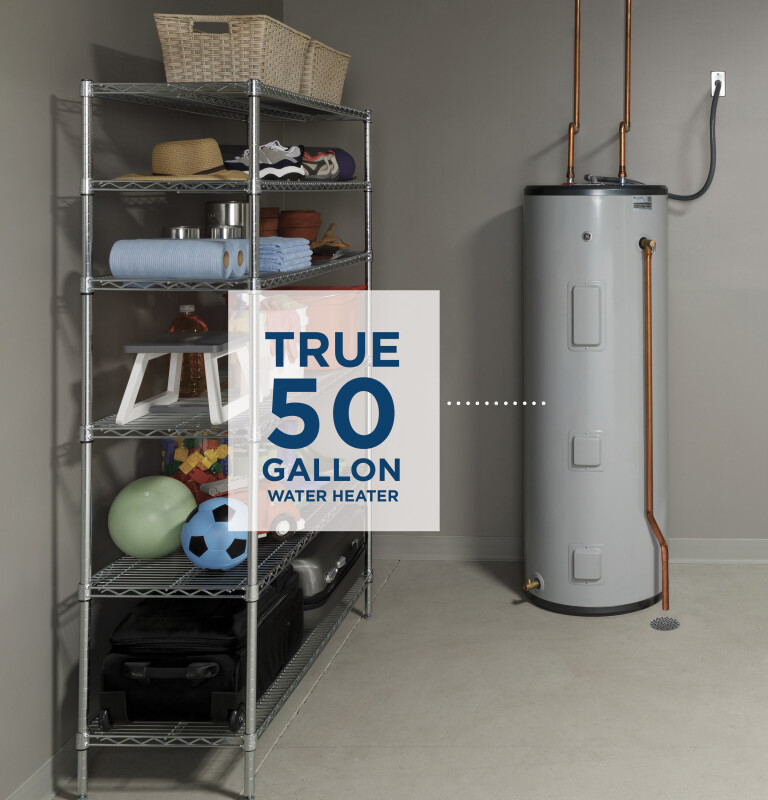

Real Capacity
Get the most hot showers from the only water heater that holds a true 50 gallons of water (Compared to 50 gallon electric steel tank water heaters per DOE rated gallon capacity)
Leading Performance
Live comfortably with this best in class unit that delivers 76 gallons of hot water in the first hour (Measured through DOE First Hour Rating)

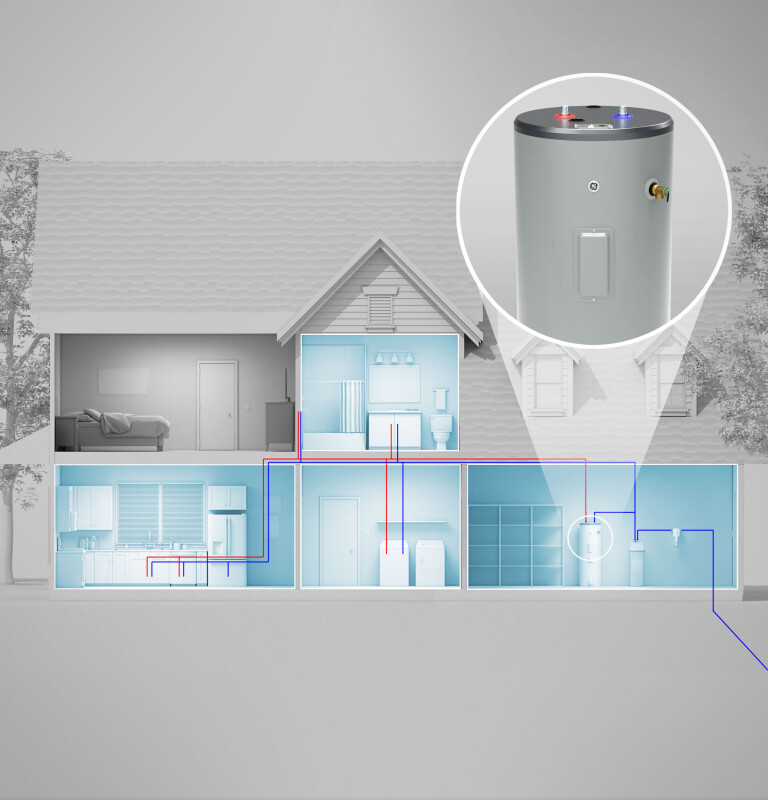

Household Size
Provide hot water for the whole family of 3 to 5 persons
Quick Recovery
Two 5500W heating elements quickly increase water temperature for hot water when you need it

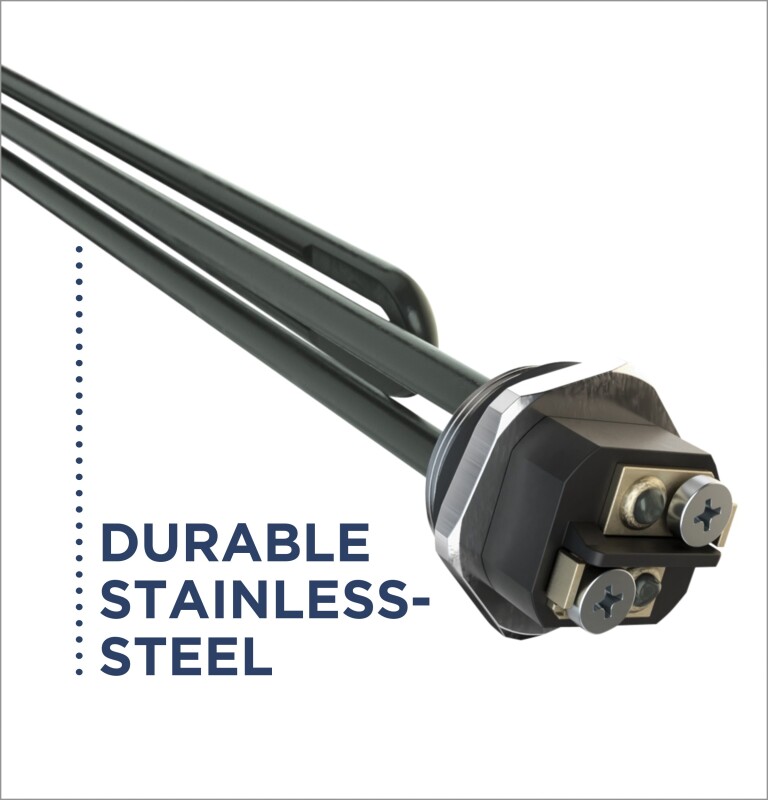

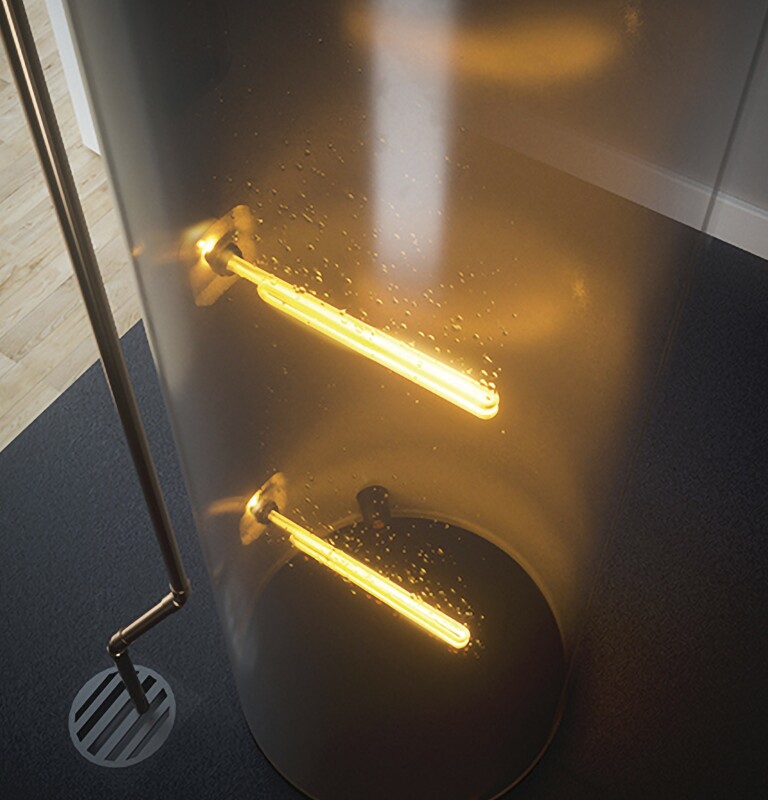

Stainless Steel Heating Elements
Ultra-durable stainless-steel heating elements resist rust and corrosion

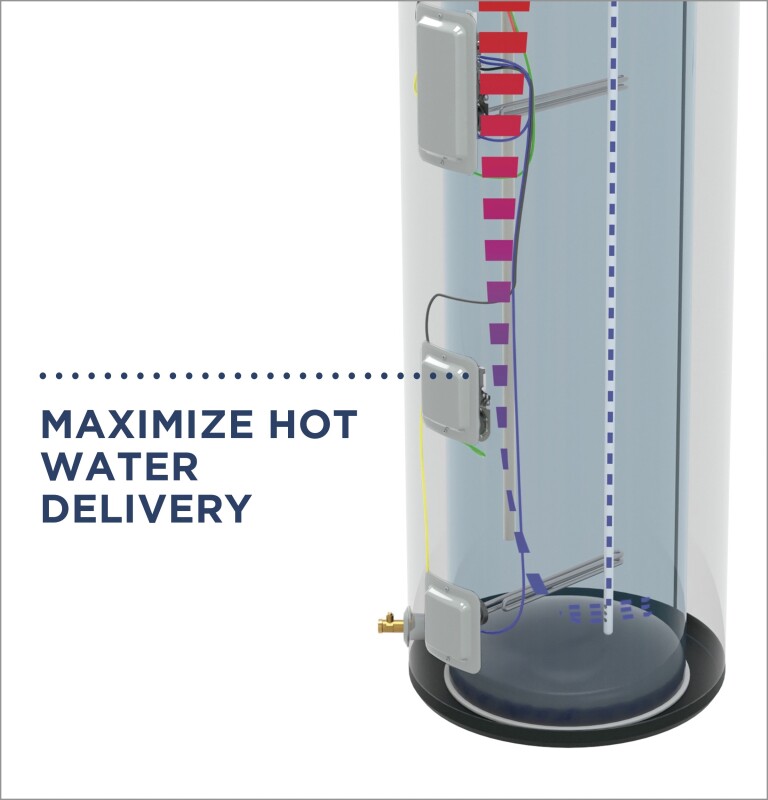

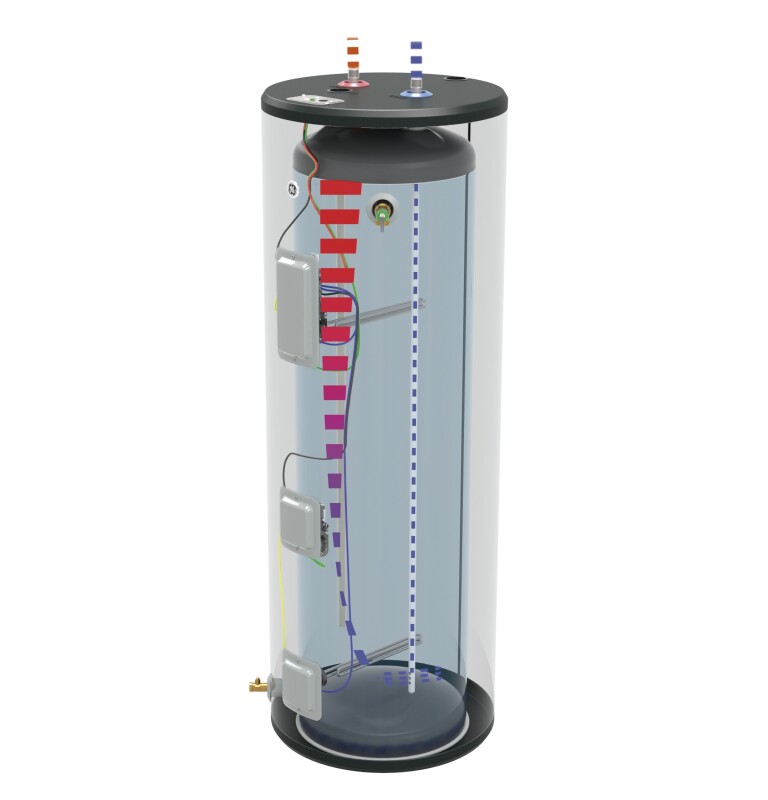

Inlet Tube
Replenishes water from the bottom of the tank to maximize hot water delivery

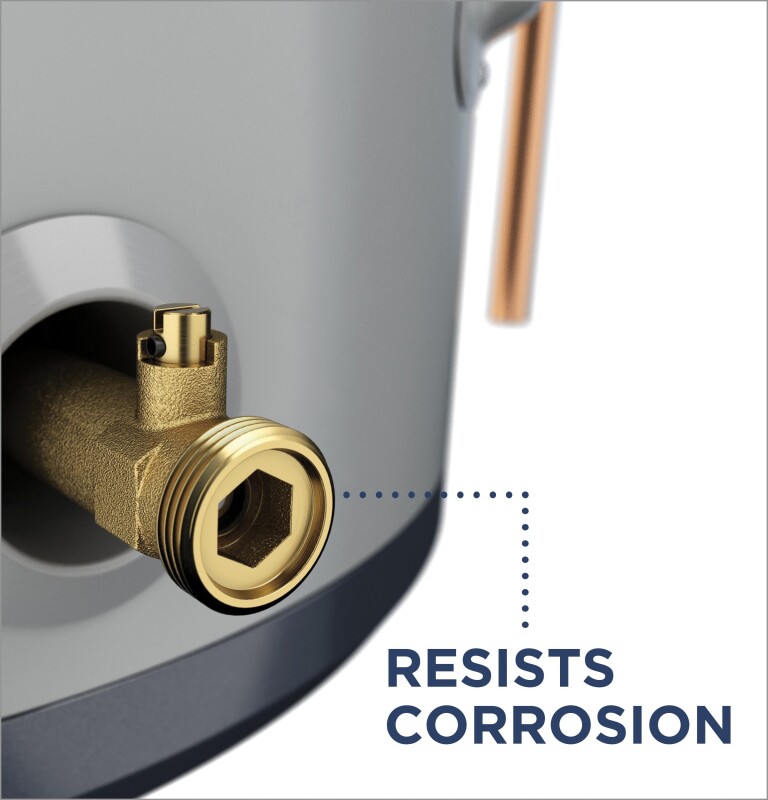

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

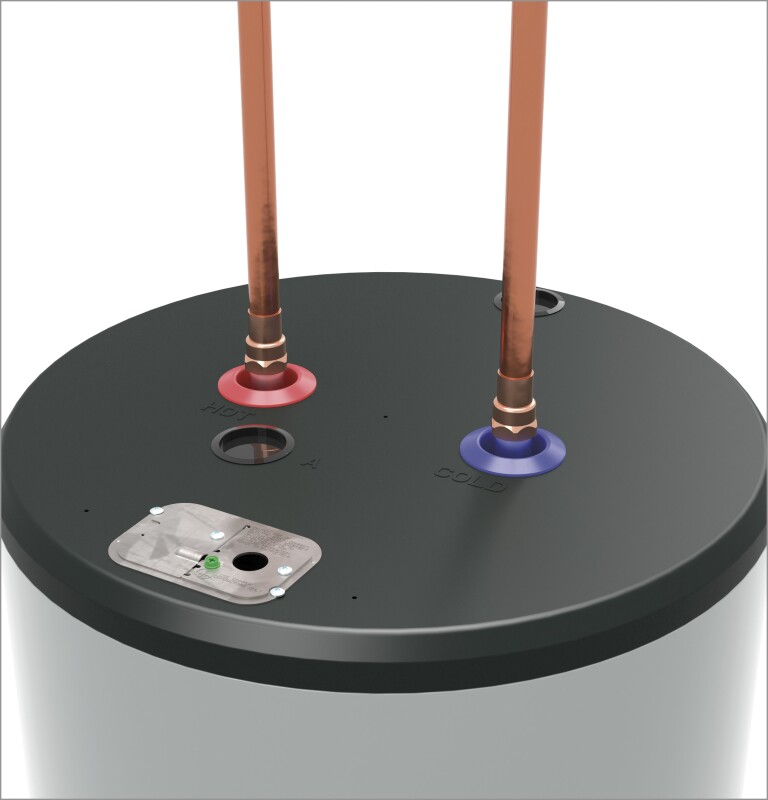

Easy Set Up
Replace your old water heater quickly and easily using standard water and electrical connections

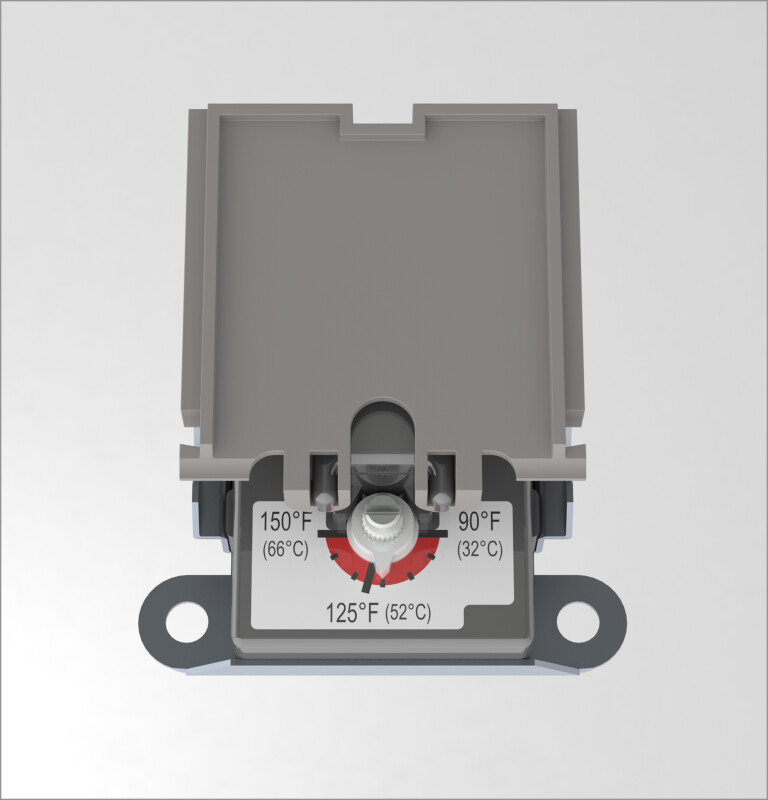

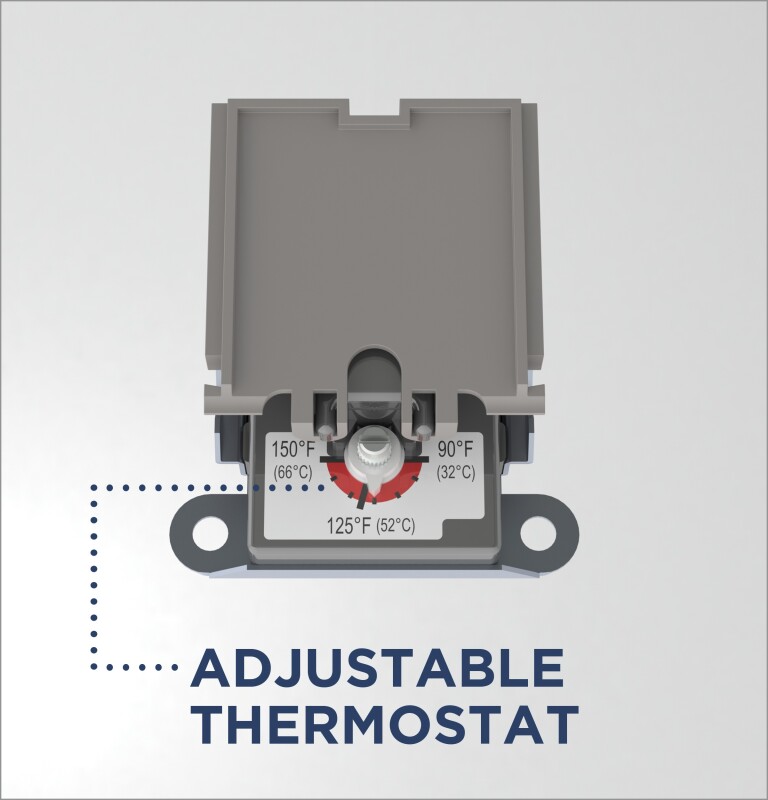

Adjustable Thermostat
Change temperature to your desired setting
Certifications
California Prop 65
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 22 in |
| Overall Height | 63.75 in |
| Product Height (to top of unit) | 62.25 in |
| Overall Depth | 22 in |
| Product Height (to top of water inlet/outlet connections) | 63.75 in |
| Approximate Shipping Weight | 154 lb |
| Net Weight | 142 lb |
| Product Diameter | 22 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
Other
| Product Diameter | 22 in |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
Dimensions & Weight
| Width | 22 in. |
| Height | 63.75 in. |
| Length | 22 in. |
| Weight | 142 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 27 in. |
| Shipping Height | 68.75 in. |
| Shipping Length | 27 in. |
| Shipping Weight | 182 lbs. |
| Total of Shipping Weight | 182 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 17.86 ft³ |
| Dimensional Weight | 221.98 lbs. |
| Total of Cubes | 17.86 ft³ |
| Total of Dimensional Weight | 221.98 lbs. |
FEATURES
| Control Type | Thermostat |
| Temp & Pressure Relief Valve | Yes |
| Height Description | Tall |
| Heating Element | Stainless steel |
| Fuel Type | Electric |
| Configuration | Tall |
| Installation Location | Indoor |
| Operating Modes | Standard Electric |
| Rated Storage Capacity | 50 |
| Drain Valve Type | Brass |
| GPH Recovery @ 90 Degrees F | 25.1 |
| Mobile Home Compatible | No |
| Temperature Setting Factory Default | 120° F |
| Product Type | Electric Thermostat |
| Family Size | 3-5 People |
| Water Connection Location | Top |
| Foam Insulation | Yes |
| Point of Use | No |
| Temperature Setting | 90-150° F Range |
| Insulation Thickness | 2.75 in |
POWER / RATINGS
| Integrated Energy Factor | 0.93 |
| Heating - Electric - Heater Watts | 5500/5500 |
| Electrical Connection | Direct-Wire |
| Operating Water Pressure | 20-125 PSI |
| Volts/Hertz | 240V; 60Hz |
| First Hour Rate (FHR) | 76 Gallons |
| Voltage (MAX) | 240 V |
| Electrical Circuit Required | 208V/240V 60 Hz Dedicated 30 Amp Min. |
| Energy Consumption (kWh/year) | 5334 |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 10-year tank and parts |
| Labor Warranty | Limited 1-year entire appliance |
CAPACITY
| Unit Capacity | 50 Gallons |
APPEARANCE
| Color Appearance | Gray |
