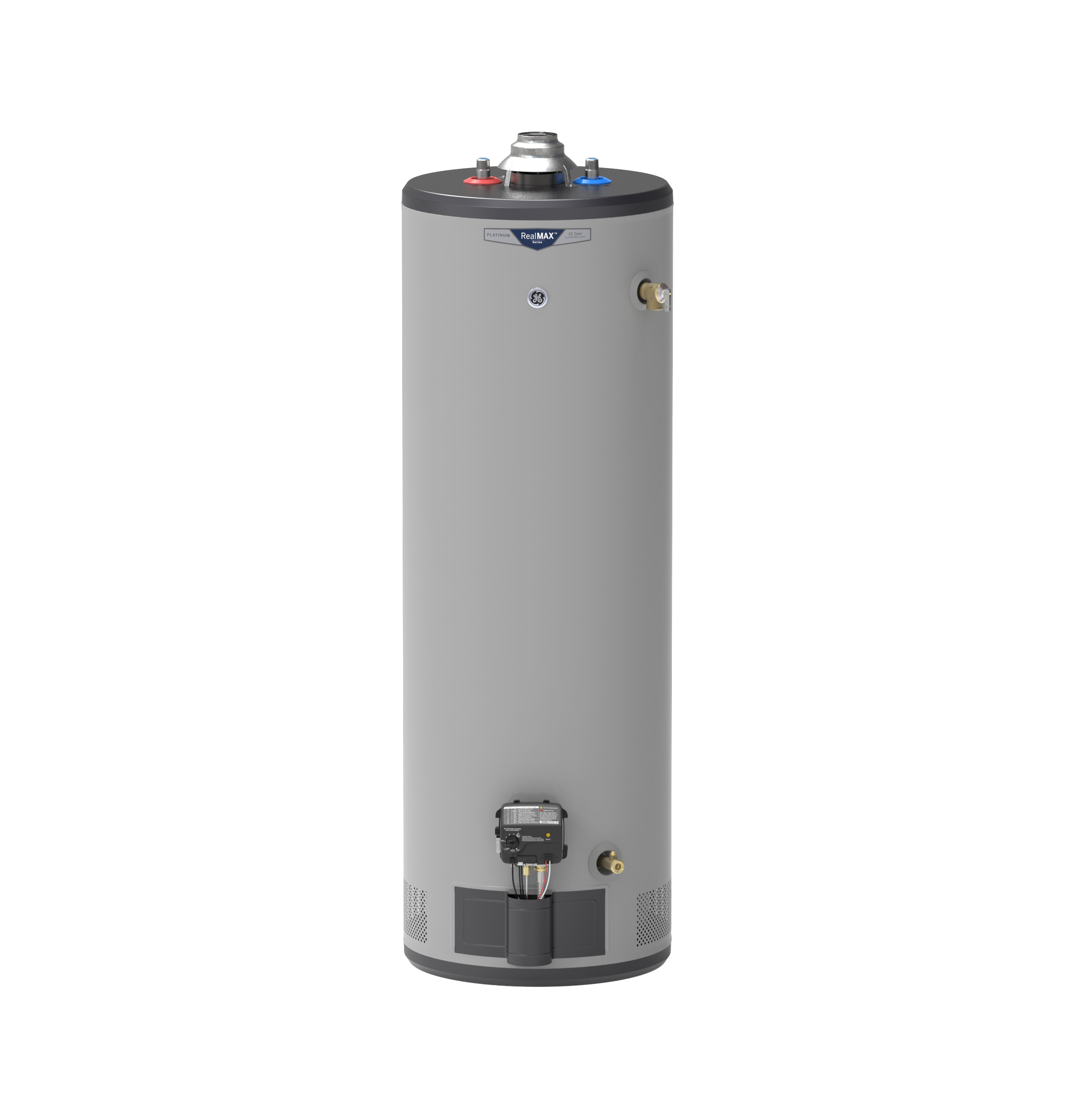

RealMAX Platinum 40-Gallon Tall Natural Gas Atmospheric Water Heater - GG40T12BXR
$779.00
Color : Gray
$779.00
Key Features
Household Size
Quick Recovery
Anode Rod
SmartShield ™ Safety System
Self-Diagnostic
Brass Drain Valve
Easy Installation
Built-To-Last Warranty
Documents
Available from Slyman Bros, serving customers throughout Missouri.
Features
Household Size
Provide hot water for the whole family of 2 to 4 persons

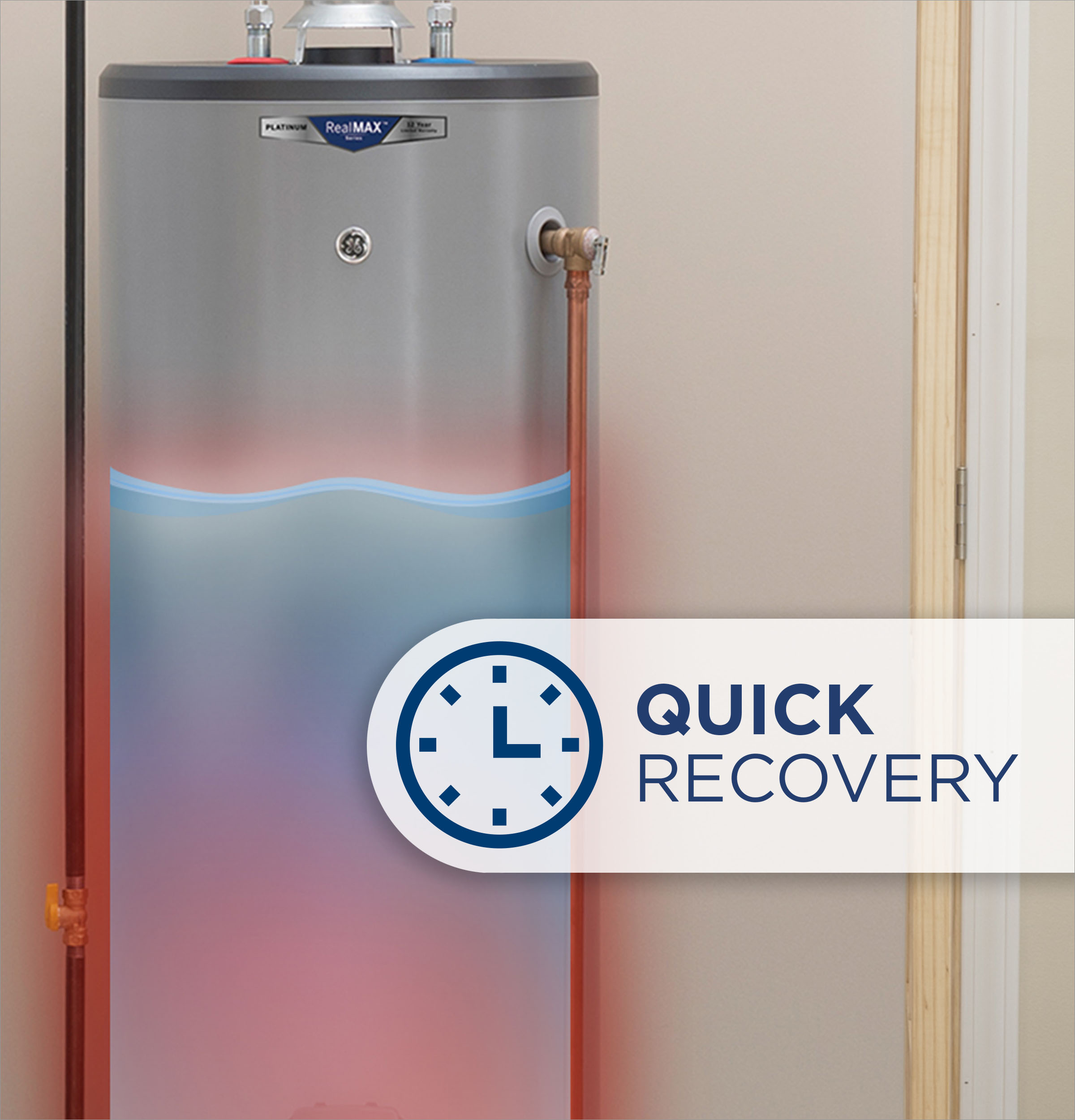

Quick Recovery
Quickly replenish hot water with a max-performance 40K burner

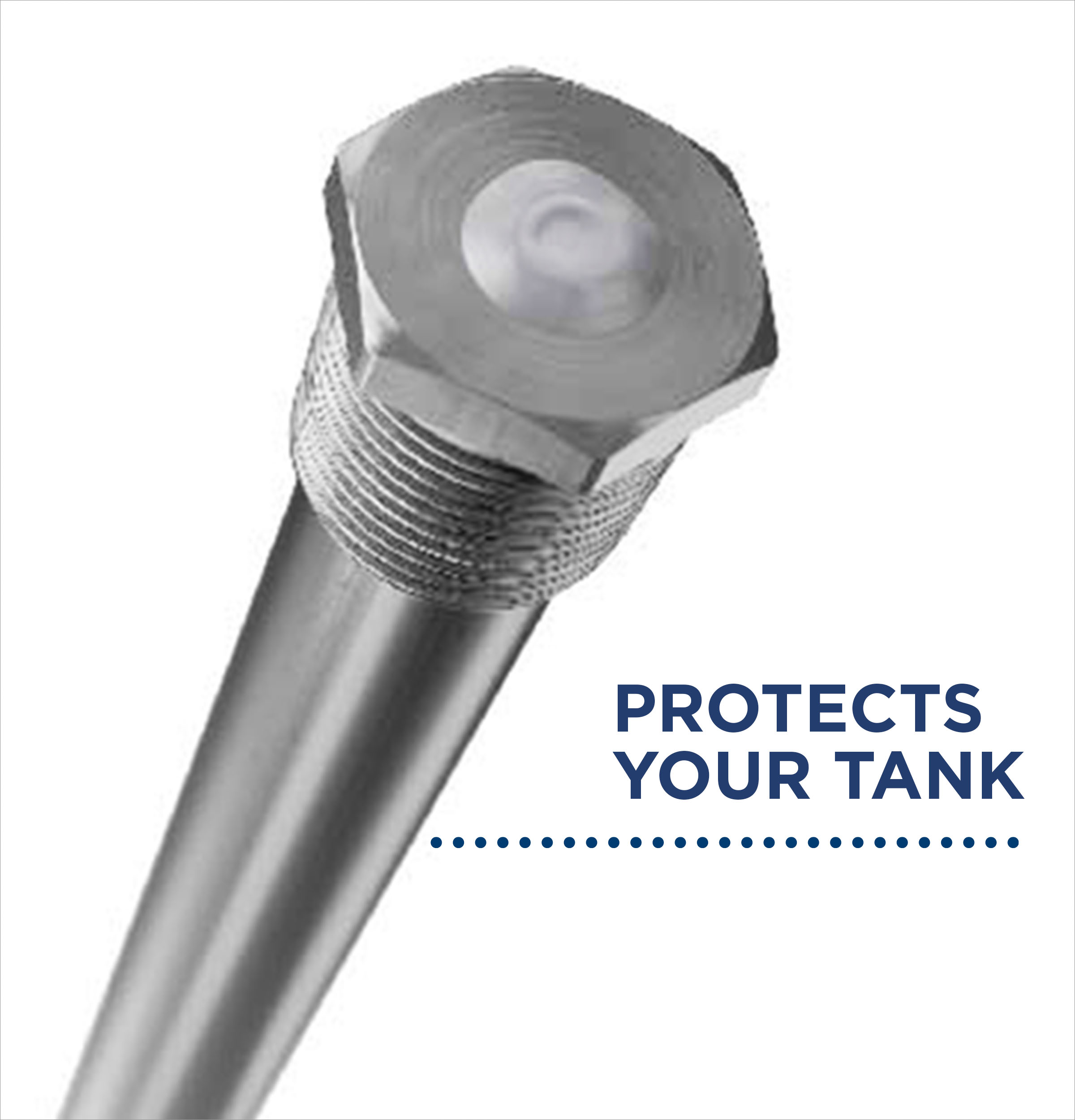

Anode Rod
Durable design offers long-lasting protection against corrosion to extend the life of your water heater tank

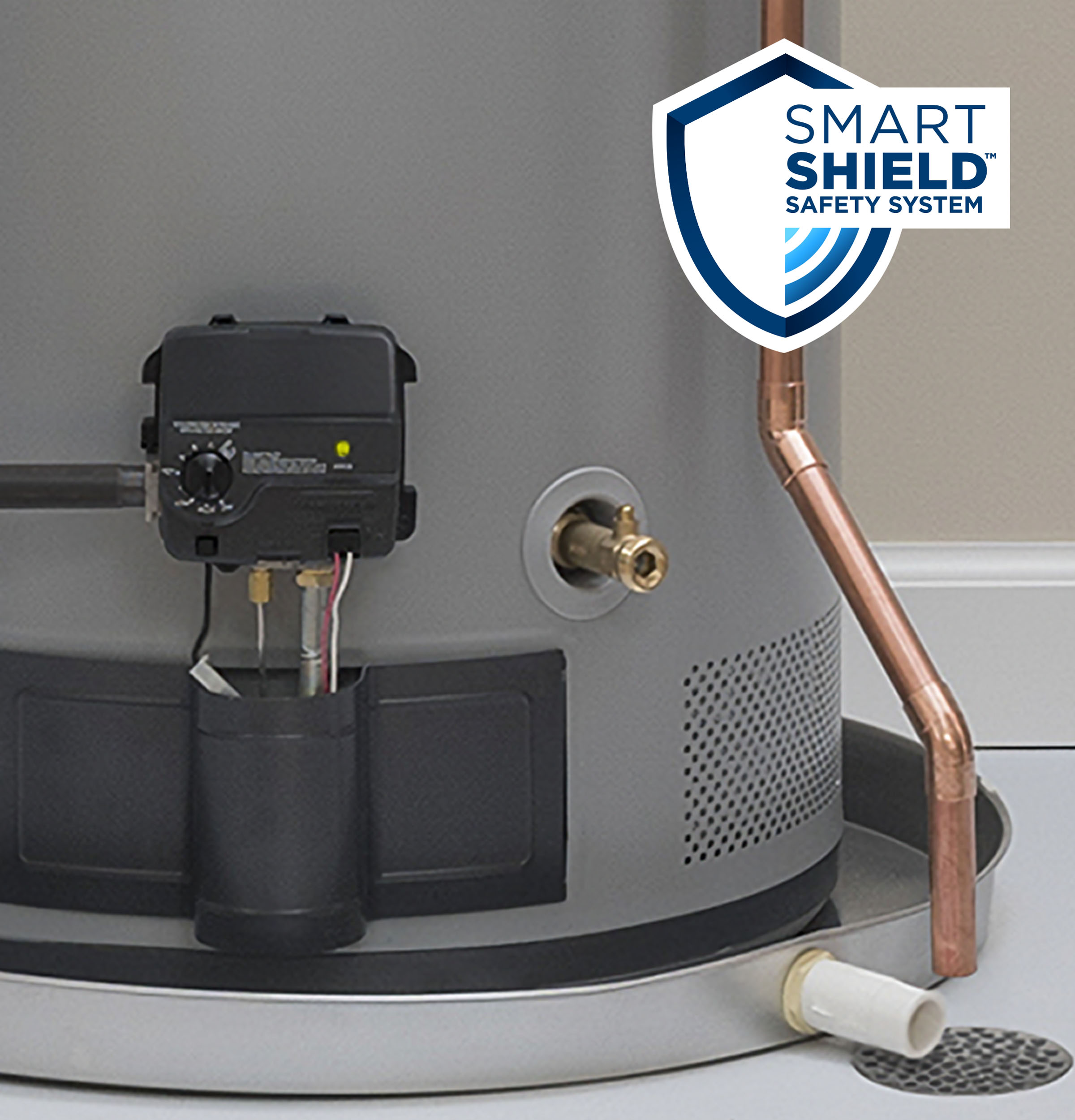

SmartShield ™ Safety System
Monitors the surrounding air and automatically shuts off the unit if abnormal temperatures are detected

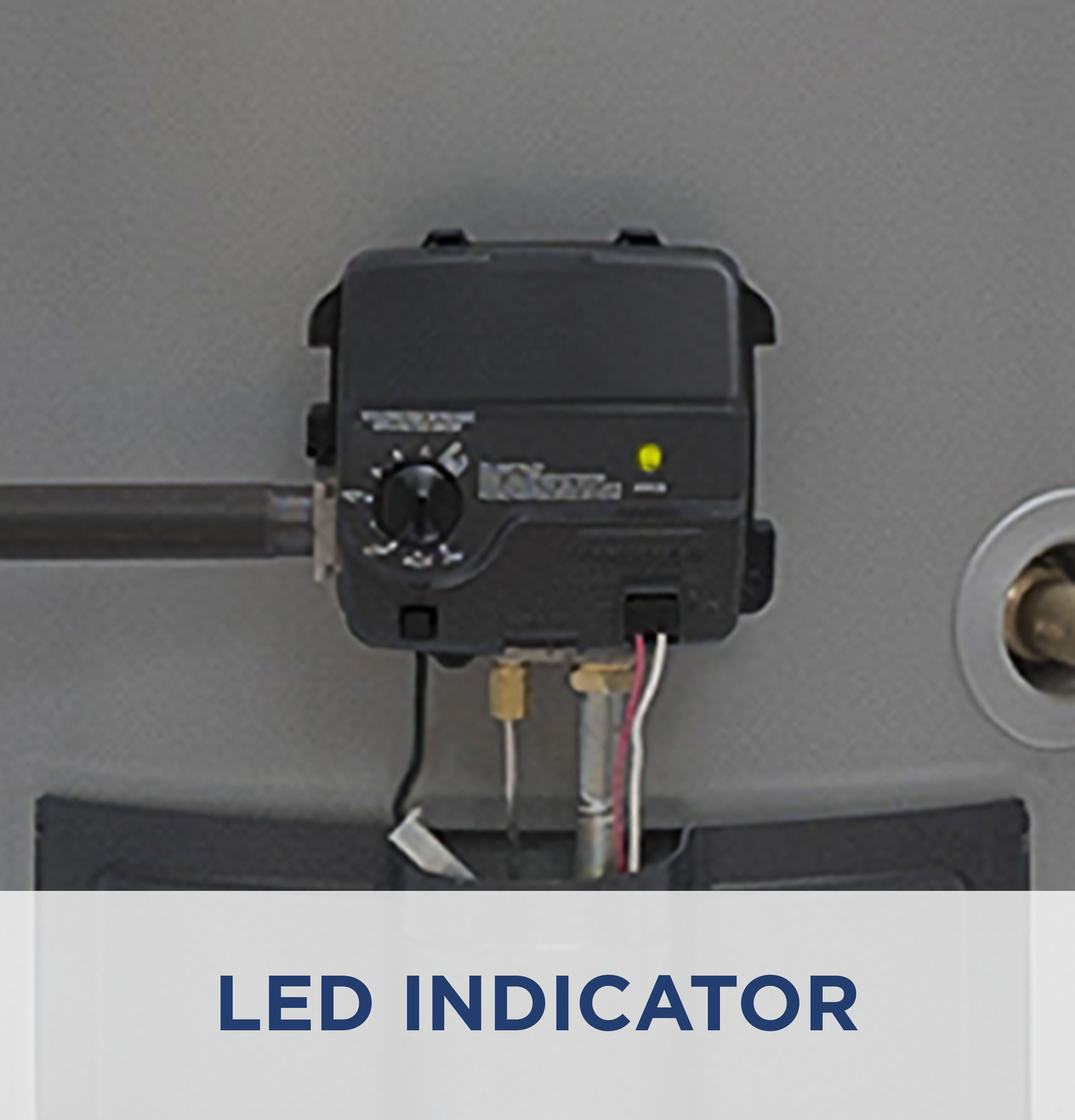

Self-Diagnostic
Monitors and reports on gas system status via LED status indicator

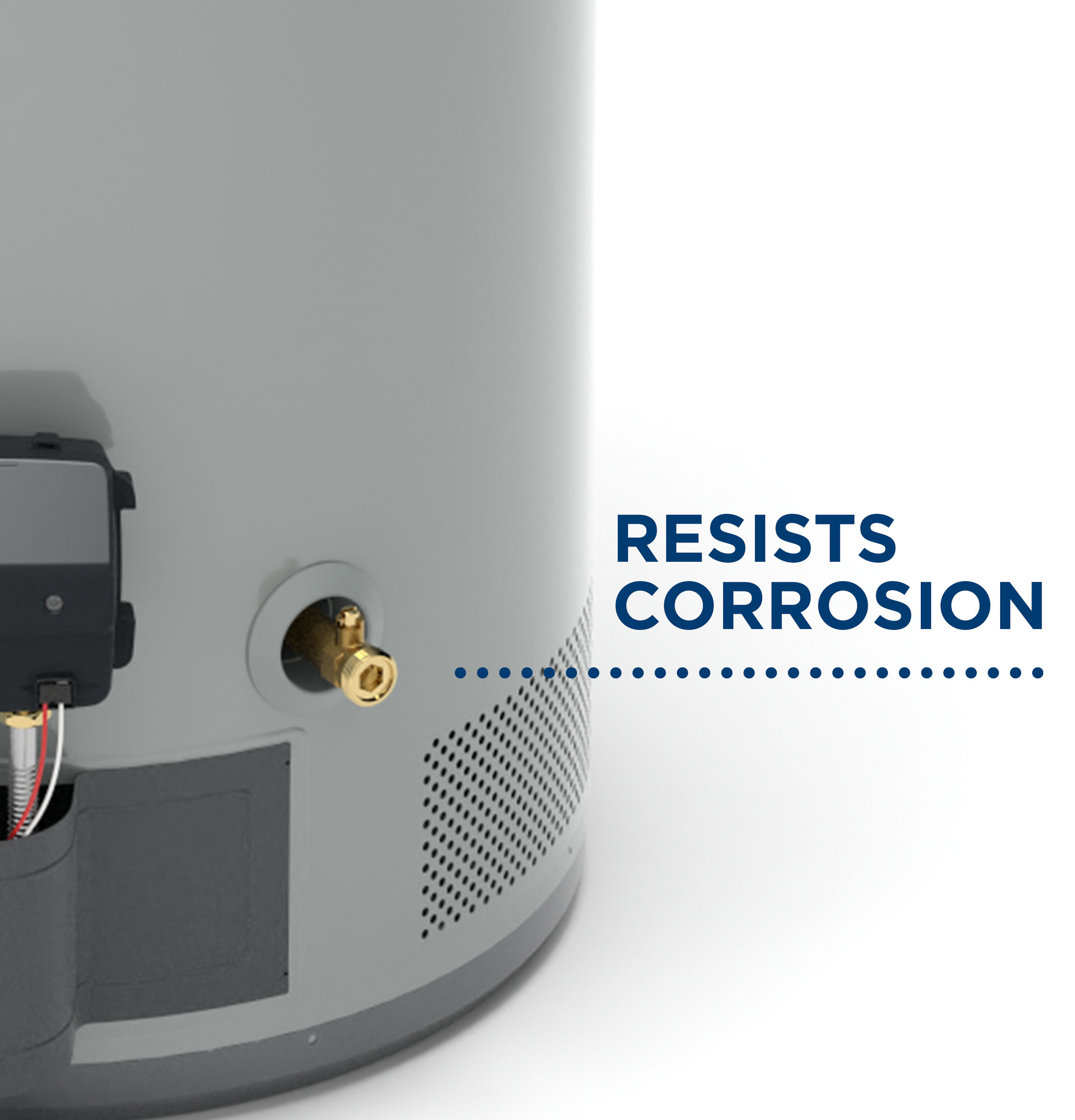

Brass Drain Valve
Rust-proof construction can be counted on to provide long-lasting service

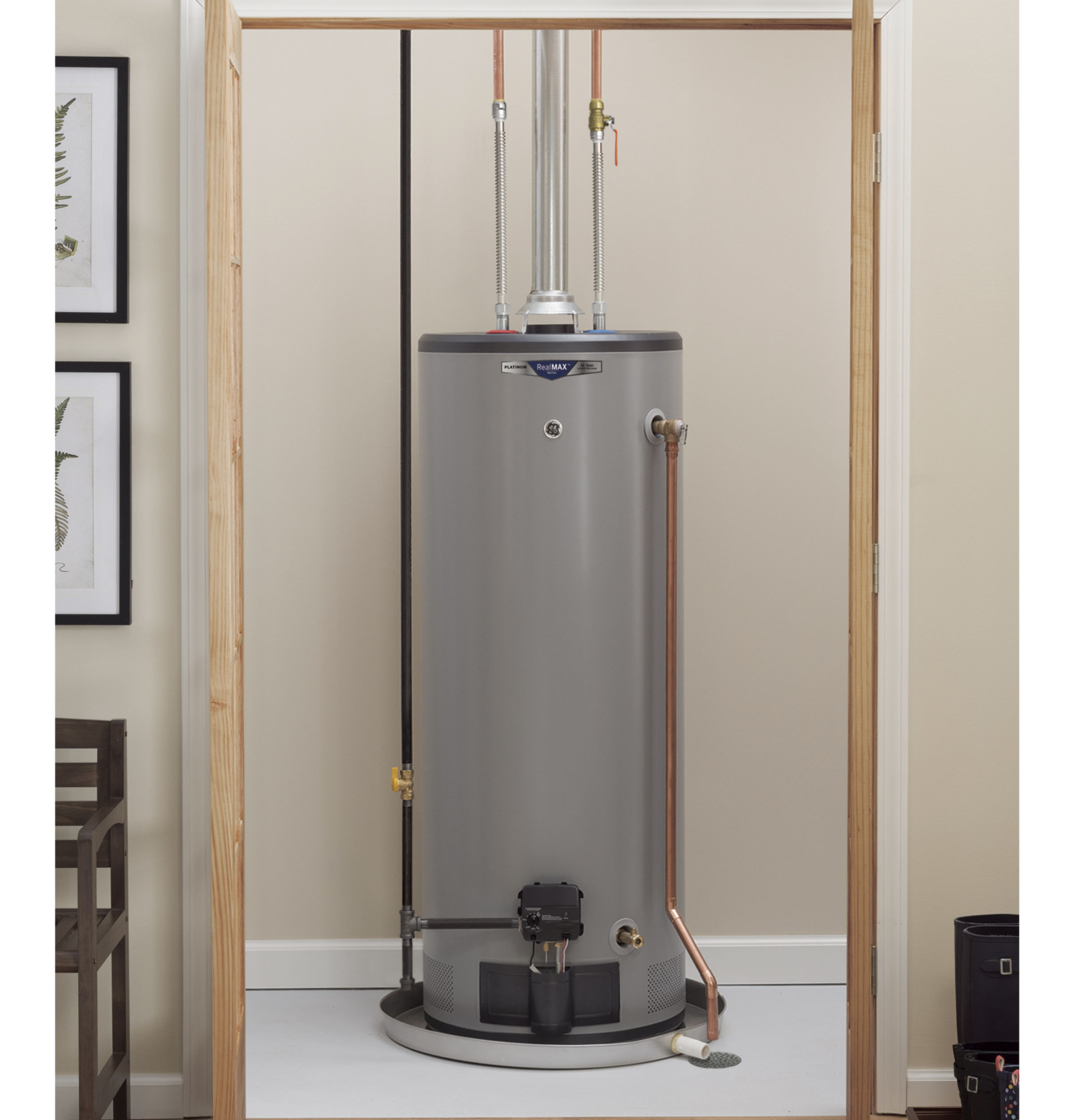

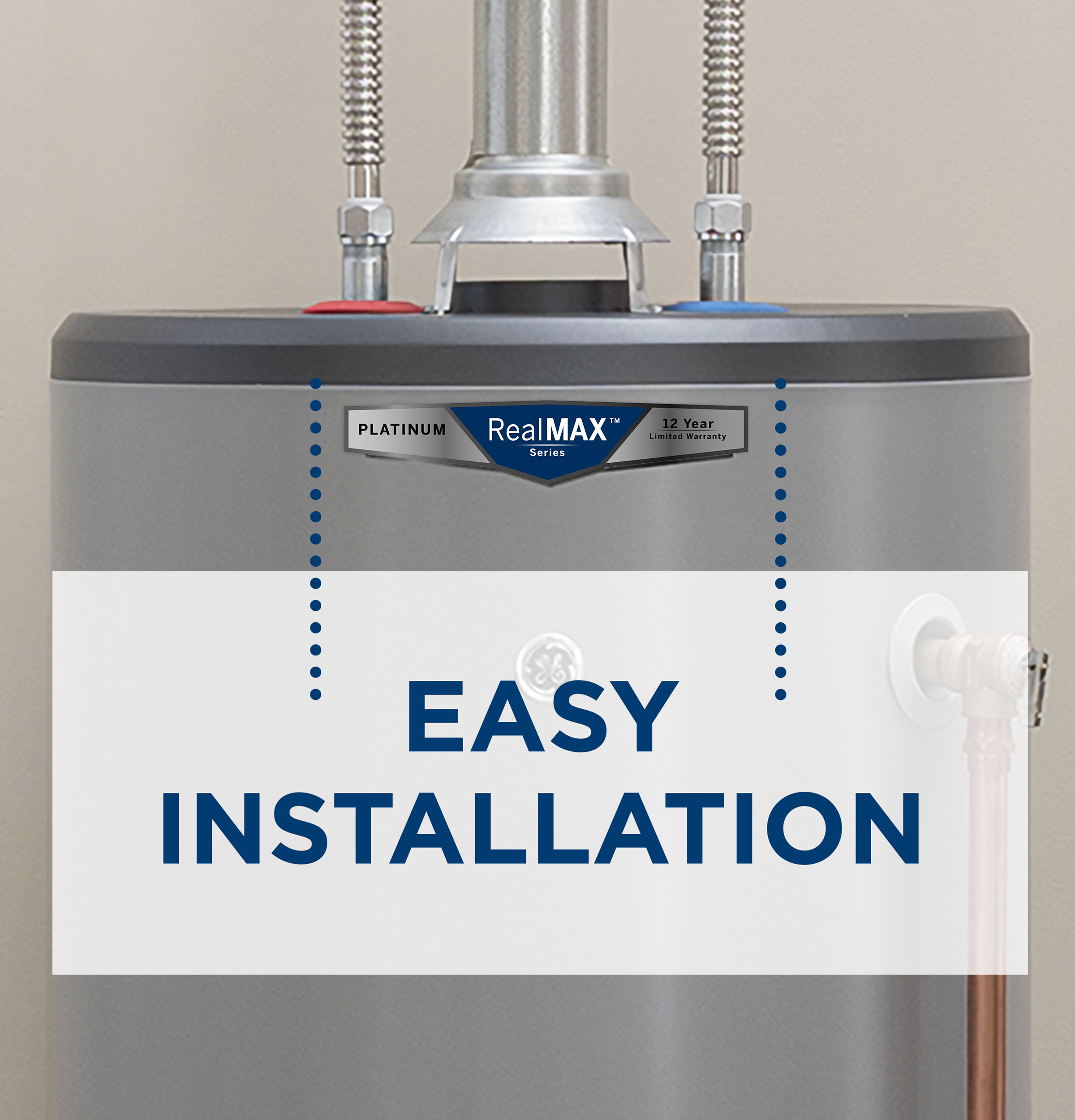

Easy Installation
Replace your old water heater quickly and easily using standard water and gas connections

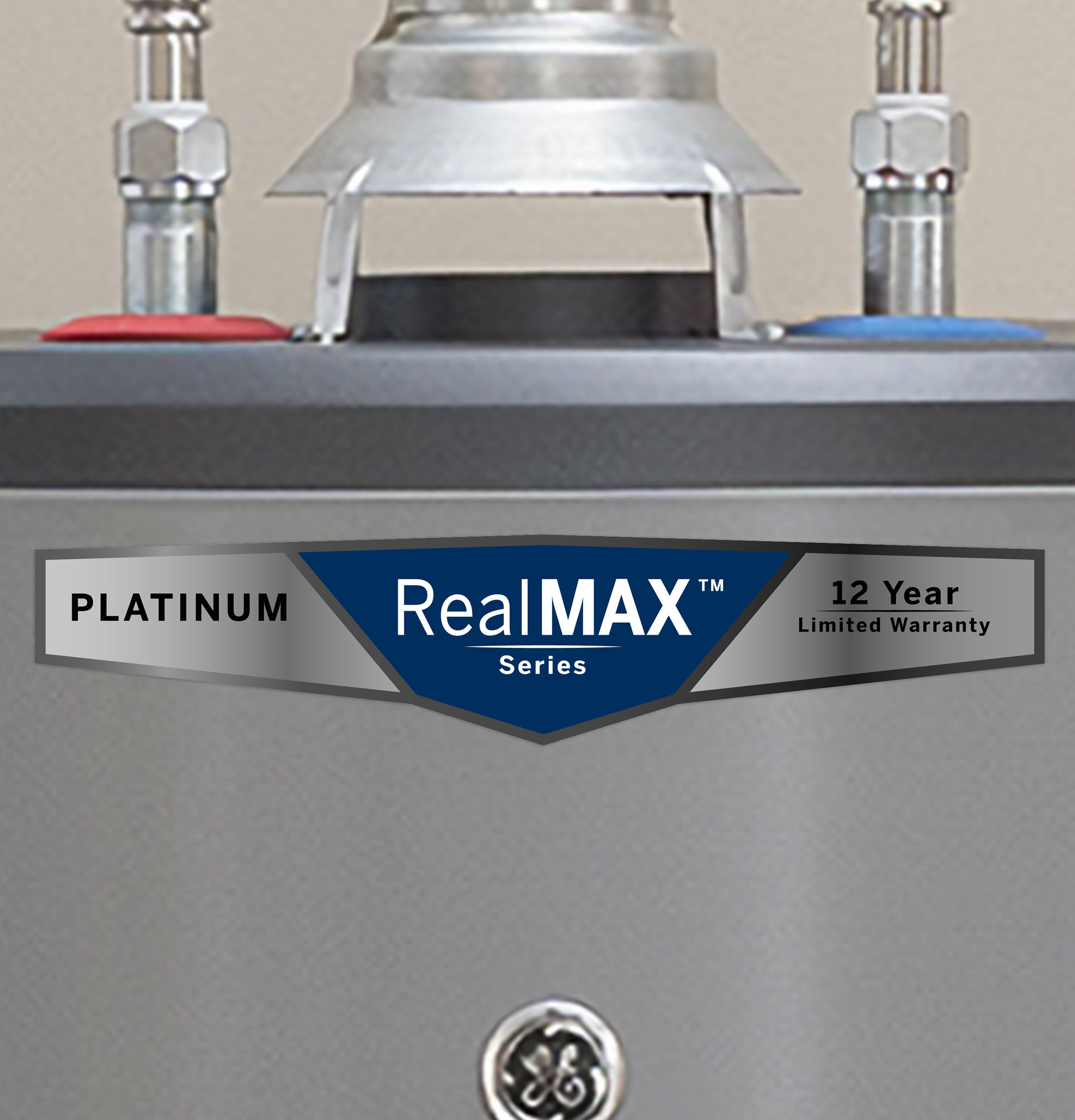

Built-To-Last Warranty
RealMAX Platinum water heaters carry a 12-year tank and parts limited warranty
Certifications
MADE IN AMERICA: 70 to 90% U.S. Content
Specifications
WEIGHTS & DIMENSIONS
| Overall Width | 20 in |
| Overall Height | 61.875 in |
| Product Height (to top of unit) | 58.5 in |
| Overall Depth | 20 in |
| Product Height (to top of water inlet/outlet connections) | 60 in |
| Height to Gas Control | 11.25 in |
| Approximate Shipping Weight | 147 lb |
| Net Weight | 140 lb |
| Product Diameter | 20 in |
| Vent Size | 3" Type B Vent |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
| Connection Sizes - Hot Water Outlet (MNPT) | 3/4" |
FEATURES
| FVIR Safety System | Prevents accidental ignition of flammable vapors |
| Vent | Atmospheric |
| Controls | LED Indicator |
| UEF | .64 |
| Temp & Pressure Relief Valve | Yes |
| Height Description | Tall |
| Fuel Type | Natural Gas |
| Pilot Light Window / Button | Yes |
| Configuration | Tall |
| Drain Valve Type | Brass |
| Product Type | Atmospheric Gas |
| Family Size | 2-5 People |
| Bin Testing | High |
| Water Connection Location | Top |
| Overheat Protection | Dry Burning Protection |
| Gas Valve | Self Powered |
| Anode Rod | Magnesium |
| Temperature Setting | 45-160° F Range |
| Altitude Rating | 10,100 ft |
WARRANTY
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 12-year tank and parts |
| Labor Warranty | Limited 1-year entire appliance |
POWER / RATINGS
| Burner BTU Size (k) | 40 |
| Hertz | 60 |
| First Hour Delivery GPH | 83 gal/h |
CAPACITY

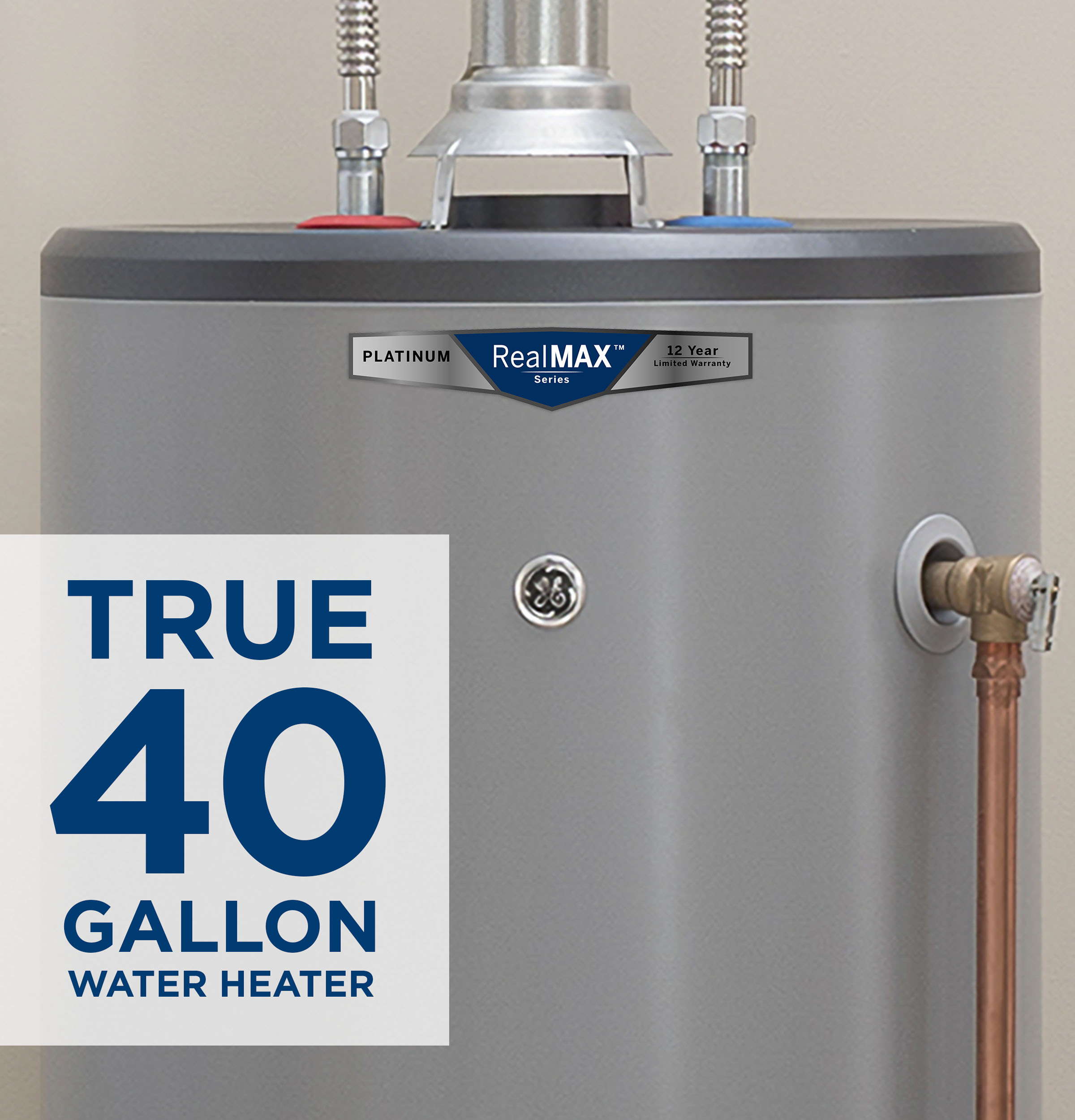

| Unit Capacity | 40 Gallons |
APPEARANCE
| Color Appearance | Gray |
Warranty
| Parts | 12 Year |
| Labor | 1 Year |
Other
| Product Diameter | 20 in |
| Vent Size | 3" Type B Vent |
| Connection Sizes - Water Inlet (MNPT) | 3/4" |
Dimensions & Weight
| Width | 20 in. |
| Height | 61.88 in. |
| Length | 20 in. |
| Weight | 140 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 25 in. |
| Shipping Height | 66.88 in. |
| Shipping Length | 25 in. |
| Shipping Weight | 180 lbs. |
| Total of Shipping Weight | 180 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 14.32 ft³ |
| Dimensional Weight | 178.06 lbs. |
| Total of Cubes | 14.32 ft³ |
| Total of Dimensional Weight | 178.06 lbs. |
