$3,650.00

11.7 Cu.Ft. Dipping Cabinet - NOVA35PDC

11.7 Cu.Ft. Dipping Cabinet

Model: NOVA35PDC

11.7 Cu.Ft. Dipping Cabinet NOVA35PDC11.7 Cu.Ft. Dipping Cabinet NOVA35PDC11.7 Cu.Ft. Dipping Cabinet NOVA35PDC11.7 Cu.Ft. Dipping Cabinet NOVA35PDC11.7 Cu.Ft. Dipping Cabinet NOVA35PDC
11.7 Cu.Ft. Dipping Cabinet NOVA35PDC
11.7 Cu.Ft. Dipping Cabinet NOVA35PDC
11.7 Cu.Ft. Dipping Cabinet NOVA35PDC
11.7 Cu.Ft. Dipping Cabinet NOVA35PDC
11.7 Cu.Ft. Dipping Cabinet NOVA35PDC

$3,650.00

Color : White

11.7 Cu.Ft. Dipping Cabinet NOVA35PDC
White

Key Features

  • Commercially approved

  • Digital thermostat

  • Wide temperature range

  • Holds 10 standard 3 gallon tubs

  • Sliding glass lid

  • Strong insulation

  • Manual defrost

  • Steel interior

Read More

Description

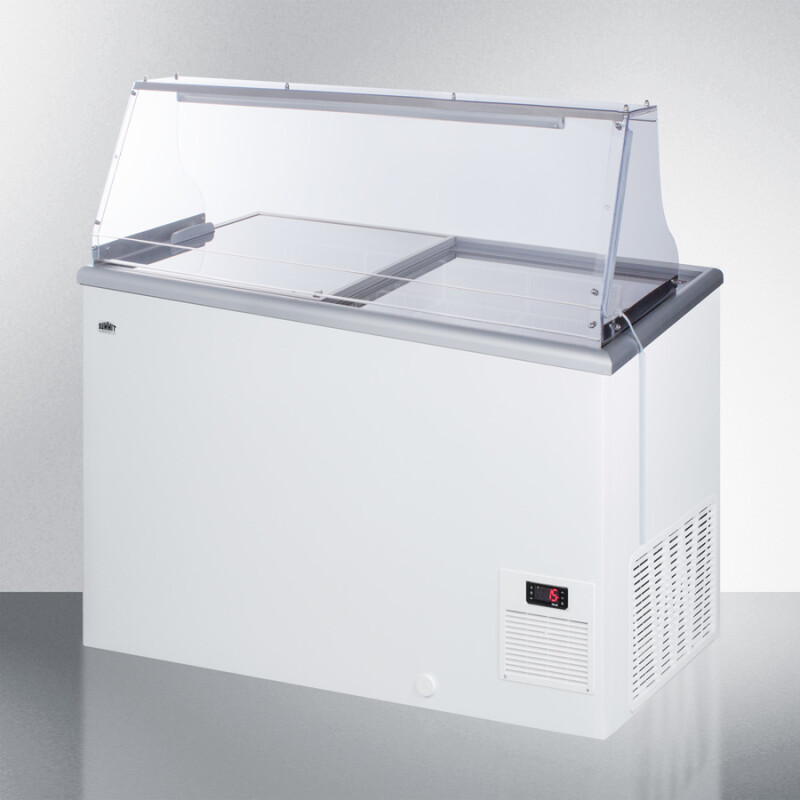

Summit Commercial's line offers the industry's best value on fully assembled dipping cabinets, with European ice cream freezers equipped with durable sneezeguards for convenient serving. Made for us by Elcold in Denmark, the NOVA35PDC is a 43" wide flat top ice cream freezer with a clear polycarbonate sneezeguard installed on top. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF. Inside, the NOVA35PDC features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 3 wire tub holder baskets with plastic lids to hold 6 11" round/3 gallon ice cream tubs, with room to store an additional 4 under the baskets. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting. The NOVA35PDC is UL-S listed to NSF-7 commercial standards and ships fully assembled for easy use. Additional sizes are available. Note: Gelato pan holders are also available. To substitute the baskets, add complimentary upgrade "GLTO" or contact our sales team at 718-893-3900 ext. 507.
Read More

Available from Slyman Bros, serving customers throughout Missouri.

Features
Specifications

Features

Commercially approved

UL-S listed to NSF-7 Standards for use in commercial establishments

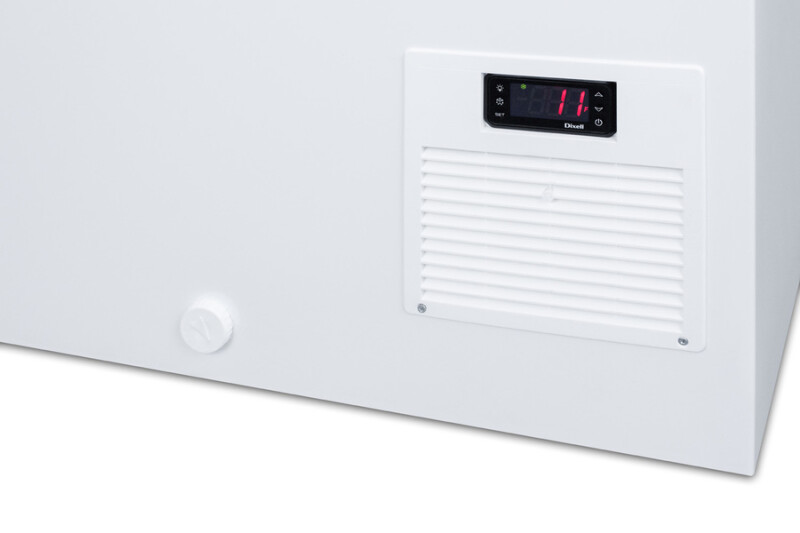

Digital thermostat

Electronic controls for more precise temperature management

Wide temperature range

Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats

Holds 10 standard 3 gallon tubs

Unit can store 4 tubs on the floor and display an additional 6 using the provided baskets

Sliding glass lid

Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

Strong insulation

3" thick insulation helps to ensure items stay cold

Manual defrost

Static cooling system for improved temperature stability

Steel interior

Durable construction in a white finish for easy visibility

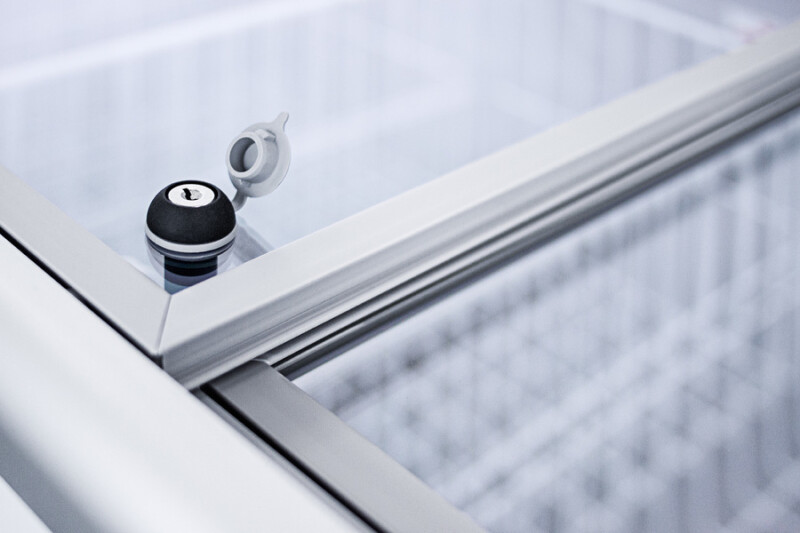

Removable lock

A keyed lock is included for optional use

Casters

Heavy duty wheels for smooth mobility (ship unassembled)

Fan-cooled compressor

Offers improved temperature performance throughout the interior

Defrost drain

Front located for easier defrosting

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Sneezeguard

Durable polycarbonate sneezeguard with light is pre-installed

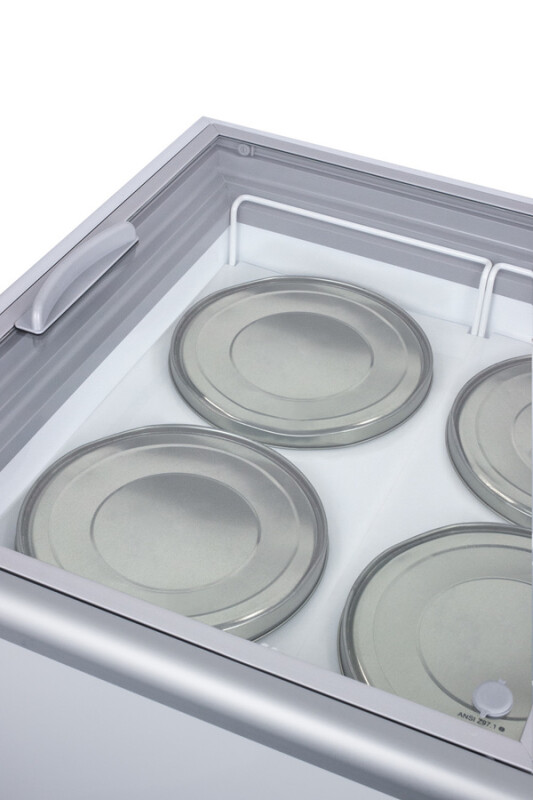

Ice cream tub holders

Three epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place

Light

Sneezeguard light for added visibility

Specifications

Warranty

Parts1 Year
Labor1 Year

Dimensions & Weight

Width43 in.
Height45.5 in.
Length27.25 in.
Weight152 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement30.85 ft³
Dimensional Weight383.56 lbs.
Total of Cubes30.85 ft³
Total of Dimensional Weight383.56 lbs.

Overview Freezer

Nominal Height46.0" (117 cm)
Height of Cabinet45.5" (116 cm)
Nominal Width43.0" (109 cm)
Width43.0" (109 cm)
Nominal Depth28.0" (71 cm)
Depth27.25" (69 cm)
Capacity11.7 cu.ft. (331 L)
Defrost TypeManual
DoorGlass
CabinetWhite
US Electrical SafetyUL
Canadian Electrical SafetyULC
SanitationUL-S
Amps7.2
Voltage/Frequency115 V AC/60 Hz
Weight152.0 lbs. (69 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101064895
Door SwingSliding
Interior Height26.0" (66 cm)
Interior Width36.75" (93 cm)
Interior Depth21.0" (53 cm)
Thermostat TypeDigital
Refrigerant TypeR290
Refrigerant Amount3.03 oz.
High Side PSI345.0
Low Side PSI140.0
Compressor Step Height9.75" (25 cm)
Compressor Step Width7.88" (20 cm)
Compressor Step Depth21.0" (53 cm)
Temperature Range-13 to 23ºF
