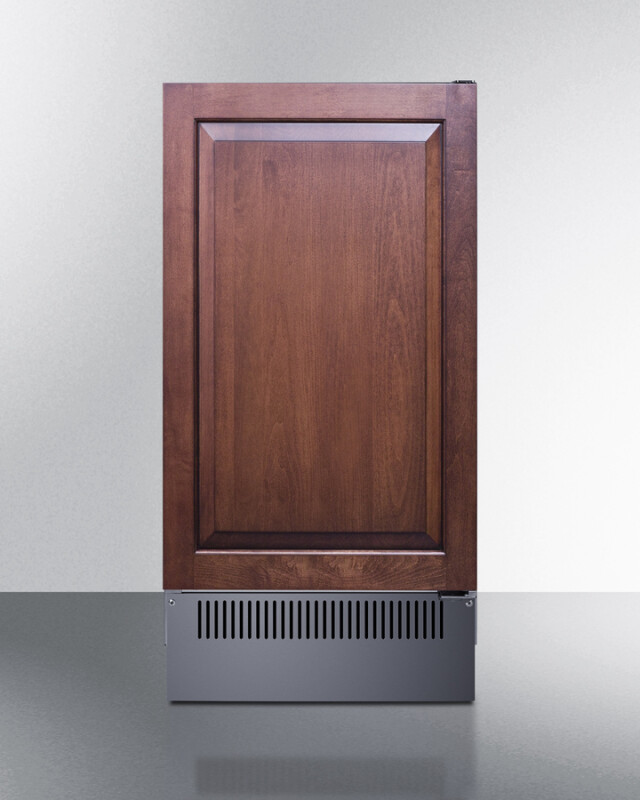

Name: 18" Wide Clear Icemaker (Panel Not Included)
Brand: Summit
SKU: BIM182IF
Price: 3210.00 USD
Availability: BackOrder

18" Wide Clear Icemaker (Panel Not Included)

Model : #BIM182IF

$3,210.00

18" Wide Clear Icemaker (Panel Not Included)

Model: BIM182IF

+2more

18" Wide Clear Icemaker (Panel Not Included)

Model: BIM182IF

$3,210.00

Color : Panel-Ready

Key Features

18" Wide Clear Icemaker
Panel-ready door
60 lb. production capacity
Height adjustable
Built-in pump
Touch control panel
Automatic defrost
Interior light

Description

Summit brings proper convenience and streamlined luxury under the counter with built-in clear icemakers sized for 18 inch wide spaces. Sized just under 18 inches wide and 34.75 inches high, model BIM182IF features a front-breathing design for built-in installation underneath standard height counters and includes a include a stainless steel kickplate extender to cover any gaps. The door includes an integrated stainless steel frame that allows it to accept overlay panels, creating a custom look to match or complement the rest of you cabinetry (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness). This unit features a sealed back and right angle cord for added space savings. Inside, the BIM182IF can produce 60 lbs. of clear ice cubes ice daily. The intuitive control panel ensures ease of use. An indicator light alerts users to each step in the production process and when the bin is full. The interior features UV lighting for easy visibility and added protection against bacteria. The automatic defrost system minimizes user maintenance. This model has an internal pump and ships with the drain hose, water hose, a removable ice bucket, and ice scoop. The interior wall includes a hook to hang the scoop for added convenience. With its unique size, user-friendly design, and large capacity, the BIM182IF is a great fit for various kitchen setups. For a weatherproof outdoor version, see model BIM182OSIF. In addition to this icemaker, Summit manufactures drain-free choices, as well as traditional 15 inch wide icemakers and a full assortment of matching 18 inch wide refrigerators, beverage centers, and wine cellars. Browse the complete lineup to complete any residential or commercial undercounter space.

Documents

BROCHURE w/ DRAWINGS

View | Download

PDF, 422.83 KB

ASSEMBLY DRAWING

View | Download

PDF, 211.96 KB

Available from Slyman Bros, serving customers throughout Missouri.

Features

Specifications

Features

18" Wide Clear Icemaker

Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings

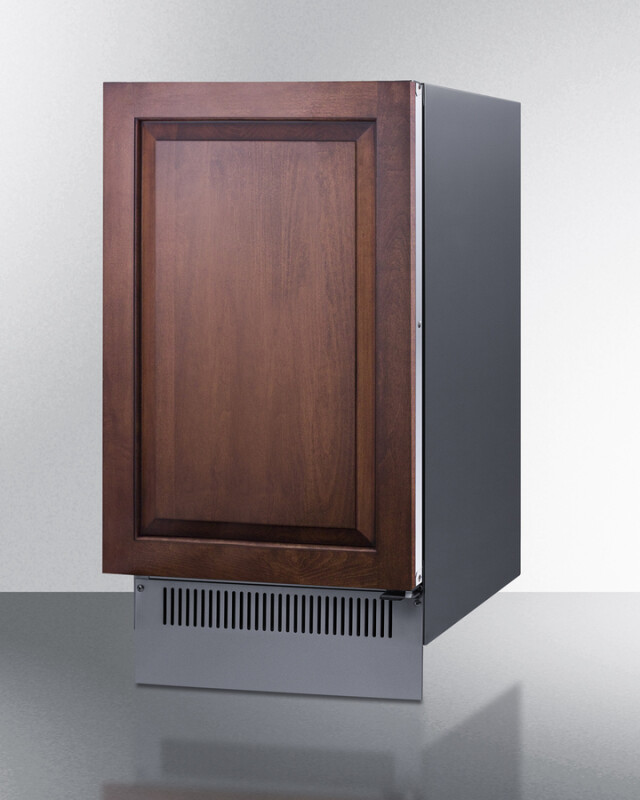

Panel-ready door

Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness)

60 lb. production capacity

Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs.

Height adjustable

Unit is sized at 32 1/2" and can be raised to 34 3/4" to best fit a variety of spaces

Built-in pump

Internal pump affords more flexibility in placing the unit

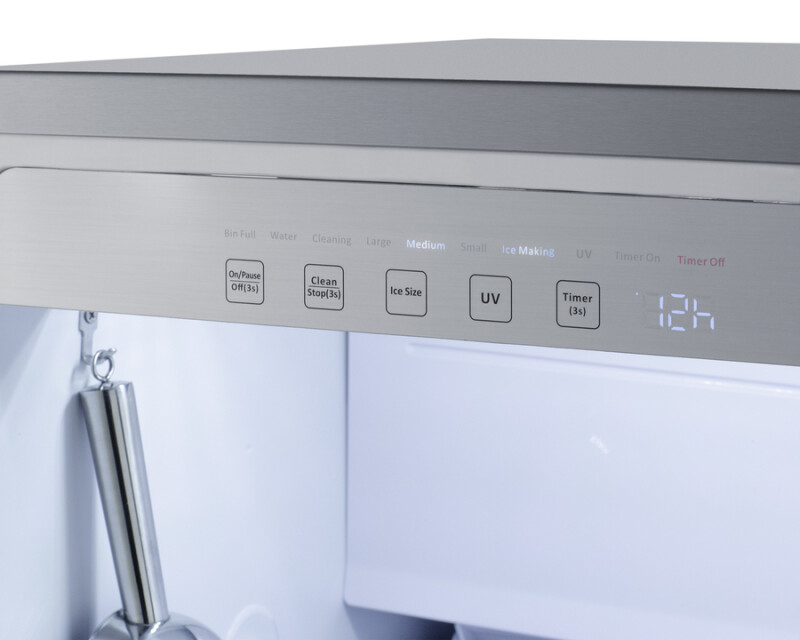

Touch control panel

Provides easy operation of the unit with indicator lights for each stage of the production process

Automatic defrost

Reduced maintenance with auto defrost system

Interior light

LED lighting automatically illuminates when the door is opened

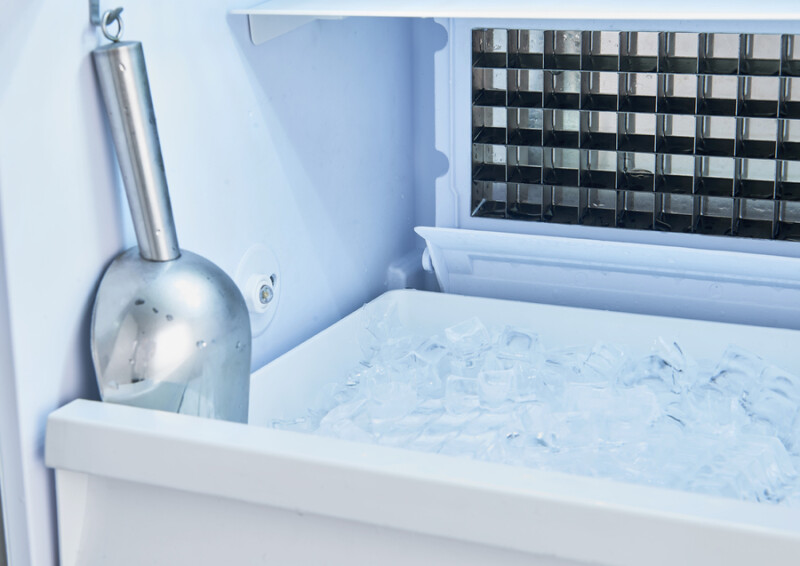

Ice scoop included

Interior wall includes brackets to hang for easy storage

Interior UV light

Full illumination of the interior, with UV lighting to help kill germs and ensure safer, cleaner clear ice cubes

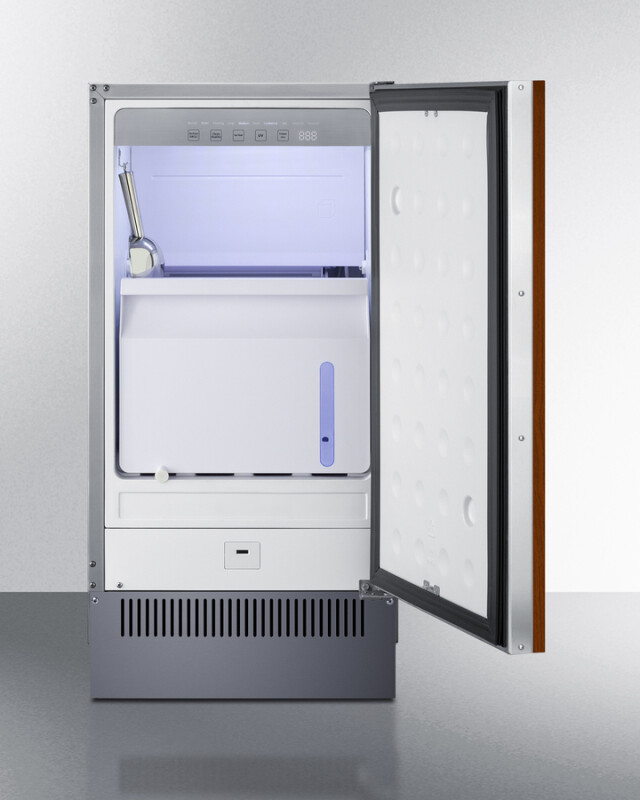

Removable bin

Users can remove the ice bucket for fast and easy cleaning

Insulated storage bin

Ice stays solid longer in this cold-protected bin

Fully finished stainless steel cabinet

Allows the unit to be used freestanding

Pro style handle

Vertically mounted stainless steel handle completes the look

Sealed back

Space-saving design with easier cleanability

Right angle plug

Flat design offers added space savings by requiring no extra depth to plug the unit in

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Lead-free certified

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Built-in capable

Make the best use of space by installing your icemaker under the counter

Ice selection

Unit allows users to choose from small, medium, or large clear ice cubes

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

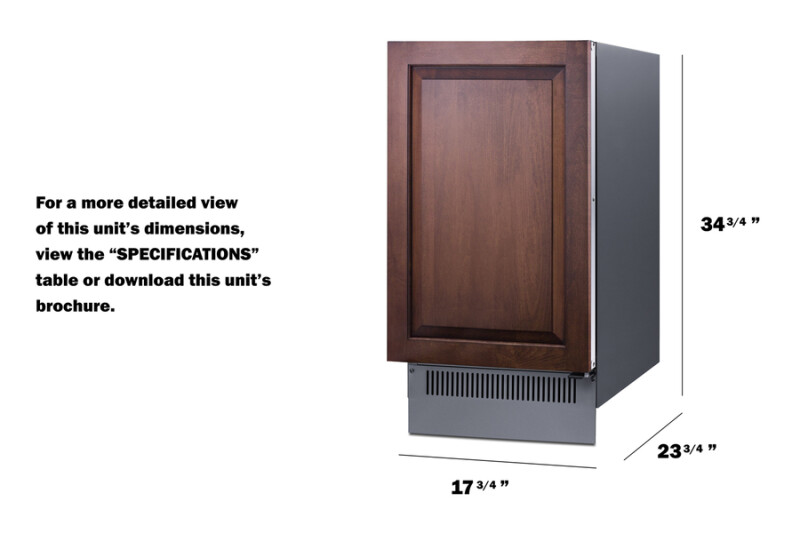

Dimensions & Weight

Width	17.75 in.
Height	34.75 in.
Length	23.75 in.
Weight	95 lbs.

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement	8.48 ft³
Dimensional Weight	105.39 lbs.
Total of Cubes	8.48 ft³
Total of Dimensional Weight	105.39 lbs.

Overview Icemaker

Nominal Height	35.0" (89 cm)
Height of Cabinet	34.75" (88 cm)
Nominal Width	18.0" (46 cm)
Width	17.75" (45 cm)
Depth	23.75" (60 cm)
Depth with Panel	24.75" (63 cm)
Depth with door at 90°	41.0" (104 cm)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	11.8
Voltage/Frequency	115 V AC/60 Hz
Weight	95.0 lbs. (43 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101150765
Door Swing	RHD
Reversible	Factory Reversible
Height Adjustable	Yes
Drain Required	Yes
Daily Ice Production	60.0 lbs. (27 kg)
Ice Storage Capacity	33.0 lbs. (15 kg)
Ice Shape	Cube
Size of Cube	.87" x .87" . 87"
Number of Ice Cube Sizes	3
Interior Light	Yes
Refrigerant Type	R290
Refrigerant Amount	1.37 oz.
High Side PSI	330.0
Low Side PSI	160.0
Interior Height	18.75" (48 cm)
Interior Width	14.75" (37 cm)
Interior Depth	16.75" (43 cm)
Level Legs	4
