Freezer, Single Section Upright, Full Glass Door with Lock - F1AFG

HoshizakiHoshizaki brand logo

Freezer, Single Section Upright, Full Glass Door with Lock

Model: F1AFG

F1A-FG, Freezer, Single Section Upright, Full Glass Door with LockTitle F1AFGF1A-FG, Freezer, Single Section Upright, Full Glass Door with LockTitle F1AFGF1A-FG, Freezer, Single Section Upright, Full Glass Door with LockTitle F1AFGF1A-FG, Freezer, Single Section Upright, Full Glass Door with LockTitle F1AFGF1A-FG, Freezer, Single Section Upright, Full Glass Door with LockTitle F1AFGF1A-FG, Freezer, Single Section Upright, Full Glass Door with LockTitle F1AFGF1A-FG, Freezer, Single Section Upright, Full Glass Door with LockTitle F1AFG
F1A-FG, Freezer, Single Section Upright, Full Glass Door with LockTitle F1AFG
F1A-FG, Freezer, Single Section Upright, Full Glass Door with LockTitle F1AFG
F1A-FG, Freezer, Single Section Upright, Full Glass Door with LockTitle F1AFG
F1A-FG, Freezer, Single Section Upright, Full Glass Door with LockTitle F1AFG
F1A-FG, Freezer, Single Section Upright, Full Glass Door with LockTitle F1AFG
+2more

Color : Stainless Steel

product image
Stainless Steel

Key Features

  • Net capacity of 23.1 cubic feet

  • Glass door front, stainless steel exterior (sides, top) and a stainless steel interior

  • One piece, full door length, chrome handle

  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life

  • Lockable Full Glass Door

  • Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks

  • Interior LED light bars are vertically mounted on each wall

  • Nominal Compres. of 1425 BTU/hr at 3/4 HP

Read More

Description

The F1A-FG Steelheart Series Upright single section freezer with a full glass door is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright freezer and front air flow design is perfect for hot/tight kitchens. The F1A-FG is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
Read More

Available from Slyman Bros, serving customers throughout Missouri.

Features
Specifications

Features

Net capacity of 23.1 cubic feet

Glass door front, stainless steel exterior (sides, top) and a stainless steel interior

One piece, full door length, chrome handle

Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life

Lockable Full Glass Door

Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks

Interior LED light bars are vertically mounted on each wall

Nominal Compres. of 1425 BTU/hr at 3/4 HP

R290 refrigerant

115v/60/1, 10 ft. cord and plug

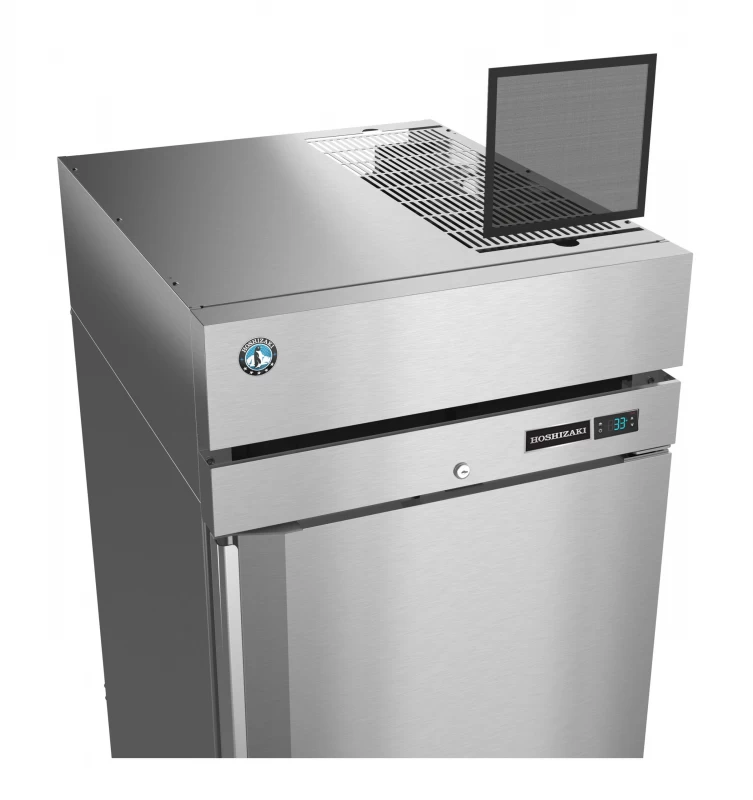

Top mounted energy efficient non-electric evaporation system

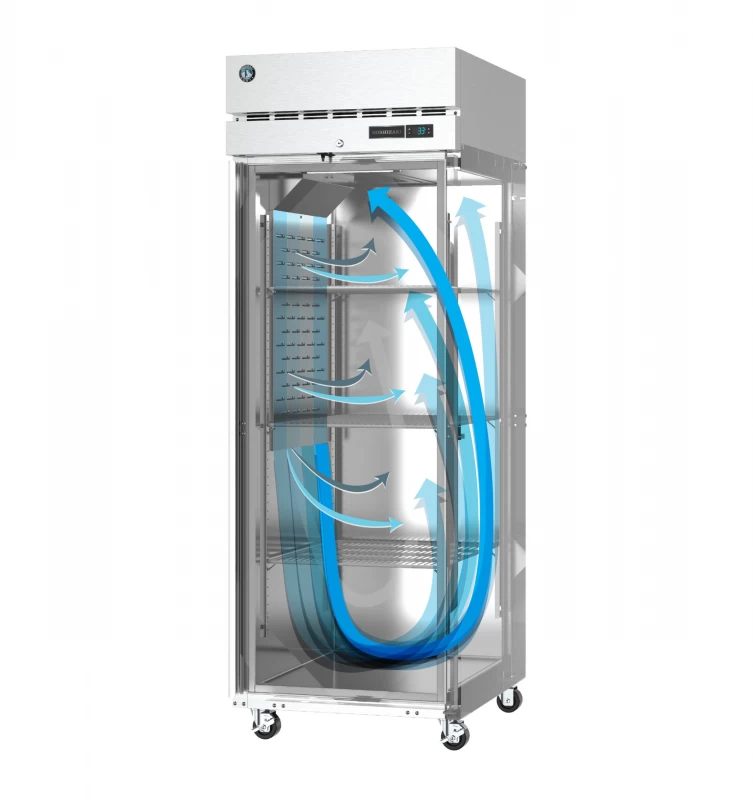

Unique “ducted” air distribution system

7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)

Specifications

Dimensions & Weight

Width-
Height-
Length-
Weight380 lbs.
Width27.5 in.
Depth34.5 in.
Height79.5 in.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width-
Shipping Height-
Shipping Length-
Shipping Weight420 lbs.
Total of Shipping Weight420 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-

Product Details

Electrical SpecsElectrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 7.73 kwh/day, Amperage: 8.5, Max Fuse/HACR Breaker: 15 A
Operating LimitsAmbient Temp Range: 45 – 80°F, Voltage Range: 104 – 126V, Control Setpoint Range: -10 – +12°F, Refrigerant: R290
Refrigeration DataNominal Compres. of 1425 BTU/hr at 3/4 HP, Heat Rejection: 806 BTU/hr
Shipping Weight380
Storage SpecsNominal storage capacity: 23.61 ft3, Interior storage capacity: 23.1 ft3, Door opening: 21.75″ W x 59.25″ H, Depth with door fully extended: 57″ D, Shelves included: 3

Warranty

Parts7 Years
Labor7 Years
Compressor7 Years
