Refrigerator, Single Section Upright, Full Stainless Door with Lock - R1AFS

HoshizakiHoshizaki brand logo

Refrigerator, Single Section Upright, Full Stainless Door with Lock

Model: R1AFS

R1A-FS, Refrigerator, Single Section Upright, Full Stainless Door with LockTitle R1AFSR1A-FS, Refrigerator, Single Section Upright, Full Stainless Door with LockTitle R1AFSR1A-FS, Refrigerator, Single Section Upright, Full Stainless Door with LockTitle R1AFSR1A-FS, Refrigerator, Single Section Upright, Full Stainless Door with LockTitle R1AFSR1A-FS, Refrigerator, Single Section Upright, Full Stainless Door with LockTitle R1AFSR1A-FS, Refrigerator, Single Section Upright, Full Stainless Door with LockTitle R1AFSR1A-FS, Refrigerator, Single Section Upright, Full Stainless Door with LockTitle R1AFSR1A-FS, Refrigerator, Single Section Upright, Full Stainless Door with LockTitle R1AFS
R1A-FS, Refrigerator, Single Section Upright, Full Stainless Door with LockTitle R1AFS
R1A-FS, Refrigerator, Single Section Upright, Full Stainless Door with LockTitle R1AFS
R1A-FS, Refrigerator, Single Section Upright, Full Stainless Door with LockTitle R1AFS
R1A-FS, Refrigerator, Single Section Upright, Full Stainless Door with LockTitle R1AFS
R1A-FS, Refrigerator, Single Section Upright, Full Stainless Door with LockTitle R1AFS
+3more

Color : Stainless Steel

product image
Stainless Steel

Key Features

  • Net capacity of 23.1 cubic feet

  • Stainless steel exterior (front, sides, top) and a stainless steel interior

  • One piece, full door length, extruded aluminum flush mount door handle

  • Lockable Full Stainless Door

  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life

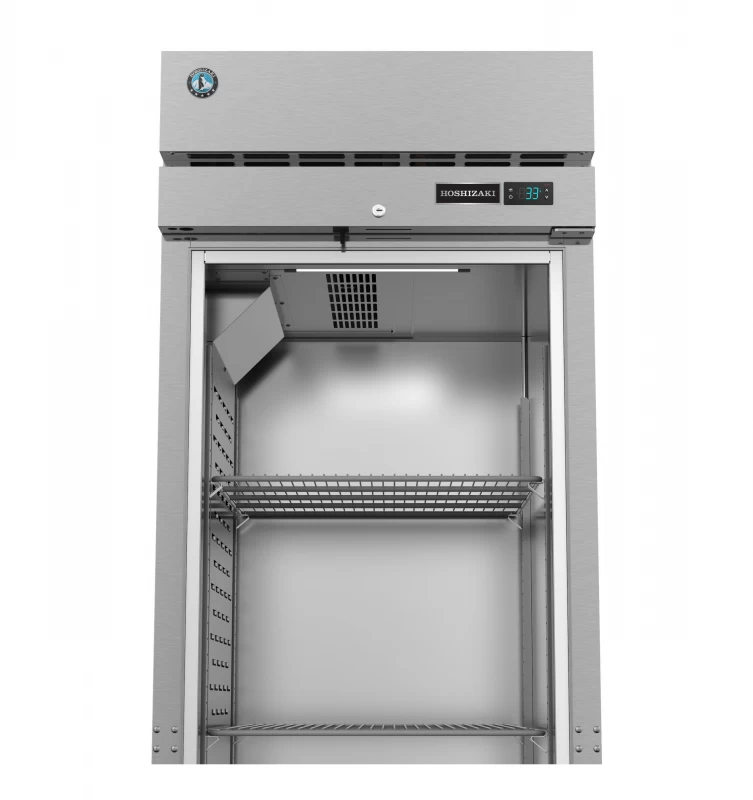

  • Interior LED light bar is mounted horizontally on the ceiling

  • R290 refrigerant

  • Nominal Compres. of 770 BTU/hr at 1/4 HP

Read More

Description

The R1A-FS Steelheart Series Upright single section refrigerator with a full stainless door is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens. The R1A-FS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
Read More

Available from Slyman Bros, serving customers throughout Missouri.

Features
Specifications

Features

Net capacity of 23.1 cubic feet

Stainless steel exterior (front, sides, top) and a stainless steel interior

One piece, full door length, extruded aluminum flush mount door handle

Lockable Full Stainless Door

Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life

Interior LED light bar is mounted horizontally on the ceiling

R290 refrigerant

Nominal Compres. of 770 BTU/hr at 1/4 HP

115v/60/1, 10 ft. cord and plug

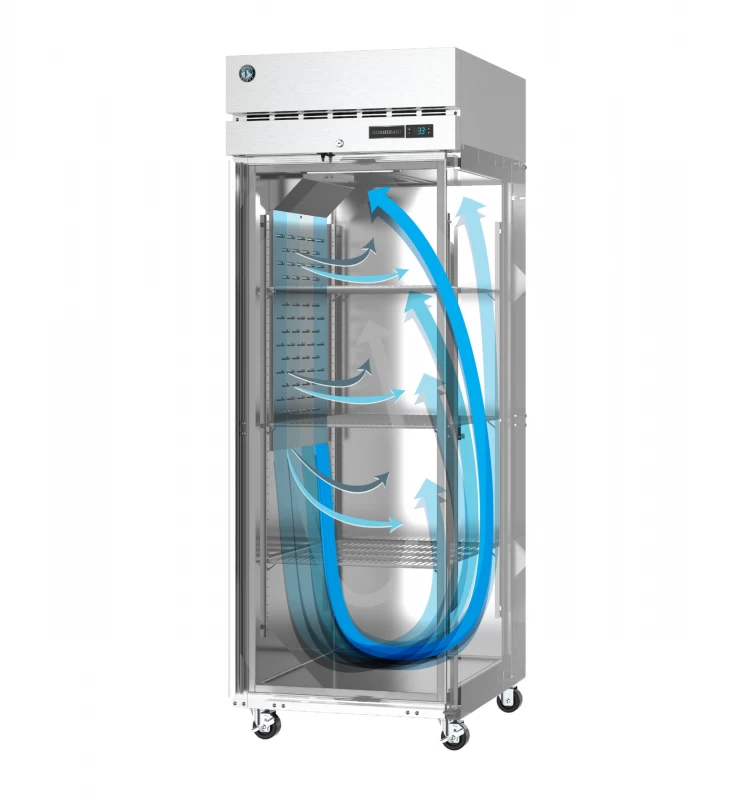

Unique “ducted” air distribution system

ENERGY STAR® Qualified

7-7-7 Warranty (seven years labor, seven years parts, seven years compressor)

Specifications

Dimensions & Weight

Width-
Height-
Length-
Weight350 lbs.
Width27.5 in.
Depth33.5 in.
Height79.5 in.

Number of Boxes, Shipping Dimensions, & Shipping Weight

Number of Boxes1
Shipping Width-
Shipping Height-
Shipping Length-
Shipping Weight390 lbs.
Total of Shipping Weight390 lbs.
SourceCalculation

Cubic Feet Measurement & Dimensional Weight

Cubic Feet Measurement-
Dimensional Weight-
Total of Cubes-
Total of Dimensional Weight-

Product Details

Electrical SpecsElectrical Connection: 5 – 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 1.25 kwh/day, Amperage: 5, Max Fuse/HACR Breaker: 15 A
Operating LimitsAmbient Temp Range: 45 – 100°F, Voltage Range: 104 – 126V, Control Setpoint Range: 31 – 52°F, Refrigerant: R290
Refrigeration DataNominal Compres. of 770 BTU/hr at 1/4 HP, Heat Rejection: 317 BTU/hr
Shipping Weight350
Storage SpecsNominal storage capacity: 23.61 ft3, Interior storage capacity: 23.1 ft3, Door opening: 21.75″ W x 59.25″ H, Depth with door fully extended: 59.25″ D, Shelves included: 3

Warranty

Parts7 Years
Labor7 Years
Compressor7 Years
