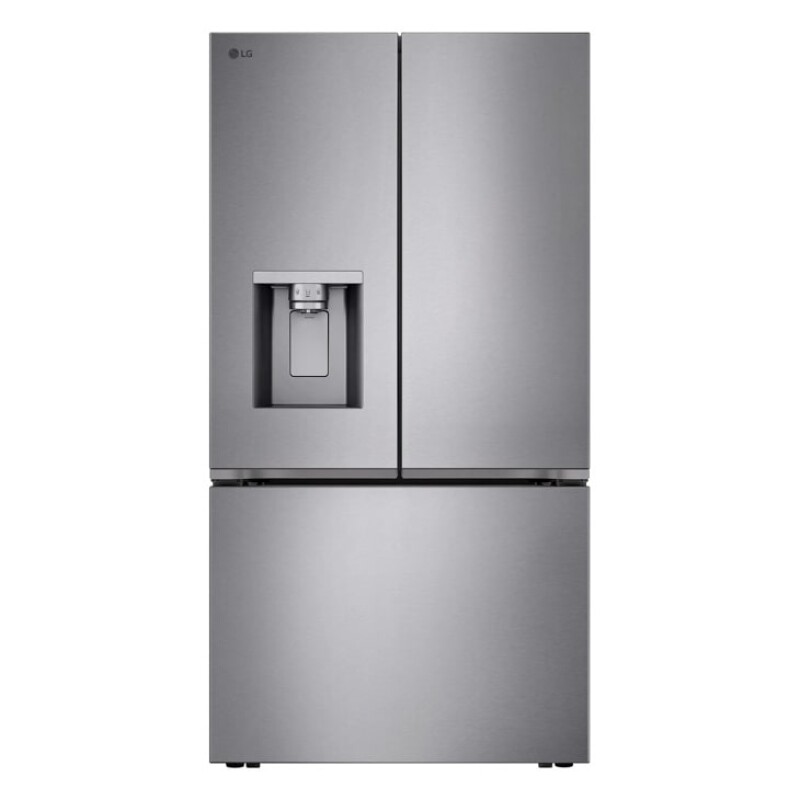

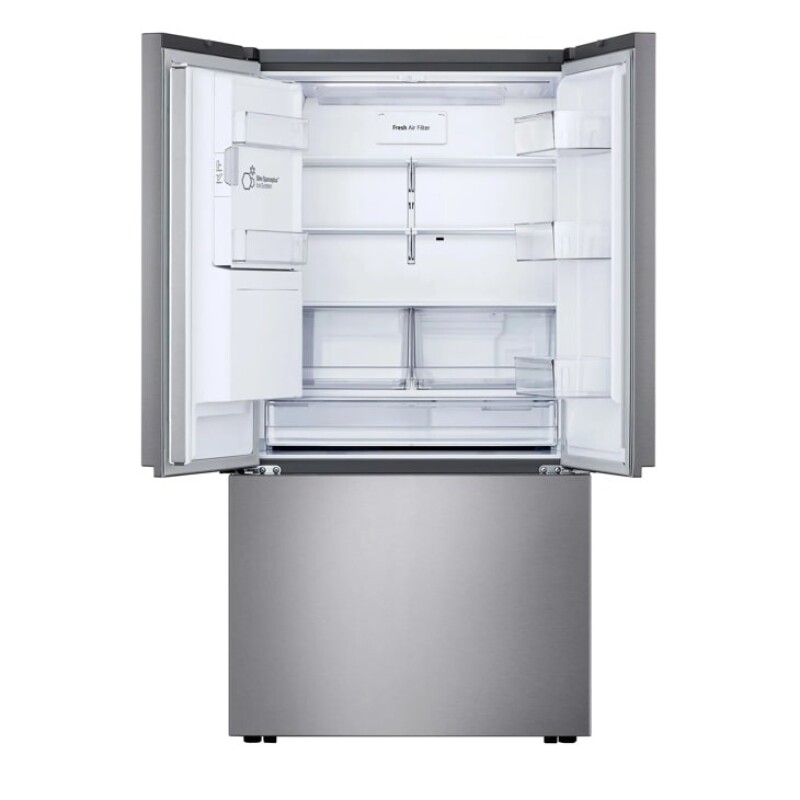

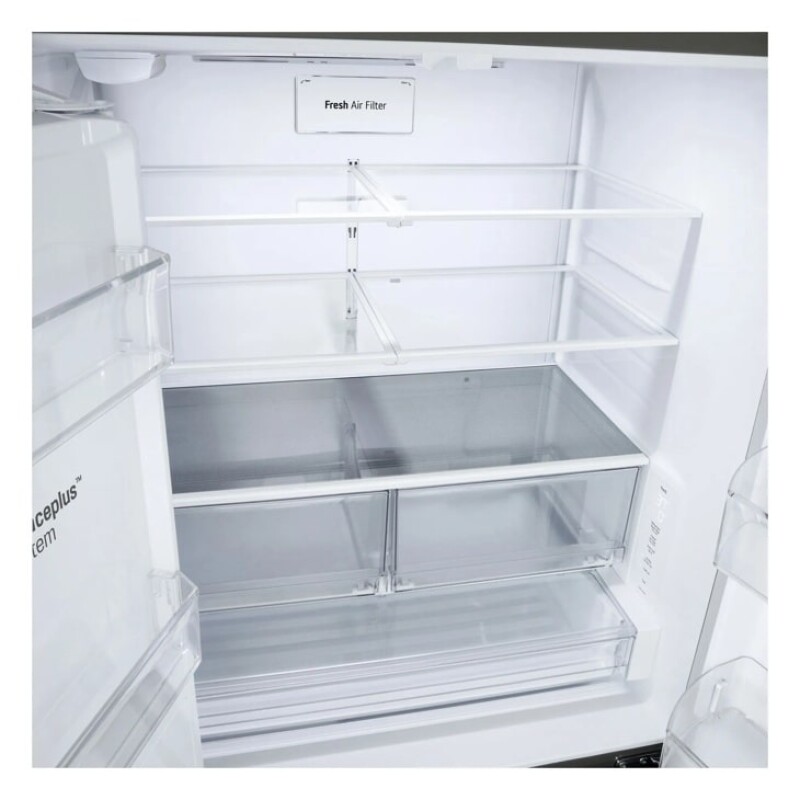

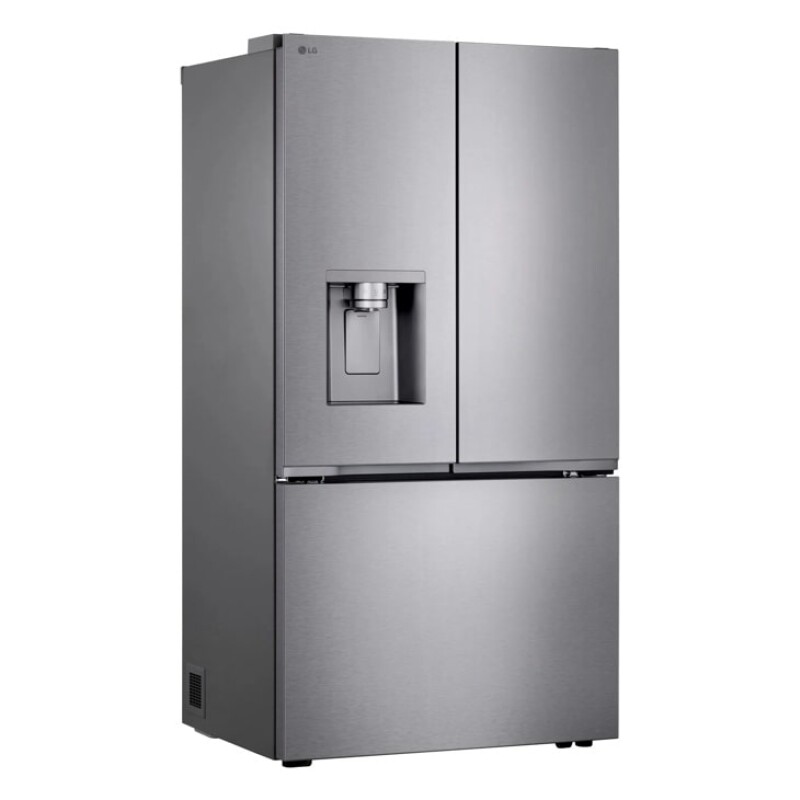

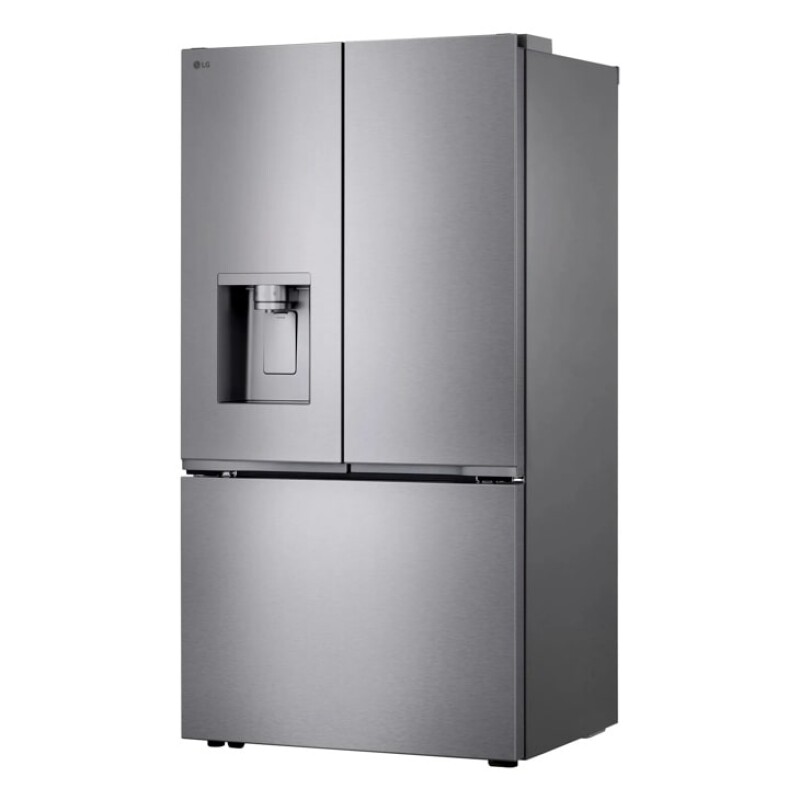

24 cu. ft. Counter-Depth MAX™ with Zero Clearance™ 3-Door French Door Refrigerator - LY24Z6231V
24 cu. ft. Counter-Depth MAX™ with Zero Clearance™ 3-Door French Door Refrigerator
Model: LY24Z6231V
+8more
Specifications
Specifications
Capacity
| Freezer (cu.ft.) | 7.9 cu.ft. |
| Refrigerator (cu.ft.) | 15.8 cu.ft. |
| Total Capacity (cu.ft.) | 23.7 cu.ft. |
Convenience
| ADA Compliant | Yes |
| Auto Closing Door Hinge | Yes |
| Child Lock | Yes |
| Door Alarm | Yes |
| Sabbath Mode | Yes |
| Temperature Controls | Electronic/ Digital |
Cooling
| Refrigerant | R600a / 78g / 2.75oz |
| Compressor Type | Smart Inverter Compressor |
| Door Cooling+ | Yes |
| Evaporator | 1 |
| Fresh Air Filter | Yes |
| Multi-Air Flow™ System | Yes |
| Temperature Sensors | 2 |
Dimensions/Clearances/Weights
| Carton Dimensions (WxHxD) | 38" x 73" x 30" |
| Depth (Draw Open Fully without Handle) | 43.875" |
| Depth (to Hinge Cover) | 18.25" |
| Depth (Total with Door Open) | 43.75" |
| Depth without Door | 24.75" |
| Depth without Handles | 27.5" |
| Dimensions (W case x H top of hinge x D with handles) | 35 3/4" x 70 1/4" x 27 1/2" |
| Door Edge Clearance without Handle | 2.125" |
| Height to Top of Case | 68.875" |
| Height to Top of Door Hinge | 70.25" |

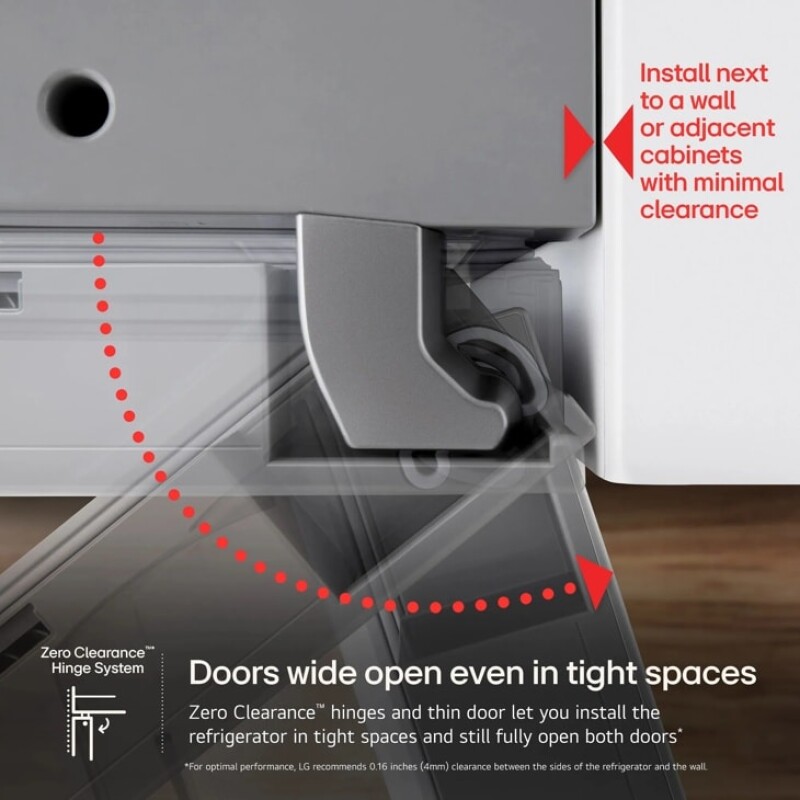

| Installation Clearance | Sides 5/32", Top 1", Back 2" |
| Weight (Unit/Carton) | 261 lbs / 281 lbs |
| Width | 35.75" |
| Width (Door Fully Open without Handle) | 45.5" |
| Width (Door Open 90˚ with Handle) | 40" |
| Width (Door Open 90˚ without Handle) | 35.125" |
Energy
| Energy Consumption (kWh/Year) | 699 |
| ENERGY STAR Qualified | Yes |
Freezer

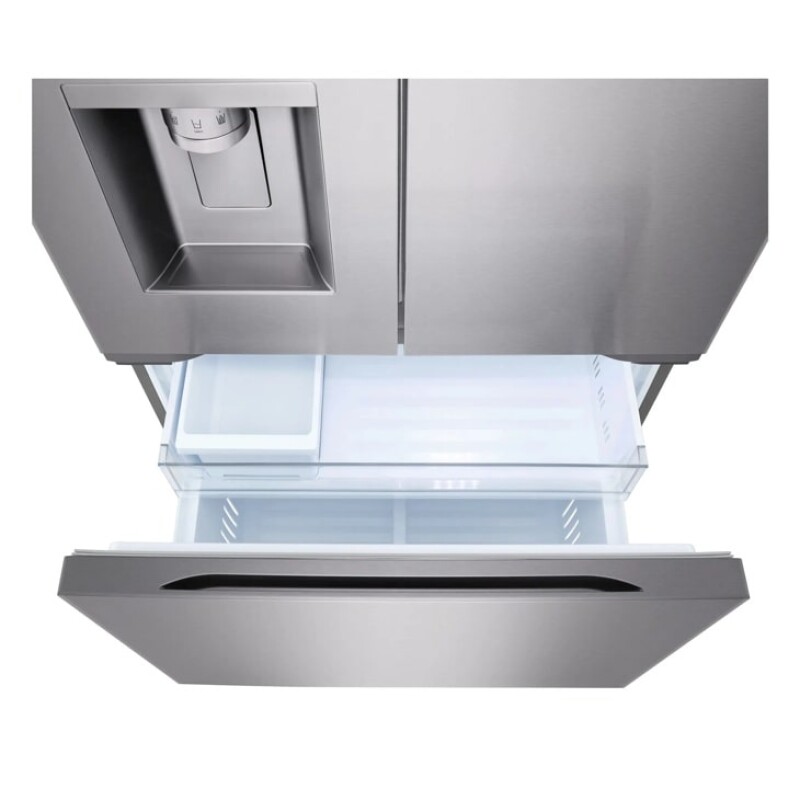

| Door Type | Pull Drawer |
| Drawers/Shelves | 2-Tier Organization |
| Freezer Light | LED Lighting |
Limited Warranty & UPC
| Compressor (Parts & Labor) | 5 Years |
| Parts & Labor | 1 Year |
| Sealed System (Parts & Labor) | 5 Years |
| UPC | 195174132685 |
Materials and Finishes
| Insulation | Low GWP and Zero ODP Blowing Agent |
| All Available Colors | PrintProof™ Stainless Steel |

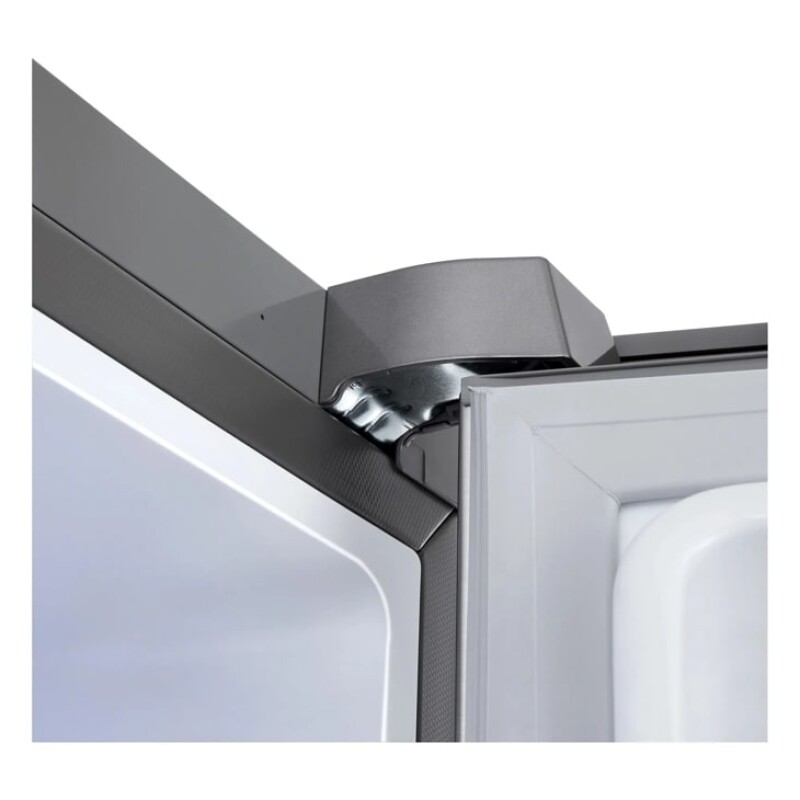

| Hidden Hinges | Yes |

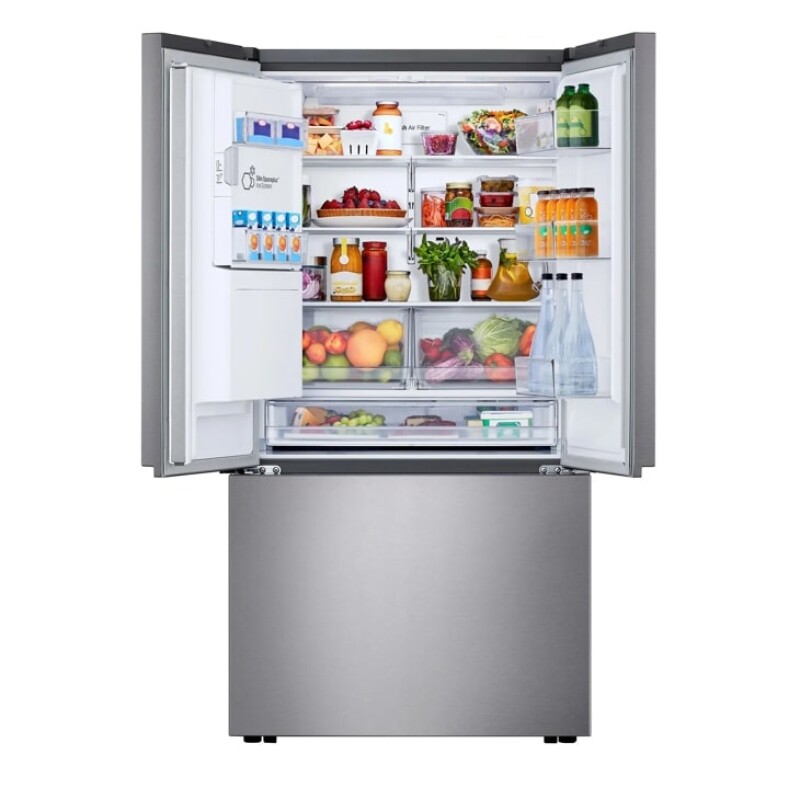

Refrigerator
| Crisper Bins | 2 |
| Handle Type | |
| No. of Shelves | 4 Split (4 Fixed) |
| Refrigerator Light | Yes |
| Shelf Construction | Spill protector Tempered glass |
Summary
| Display Type | Smooth Touch Control / White LED |
Refrigerator ThinQ® Smart Features
| SmartDiagnosis™ | Yes |
| SmartThinQ® | Yes |
| ThinQ Care™ | Yes |
| Wi-Fi Enabled | Yes |
Water & Ice System

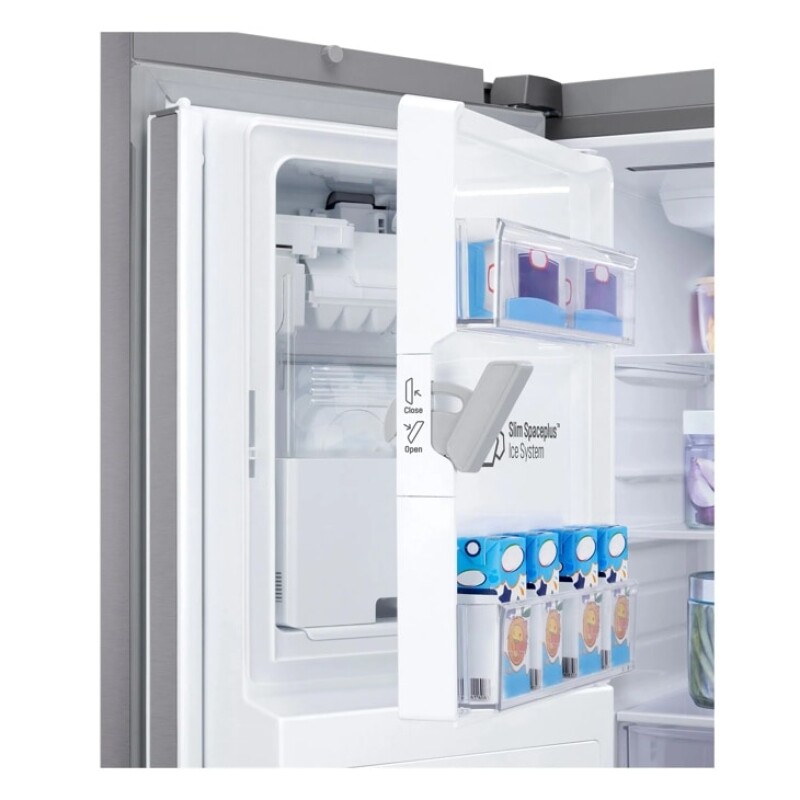

| In-Door Ice Maker Ice Type | Cubed / Crushed |

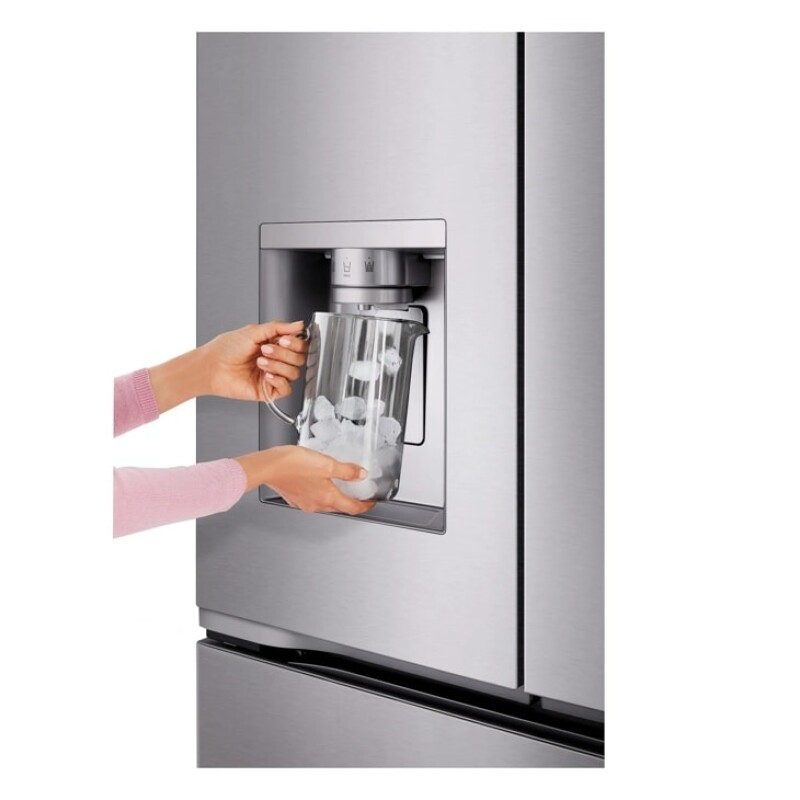

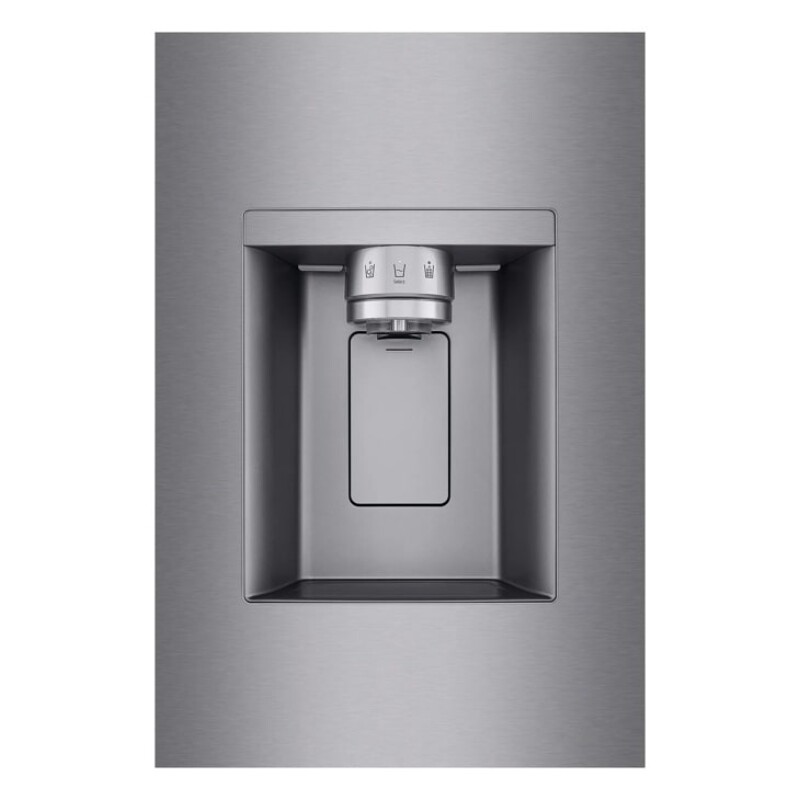

| Dispenser Type | Ice & water |
| Water Filter | LT1000P |
| Water Filtration System | 1 Stage |
