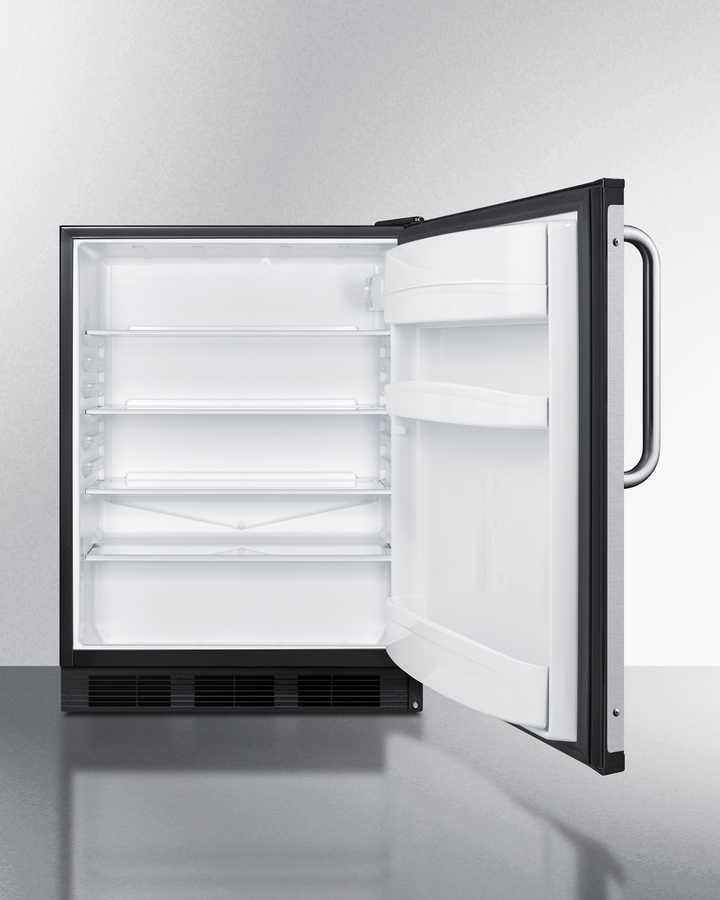

Name: 24" Wide All-Refrigerator, ADA Height
Brand: Summit
SKU: FF6BK7BZADA
Availability: BackOrder

24" Wide All-Refrigerator, ADA Height

Model : #FF6BK7BZADA

24" Wide All-Refrigerator, ADA Height

Model: FF6BK7BZADA

24" Wide All-Refrigerator, ADA Height

Model: FF6BK7BZADA

Color : Black

Key Features

Counter height commercial all-refrigerator
Interior light
100% CFC free
Customizable design
Adjustable thermostat
Right hand door swing
Magnetic door gasket
Square door design

Description

Summit Commercial manufactures an extensive lineup of commercially approved European refrigeration to bring extra cold storage capability in a slim-fitting footprint. Our Beverage Zone series includes undercounter and ADA height all-refrigerators ideal for foodservice environments. Model FF6BK7BZADA is ETL-S listed to NSF-7 commercial standards. It comes in a jet black exterior finish with a front-mounted towel bar handle in brushed stainless steel, located at a convenient position for busy bar staff to access without reaching far down. The handle side of the door includes a factory-installed stainless steel corner guard for added protection in high traffic settings. At just under 24 inches wide and deep, this refrigerator offers a generous 5.5 cu.ft. storage capacity, larger than most units in this size class. The cabinet is sized under 32 inches (and 32 1/8 inch to the top of the hinge) in order to fit under lower ADA compliant counters. It can be used freestanding or with minimum clearance for recessed installation. Made in Europe, the Beverage Zone series utilizes automatic defrost with a hidden evaporator behind the rear wall for reliable, even cooling. Adjustable glass shelves offer spill-proof storage and a removable crisper drawer allows options for holding lemons, limes, and other serving extras. The door includes two racks ideal for holding smaller bottles and cans in place. This unit has a clean white interior with an automatic light for maximum visibility, especially helpful in bars, restaurants, and settings that may be dimly lit. Additional commercial and back bar refrigeration options are available in a range of sizes and finishes, including glass door beverage centers, shallow depth storage options, and much more. Browse the full Summit product line or contact our product specialists to find the right fit for your needs.

Documents

BROCHURE w/ DRAWINGS

View | Download

PDF, 378.55 KB

ASSEMBLY DRAWING

View | Download

PDF, 105.88 KB

USE & CARE

View | Download

PDF, 540.40 KB

Available from Slyman Bros, serving customers throughout Missouri.

Features

Specifications

Features

Counter height commercial all-refrigerator

24 inch wide European refrigerator with a generous 5.5 cu.ft. interior capacity

Interior light

Automatically illuminates when you open the door

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

Customizable design

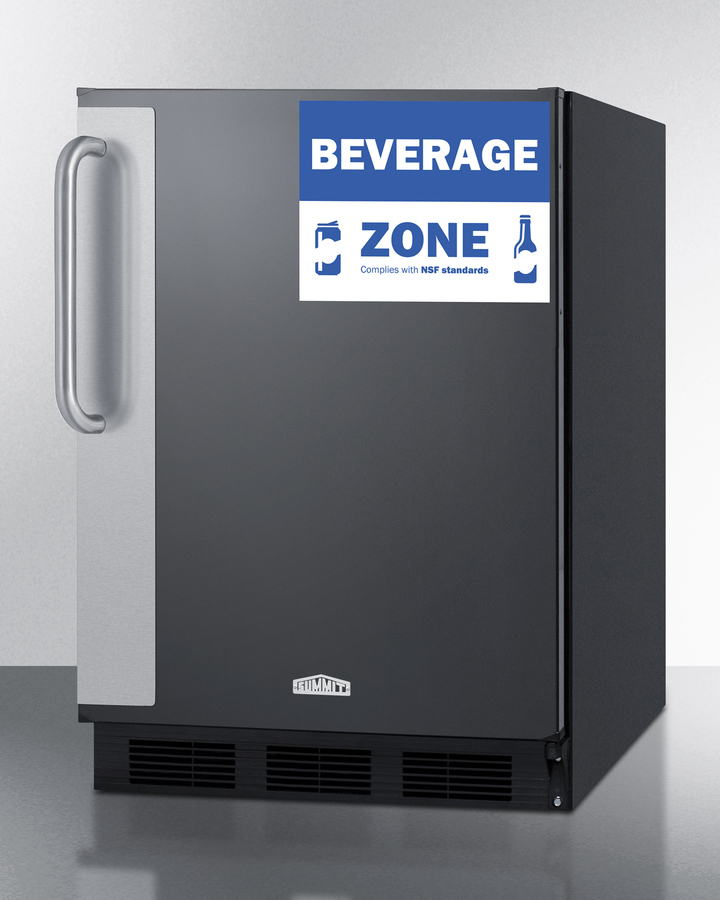

We include a removable Beverage Zone decal; alternatively, add your own branding or ask our sales team about customized options

Adjustable thermostat

Simple and intuitive dial thermostat located inside ensures easy temperature management with trusted reliability

Right hand door swing

For this unit with the door opening from the other side, see model FF6BK7BZLHD

Magnetic door gasket

Quality door gaskets ensure a tight seal for an efficient performance

Square door design

Flat front and corners help to ensure a better fit

Hidden evaporator

Cold wall design with hidden evaporator and seamless interior for reliable cooling

Automatic defrost

Reduced maintenance with auto defrost system

White interior

Bright interior finish offers maximum visibility, especially helpful in restaurants and other dimmer settings

Commercially approved

ETL-S listed to NSF-7 commercial standards for use in bars, restaurants, and other foodservice environments

Removable crisper drawer

Lower slide-out drawer offers additional storage, or remove to hold taller bottles as needed

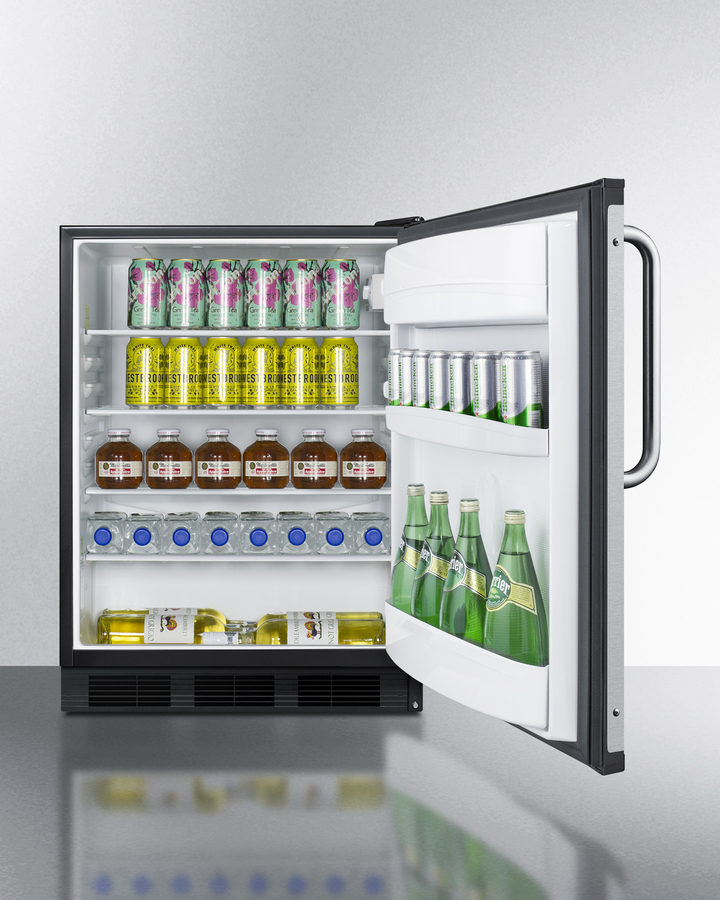

Door storage

Two door racks let you keep bottles and cans in easy reach for busy servers

Adjustable glass shelves

Spill-proof glass shelves offer cleaner storage with convenient adjustability to best accommodate your storage

24 inch footprint

Perfectly sized and designed for freestanding or recessed installation in commercial settings

Stainless steel corner guard

Handle is mounted over a 304 grade stainless steel bumper to help protect the door

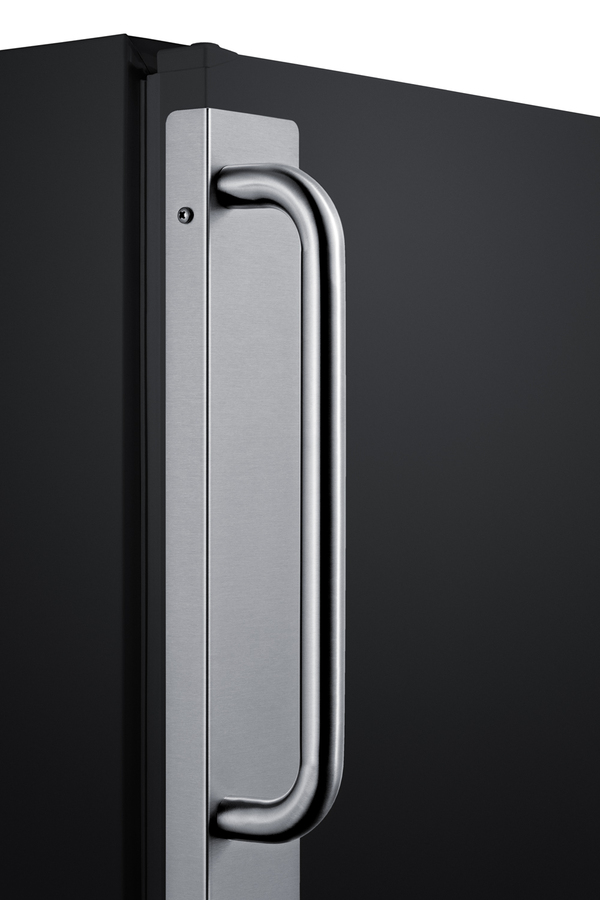

Stainless steel towel bar handle

Curved handle in brushed stainless steel offers an easy grip, ideal for servers in busy commercial settings

ADA Compliant height

Sized at 32" high (32.13" to hinge cap) to fit under lower counters complying with ADA guidelines

Made in Europe

European construction with a classic design that's been the industry standard for over 30 years

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview Refrigerator Features Dimensions

Nominal Height	32.0" (81 cm)
Height of Cabinet	31.88" (81 cm)
Height to Hinge Cap	32.13" (82 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.75" (58 cm)
Depth with Handle	25.25" (64 cm)
Depth with door at 90°	45.0" (114 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Black
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.4
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101089768
Door Swing	RHD
Reversible	Factory Reversible
Crisper Qty	1
Crisper Finish	Opaque
Crisper Cover	Glass
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.64oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	4
Interior Light	Yes
Interior Height	26.0" (66 cm)
Interior Width	21.0" (53 cm)
Interior Depth	17.75" (45 cm)
Compressor Step Height	6.75" (17 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	6.0" (15 cm)
