Name: Top Hat Cuber Ice Machine, Air-cooled, ADA-Compliant Height
Brand: Hoshizaki
SKU: AM50BAKAD
Availability: BackOrder

Top Hat Cuber Ice Machine, Air-cooled, ADA-Compliant Height

Model : #AM50BAKAD

Top Hat Cuber Ice Machine, Air-cooled, ADA-Compliant Height

Model: AM50BAKAD

AM-50BAK-AD Undercounter Cuber w/Built in Bin ADA AM50BAKAD

+5more

Top Hat Cuber Ice Machine, Air-cooled, ADA-Compliant Height

Model: AM50BAKAD

Color : Stainless Steel

Key Features

Dimensions: 14-7/8″ W x 22-5/8″ D x 31-1/2″ H
Up to 54 lbs of ice produced per 24 hours
Up to 27 lbs of built-in storage capacity (ft3)
Produces top hat ice cubes
Undercounter design is less than 32″ tall, ADA compliant
Front in, front out airflow
UL approved for outdoor use
Easily disassembled water circuit for easy cleaning

Description

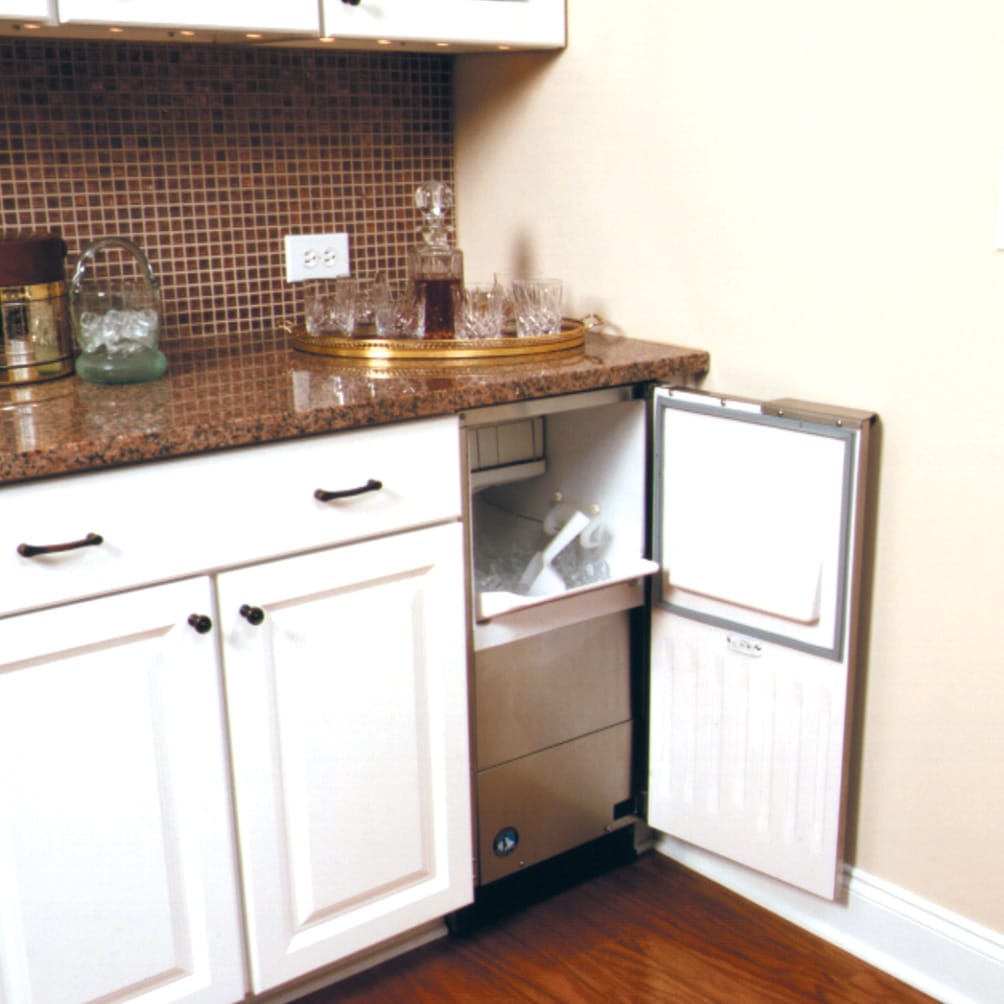

This compact undercounter Top Hat ice machine is the perfect addition to any hotel suite, office breakroom, or kitchen. The AM-50BAK-AD is capable of producing approximately 54 lbs. of Top Hat style ice cubes per day, and the built-in storage bin will hold up to 27 lbs. * of ice at a time. The undercounter design is less than 32″ tall, making it ADA compliant. The air-cooled design also features a front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. UL approved for outdoor use. Drain pump not included.

Documents

Types of Ice Guide

View | Download

PDF, 871.20 KB

Spec Sheet

View | Download

PDF, 1.12 MB

Instruction Manual

View | Download

PDF, 2.28 MB

Parts Manual

View | Download

PDF, 1.70 MB

Service Manual

View | Download

PDF, 1.86 MB

Warranty Statement

View | Download

PDF, 1020.83 KB

Full Product Brochure

View | Download

PDF, 1.66 MB

Supplier Code of Conduct

View | Download

PDF, 240.94 KB

Available from Slyman Bros, serving customers throughout Missouri.

Features

Specifications

Features

Dimensions: 14-7/8″ W x 22-5/8″ D x 31-1/2″ H

Up to 54 lbs of ice produced per 24 hours

Up to 27 lbs of built-in storage capacity (ft3)

Produces top hat ice cubes

Undercounter design is less than 32″ tall, ADA compliant

Front in, front out airflow

UL approved for outdoor use

Easily disassembled water circuit for easy cleaning

Accessory – HS-5061 drain pump assembly

Environmentally friendly R290 refrigerant

Heat Rejection: 1,400 BTU/hr

Ambient temperature range: 45 – 100°F

Water temperature range: 45 – 95°F

Water pressure: 10 – 113psig

Voltage range: 104 – 127V

2 amps (15 Amp Max fuse)

9 kwh/100 lbs.@ 90/70

Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug

Clean ice and easy maintenance lead to longer unit life span

Two Years: Parts & Labor warranty on entire machine.

One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.

Specifications

Product Details

Electrical Specs	Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug, Amperage: 2.0, Max Fuse/HACR Breaker: 15 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 95°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 1400 BTU/hr, Refrigerant Charge: R290, (2.3 oz. / 65.2 g)
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 1/2″ FPT Outlet, Minimum 1/2″ Nominal ID Drain Hard Pipe or Equivalent
Utility Consumption	9 kWh per 100 lbs @ 90/70, 65 gal of Potable Water per 100 lbs @ 90/70
Shipping Weight	112 lbs.
