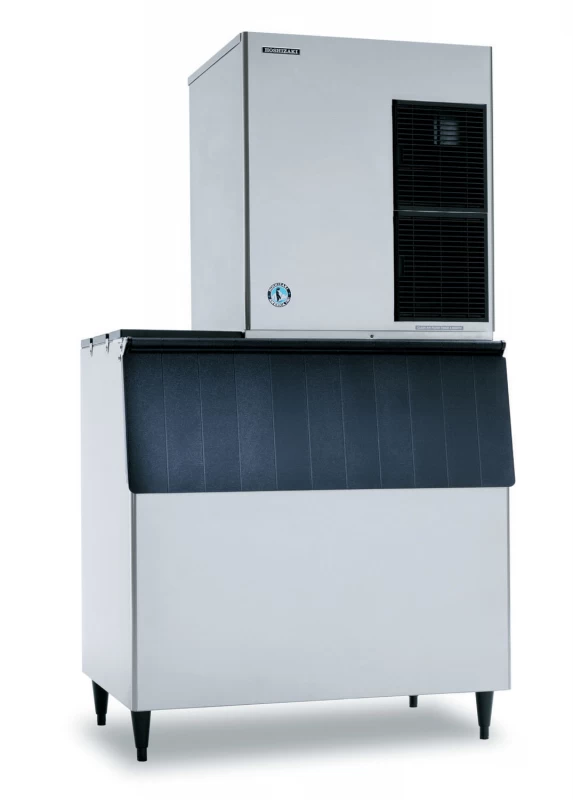

Flaker Icemaker, Air-cooled - F1501MAJ
Color : Stainless Steel
Key Features
Up to 1543 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650
2 second rinse every hour to remove sediment
Produces flaked ice
Infrared bin control for easy cleaning and reliability
R-404A refrigerant (2 lbs. 5 oz. / 1050 g)
Description
Available from Slyman Bros, serving customers throughout Missouri.
Features
Up to 1543 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650
2 second rinse every hour to remove sediment
Produces flaked ice
Infrared bin control for easy cleaning and reliability
R-404A refrigerant (2 lbs. 5 oz. / 1050 g)
15.9 amps (20 Amp Max fuse)
4 kwh/100 lbs.@ 90/70
Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Advanced CleanCycle24™ design
Heat Rejection:12300 BTU/hr
Specifications
Product Details
| Electrical Specs | Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 15.9, Max Fuse/HACR Breaker: 20 A |
| Utility Consumption | 4 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70 |
| Operating Limits | Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 12300 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 5 oz. / |
| Plumbing Specs | 1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent |
| Shipping Weight | 325 |
Dimensions & Weight
| Width | - |
| Height | - |
| Length | - |
| Weight | 325 lbs. |
| Width | 30 in. |
| Depth | 27.375 in. |
| Height | 34.438 in. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | - |
| Shipping Height | - |
| Shipping Length | - |
| Shipping Weight | 365 lbs. |
| Total of Shipping Weight | 365 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | - |
| Dimensional Weight | - |
| Total of Cubes | - |
| Total of Dimensional Weight | - |
Warranty
| Parts | 3 Years |
| Labor | 3 Years |
