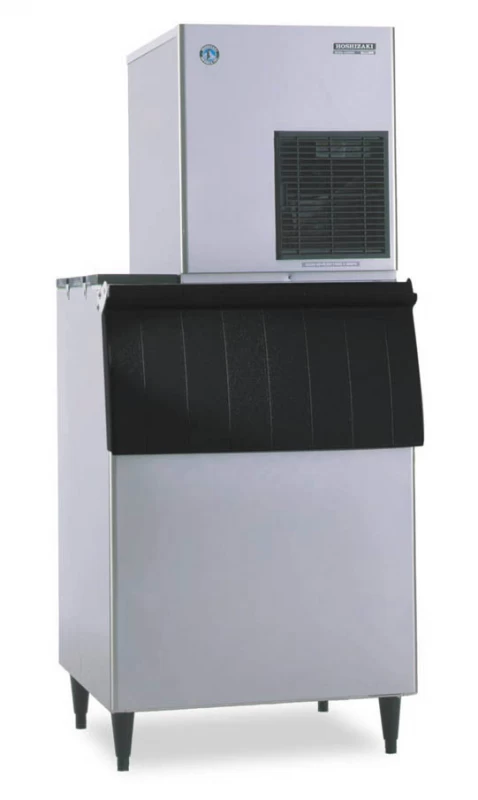

Name: Flaker Icemaker, Air-cooled
Brand: Hoshizaki
SKU: F801MAJ
Availability: BackOrder

Flaker Icemaker, Air-cooled

Model : #F801MAJ

Flaker Icemaker, Air-cooled

Model: F801MAJ

+2more

Flaker Icemaker, Air-cooled

Model: F801MAJ

Color : Stainless Steel

Key Features

Up to 751 lbs of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650
Produces flaked ice
Mount 2 units side-by-side for 2x the ice production
2 second rinse every hour to remove sediment for cleaner ice
Infrared bin control for easy cleaning and reliability
R-404A refrigerant (1 lbs. 12 oz. / 790 g)

Description

The F-801MAJ is capable of producing approximately 751 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Slim Line Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-801MAJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.

Documents

Specification Sheet

View | Download

PDF, 1.21 MB

Parts Manual

View | Download

PDF, 4.67 MB

Warranty Statement

View | Download

PDF, 1022.59 KB

Instruction Manual

View | Download

PDF, 6.71 MB

Service Manual

View | Download

PDF, 6.24 MB

Available from Slyman Bros, serving customers throughout Missouri.

Features

Specifications

Features

Up to 751 lbs of ice produced per 24 hours

Durable stainless steel exterior

Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650

Produces flaked ice

Mount 2 units side-by-side for 2x the ice production

2 second rinse every hour to remove sediment for cleaner ice

Infrared bin control for easy cleaning and reliability

R-404A refrigerant (1 lbs. 12 oz. / 790 g)

4.5 kwh/100 lbs.@ 90/70

Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included

Three Years: Parts & Labor warranty on entire machine.

11.8 amps (15 Amp Max fuse)

Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Advanced CleanCycle24™ design

Heat Rejection: BTU/hr

ENERGY STAR® qualified

Specifications

Product Details

Electrical Specs	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 11.8, Max Fuse/HACR Breaker: 15 A
Utility Consumption	4.5 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 12 oz. / 790
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	200

Dimensions & Weight
