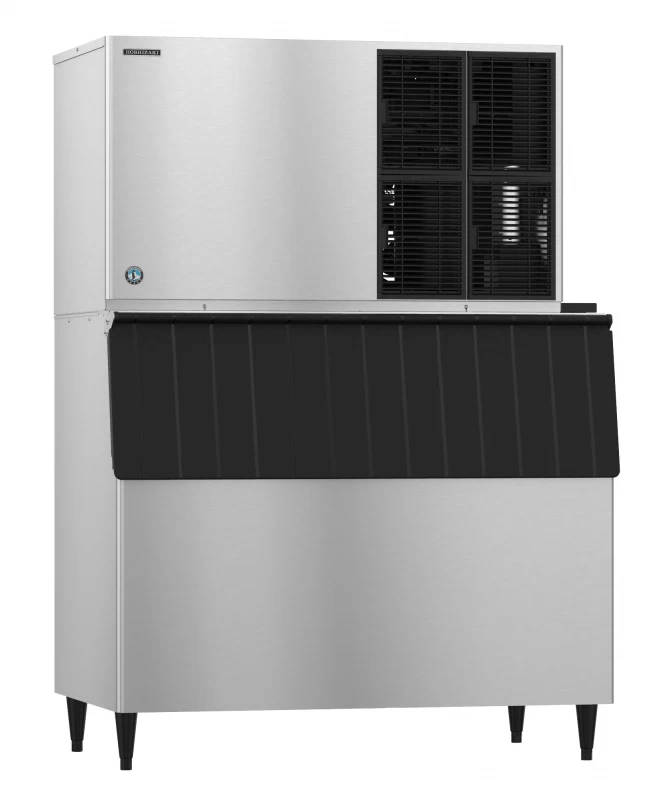

Name: Crescent® Cuber Icemaker, Air-cooled, 50Hz Electrical
Brand: Hoshizaki
SKU: KM1301SAJE
Availability: BackOrder

Crescent® Cuber Icemaker, Air-cooled, 50Hz Electrical

Model : #KM1301SAJE

Crescent® Cuber Icemaker, Air-cooled, 50Hz Electrical

Model: KM1301SAJE

Crescent® Cuber Icemaker, Air-cooled, 50Hz Electrical

Model: KM1301SAJE

Color : Stainless Steel

Key Features

Dimensions: 1219mm W x 695mm D x 695mm H
Up to 624 kg of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
R-404A refrigerant (1900 g)
4.52 kwh/100 lbs.@ 90/70

Description

The KM-1301SAJ-E is capable of producing approximately 624 kg of crescent cubed ice. Our efficient double-sided KMEdge™ stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Stackable, 50Hz Electrical icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1301SAJ-E has a 50Hz electrical, 220-240v/50/1 3 wire, including ground. Must be hardwired at site, no cord/plug included. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Documents

Specification Sheet

View | Download

PDF, 1.07 MB

Parts Manual

View | Download

PDF, 2.01 MB

Warranty Statement

View | Download

PDF, 999.31 KB

Service Manual

View | Download

PDF, 1.39 MB

Available from Slyman Bros, serving customers throughout Missouri.

Features

Specifications

Features

Dimensions: 1219mm W x 695mm D x 695mm H

Up to 624 kg of ice produced per 24 hours

Durable stainless steel exterior

Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650

Stack 2 units for 2x the ice production

Produces crescent shaped ice cubes

R-404A refrigerant (1900 g)

4.52 kwh/100 lbs.@ 90/70

50Hz electrical, 220-240v/50/1 3 wire, including ground. Must be hardwired at site, no cord/plug included

Clean ice and easy maintenance lead to longer unit life span

11.35 amps (20 Amp Max fuse)

EverCheck™ alert system

CycleSaver™ design

“-E”: 50Hz Electrical Model

Heat Rejection: 16100 BTU/hr

Warranty: Contact factory for warranty information

Specifications

Product Details

Electrical Specs	50Hz electrical, 220-240v/50/1 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 11.35, Max Fuse/HACR Breaker: 20 A
Utility Consumption	4.52 kWh per 100 lbs @ 90/70, 34.9 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 7 – 38°C, Water Temp Range: 7 – 32°C, Water Pressure: 70 – 779kpa, Voltage Range: 198 – 254V, Heat Rejection: 16100 BTU/hr, Refrigerant Charge: R-404A, (4 lbs. 3 oz. / 190
Plumbing Specs	1/2″ FPT Inlet, Minimum 10 mm Nominal OD Copper Water Tubing or Equivalent, 19.05 mm FPT Outlet, Minimum 18 mm Nominal OD Hard Pipe or Equivalent
Shipping Weight	340
Warranty	Warranty: Contact factory for warranty information.
