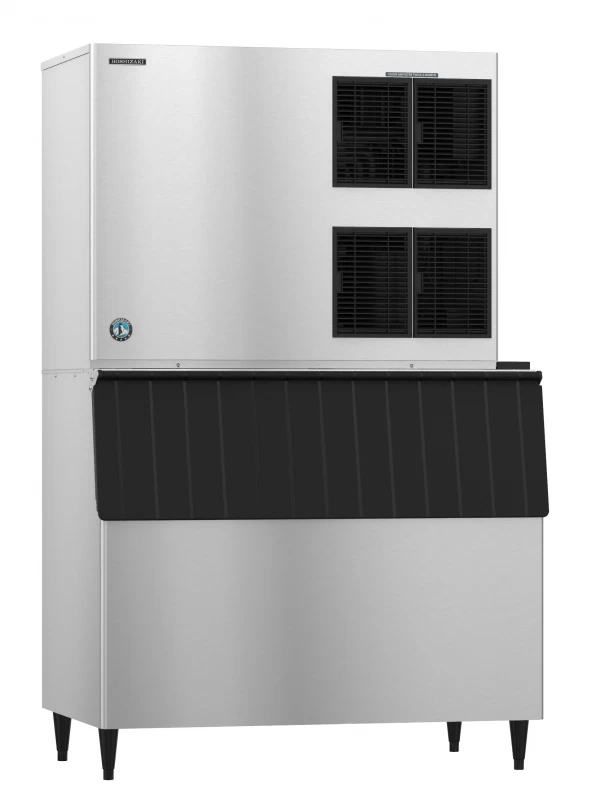

Name: Crescent® Cuber Icemaker, Air-cooled
Brand: Hoshizaki
SKU: KM1900SAJ
Availability: BackOrder

Crescent® Cuber Icemaker, Air-cooled

Model : #KM1900SAJ

Crescent® Cuber Icemaker, Air-cooled

Model: KM1900SAJ

Crescent® Cuber Icemaker, Air-cooled

Model: KM1900SAJ

Color : Stainless Steel

Key Features

Up to 1875 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
14.5 amps (30 Amp Max fuse)
4.1 kwh/100 lbs.@ 90/70
Single phase, 208-230v/60/1, 4 wire, including ground. If neutral is not available transformer kit (HS-5030) is required

Description

The KM-1900SAJ is capable of producing approximately 1875 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge ™ stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Stackable icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1900SAJ requires a Single phase, 208-230v/60/1, 4 wire, including ground. If neutral is not available transformer kit (HS-5030) is required electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.

Documents

Parts Manual

View | Download

PDF, 4.79 MB

Instruction Manual

View | Download

PDF, 3.92 MB

Service Manual

View | Download

PDF, 4.40 MB

Warranty Statement

View | Download

PDF, 999.31 KB

Specification Sheet

View | Download

PDF, 1.82 MB

Spec

View | Download

PDF, 1.66 MB

Available from Slyman Bros, serving customers throughout Missouri.

Features

Specifications

Features

Up to 1875 lbs of ice produced per 24 hours

Stack 2 units for 2x the ice production

Produces crescent shaped ice cubes

Durable stainless steel exterior

Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650

14.5 amps (30 Amp Max fuse)

4.1 kwh/100 lbs.@ 90/70

Single phase, 208-230v/60/1, 4 wire, including ground. If neutral is not available transformer kit (HS-5030) is required

EverCheck™ alert system

CycleSaver™ design

R-404A refrigerant (4 lbs. 10.1 oz. / 2100 g)

ENERGY STAR® qualified

Integrated ultrasonic bin control

Simple, one-hour cleaning and assisted cleaning process with CleanAssist

Heat Rejection: 21200 BTU/hr

Three Years: Parts & Labor warranty on entire machine

Five Years: Parts & Labor warranty on evaporator

Specifications

Product Details

Electrical Specs	Single phase, 208-230v/60/1, 4 wire, including ground. If neutral is not available transformer kit (HS-5030) is required, Amperage: 14.5, Max Fuse/HACR Breaker: 30 A
Utility Consumption	4.1 kWh per 100 lbs @ 90/70, 18.8 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 21200 BTU/hr, Refrigerant Charge: R-404A, (4 lbs. 10.1 oz
Plumbing Specs	1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight	405

Dimensions & Weight
