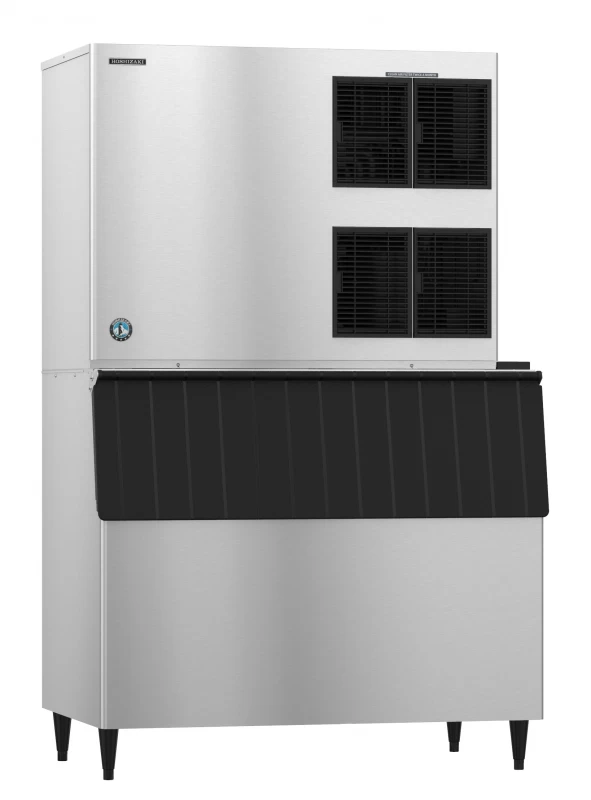

Name: Crescent® Cuber Icemaker, Air-cooled, 3 Phase
Brand: Hoshizaki
SKU: KM1900SAJ3
Availability: BackOrder

Crescent® Cuber Icemaker, Air-cooled, 3 Phase

Model : #KM1900SAJ3

Crescent® Cuber Icemaker, Air-cooled, 3 Phase

Model: KM1900SAJ3

Crescent® Cuber Icemaker, Air-cooled, 3 Phase

Model: KM1900SAJ3

Color : Stainless Steel

Key Features

Up to 1865 lbs of ice produced per 24 hours
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
4.1 kwh/100 lbs.@ 90/70
Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included
8.9 amps (20 Amp Max fuse)

Description

The KM-1900SAJ3 is capable of producing approximately 1865 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided KMEdge™ stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Stackable, 3 Phase icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1900SAJ3 requires a Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.

Documents

Instruction Manual

View | Download

PDF, 3.92 MB

Parts Manual

View | Download

PDF, 4.79 MB

Service Manual

View | Download

PDF, 4.40 MB

Warranty Statement

View | Download

PDF, 999.31 KB

Specification Sheet

View | Download

PDF, 1.82 MB

Spec

View | Download

PDF, 1.66 MB

Available from Slyman Bros, serving customers throughout Missouri.

Features

Specifications

Features

Up to 1865 lbs of ice produced per 24 hours

Durable stainless steel exterior

Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650

Stack 2 units for 2x the ice production

Produces crescent shaped ice cubes

4.1 kwh/100 lbs.@ 90/70

Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included

8.9 amps (20 Amp Max fuse)

EverCheck™ alert system

CycleSaver™ design

R-404A refrigerant (4 lbs. 10.1 oz. / 2100 g)

ENERGY STAR® qualified

Integrated ultrasonic bin control

Simple, one-hour cleaning and assisted cleaning process with CleanAssist

Heat Rejection: 20900 BTU/hr

Three Years: Parts & Labor warranty on entire machine

Five Years: Parts & Labor warranty on evaporator

Specifications

Product Details

Electrical Specs	Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 8.9, Max Fuse/HACR Breaker: 20 A
Utility Consumption	4.1 kWh per 100 lbs @ 90/70, 17 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 187 – 253V, Heat Rejection: 20900 BTU/hr, Refrigerant Charge: R-404A, (4 lbs. 10.1 oz
Plumbing Specs	1/2″ FPT Inlet, Minimum 3/8″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight	415

Dimensions & Weight
