Name: Crescent® Cuber Icemaker, Air-cooled
Brand: Hoshizaki
SKU: KM520MAJ
Availability: BackOrder

Crescent® Cuber Icemaker, Air-cooled

Model : #KM520MAJ

Crescent® Cuber Icemaker, Air-cooled

Model: KM520MAJ

+1more

Crescent® Cuber Icemaker, Air-cooled

Model: KM520MAJ

Color : Stainless Steel

Key Features

Up to 556 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior

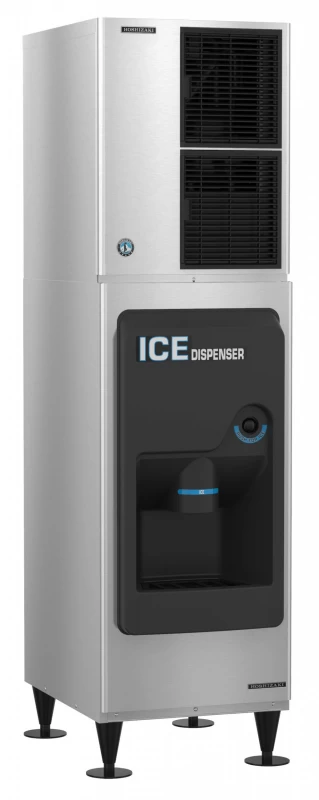

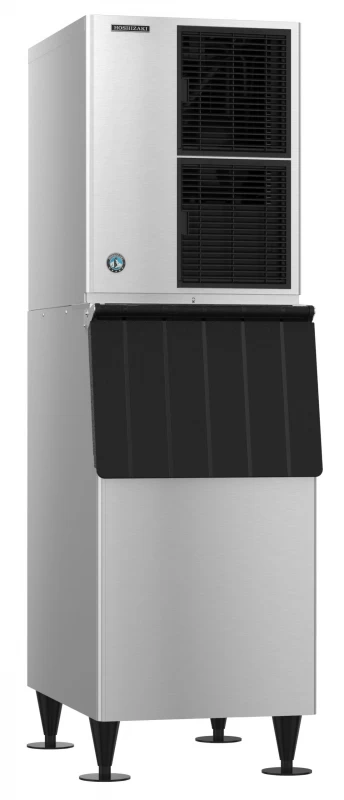

Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
R-404A refrigerant (1 lbs. 10.8 oz. / 760 g)
10.6 amps (20 Amp Max fuse)
4.68 kwh/100 lbs.@ 90/70

Description

The KM-520MAJ is capable of producing approximately 556 lbs of crescent cubed ice. Our efficient double-sided KMEdge™ stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Slim Line Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-520MAJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.

Documents

Specification Sheet

View | Download

PDF, 1.78 MB

Instruction Manual

View | Download

PDF, 4.87 MB

Warranty Statement

View | Download

PDF, 999.31 KB

Parts Manual

View | Download

PDF, 3.58 MB

Service Manual

View | Download

PDF, 5.81 MB

Available from Slyman Bros, serving customers throughout Missouri.

Features

Specifications

Features

Up to 556 lbs of ice produced per 24 hours

Mount 2 units side-by-side for 2x the ice production

Produces crescent shaped ice cubes

Durable stainless steel exterior

Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B

R-404A refrigerant (1 lbs. 10.8 oz. / 760 g)

10.6 amps (20 Amp Max fuse)

4.68 kwh/100 lbs.@ 90/70

Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included

EverCheck™ alert system

CycleSaver™ design

ENERGY STAR® qualified

Heat Rejection: 7000 BTU/hr

Three Years: Parts & Labor warranty on entire machine

Five Years: Parts & Labor warranty on evaporator

Specifications

Product Details

Utility Consumption	4.68 kWh per 100 lbs @ 90/70, 14.7 gal of Potable Water per 100 lbs @ 90/70
Electrical Specs	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included., Amperage: 10.6, Max Fuse/HACR Breaker: 20 A
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 7000 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 10.8 oz.
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Drain Hard Pipe or Equivalent
Shipping Weight	175

Dimensions & Weight
