Name: Crescent® Cuber Icemaker, Remote-cooled
Brand: Hoshizaki
SKU: KMD505MRJZ
Availability: BackOrder

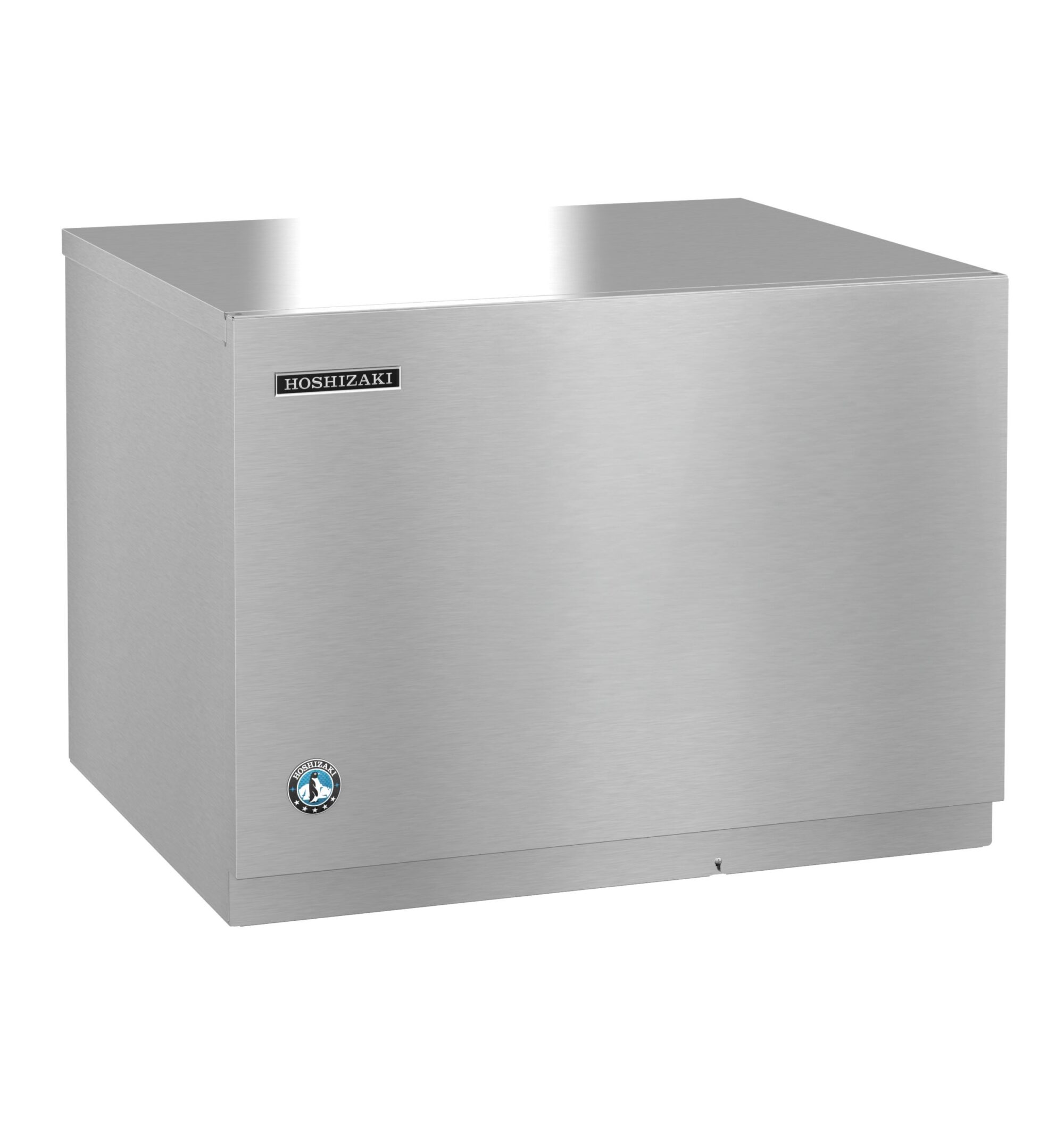

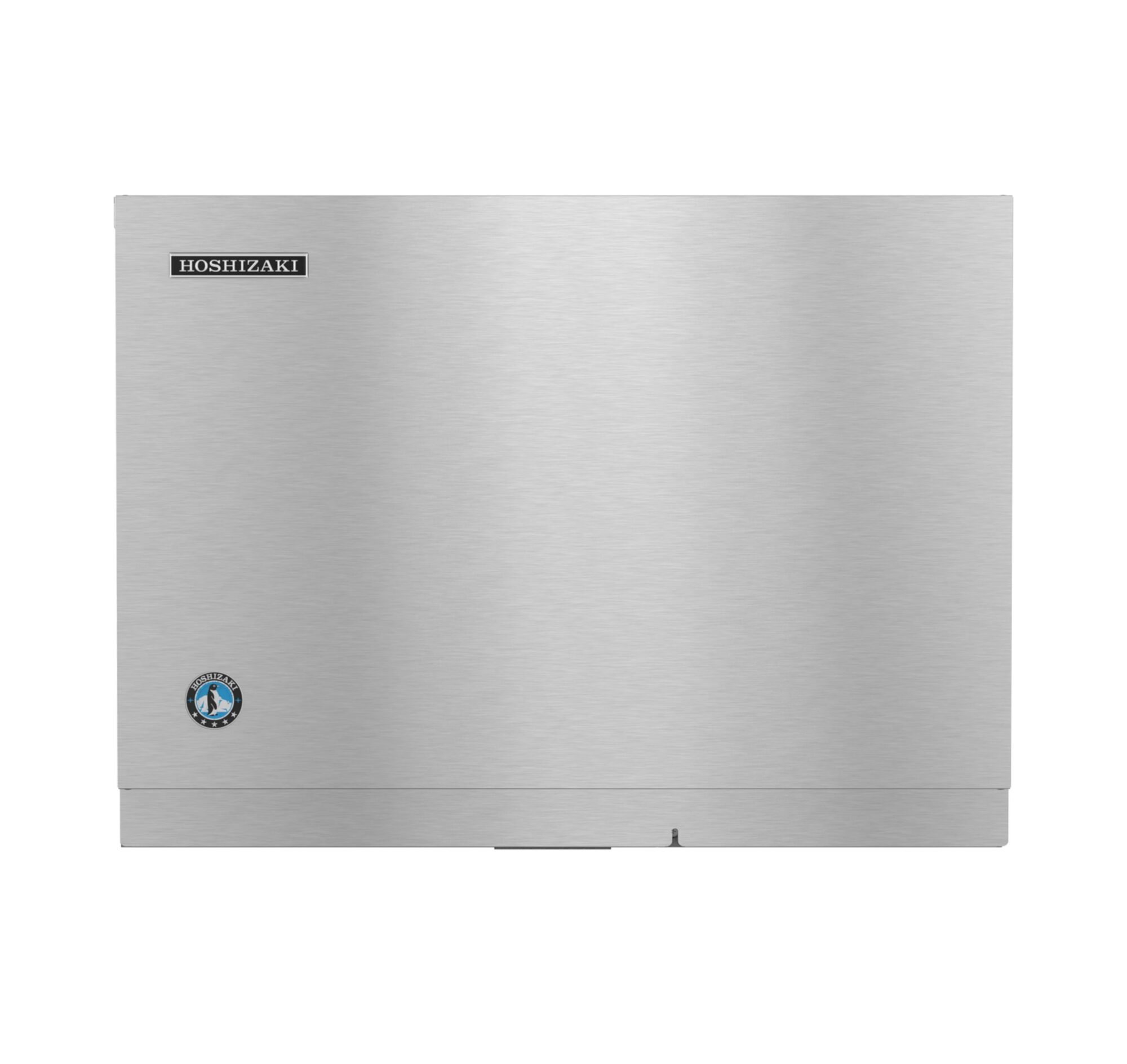

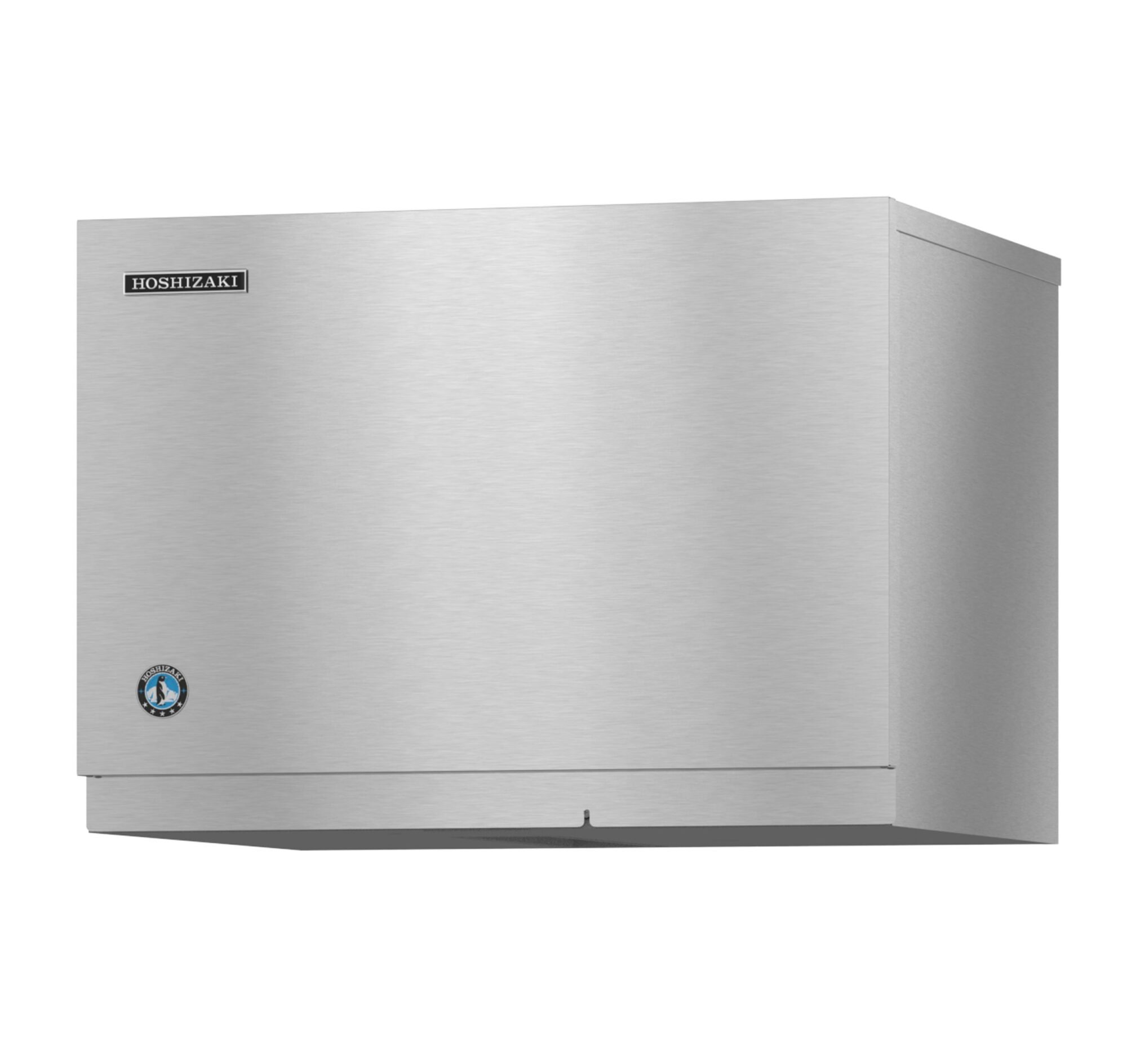

Crescent® Cuber Icemaker, Remote-cooled

Model : #KMD505MRJZ

Crescent® Cuber Icemaker, Remote-cooled

Model: KMD505MRJZ

Crescent® Cuber Icemaker, Remote-cooled

Model: KMD505MRJZ

Color : Stainless Steel

Key Features

Up to 560 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Durable stainless steel exterior
Produces crescent shaped ice cubes
Simple one-hour cleaning process
R-404A refrigerant (2 lbs. 13.9 oz. / 1301 g)
12.4 amps (20 Amp Max fuse)
4.15 kwh/100 lbs.@ 90/70

Description

The KMD-505MRJZ is capable of producing approximately 560 lbs of crescent cubed ice. Hoshizaki’s efficient double-sided KMEdge™ stainless steel evaporators create its unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Remote-cooled icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-505MRJZ requires a 115v/60/1 electrical connection that is hard-wired at the installation site. Please consult the Specification Sheet for additional details.

Documents

Instruction Manual

View | Download

PDF, 4.15 MB

Service Manual

View | Download

PDF, 5.00 MB

Warranty Statement

View | Download

PDF, 999.31 KB

Available from Slyman Bros, serving customers throughout Missouri.

Features

Specifications

Features

Up to 560 lbs of ice produced per 24 hours

Mount 2 units side-by-side for 2x the ice production

Durable stainless steel exterior

Produces crescent shaped ice cubes

Simple one-hour cleaning process

R-404A refrigerant (2 lbs. 13.9 oz. / 1301 g)

12.4 amps (20 Amp Max fuse)

4.15 kwh/100 lbs.@ 90/70

Clean ice and easy maintenance lead to longer unit life span

Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included

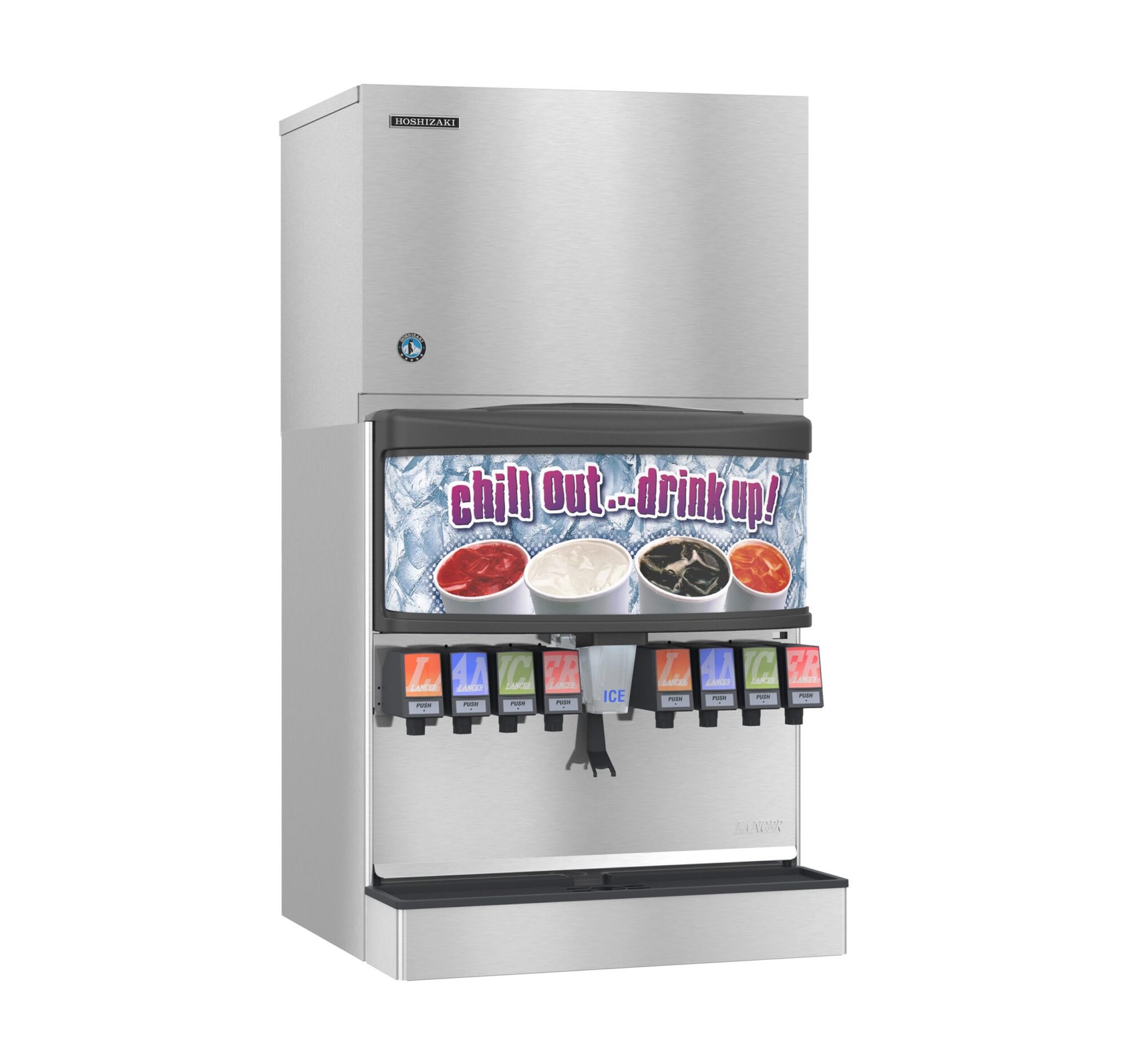

Compatible bins & dispensers, sold separately: B-250, B-500, BD-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H

EverCheck™ alert system

CycleSaver™ design

Heat Rejection: 7900 BTU/hr

Three Years: Parts & Labor warranty on entire machine

Five Years: Parts & Labor warranty on evaporator

Specifications

Product Details

Electrical Specs	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 12.4, Max Fuse/HACR Breaker: 20 A
Utility Consumption	4.15 kWh per 100 lbs @ 90/70, 21 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 7900 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 13.9 oz.
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 3/4″ Nominal ID Hard Pipe or Equivalent
Shipping Weight	176
