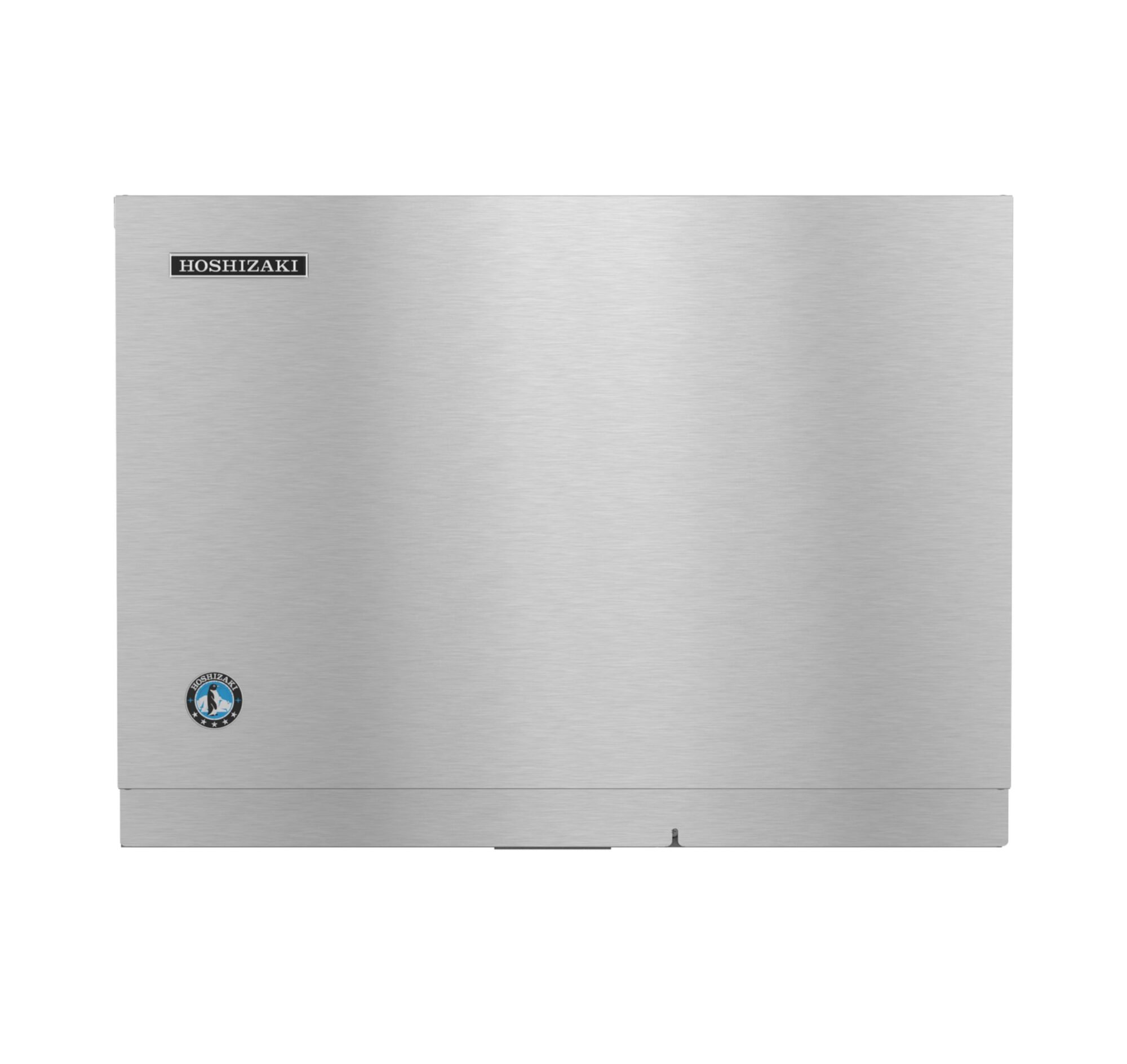

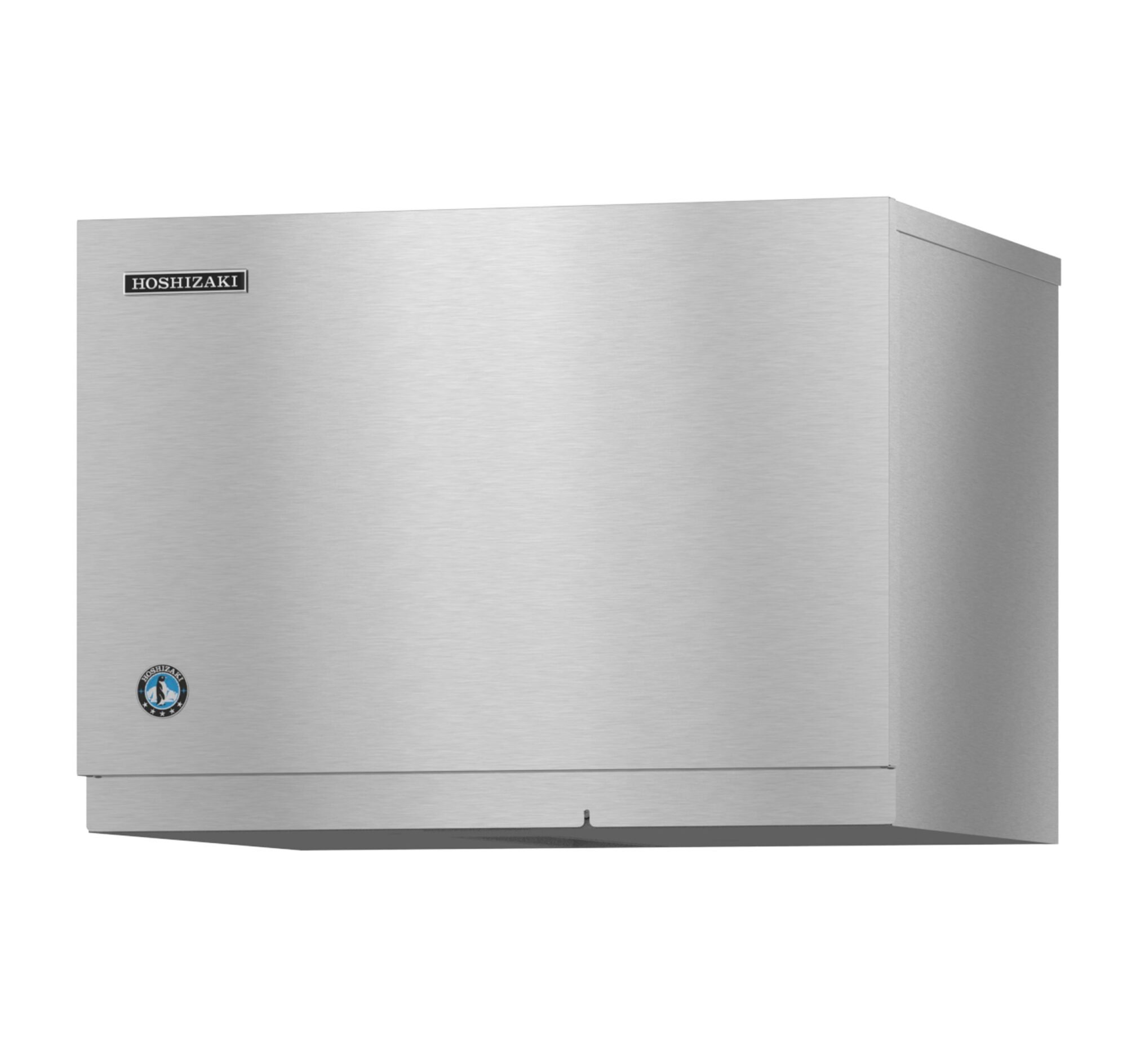

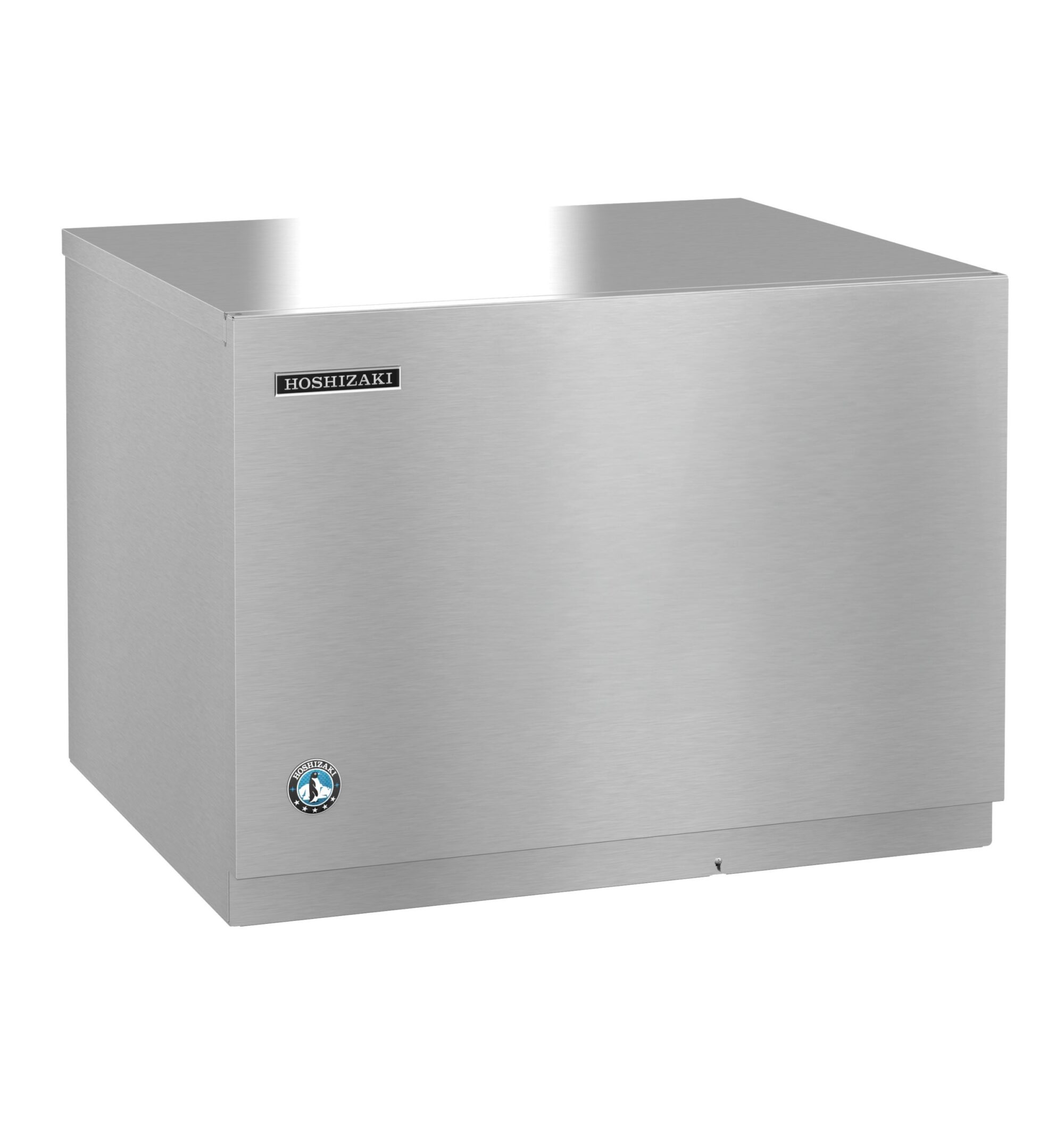

Name: Crescent® Cuber Icemaker, Water-cooled
Brand: Hoshizaki
SKU: KMD505MWJ
Availability: BackOrder

Crescent® Cuber Icemaker, Water-cooled

Model : #KMD505MWJ

Crescent® Cuber Icemaker, Water-cooled

Model: KMD505MWJ

Crescent® Cuber Icemaker, Water-cooled

Model: KMD505MWJ

Color : Stainless Steel

Key Features

Up to 592 lbs of ice produced per 24 hours
Produces crescent shaped ice cubes
Durable stainless steel exterior
Mount 2 units side-by-side for 2x the ice production
Simple one-hour cleaning process
R-404A refrigerant (15.9 oz. / 451 g)
11 amps (20 Amp Max fuse)
5.7 kwh/100 lbs.@ 90/70

Description

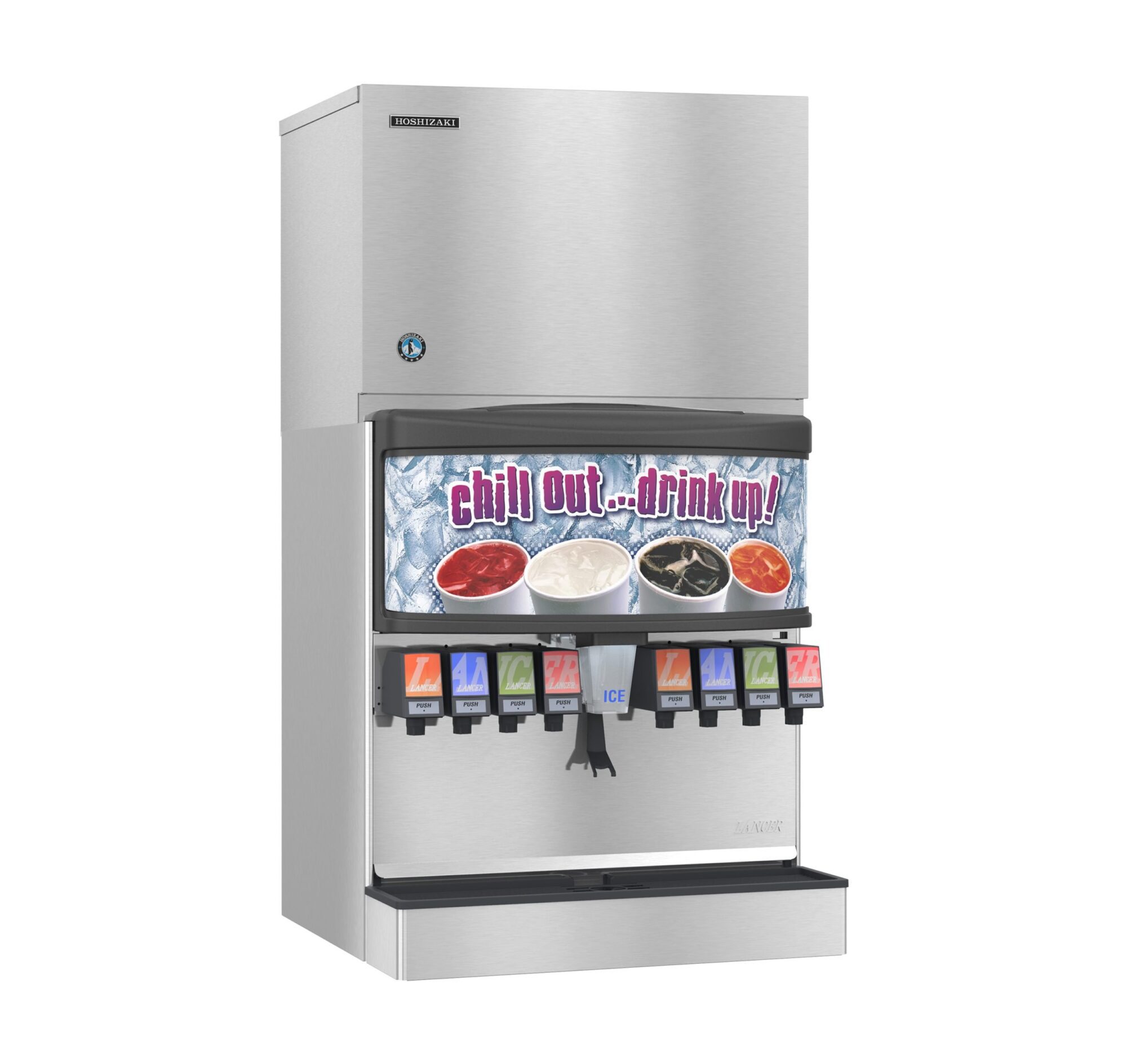

The KMD-505MWJ is capable of producing approximately 592 lbs of crescent cubed ice. Hoshizaki’s efficient double-sided KMEdge™ stainless steel evaporators create its unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Water-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-505MWJ requires a 115v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, BD-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H. Please consult the Specification Sheet for additional details.

Documents

Instruction Manual

View | Download

PDF, 4.15 MB

Service Manual

View | Download

PDF, 5.00 MB

Warranty Statement

View | Download

PDF, 999.31 KB

Available from Slyman Bros, serving customers throughout Missouri.

Features

Specifications

Features

Up to 592 lbs of ice produced per 24 hours

Produces crescent shaped ice cubes

Durable stainless steel exterior

Mount 2 units side-by-side for 2x the ice production

Simple one-hour cleaning process

R-404A refrigerant (15.9 oz. / 451 g)

11 amps (20 Amp Max fuse)

5.7 kwh/100 lbs.@ 90/70

Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included

Clean ice and easy maintenance lead to longer unit life span

Compatible bins & dispensers, sold separately: B-250, B-500, BD-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H

EverCheck™ alert system

CycleSaver™ design

Heat Rejection: 8600 BTU/hr

Three Years: Parts & Labor warranty on entire machine

Five Years: Parts & Labor warranty on evaporator

Specifications

Product Details

Electrical Specs	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 11, Max Fuse/HACR Breaker: 20 A
Utility Consumption	5.7 kWh per 100 lbs @ 90/70, 26.1 gal of Potable Water per 100 lbs @ 90/70
Operating Limits	Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 8600 BTU/hr, Refrigerant Charge: R-404A, (15.9 oz. / 451
Plumbing Specs	1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 3/4″ FPT Outlet, Minimum 1/4″ Nominal ID Drain Hard Pipe or Equivalent, Minimum 1/4″ Nominal ID Drain Hard Pipe or E
Shipping Weight	176
